Network Board

Operating Instructions

Model No. WJ-PB65E01E

VideoOutput Board1 Only

Nework OUTX-1

ALARMOUT1

ALARMOUT2

10/100BASE-T

Before attempting to connect or operate this product, please read these instructions carefully and save this manual for future use.

Along with this document, refer to Central Processing Unit

WJ-MPU955A Operating Instructions for major operating

References

controls, their functions, and switch settings.

Preface

Network Board WJ-PB65E01E is designed for the connection

with Central Processing Unit WJ-MPU955A and system

expansion of Matrix Switcher WJ-SX650 Series.

Trademarks and Registered Trademarks

• Microsoft and Windows are either registered trade-

marks or trademarks of Microsoft Corporation in the

United States and/or other countries.

• Intel and Pentium are trademarks or registered trade-

marks of Intel Corporation or its subsidiaries in the

United States and other countries.

• Other names of companies and products contained in

these operating instructions may be trademarks or reg-

istered trademarks of their respective owners.

CAUTION: These servicing instructions are for use by qual-

ified service personnel only. To reduce the risk of elec-

tric shock do not perform any servicing other than that

contained in the operating instructions unless you are

qualified to do so.

• Do not attempt to disassemble the apparatus.

To prevent electric shock, do not remove screws or

covers.

There are no user-serviceable parts inside. Contact

qualified service personnel for maintenance.

Precautions

• Do not strike or give a strong shock to the appara-

tus.

It may cause damage or allow water to enter the appa-

ratus.

• Pay attention to static electricity

Make certain to keep boards inside the anti-static sack

until it is installed.

Put your hand on a metallic surface, other than the

boards to discharge static electricity before installation.

Do not touch components mounted on the boards

directly by hand.

Hold only both edges of the boards when installing.

Major Operating Controls and Their Functions

■Front View

NETWORK OUT X-1

ALARM OUT 2 ALARM OUT 1

SERIAL

VS OUT

VS IN

VS OUT

(THRU)

Video Output Board 1 Only

10/100 BASE-T

q r yt

qEthernet Port (10/100BASE-T)

This port is used for connection with Central Processing

Unit WJ-MPU955A via an Ethernet network.

LINK indicator: This indicator lights up when the matrix

switcher is linked to a network through this port.

ACT indicator: This indicator lights up when the matrix

switcher receives or sends data through this port.

wAlarm Output Ports 1, 2 (ALARM OUT 1, 2)

Supplies alarm output signals controlled by Central

Processing Unit WJ-MPU955A.

Note: Refer to WJ-SX650 Series Operating Instructions

for the ALARM OUT port details. (Pin Nos. 3, 5, 7, 9,

12, 14, 16, 18, 36, and 37 are unavailable.)

eVS Input Connector (VS IN)

Accepts a VS input signal from an external device.

rVS Output Loop-thru Connector (VS OUT (THRU))

Loops through VS input signals supplied to e.

tVS Output Connector (VS OUT)

Supplies VS output signals to external devices. While e

is accepting a VS input signal, tsupplies an output

signal synchronizing the VS input signal. While eis not

accepting the VS input signal, tsupplies an internal

synchronization output signal.

ySerial Port (SERIAL)

Connects to a PC.

LINK indicator

ACT indicator

Features

• With this board, the network connection between

Central Processing Unit WJ-MPU955A and Matrix

Switcher WJ-SX650 Series becomes available to

expand the system composition. Up to 512 cameras

and 64 monitors become connectable.

Board Mounting Procedure

The following example is the procedure to mount a network

board into the OUT X-1 slot of WJ-SX650 Series.

Notes:

• This network board can be inserted into the OUT X-1

slot only.

• Before the procedure, power off WJ-SX650 Series.

• Remove the screws and fixing brackets surely when

dismounting.

• Fix the screws surely when mounting.

• Do not hit the boards against the chassis of WJ-SX650

Series.

1. Remove the front panel by loosening the screws.

2. Dismount the video output main board from the front

side.

3. Dismount the OUT X-1 board from the rear side.

4. Mount the network board into the OUT X-1 slot, and fix

the board with the supplied screws.

5. Mount the video output main board by hooking the

board stoppers on the board stopper angles at the front

side, by pushing down the board stoppers, and by fix-

ing the screws. Then, attach the front panel.

Note: When mounting, insert the main board surely into

slits.

Matrix Switcher WJ-SX

650

OPERATE

Video output main board

Fixing brackets (x4)

Screws (x8)

SIGNALGND

TERM.ON

MODE

TERM.OFF

MODE

DATA4

HDR4/TMNL8

HDR2/TMNL4

DATA3

HDR3/TMNL7

HDR1/TMNL3

DATA2

TMNL6

TMNL2

DATA1

TMNL5

TMNL1/PSDATA

VideoOutputBoard2

VideoOutputBoard1

OUT X-1 board

Fixing brackets (x2)

Screws (x2)

SIGNAL GND

SIGNALGND

TERM.ON

MODE

TERM.OFF

MODE

DATA4

HDR4/TMNL8

HDR2/TMNL4

DATA3

HDR3/TMNL7

HDR1/TMNL3

DATA2

TMNL6

TMNL2

DATA1

TMNL5

TMNL1/PSDATA

VideoOutput Board 2

VideoOutput Board 1

Network board

Board stopper angle

Board stopper

•Mount the main board into the slot.

•Fix the board with the screws (x3).

•Attach the fixing brackets (x4) with the screws (x8).

Fixing brackets (x4)

Screws (x8)

Hook the board stoppers on

the board stopper angles, and

push down the board

stoppers.

Firmware Update

This chapter explains about how to update the firmware

version of WJ-SX650 Series. To update the firmware ver-

sion, installation of the Firmware update tool on the PC is

required.

■System Requirements of a PC

The PC should meet the following requirements.

OS:

Microsoft®Windows®2000 Professional SP4

Microsoft®Windows®XP Professional SP2

Microsoft®Windows®XP Home Edition SP2

Note: To work the Firmware update software on the PC,

Microsoft®.NET Framework 1.1 needs to be installed.

If you try to install the Firmware update software on a

PC without Microsoft®.NET Framework 1.1, it will be

installed along with the software.

OS language:

English

PC:

IBM PC/AT Compatible

CPU:

Intel®Pentium®3, 500 MHz or faster

Memory:

128 MB or more

Hard drive space:

30 MB or more for installation of the Firmware update soft-

ware

50 MB or more for installation of WJ-SX650 Series Initial

Setup Tool

Note: If Microsoft®.NET Framework 1.1 has not been

installed on the PC, 160 MB or more is required.

Monitor:

1 024 x 768 pixels or more, HIGH color 16 bit or more

Serial Interface:

9-pin D-sub connector

■Installation and Uninstallation

●Installation

1. Insert the supplied CD-ROM into the CD-ROM drive on

the PC.

2. Double-click "setup.exe" in the "PWriter" folder of CD-

ROM.

The installation wizard will be displayed on the PC

screen.

3. Follow the instruction message on the PC screen to

complete the installation.

Note: In the factory default installation, C:\Program

Files\Panasonic\Firmware is created, and files will be

copied to the directory.

●Uninstallation

1. Select "Control Panel" - "Add/Remove Programs".

Add/Remove Programs window will be displayed on the

PC screen.

2. Select "Firmware version up software". Click "Remove"

or "Change/Remove", and follow the directions.

Note: If the Firmware update software has already been

installed on a PC, installation is impossible.

Install the application again after uninstallation.

■PC Connection

An RS-232C crossing cable (9-pin D-sub) is used for con-

nection between WJ-SX650 Series and PC.

<SERIAL port> (Output rear board)

VIDEO OUT 3

VIDEO OUT 4 VIDEO OUT 2

MODEMODEMODEMODE

INX-2

INX-1

VIDEO OUT 1

ALARMIN

31 30

14 13

29 28

12 11

27 26

10 9

CAMERAIN

23 22

19 18

DATA DATA

EXTENSION1

TERM.

OFF ON

OUT IN

OUTX-3

OUTX-2

1234

ACIN

12345678

MONITOROUT

910111213141516

ALARMOUT 2 ALARMOUT 1

SERIAL

VSOUT

VSIN

VSOUT

(THRU)

EXTENSION 3 IN EXTENSION 2 IN

MODE

RS485(CAMERA) RS485(CAMERA)

MODE MODE MODE

INC-3

MODE

RS485(CAMERA) RS485(CAMERA)

MODE MODE MODE

INB-3

TERM.OFF

MODE

TERM.ON

MODE

SIGNALGND

DATA4

HDR4/TMNL8

HDR2/TMNL4

DATA3

HDR3/TMNL7

HDR1/TMNL3

DATA2

TMNL6

TMNL2

DATA1

TMNL5

TMNL1/PSDATA

VideoOutput Board 2

VideoOutput Board 1

SIGNALGND

VideoOutput Board 1 Only

4-Line

RS485(CAMERA)SET UP

MODE

4-Line

MODE

NETWORKOUT X-1

10/100BASE-T

9-pin D-sub

(Female)

9-pin D-sub

(Female)

Rear Side of WJ-SX650 Series

(WJ-PB65E01 installed)

Cross cable

<TEST port> (Output front board)

■Firmware Update Procedure

Note: The following is the procedure when using the

Windows XP operating system.

If you performed wrong operations, the monitor display

will return to Step 3. In this case, retry the operations.

1. Select "Start" - "All Programs" - "Panasonic" - "Firmware

version up software" - "Firmware version up software

x.xx". (x.xx is the version number.) Then, run the pro-

gram.

2. Firmware update software will start up, and the login

window will be displayed on the PC screen.

Enter the user name and password. The factory default

is as follows.

User Name: user

Password: 12345

3. Click "OK". "Firmware update software" window is dis-

played. Then, click "WJ-SX650 Series".

4. The following message will be displayed. Then, click

"OK".

5. "File Selection" window is displayed.

Click "Browse" to select the firmware file of WJ-SX650

Series for update.

The file is located in the following directory.

E:\PWriter\SX650_vXXXXX_yyyy.mot

(E is the CD-ROM drive, "X" is the software version, and

"y" is the checksum.)

Note: Make a note of version displayed in the "File

Selection" window. The version will be required for

checking in Step 7.

6. Connect the SERIAL port of WJ-SX650 Series and PC.

(Refer to the illustration of <SERIAL port> in p. 4.)

Then, perform the firmware update by following the

instructions given.

Notes:

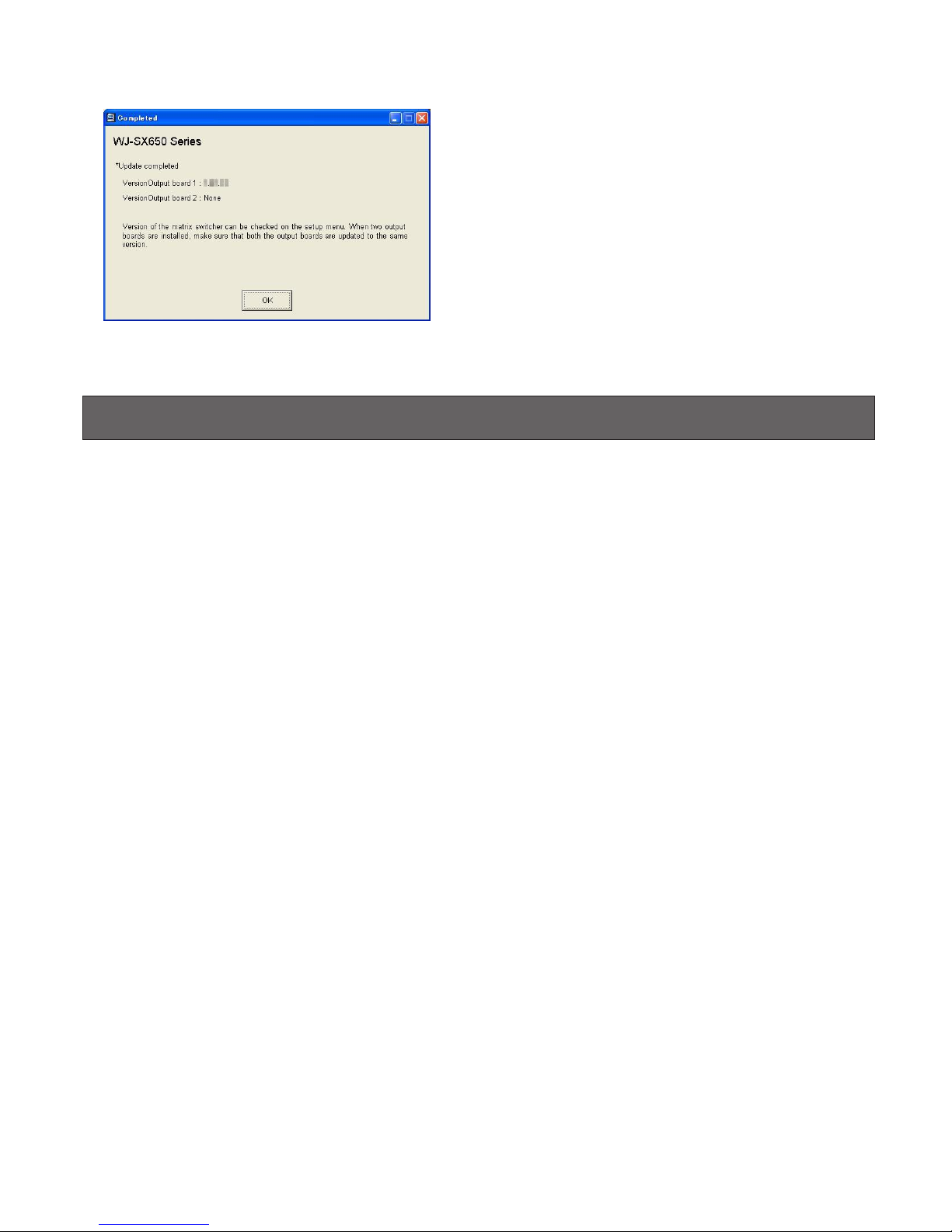

•Firmware update procedure is as follows:

Current version check →Firmware update →New

version check

If the current version is the same as the version you

have noted down in Step 5, firmware update is not

required.

•When the "Version check completed" message or

"Firmware update confirmation" message appears dur-

ing firmware update, reconnect the cable (SERIAL port

↔TEST port) and perform the MODE switch setting of

video output board for update.

SERIAL port: Connected for version check

TEST port: Connected for firmware update

Front side of WJ-SX650 Series

(Front panel detached)

9-pin D-sub

(Female)

9-pin D-sub

(Female)

Cross cable

PULL

POWER

OFF

RESET

No.

MODE

RESET

TEST

MODE

WJ-SX650 Series Initial Setup Tool

This chapter explains about WJ-SX650 Series Initial Setup

Tool. Before controlling WJ-SX650 Series Initial Setup Tool,

installation on the PC is required.

■Features

WJ-SX650 Series Initial Setup Tool is used for special con-

figuration of Matrix Switcher WJ-SX650 Series with network

card. (Usually, the modification of default configuration is

not required when a network card is installed.)

WJ-SX650 Series Initial Setup Tool has the following config-

uration menus:

• RS485 Camera

This menu is used for RS-485 camera settings.

Factory default: All coaxial cameras

Note: WJ-MPU955A Administration Console cannot config-

ure the RS-485 camera settings for the matrix switcher.

• OSD Character Font

This menu is used for adjusting the OSD font. When a user

set the camera title with WJ-MPU955A Administration

Console, the expected font is not displayed on monitors.

However, the user can change the SX650 Text Code by

selecting from the font list.

Factory default: Normal ASCII code

• Alarm Input State

In this menu, the user can reverse Normally Open contact

and Normally Close contact for alarm input ports.

Factory default: Normally Open

• Ethernet Communication

This menu is used for the Ethernet Communication

Property. Select "Auto Negotiation".

Factory default: Auto Negotiation

■Installation and Uninstallation

●Installation

1. Insert the supplied CD-ROM into the CD-ROM drive on

the PC.

2. Double-click "setup.exe" in the "Setup_Tool" folder of

CD-ROM.

The installation wizard will be displayed on the PC

screen.

3. Follow the instruction message on the PC screen to

complete the installation.

Note: In the factory default installation, C:\Program Files\

Panasonic\WJ-SX650Cnfg is created, and files will be

copied to the directory.

●Uninstallation

1. Select "Control Panel" –"Add/Remove Programs".

"Add/Remove Programs" window will be displayed on

the PC screen.

2. Select "WJ-SX650 Series Initial Setup Tool".

3. Click "Remove" or "Change/Remove", and follow the

directions.

Note: If WJ-SX650 Series Initial Setup Tool has already

been installed on a PC, installation is impossible. Install

the application again after uninstallation.

7. When finishing the firmware update, "Completed" win-

dow is displayed.

Check that the version of Video Output Board 1 is the

same as the version you have noted down in Step 5.

Notes:

•To prevent misuse, be sure to change the factory

default user name and password. The user name and

password can be changed by clicking "User setup" and

changing the settings.

•If the matrix switcher has Video Output Board 2, update

the firmware version of Video Output Board 2 by per-

forming Step 3 to 7.

■Starting Up

Note: The following is the procedure when using the

Windows XP operating system.

1. Select "Start" –"All Programs" –"Panasonic" –"WJ-

SX650 Series" –"WJ-SX650 Series Initial Setup Tool

x.xx". (x.xx is the version number.) Then, run the pro-

gram.

WJ-SX650 Series Initial Setup Tool will start up, and the

2. Enter the user name and password. The factory default

is as follows.

User Name: admin

Password: sx650

3. Click "OK". "WJ-SX650 Series Initial Setup Tool" window

is displayed.

4. To download setting data from WJ-SX650 Series, click

on the icon pointed in the illustration. "Download" win-

dow will be displayed.

5. Click on "Start Download". The setting data will be

downloaded from WJ-SX650 Series to the PC.

Note: Connect the SERIAL port of WJ-SX650 Series

and PC.

(Refer to the illustration of <SERIAL port> in p. 4.)

6. When download is complete, a message window is dis-

played. Then, click "OK". "RS485 Camera" –"RS485

Port" is displayed.

Note: If you upload the setting data from the PC to WJ-

SX650 Series while SETUP MENU is open on a monitor,

SETUP MENU will be closed forcibly. Settings per-

formed in SETUP MENU will be canceled and replaced

by those uploaded from the PC.

■Window Details

●Tool Bar

q:Downloads the current setup data of WJ-SX650

Series to the PC.

w:Uploads the setup data (configured in WJ-SX650

Series Initial Setup Tool) from the PC to WJ-SX650

Series.

e:Creates the initial settings.

r:Opens the file in which the setup data was saved.

t:Saves the setup data as a file.

y:Displays the information of video input board/out-

put board.

u:Displays the user settings page.

i:Displays the settings page of SERIAL port.

o:Displays the version of WJ-SX650 Series Initial

Setup Tool.

!0 These buttons are clicked when setting categories are

selected.

!1 Setting details are displayed when !0 is clicked.

!2 :Determines the settings.

!3 :Clears the settings.

Notes:

•Do not edit the setup data files by using text editors,

etc. You may become unable to open the setup data

files.

•To perform q, w, and y, WJ-SX650 Series needs to

be connected to the PC with an RS-232C cable.

!0 !1 !2 !3

qwert y u io

Ethernet Port: 10/100BASE-T, RJ-45 x 1

Alarm Output (ALARM OUT 1, 2)

Alarm Output: Open collector output x 32, Max. 24 V DC, 100 mA

VS Input: 1 V[P-P]/75 Ω(VS IN)

VS Output: (VS OUT (THRU)): VS loop-thru output

(VS OUT): 1 V[P-P]/75 Ω(VS)

Serial Port: 9-pin D-sub connector x 1

Dimensions

Network Board: 355 mm (W) X 38 mm (H) X 134 mm (D)

{14" (W) X 1-1/2" (H) X 5-3/10" (D)}

Specifications

Standard Accessories

Operating Instructions (This Document) ................................................ 1 pc.

CD-ROM ................................................................................................. 1 pc.

Note: The files specified below are included on the CD-ROM.

WJ-SX650 Series Firmware

Program Writer (Firmware update tool)

WJ-SX650 Series Initial Setup Tool

Matsushita Electric Industrial Co., Ltd.

Osaka, Japan

http://panasonic.net

Information on Disposal for Users of Waste Electrical & Electronic Equipment (private households)

This symbol on the products and/or accompanying documents means that used electrical and electronic products should not be

mixed with general household waste.

For proper treatment, recovery and recycling, please take these products to designated collection points, where they will be

accepted on a free of charge basis. Alternatively, in some countries you may be able to return your products to your local retailer

upon the purchase of an equivalent new product.

Disposing of this product correctly will help to save valuable resources and prevent any potential negative effects on human

health and the environment which could otherwise arise from inappropriate waste handling. Please contact your local authority

for further details of your nearest designated collection point.

Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.

For business users in the European Union

If you wish to discard electrical and electronic equipment, please contact your dealer or supplier for further information.

Information on Disposal in other Countries outside the European Union

This symbol is only valid in the European Union.

If you wish to discard this product, please contact your local authorities or dealer and ask for the correct method of disposal.

Table des matières

Autres manuels Panasonic Matériel informatique

Panasonic

Panasonic AW-HHD100N Manuel utilisateur

Panasonic

Panasonic MAYS0750Z Manuel utilisateur

Panasonic

Panasonic WJMPU955A - CENTRAL PROCESSING UNIT Manuel utilisateur

Panasonic

Panasonic MAZC062D Manuel utilisateur

Panasonic

Panasonic 2SB0792A Manuel utilisateur

Panasonic

Panasonic CF-BAB2048U Manuel utilisateur

Panasonic

Panasonic ET-MDNDP10 Manuel utilisateur

Panasonic

Panasonic Panaboard UB-5310 Manuel utilisateur

Panasonic

Panasonic TY-FB11DD - Monitor Terminal Expansion Board Manuel utilisateur

Panasonic

Panasonic TY-SB01QS Manuel utilisateur

Panasonic

Panasonic 2SC2295 Manuel utilisateur

Panasonic

Panasonic F77G Manuel utilisateur

Panasonic

Panasonic MTM86627 Manuel utilisateur

Panasonic

Panasonic ET-MCYDV100 Manuel utilisateur

Panasonic

Panasonic TY-FB10HMD - Monitor Terminal Expansion... Guide de l'utilisateur

Panasonic

Panasonic CF-VEB071 Manuel utilisateur

Panasonic

Panasonic ERB RD Manuel utilisateur

Panasonic

Panasonic AW-HHD870N Manuel utilisateur

Panasonic

Panasonic 2SC1473 Manuel utilisateur

Panasonic

Panasonic MANV250GE Manuel utilisateur

Panasonic

Panasonic AW-PB307P Manuel utilisateur

Panasonic

Panasonic 2SB1679 Manuel utilisateur

Panasonic

Panasonic CF-BAK0512U Manuel utilisateur

Panasonic

Panasonic CF-BAW0512AU Manuel utilisateur

Manuels Matériel informatique populaires d'autres marques

EMC2

EMC2 VNX Series Manuel du propriétaire

Mitsubishi Electric

Mitsubishi Electric Q81BD-J61BT11 Manuel utilisateur

Gigabyte

Gigabyte B660M DS3H AX DDR4 Manuel utilisateur

Raidon

Raidon iT2300 Manuel utilisateur

National Instruments

National Instruments PXI-8186 Manuel utilisateur

Hauppauge

Hauppauge WinTV-HVR-2250 Manuel utilisateur

Kontron

Kontron CP6002 Manuel utilisateur

Manhattan

Manhattan 702843 Manuel utilisateur

Aphex

Aphex 230 Manuel utilisateur

AMD

AMD Phenom II Manuel d'exploitation

Intel

Intel NUC 12 Pro Manuel utilisateur

dbx

dbx Zone Pro 1260 Manuel utilisateur

Galaxy

Galaxy GHDX2-2430S-24F4D Manuel utilisateur

Intel

Intel AXXRMFBU4 Manuel utilisateur

Kontron

Kontron DIMM-PC/MD Manuel utilisateur

ST X-NUCLEO-SAFEA1B Mode d'emploi

STEINWAY LYNGDORF

STEINWAY LYNGDORF SP-1 Manuel utilisateur

Advantech

Advantech ASMB-935 Series Manuel utilisateur
