Read before use

The “Operating Instructions” explains about the interface boards to be installed to the Multi Window Processor

sold separately. For Model No. and model names, refer to the product list (xpage 4).

Thank you for purchasing this Panasonic product.

■Before using this product, please read this “Operating Instructions” and the “Operating

Instructions” of the Multi Window Processor carefully and save the manuals for future use.

■Before using this product, be sure to read “Read this rst!” (xpages 2 to 3).

■To users:

This product is used together with the Multi Window Processor sold separately. Be sure

to ask a qualied technician or your dealer when installing it. This manual is for users and

also for installation technician. When installing the unit, provide this manual to installation

technician. After installation, ask them to return this manual.

■To installation technician:

Read this manual and perform installation work properly and safely. Be sure to read “Read

this rst!” (xpages 2 to 3) before installation.

After installation, please return this manual to users.

TQZJ531

Interface Board Commercial Use

Operating Instructions

Included Setup Instructions

ENGLISH

Model No. ET-MCYDV100

 ET-MCQDV150

 ET-MCYSD200

 ET-MCYSD210

 ET-MCQDL350

* The illustration above is an example. In this manual, illustrations of ET-MCYDV100 are used as an example unless otherwise specied.

2 - ENGLISH

Read this rst!

WARNING:

This is a class A product. In a domestic environment this product may cause radio interference in which case

the user may be required to take adequate measures.

FCC NOTICE (USA)

Verication

Model Number: ET-MCYDV100, ET-MCQDV150, ET-MCYSD200, ET-MCYSD210, ET-MCQDL350

Trade Name: Panasonic

Responsible Party: Panasonic Corporation of North America

Address: Two Riverfront Plaza, Newark, NJ 07102-5490

Telephone number: (877)803-8492

E-mail: [email protected]

This device complies with Part 15 of the FCC Rules.

Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and (2) this device must accept any interference received,

including interference that may cause undesired operation.

To assure continued compliance, follow the attached installation instructions and do not make any unauthorized

modications.

Caution:

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part

15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference

when the equipment is operated in a commercial environment. This equipment generates, uses, and can

radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may

cause harmful interference to radio communications. Operation of this equipment in a residential area is likely

to cause harmful interference in which case the user will be required to correct the interference at his own

expense.

NOTIFICATION (Canada)

This class A digital apparatus complies with Canadian ICES-003.

Product information (for Turkey only)

EEE Yönetmeliğine Uygundur.

EEE Complies with Directive of Turkey.

Importer’s name and address within the European Union

Panasonic Marketing Europe GmbH

Panasonic Testing Center

Winsbergring 15, 22525 Hamburg, Germany

ENGLISH - 3

Read this rst!

WARNING:

rON USE/INSTALLATION

Do not set up the device in humid or dusty places or in places where the device may come into contact

with oily smoke or steam, ex. a bathroom.

Using the device under such conditions will result in re or electrical shock.

Do not allow metal objects, ammable objects, or liquids to enter inside of the device. Do not allow the

device to get wet.

Doing so may cause short circuits or overheating, and result in re, electric shock, or malfunction of the device.

fDo not place containers of liquid or metal objects near the device.

fIf liquid enters inside of the device, consult your dealer.

fParticular attention must be paid to children.

CAUTION:

rON USE/INSTALLATION

Do not place the device in extremely hot locations.

Doing so will cause the outer casing or internal components to deteriorate, or result in re.

fTake particular care in locations exposed to direct sunlight or near stoves.

Ask a qualied technician or your dealer when installing or removing this product.

Failure to do so may result in electric shock.

Precautions for use

4 - ENGLISH

Precautions for use

rAsk a qualied technician or your dealer when installing the interface board to the

Multi Window Processor.

Be sure to ask a qualied technician or your dealer when installing the interface board to the Multi Window Processor. Static

electricity may cause malfunctions.

rInterface board for input and output

To use the Multi Window Processor, you need to install at least one interface board for input and one interface board for output.

Disposal

To dispose of the product, ask your local authorities or dealer for correct methods of disposal.

Product list

Product name Model No. Remarks

Interface Board for DVI-U

2input ET-MCYDV100 This is the interface board with 2 inputs for DVI-U signals.

Interface Board for DVI-U

2output ET-MCQDV150 This is the interface board with 2 outputs for DVI-U signals.

Interface Board for 3G-SDI

2input ET-MCYSD200 This is the interface board with 2 inputs for 3G-SDI signals.

Interface Board for HD/SD-

SDI 4input ET-MCYSD210 This is the interface board with 4 inputs for HD/SD-SDI signals.

Interface Board for Digital

Link 2output ET-MCQDL350 This is the interface board with 2 outputs for DIGITAL LINK

signals.

Installing the interface board

Be sure to ask a qualied technician or your dealer.

rTo the equipment installer:

Before you begin, make sure to read “Read this rst!” (xpage 2).

Precautions for installing and removing the interface board

fMake sure to turn off the power before attaching or removing the interface board to/from the Multi Window Processor.

fDo not touch the connecting part of the interface board directly.

gDoing so may result in static electricity that damages components.

fTo prevent damage by static electricity, touch a metal object nearby to remove electrostatic charge on your body before you begin.

fBe careful to avoid injury when installing or removing the interface board.

gIf touched by mistake, lead lines of parts, traces of soldering, and other sharp areas on the surface of the interface board may cause

injury to the hand.

gIf touched by mistake, empty slot openings on the Multi Window Processor and edges of the interface board brackets may cause injury to

the hand.

fInstall the interface board to the Multi Window Processor by slowly and securely inserting it horizontally into the connector.

gIncorrect attachment may result in failure to operate or malfunction.

Installing the interface board

ENGLISH - 5

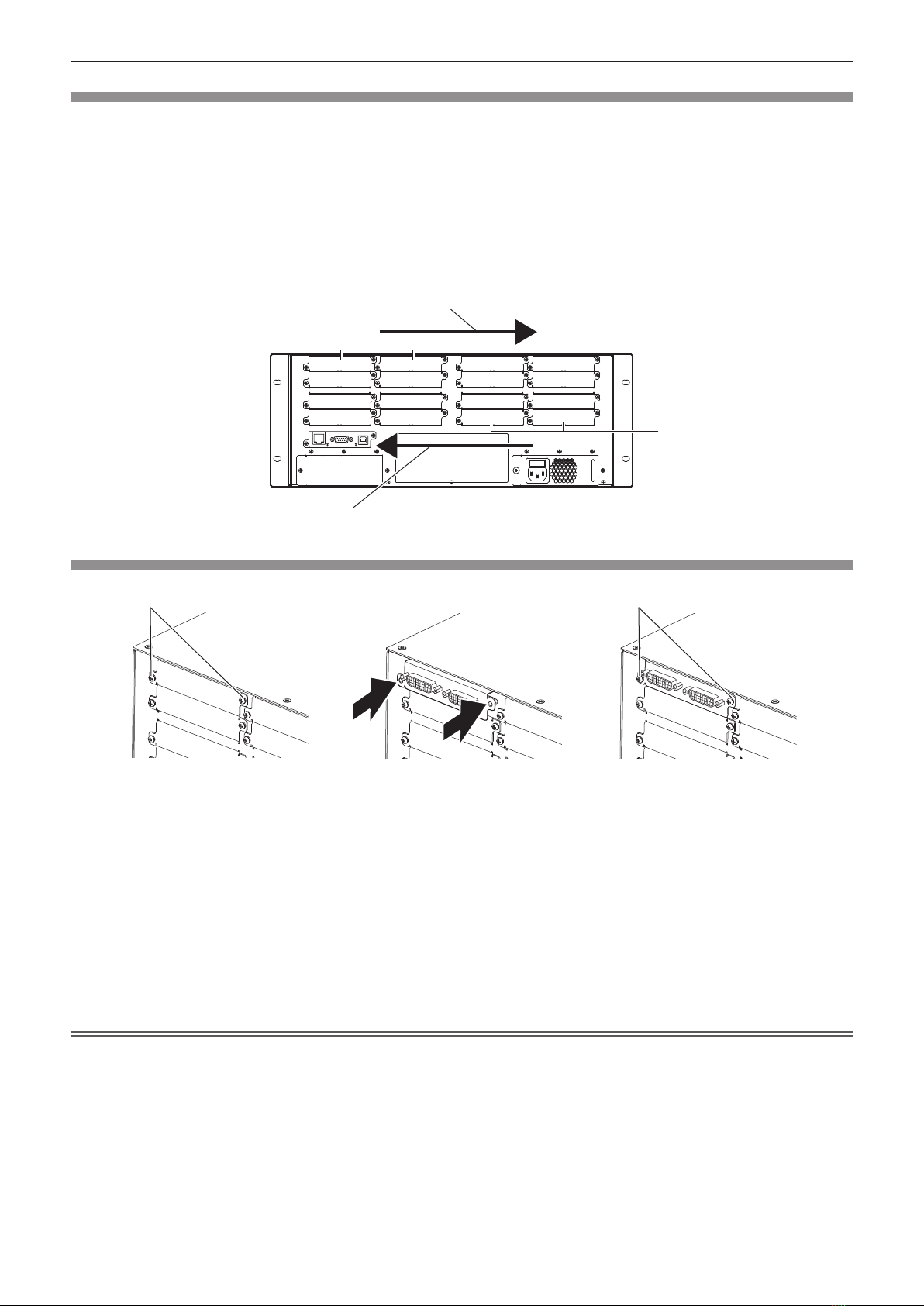

Restrictions on interface board attachment slots

The Multi Window Processor has 16 slots to connect input and output interface boards, with the following slot restrictions:

fSlot1 and Slot2 are only for input interface boards. Output interface boards cannot be installed.

fSlot15 and Slot16 are only for output interface boards. Input interface boards cannot be installed.

fInstall input interface boards in ascending order starting at Slot1 without leaving any slots empty. To use the Multi Window Processor, you

will need to attach at least one input interface board to Slot1.

fInstall output interface boards in descending order starting at Slot16 without leaving any slots empty. To use the Multi Window Processor,

you will need to attach at least one output interface board to Slot16.

fAn empty slot can only be set to remaining slots between an attached slot on an input interface board and an attached slot on an output

interface board.

fMake sure to attach a slot cover to empty slots.

Slot1

Slot5

Slot9

Slot13

Slot2

Slot6

Slot10

Slot14

Slot3

Slot7

Slot11

Slot15

Slot4

Slot8

Slot12

Slot16

Only for input

Only for output

Slot order for installing the input interface boards

Slot order for installing the output interface board

Installing the interface board

Screws Screws

Fig. 1 Fig. 2 Fig. 3

1) Remove the slot cover. (Fig. 1)

fUse a Phillips-head screwdriver to turn the two screws with toothed lock washers securing the slot cover counterclockwise and

remove. The removed screws with toothed lock washers will be used to secure the interface board.

fIf the slot cover is difcult to remove, insert the tip of a straight slot screwdriver between the right and left edges of the slot cover and

the rear surface of the device to remove.

2) Install the interface board to the Multi Window Processor. (Fig. 2)

fInsert the interface board along the grooves of the empty slot, press the bracket, and push the board in until fully and securely

inserted.

3) Secure the interface board. (Fig. 3)

fTighten to secure with the two screws with toothed lock washers removed in Step 1).

Attention

fThe removed slot cover will be required when removing an interface board that is no longer needed. Store it for installation at a later date.

Installing the interface board

6 - ENGLISH

Removing the interface board

1) Remove the interface board.

fUse a Phillips-head screwdriver to turn the two screws with toothed lock washers securing the interface board counterclockwise and

remove. The removed screws with toothed lock washers will be used to secure the slot cover.

fIf the interface board is difcult to remove, insert the tip of a straight slot screwdriver between the right and left edges of the bracket

and the rear surface of the device to remove.

2) Attach the slot cover.

fAttach the stored slot cover, and tighten to secure with the two screws with toothed lock washers removed in Step1).

fTo replace with another interface board, follow the procedure in “Installing the interface board”.

Attention

fMake sure to attach a slot cover to empty slots.

fPlace the removed interface board in an antistatic bag to store.

Specications

The specications of the interface board are as follows.

Power supply Supplied from the Multi Window Processor

Compatible Multi Window

Processor ET-MWP100G

rInterface Board for DVI-U 2input (Model No.: ET-MCYDV100)

Terminal

<DVI-U INPUT> terminal (DVI-U 29p) 2 sets

Digital signal (DVI 1.0 compliant, HDCP compatible, single link only)

RGB signal

0.7 V [p-p] 75 Ω (SYNC ON GREEN: 1.0 V [p-p] 75 Ω)

HD/SYNC: TTL high impedance, automatic positive/negative polarity compatible

VD: TTL high impedance, automatic positive/negative polarity compatible

YCBCR/YPBPRsignal

Y: 1.0 V [p-p], including synchronization signal, CBCR/PBPR: 0.7 V [p-p] 75 Ω

S-video signal

Y: 1.0 V [p-p], C: 0.286 V [p-p] 75 Ω

Video signal

1.0 V [p-p] 75 Ω

Dimensions

Width 97 mm (3-13/16")

Height 21 mm (13/16")

Depth 176 mm (6-15/16")

Weight Approx. 107 ](3.8 ozs.)

rInterface Board for DVI-U 2output (Model No.: ET-MCQDV150)

Terminal

<DVI-U SCALED OUTPUT> terminal (DVI-U 29p) 2 sets

Digital signal (DVI 1.0 compliant, HDCP compatible, single link only)

RGB signal

YCBCR/YPBPRsignal

Dimensions

Width 97 mm (3-13/16")

Height 21 mm (13/16")

Depth 176 mm (6-15/16")

Weight Approx. 140 ](4.9 ozs.)

rInterface Board for 3G-SDI 2input (Model No.: ET-MCYSD200)

Terminal

<3G-SDI INPUT> terminal (BNC) 2 sets

3G-SDI signal SMPTE ST 424 compliant

HD-SDI signal SMPTE ST 292 compliant

SD-SDI signal SMPTE ST 259 compliant

Dimensions

Width 97 mm (3-13/16")

Height 21 mm (13/16")

Depth 188 mm (7-13/32")

Weight Approx. 106 ](3.7 ozs.)

Specications

ENGLISH - 7

rInterface Board for HD/SD-SDI 4input (Model No.: ET-MCYSD210)

Terminal

<HD-SDI INPUT> terminal (BNC) 4 sets

HD-SDI signal SMPTE ST 292 compliant

SD-SDI signal SMPTE ST 259 compliant

Dimensions

Width 97 mm (3-13/16")

Height 21 mm (13/16")

Depth 188 mm (7-13/32")

Weight Approx. 122 ](4.3 ozs.)

rInterface Board for Digital Link 2output (Model No.: ET-MCQDL350)

Terminal <DIGITAL LINK> terminal (RJ-45) 2 sets, for DIGITAL LINK connection, HDCP compatible

<LAN> terminal (RJ-45) 1 set, for network connection, 10Base-T/100Base-TX

Dimensions

Width 97 mm (3-13/16")

Height 21 mm (13/16")

Depth 170 mm (6-11/16")

Weight Approx. 156 ](5.5 ozs.)

Information on Disposal for Users of Waste Electrical & Electronic Equipment (private

households)

This symbol on the products and/or accompanying documents means that used electrical and

electronic products should not be mixed with general household waste.

For proper treatment, recovery and recycling, please take these products to designated

collection points, where they will be accepted on a free of charge basis. Alternatively, in some

countries you may be able to return your products to your local retailer upon the purchase of an

equivalent new product.

Disposing of this product correctly will help to save valuable resources and prevent any

potential negative effects on human health and the environment which could otherwise arise

from inappropriate waste handling. Please contact your local authority for further details of your

nearest designated collection point.

Penalties may be applicable for incorrect disposal of this waste, in accordance with national

legislation.

For business users in the European Union

If you wish to discard electrical and electronic equipment, please contact your dealer or supplier

for further information.

Information on Disposal in other Countries outside the European Union

This symbol is only valid in the European Union.

If you wish to discard this product, please contact your local authorities or dealer and ask for the

correct method of disposal.

Environment care information for users in China

This symbol is only valid in China.

Panasonic Corporation

Web Site : http://panasonic.net/avc/projector/

TI0613NS0 -YI

Printed in China

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Panasonic Matériel informatique

Panasonic

Panasonic TY-SB01F Manuel utilisateur

Panasonic

Panasonic CF-VEBC21Un Manuel utilisateur

Panasonic

Panasonic AJ-YAC77P Manuel utilisateur

Panasonic

Panasonic WJ-PB85D01 Manuel utilisateur

Panasonic

Panasonic MANV250GE Manuel utilisateur

Panasonic

Panasonic Panaboard UB-5315 Manuel utilisateur

Panasonic

Panasonic WZ-TDADP Manuel utilisateur

Panasonic

Panasonic AJHDP2000 - 2K PROCESSOR Manuel utilisateur

Panasonic

Panasonic PanaXSeries MN1030 Series Manuel utilisateur

Panasonic

Panasonic WZ-AESAD Manuel utilisateur

Panasonic

Panasonic CF-BAM1024U Manuel utilisateur

Panasonic

Panasonic MICROCOMPUTER MN103S Manuel utilisateur

Panasonic

Panasonic 2SB1463G Manuel utilisateur

Panasonic

Panasonic 2SC4808G Manuel utilisateur

Panasonic

Panasonic KX-TDA6181X Manuel utilisateur

Panasonic

Panasonic WJ-PB85T08 Manuel utilisateur

Panasonic

Panasonic TY-42TM6D - Monitor Terminal Expansion Board Manuel utilisateur

Panasonic

Panasonic FP7 Series Manuel utilisateur

Panasonic

Panasonic 2SA1791G Manuel utilisateur

Panasonic

Panasonic CY-EM100N Manuel utilisateur

Panasonic

Panasonic UP0KG8DG Manuel utilisateur

Panasonic

Panasonic MICROCOMPUTER MN103S Instructions d'installation et d'utilisation

Panasonic

Panasonic 2SB1679G Manuel utilisateur

Panasonic

Panasonic Panaboard UB-5310 Manuel utilisateur

Manuels Matériel informatique populaires d'autres marques

EMC2

EMC2 VNX Series Manuel du propriétaire

Mitsubishi Electric

Mitsubishi Electric Q81BD-J61BT11 Manuel utilisateur

Gigabyte

Gigabyte B660M DS3H AX DDR4 Manuel utilisateur

Raidon

Raidon iT2300 Manuel utilisateur

National Instruments

National Instruments PXI-8186 Manuel utilisateur

Hauppauge

Hauppauge WinTV-HVR-2250 Manuel utilisateur

Kontron

Kontron CP6002 Manuel utilisateur

Manhattan

Manhattan 702843 Manuel utilisateur

Aphex

Aphex 230 Manuel utilisateur

AMD

AMD Phenom II Manuel d'exploitation

Intel

Intel NUC 12 Pro Manuel utilisateur

dbx

dbx Zone Pro 1260 Manuel utilisateur

Galaxy

Galaxy GHDX2-2430S-24F4D Manuel utilisateur

Intel

Intel AXXRMFBU4 Manuel utilisateur

Kontron

Kontron DIMM-PC/MD Manuel utilisateur

ST X-NUCLEO-SAFEA1B Mode d'emploi

STEINWAY LYNGDORF

STEINWAY LYNGDORF SP-1 Manuel utilisateur

Advantech

Advantech ASMB-935 Series Manuel utilisateur
