OWC Envoyfor MacBook Air 2012

Owner’s Manual & Assembly Guide

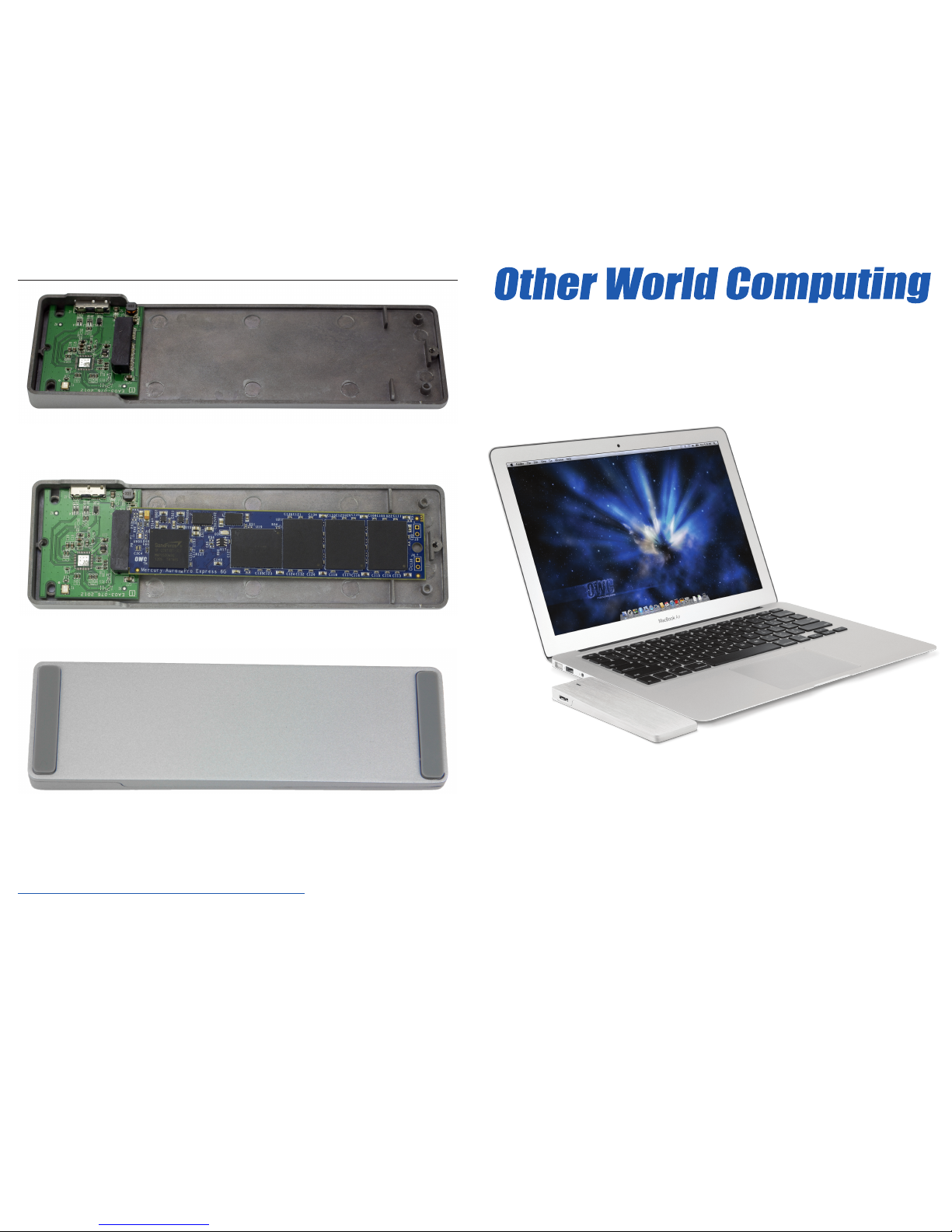

OWC Envoy Assembly

Remove the top cover and you will expose the interposer board inside of the OWC

Envoy.

Insert your SSD module into the interposer board connector - it is keyed so it will only

t one direction. The drive module plugs straight into the connector and ts snugly.

Replace the bottom cover onto the OWC Envoy. Reinsert the 2 Phillips screws through

the bottom and apply the 2 rubber feet to complete the assembly.

Your OWC Envoy connects using the included USB cable. if your SSD module is unfor-

mated, you will need to format it to be able to use it.

http://eshop.macsales.com/tech_center/fwhdd.cfm

Copyright ®2012 Other World Computing All Rights Reserved. Other World Computing’s Limited Warranty is not transferable and subject to limitations.

OWCMANENV12OGAM

R1 11/7/12 JD

OWC Envoy Introduction

1.1 System Requirements

1.1.1 Mac Requirements

• Minimum PowerPC G4 CPU, 128MB RAM

• USB 3.0/2.0 interface, Mac OS X 10.2 or later

1.1.2 PC Requirements

• Minimum 500MHz Intel Pentium III CPU, 128MB RAM

• USB 3.0/2.0 interface, Windows 2000 / XP / Vista / Windows 7 / Windows 8

1.1.3 Supported SSD Drives

• MacBook Air 2012 SSD

• OWC Aura Pro SSD for the 2012 MacBook Air

➀ ➁

➂

➃

Item

➀ USB 3.0 (A - Micro-B) cable

➁ OWC Envoy

➂Adhesive Rubber Feet

➃ Plush Storage Bag

➄ Owner's Manual & Assembly Guide

OWC Envoyfor MacBook Air 2012

Owner’s Manual & Assembly Guide

➄

OWC Envoy Assembly

Your computer is a static-sensitive device. It is susceptible

to invisible damage if not protected during installation.

We recommend proper grounding by using a grounding

strap. Make sure to work in a clean and static-free area,

and avoid wearing clothing that retains static charges.

For more information, please visit

http://www.macsales.com/static

The OWC Envoy is compatible with both factory MacBook Air 2012 SSD modules and

OWC Aura Pro for MacBook Air 2012 SSD modules.

Using a Phillips P0 screwdriver, remove the 2 Phillips screws that are holding the top

and bottom of the OWC Envoy together. Note they are two lengths, the short screw

goes on the skinny end of the OWC Envoy, and the longer screw goes on the thicker

end.
