OWC ACCELSIOR 1M2 Mode d’emploi
ACCELSIOR 1M2
PCIE 4.0 NVME M.2 SSD Storage Solution
Blazing Fast
OWC Aura NVMe SSD delivers
up to 3200MB/s real-world speed
Cool and Silent
Heat sink for cool, distraction-free operation
Bandwidth-Heavy Ready
Able to handle intense creative workows,
gaming, and massive backups
Certied
Veried compatible with 2019 Mac Pro,
2012/2010 Mac Pro, and PC towers
TABLE OF CONTENTS
INTRODUCTION
1.1 Minimum System Requirements ....................................................................3
1.2 Package Contents............................................................................................3
1.3 About This Manual...........................................................................................3
1.4 Side View..........................................................................................................4
INSTALLATION
2.1 Drive Installation ..............................................................................................5
2.2 Installing the Card in a Host Computer or PCIe Enclosure ...........................8
2.3 Drive Guide .......................................................................................................8
SUPPORT RESOURCES
3.1 Troubleshooting...............................................................................................9
3.2 Contacting Technical Support ........................................................................9
TABLE OF CONTENTS
03INTRODUCTION
1.1 SYSTEM REQUIREMENTS
Operating System:
- Mac: macOS 10.13.6 or later
- PC: Windows 10 or later
Hardware:
- Mac or PC with compatible PCIe slot
- Supports PCIe 4.0 and earlier (hosts and SSDs)
- Lanes: for best performance use a x4 or greater PCIe 3.0 or PCIe 4.0
- Physical: x4 or greater required
- Recommended Thunderbolt 3 PCIe chassis
- OWC: Helios 3, Helios 3S, Helios FX series
- AKiTiO: Node, Node Lite, Node Pro, Node Titan
Driver:
- None required
Supported Drives & Form Factors
- (1) M.2 NVMe SSD with M-key connector
- Form Factors: 2230, 2242, 2260, 2280, 22110
1.2 PACKAGE CONTENTS
INTRODUCTION
OWC Accelsior 1M2 Quick start guide
1.3 ABOUT THIS MANUAL
The images and descriptions may vary slightly between this manual and the unit shipped. Functions and features may
change depending on the rmware version. The latest product details and warranty information can be found on the
product web page. OWC’s Limited Warranty is not transferable and subject to limitations.
04INTRODUCTION
- Use proper anti-static precautions while installing this PCIe card into the a desktop computer
or Thunderbolt PCIe expansion chassis. Failure to do so can cause damage to the drives
and/or the computer.
- Do not attempt to disassemble or modify the device. To avoid any risk of electrical shock, fire,
short-circuiting or dangerous emissions, never insert any metallic object into the device. If it appears
to be malfunctioning, please contact technical support.
- Never expose your device to rain, or use it near water or in damp or wet conditions. Doing so increases
the risk of electrical shock, short-circuiting, fire or personal injury.
Safety Precautions
1.4 SIDE VIEW
1. PCIe connector - align this part of the device with a
compatible PCIe slot on the host computer or enclosure.
2.
LED
Power On Disk Activity
Solid Green1Flashing Green
1. Solid green may only apply to OWC SSDs
05INSTALLATION
INSTALLATION
2.1 DRIVE INSTALLATION
1. Remove the product from its packaging and set
it on a static-free work surface as shown.
2. Flip the product over and note the location of the two
screws that hold the heat sink in place. Remove them, then
set the screws and the heat sink aside, and flip the card
over again.
For reference, the steps that follow show how to install an NVMe M.2 drive with a 2280 form factor (the
default). If you purchased the Accelsior 1M2 with a drive pre-installed, please skip to Section 2.2. Note that each
supported form factor has a drive post location silkscreened onto the PCBA, which you can see once the heat
sink is removed (Step 2). The process described below is otherwise the same for each drive type. Please review
all steps before attempting the installation; if you still have questions after reviewing them, please contact our
Support Team (Section 3.2) for assistance.
06INSTALLATION
3. Next you need to determine if the drive post should be
moved from its default location. For 2280 M.2 drives, the
post is pre-installed at the correct location; please skip
ahead to Step 4.
All other M.2 form factors – you will need to move the drive
post to the correct location. Note that the PCBA (3a) has
four additional M.2 post locations, highlighted in red. Make
note of the location applicable to your drive’s form factor
then proceed.
You first need to use your fingers, a 6mm socket wrench
(not included), or a pair of needle-nose pliers (not included)
to immobilize the fastener on the underside of the PCBA
(3b).
On the top side of the PCBA, use a 5mm socket wrench,
or fingers, to turn the drive post (3c) until it is loose, then
remove it (3d).
Last, move the fastener to the correct post location on
the underside of the board, again immobilize it with your
fingers, pliers, or a 6mm socket wrench, then insert the
drive post threads-down into the post cut-out and affix it to
the fastener, securing them both to the PCBA.
4. Align the connector on the M.2 drive with the connector on
the PCBA — a 2280 form factor is shown here — then insert
the drive until it is fully seated. Minimal force is required.
If the drive does not seat properly, do not increase the
amount of force. Remove the drive, re-align it, and try again.
Note that once seated, the drive will not lay flat. Note also
in this example the drive does not have its own heat sink,
requiring an additional step at the end of the process.
4
3a
3b
3c 3d
07INSTALLATION
5. While holding down the M.2 drive so that it is level with
the top of the drive post, use the flat-top screw from the
included packet, to affix the drive to the post.
6. (Optional) This step is not required if your M.2 drive ships
with a heat sink from the manufacturer.

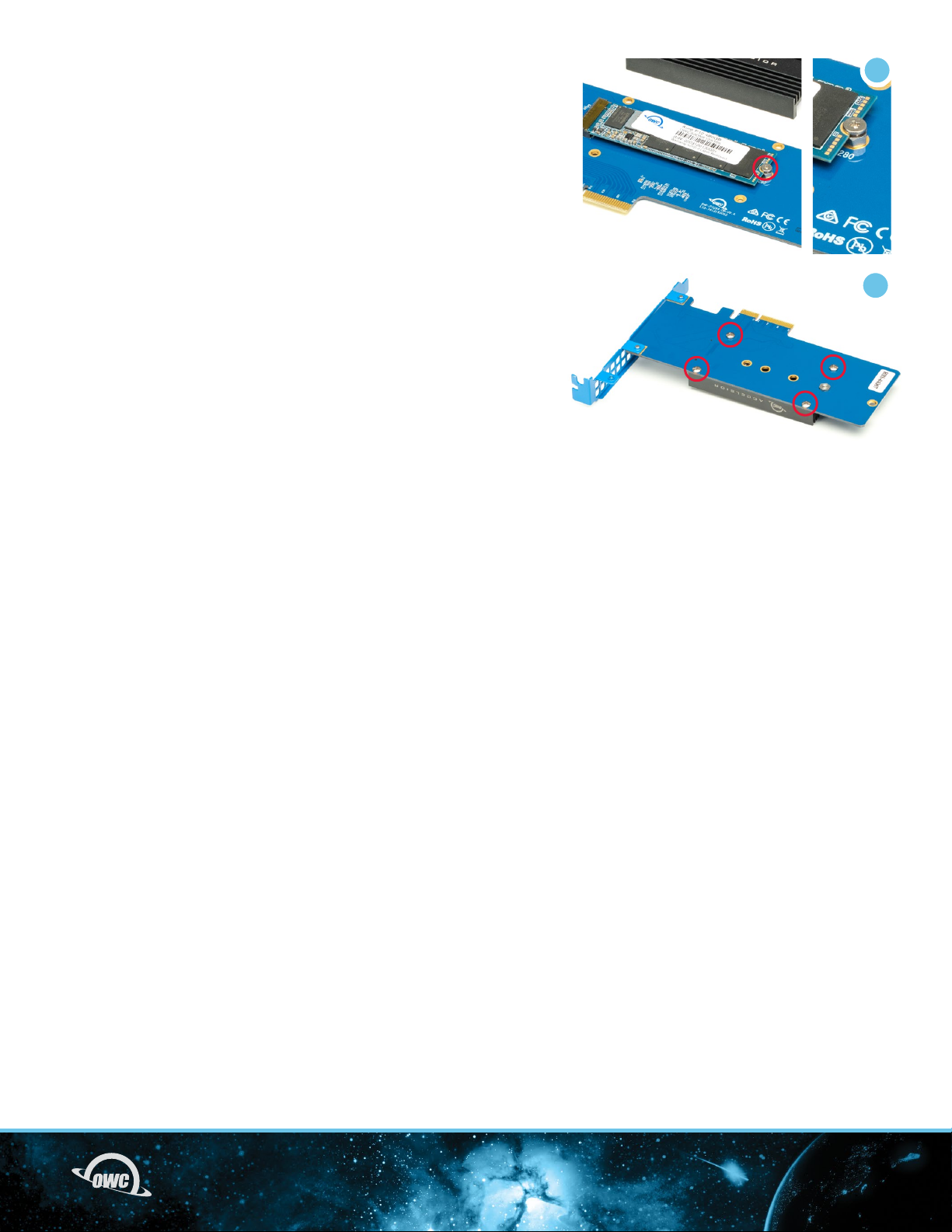

Flip the card over, and, making sure the heat sink is
oriented as shown (top-side down with logo visible) set the
card on the heat sink such that the four screw locations
(highlighted) line up properly. Then, affix the screws (two
of them are found in the included packet). IMPORTANT: As
you set the card on the heat sink, the bracket should not
rest on the work surface but over the edge. This will allow
the heat sink and card to lie completely flat on the work
surface.
This completes the M.2 installation process. See Section
2.2 for recommendations on installing the card into a
computer or PCIe chassis
5
6
08INSTALLATION
2.2 INSTALLING THE CARD IN A HOST COMPUTER OR PCIE ENCLOSURE
Please follow the steps below to install the Accelsior 1M2 PCIe SSD into a host computer or enclosure with a
compatible PCIe slot. Note: this card is susceptible to invisible damage if not protected during installation. For
proper grounding, we recommend using a grounding strap. Work in a clean, static-free area, and avoid wearing
clothing that retains static charges. Please visit this URL for more information: www.owc.com/anti-static
SECTION 2.3 - DRIVE GUIDE (OPTIONAL)
If you purchased the Accelsior 1M2 with an SSD pre-installed, the OWC Drive Guide has been included to
assist you with formatting the drive. Please follow the steps below. For additional formatting and Drive Guide
information, please visit: www.owc.com/format.
1. Boot the host computer, connecting the PCIe enclosure at the Desktop, if applicable.
2. The drive will appear in the system as “OWC SETUP”. Double-click the icon to view its contents.
3. Open the “OWC Drive Guide” application.
4. Follow the simple on-screen prompts to complete the formatting process.
5. Once the formatting is finished the SSD is ready to use.
If you have any concerns please contact our Support Team for assistance (Section 3.2).
1. Disconnect all power and powered devices from your
desktop computer or PCIe expansion chassis, then open
the case so that the compatible PCIe slot is visible and
accessible.
2. Align the PCIe connector on the Accelsior 1M2 with the
compatible slot then carefully seat the card into the slot as
shown at right. If there is resistance, do not force the card
into the slot. Remove it, re-align the card’s connector and
try again.
3. Once the card is fully seated affix the included screw to the
bracket as shown. Notes: a) no auxiliary power connectors
or other attachments are required to use this SSD; b) Some
computers and PCIe chassis may use a plate with spring-
loaded screws or other method to secure PCIe cards;
please follow the manufacturer’s recommended method.
x8
x16
x1
x4
3
09SUPPORT RESOURCES
3.1 TROUBLESHOOTING
Many problems can be traced back to an improperly seated M.2 drive or PCIe card, or host compatibility
issues (e.g. installing the card in a slower PCIe 2.0 slot or a PCIe 3.x slot with too few data lanes to support
the desired performance, or installed in a computer running an older version of Windows or macOS). Make
sure that the M.2 drives and/or the PCIe card is seated properly and that the computer is congured to
meet the system requirements. If everything is installed normally and you’re still having trouble, please
contact technical support.
3.2 CONTACTING TECHNICAL SUPPORT
SUPPORT RESOURCES
Phone: M–F, 8am–8pm CT
1.866.692.7100 (N. America) | +1.815.338.4751 (Int’l)
Chat: M–F, 8am–8pm, Sat 9am–5pm CT
www.owc.com/support
Email: Answered within 48 hours
www.owc.com/support
CHANGES:
The material in this document is for information purposes only and subject to change without notice. While
reasonable efforts have been made in the preparation of this document to assure its accuracy, OWC, its
parent, partners, afliates, ofcers, employees, and agents assume no liability resulting from errors or
omissions in this document, or from the use of the information contained herein. OWC reserves the right
to make changes or revisions in the product design or the product manual without reservation and without
obligation to notify any person of such revisions and changes.
FCC STATEMENT:
Warning! Modications not authorized by the manufacturer may void the user’s authority to operate this
device. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference with radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.
WARRANTY:
The Accelsior 1M2 has a 5 Year OWC Limited Warranty if it was bundled with a drive. If the Accelsior 1M2 did
not ship with a drive, it has a 1 Year OWC Limited Warranty. For up-to-date product and warranty information,
please visit the product web page.
COPYRIGHTS AND TRADEMARKS:
No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by
any means, electronic, mechanical, photocopying, recording or otherwise, without the prior written consent
of OWC.
© 2020 Other World Computing, Inc. All rights reserved. Accelsior, OWC, and the OWC logo are trademarks
of New Concepts Development Corporation, registered in the U.S. and/or other countries. Mac and macOS
are trademarks of Apple Inc., registered in the U.S. and other countries. Other marks may be the trademark or
registered trademark property of their owners.
OWCMANACC1M2 – 10.30.2020
Table des matières
Autres manuels OWC Stockage
OWC
OWC MERCURY ELITE PRO QUAD Mode d’emploi
OWC
OWC Mercury Elite-AL Manuel utilisateur
OWC
OWC Envoy Pro EX Mode d’emploi
OWC
OWC Mercury Elite Pro Dual mini Mode d’emploi
OWC
OWC Mercury Elite Pro Dual Mode d’emploi
OWC
OWC Envoy Manuel utilisateur
OWC
OWC ThunderBay 4 mini Mode d’emploi
OWC
OWC Mercury Elite Pro Dual Manuel utilisateur
OWC
OWC Mercury Rack Pro mini-SAS Manuel utilisateur
OWC
OWC EXPRESS Mode d’emploi
OWC
OWC Envoy Instructions d'utilisation
OWC
OWC Mercury Elite Pro Dual mini Manuel utilisateur
OWC
OWC Mercury Pro LTO Thunderbolt 3 Manuel utilisateur
OWC
OWC Mercury Accelsior Pro Q Manuel utilisateur
OWC
OWC Envoy Manuel utilisateur
OWC
OWC Envoy Pro EX Manuel utilisateur
OWC
OWC RACK PRO MINI-SAS Mode d’emploi
OWC
OWC MERCURY ELITE PRO MINI Manuel utilisateur
OWC
OWC MERCURY PRO U.2 DUAL Mode d’emploi
OWC
OWC Mercury Elite-AL Pro Dual-Drive Manuel utilisateur
Manuels Stockage populaires d'autres marques
Spectra Logic
Spectra Logic T-Series Spectra T50e Manuel utilisateur
Panasonic
Panasonic LKM-F931-1 Manuel utilisateur
Tabernus
Tabernus Enterprise Erase E2400 Manuel utilisateur
Rocstor
Rocstor COMMANDER 3F series Manuel utilisateur
HP
HP P9000 Manuel utilisateur
Western Digital
Western Digital Ultrastar Data60 Manuel utilisateur
