Osram WSLC Manuel utilisateur

Wireless Site Lighting

Control Module

Wiring and installation manual

www.osram.us

Light is OSRAM

Overview

The Wireless Site Lighting Control (WSLC) Module extends the ENCELIUM®

Networked Light Management System’s controls capability to a building’s

surroundings or site such as parking lots and short pathways, via a wireless

mesh network based on ZigBee®standards. The WSLC installs on top of a

luminaire via an ANSI C136.41 compliant 3, 5 or 7-pin twist-lock connector.

The WSLC is individually addressable via the ENCELIUM Wireless System

Manager and can switch luminaires ON/OFF via an integrated high current relay,

dim luminaires equipped with 0-10V dimming drivers or ballasts and has an

input for an external occupancy sensor.

Important Safeguards

When using electrical equipment, basic safety precautions should always

be followed including the following:

—READ AND FOLLOW ALL SAFETY INSTRUCTIONS.

—Do not let power supply cords touch hot surfaces.

—Do not mount near gas or electric heaters. Equipment should be mounted in

locations and at heights where it will not readily be subjected to tampering

by unauthorized personnel.

—The use of accessory equipment is not recommended by OSRAM as it may

cause an unsafe condition.

—Do not use this equipment for other than the intended use.

SAVE THESE INSTRUCTIONS

Note

Tip

STOP

Note

Tip

STOP

Part Number

EN-OC-SLC-ZB

Ratings

Voltage

—Operating voltage: 120-347Vac;

50/60 Hz

Load Rating

—120-347Vac E-Ballast; 10A

—120-347Vac Resistive; 10A

—120-347Vac Tungsten; 10A

—120-347Vac General Purpose; 10A

Interface

—Dimming: 0-10V; 10mA

(IEC 60929 Annex E)

—DEXAL

™/DALI: 18-24V; 10mA

—Sensor: 18-24V, 20mA

Environmental

—Ambient temperature range:

-40°C to +65°C

—Protection classiﬁcation: IP66

—Relative humidity: up to 95%

non-condensing

Listings

—UL: UL916/773

(File # E228301 USA and Canada)

Module Installation

Ensure power to the receptacle has been disconnected before beginning

to remove/mount the receptacle.

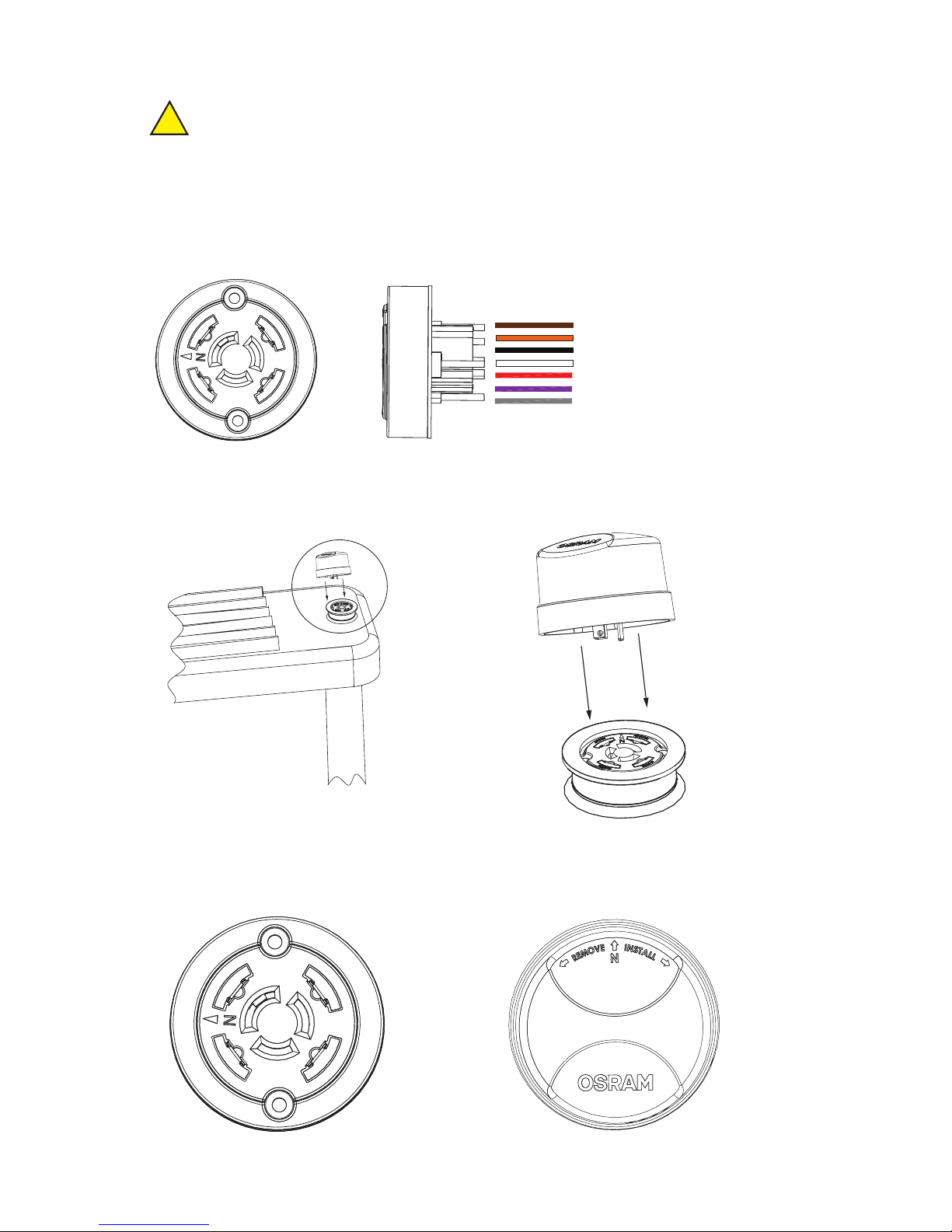

1. Remove the shorting or open cap if supplied with the luminaire.

Note: Receptacle caps, if supplied with the luminaire, are used for closing or opening the socket circuit. In addition,

these caps can offer weatherproof protection for the receptacles that are not yet ﬁtted with the WSLC Module.

WSLCs can be installed on luminaires that feature ANSI C136.41-compliant

receptacles.

2. Place the WSLC Module ﬁrmly into the receptacle (not supplied by OSRAM)

and twist it clockwise (Install arrow) until it locks in place.

Note

Tip

STOP

BLACK: Line In

RED: AC to Driver

GREY/-: Control to Driver

VIOLET/ +: Control to Driver

WHITE: Neutral

ORANGE: Sensor Power Supply

BROWN: Sensor Input

3. Mount the control with the arrow and ‘N’ on the cover facing north.

Note: The receptacle assembly may have to be rotated to face north.

Receptacle Control Module Cap

(

)

(

)

(

)

(

)

LMS138R2 12-17

Operation

The WSLC Module is conﬁgured using ENCELIUM®Networked Light

Management System software and features the following functionalities:

—Individual addressability

—Time schedule-based control

—Daylight-based control

—Astronomical schedule-based control

—Occupancy-based control*

*Requires OSRAM approved 3rd party outdoor occupancy sensor.

Troubleshooting

There are no user-serviceable parts inside the WSLC. Please return the device

to OSRAM if service is required.

Regulatory Approvals

This equipment has been tested and found to comply with the limits for a

Class A digital device, pursuant to part 15 of the FCC Rules. These limits

are designed to provide reasonable protection against harmful interference

when the equipment is operated in a commercial environment. This equipment

generates, uses, and can radiate radio frequency energy and, if not installed

and used in accordance with the instruction manual, may cause harmful

interference to radio communications. Operation of this equipment in a

residential area is likely to cause harmful interference in which case the

user will be required to correct the interference at his own expense.

Modiﬁcations not expressly approved by the manufacturer could void the user’s

authority to operate the equipment under FCC rules.

This equipment has been tested and found to comply with Industry Canada

ICES-003 Issue 5 (CAN ICES-3 (A)/NMB-3(A)).

Contains FCC ID: H79DFZM-E7210

Contains IC ID: 4259B-DFZM7210

OSRAM SYLVANIA Inc.

200 Ballardvale Street

Wilmington, MA 01887 USA

888-531-7573

www.osram.us/ds

OSRAM is a registered trademark of OSRAM GmbH.

ENCELIUM is a registerd trademark of OSRAM SYLVANIA Inc.

DEXAL is a trademark of OSRAM SYLVANIA Inc.

ZigBee is a registered trademark o f the ZigBee Alliance..

Speciﬁcations subject to change without notice.
