Osram DALI EN-DB-1L-GB2 Manuel utilisateur

DALI Bridge Module

Wiring and installation manual

www.osram.us/ds

Light is OSRAM

Overview

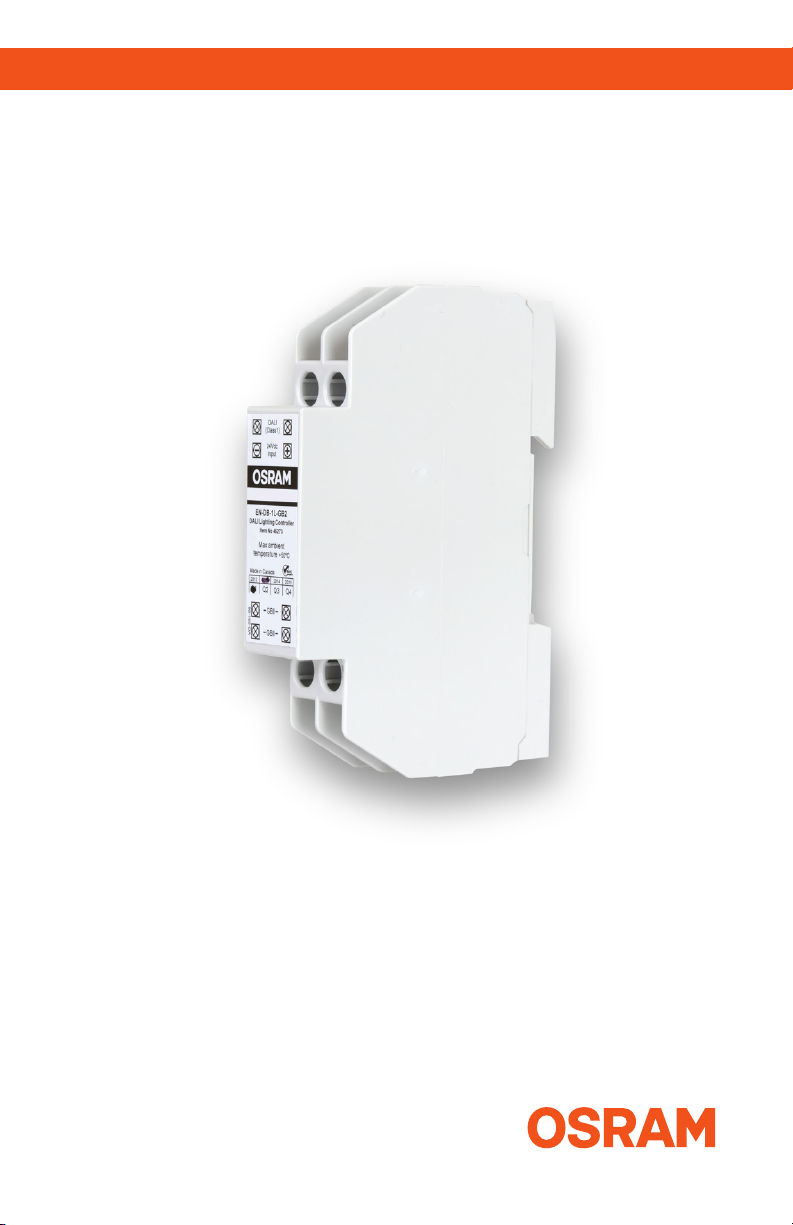

The OSRAM DALI Bridge attaches to the GreenBus II®network and enables

the ENCELIUM®EXTEND Light Management System to digitally control DALI

ballasts/drivers.

The module makes each DALI-compliant ballast addressable via the GreenBus II.

It will obtain its address during the commissioning process and no actions are

required during installation.

The following model is available:

Part Number

EN-DB-1L-GB2

Important Safeguards

When using electrical equipment, basic safety precautions should always

be followed, including the following:

—READ AND FOLLOW ALL SAFETY INSTRUCTIONS.

—Do not let power supply cords touch hot surfaces.

—Do not mount near gas or electric heaters.

—Equipment should be mounted in locations and at heights where it will not

readily be subjected to tampering by unauthorized personnel.

—The use of accessory equipment is not recommended by OSRAM as it may

cause an unsafe condition.

—Do not use this equipment for other than the intended use.

SAVE THESE INSTRUCTIONS

GreenBus II Communication

(Communication Circuit, Low Voltage)

NEC Class 2

GreenBus II must be laid out as per ENCELIUM EXTEND LMS supplied drawing.

If changes are required, determine an optimum wiring path utilizing the supplied

prefabricated cables, based on the position of light ﬁxtures and sensors. As the

modules obtain power via the GreenBus II, the number of modules on each chain

is limited. It is suggested to leave room for future system upgrades and to limit the

number of modules per chain to 100 units during initial installation.

One or more DALI Bridge Modules are permitted per ENCELIUM EXTEND Manager

channel with a combined maximum of 64 DALI ballasts per channel. Each

ENCELIUM EXTEND Manager can therefore control up to 512 DALI ballasts.

GreenBus II Wiring Protocol

Communication Circuit (24Vdc, NEC Class 2)

GreenBus II®Wiring Protocol is a low-cost, high reliability communication means to

report information back to the ENCELIUM®EXTEND Light Management System

(LMS) and to obtain optimum brightness settings for light ﬁxtures from the system –

optimized to result in minimum energy costs for any given building.

The GreenBus II wiring originates at an ENCELIUM EXTEND Manager and

propagates in a daisy-chain or “T” fashion from module to module (or other

compatible equipment).

GreenBus II uses proprietary connectors and jacks for ease of installation

only. GreenBus II is a proprietary standard. Connect to ENCELIUM EXTEND

LMS only. Do not connect to other circuits.

Most jurisdictions allow running the DALI bus as a NEC Class 1 circuit

together with line power supplying the DALI ballasts (consult applicable

local electrical and building codes).

Maximum 100 total devices

GBII

24V Power

Supply -

24V Power

Supply +

DALI

Loop

Module Installation

The DALI Bridge Module must be connected to a 24 Vdc power supply. OSRAM

recommends use of power supply p/n 6EP1331-1SH03. This power supply is

capable of powering up to four DALI Bridge Modules.

Do not connect more than four DALI Bridge Modules to the 6EP1331-

1SH03 power supply or abnormal behavior could occur on the DALI Loop.

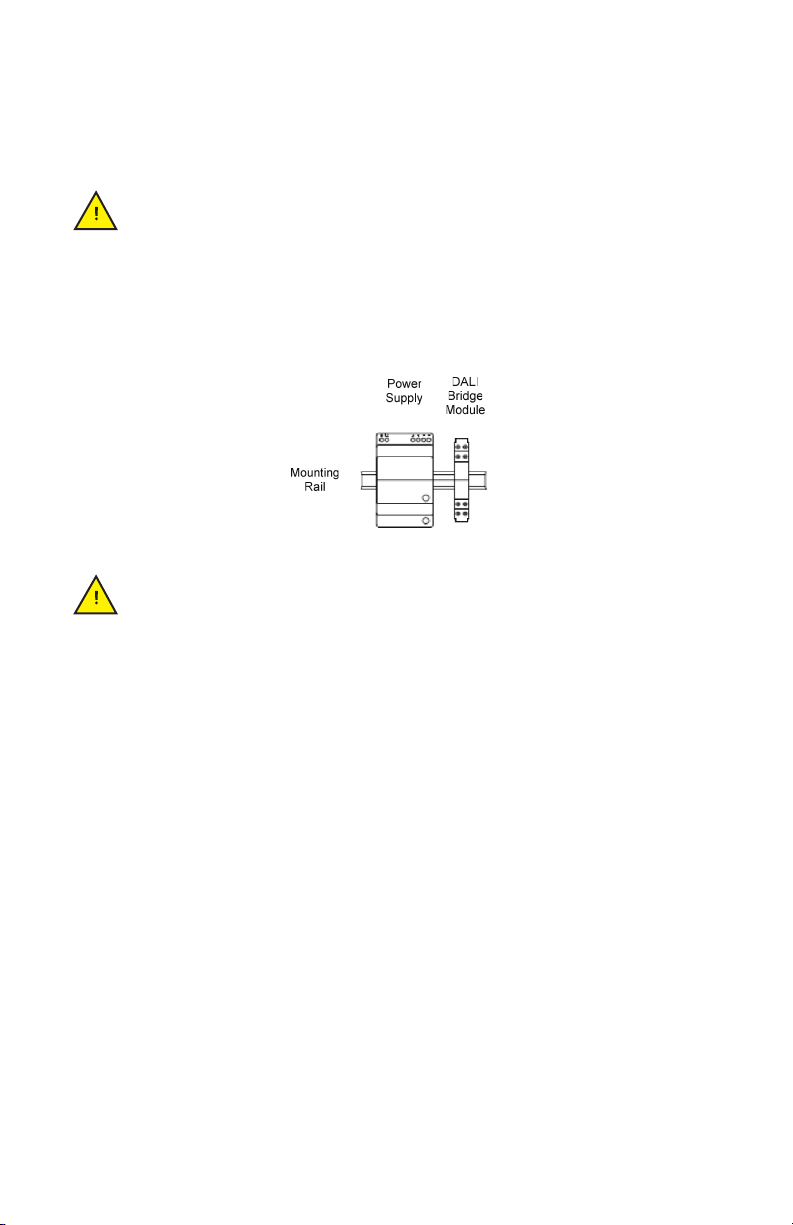

In a typical installation, the DALI Bridge Modules are mounted onto a 35x7.5 or

35x15 “top-hat” style DIN rail. The DALI Bridge Modules may be mounted to the

same DIN rail as the 24 Vdc power supply.

Do not reverse the 24 Vdc polarity connections from the power supply to the

DALI Bridge Module or damage may result.

Installation Notes

The DALI Bridge Modules are to be installed in dry, indoor locations ONLY.

Do not connect more than 64 DALI-compliant ballasts per GreenBus II®channel.

Do not connect DALI sensors or switches to the DALI Bridge Module.

Troubleshooting

There are no user-serviceable parts inside of the Area Lighting Controller.

Please return the device to OSRAM SYLVANIA Inc. if service is required.

GBII

24V Power

Supply -

24V Power

Supply +

DALI

Loop

Regulatory Approval

This equipment has been tested and found to comply with the limits for a Class A

digital device, pursuant to part 15 of the FCC Rules. These limits are designed to

provide reasonable protection against harmful interference when the equipment is

operated in a commercial environment. This equipment generates, uses, and can

radiate radio frequency energy and, if not installed and used in accordance with

the instruction manual, may cause harmful interference to radio communications.

Operation of this equipment in a residential area is likely to cause harmful

interference in which case the user will be required to correct the interference at

his own expense.

Modiﬁcations not expressly approved by the manufacturer could void the user’s

authority to operate the equipment under FCC rules.

This equipment has been tested and found to comply with the limits in accordance

to CAN ICES-3 (A)/NMB-3(A).

The contents of this Wiring and Installation Manual are subject to change

without notice.

LMS15 3 1-19

OSRAM is a registered trademark of OSRAM GmbH.

ENCELIUM and GreenBus II are registered trademarks of OSRAM SYLVANIA Inc.

Speciﬁcations subject to change without notice.

OSRAM SYLVANIA Inc.

200 Ballardvale Street

Wilmington, MA 01887 USA

888-531-7573

www.osram.us/ds
