Orion 15RTLE Manuel utilisateur
15/19/24” MARINE MONITOR
TFT-LCD MARINE MONITOR
USER MANUAL
Please read this manual thoroughly before use, and keep it handy for future reference.
• 15RTLE : 15.0inch Marine Monitor
• 19RTLE : 19.0inch Marine Monitor
• 24RTLE : 24.0inch Marine Monitor
19/21.5/23-INCH VALUE
TFT-LCD MARINE MONITOR
INSTRUCTION MANUAL ··············· 01
SAFETY INSTRUCTION .......................................................................................
CAUTIONS ............................................................................................................
FCC RF INTERFERENCE STATEMENT ...............................................................
CONNECTING WITH EXTERNAL EQUIPMENT ...................................................
CONTROL AND FUNCTIONS ...............................................................................
D-SUB CONNECTOR PIN ASSIGNMENTS ..........................................................
MOUTING GUIDE...................................................................................................
TECHNICAL DRAWING..........................................................................................
POWER MANAGEMENT ......................................................................................
SPECIFICATIONS...................................................................................................
TROUBLE SHOOTING GUIDE .............................................................................
2~3
4
5
6
7
11
12
13
16
17
19
This Monitor was
Manufactured by ISO 9001
Certified Factory
CONTENTS
02 ··············· INSTRUCTION MANUAL
Important Safety Instruction
SAFETY INSTRUCTION
1. Read these instructions.
2. Keep these Instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the
manufacturer’s instructions.
8. Do not install near any heat sources such as radiators, heat registers,stoves,
or other apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug.
Apolarized plug has two blades with one wider than the other.
Agrounding type plug has two blades and a third grounding prong.
The wide blade or the third prong are provided for your safety.
If the provided plug does not fit into your outlet, consult an electrician for replace
ment of the bsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs,
convenience receptacles and the point where they exit from the apparatus.
11. Only use attachment/accessories specified by the manufacturer.
12. Use only with the cart, stand, tripod, bracket or table specified by the manufacturer or sold with
the apparatus. When a cart is used, use caution when moving the
cart/apparatus combination to avoid injury from tip-over.
13. Unplug this apparatus during lightning storms or when unused
for long periods of time.
14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has
been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled
or objects have fallen into the apparatus the apparatus has been exposed to rain or moisture does
not operate normally or has been dropped.
INSTRUCTION MANUAL ··············· 03
SAFETY INSTRUCTION
This symbol is intended to alert the user to the presence of uninsulated :
dangerous voltage with in the product’s enclosure that may be of sufficient
magnitude to constitute a risk of electric shock to persons.
This symbol is intended to alert the user to the presence of important operating
and maintenance(servicing) instructions in the literature accompanying the
appliance.
- The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids,
such as vases, shall be placed no the apparatus.
- Minimum distances(e.g. 10cm) around the apparatus for sufficient ventilation.
“ WARNING - To reduce the risk of fire or electric shock, do not expose the apparatus to rain or moisture.”
“ The apparatus shall not be exposed to dripping or splashing and no objects filled with liquids,
such as vases, shall be placed on the apparatus.”
CAUTIONS
04 ··············· INSTRUCTION MANUAL
►ATTENTIONN
Le cordon d`alimentation est utillsé comme interrupteur général. La prise de courant doit être
située ou installée à proximité du matériel et être facile d`accès
►CAUTION
The power supply cord is used as the main disconnect device, ensure that the socket-outlet is
located/installed near the equipment and is easily accessible.
CAUTION TO SERVICE PERSONNEL
POWER SUPPLY CORD IS USED AS MAIN POWER DISCONNECT DEVICE IN
THIS PRODUCT. UNPLUG THIS PRODUCT FROM THE WALL OUTLET
BEFORE REMOVING THE BACK COVER AND SERVICING
EMISSION CHARACTERISTICS TESTED BY SEMKO
THIS PRODUCT HAS BEEN TESTED AND HAS SHOWN COMPLIANCE WITH
THE NATIONAL SPECIFICATIONS SUCH AS SWEDISH MPR 1990.10.(MPR II)
►NEVER REMOVE THE BACK COVER
Removal of the back cover should be carried out only by qualified personnel.
►DO NOT USE IN HOSTILE ENVIRONMENTS
To prevent shock or fire hazard, do not expose the unit to rain or moisture.
This unit is designed to be used in the office or home. Do not subject the unit to vibrations,
dust of corrosive gases.
►KEEP IN A WELL VENTILATED PLACE
Ventilation holes are provided on the cabinet to prevent the temperature from rising.
Do not cover the unit or place anything on the top of unit.
►AVOID HEAT
Avoid placing the unit in direct sunshine or near a heating appliance.
►TO ELIMINATE EYE FATIGUE
Do not use the unit against a bright back ground and where sunlight or other light sources will
shine directly on the monitor.
►DOC COMPLIANCE NOTICE
This digital apparatus does not exceed the Class A limits for radio noise emissions from digital
apparatus set out in the radio interference regulation of Canadian Department of communications.
INSTRUCTION MANUAL ··············· 05
NOTE
This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used
in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures.
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio, TV technician for help.
- Only shielded interface cable should be used.
Finally, any changes or modifications to the equipment by the user not expressly approved by the
grantee or manufacturer could void the users authority to operate such equipment.
FCC RF INTERFERENCE STATEMENT
06 ··············· INSTRUCTION MANUAL

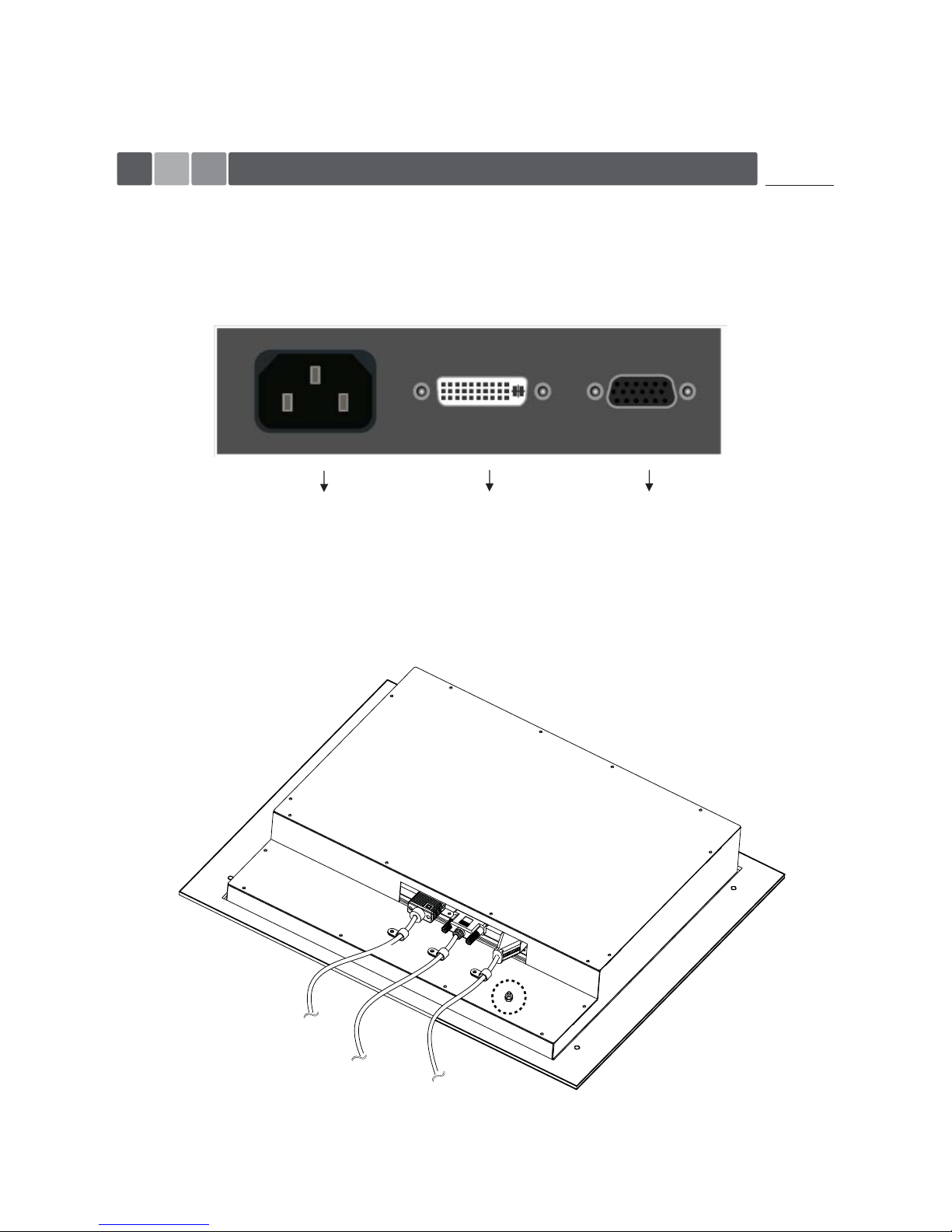

1. AC POWER IN
2. DVI
3. VGA
A. Rear Connection
A-1. 19/21/24 inch
CONNECTING WITH EXTERNAL EQUIPMENT
123
VGA
DVI
AC POWER
GND
INSTRUCTION MANUAL ··············· 07
B. Bottom Key Control
B-1. 19/21/24 inch
CONTROL AND FUNCTIONS
1. SOURCE /
Select input source, and move the previous menu.
2. MENU
Activates and exits the On Screen Display.
This button can also be used to move previous menu or status.
3, 4. AUTO/▼, ▲
These buttons allow user to move the sub-menu of the activated function.
AUTO/▼: Auto geometry adjustment
5 / 6. ◄BRIGHTNESS►
Adjust the brightness and menu settings.
7. LED
Turned on: blue color.
Turned off: red color.
8. POWER ON/OFF / I
Turn the power ON or OFF. There will be a few seconds delay before the display appears.
The power LED lights with green when the power is turned ON.
The power is turned off by pressing the power switch again and the power LED goes to Red
1 2 3 4 5 6 7 8
08 ··············· INSTRUCTION MANUAL
CONTROL AND FUNCTIONS
1. SELF-TEST DISPLAY
When there is no connection at PC, the On Screen Display will show for 3 seconds.
(POWER SAVING MODE)
2. OSD MENU DESCRIPTION
2-1 AUTO ADJUST
Adjust screen size when input is Analog(VGA).
2-2 SCREEN
1) BRIGHTNESS
Increase or decrease the intensity of the image.
2) CONTRAST
Increase or decrease the intensity (lightness or
dimness) of the image
3) H.POSITION
Move image horizontally on screen right or left.
4) V.POSITION
Move image vertically on screen up or down.
5) PHASE ADJUST
Remove and horizontal noise and clear up or sharpen the character images.
6) CLOCK ADJUST
Minimize any vertical bras or stripes appearing on the screen background
1280 X 1024 64.4kHz 60Hz
1280 X 1024 64.4kHz 60Hz
