Orion PREMIUM SERIES Manuel utilisateur

Installation and User’s Guide

PREMIUM SERIES LCD MONITOR

8.4” TFT-LCD MONITOR

(SECURITY)

http://www.orionimages.com

All contents of this document may change without prior notice, and actual product appearance may differ

from that depicted herein

Installation and User’s Guide

htt

://www.orionima

es.com

Warning Statements

* Follow this safety instruction to use the monitor properly and prevent the damages.

* This safety instruction has “ Warning” and “ Caution” as below.

WARNING: If the user does not follow this instruction,

it may cause the serious damage to the user.

CAUTION: If the user does not follow this instruction, it may cause the slight

damage to the user or cause some damages to the monitor.

* Keep this user’s guide book for later use.

Never remove the back over and touch

the inside of the monitor. If you need a

service, please contact the service center.

Keep away the monitor from the

direct sunlight and a heating appliance.

Connect the power code to the wall

outlet tightly. If the power code or plug are

defective and the wall outlet is not tight,

lease do not use them.

Never push objects of any kind into this

product as they may result in a risk of fire

or electric shock.

2 7300 Bolsa Avenue, Westminster CA 92683 / Tel: 714-766-6300 / Fax: 714-766-6310 pg2

Installation and User’s Guide

htt

://www.orionima

es.com

Warning Statements

Do not install this monitor on the outside

and near water. If may cause damage to

the product, electric shock and fire.

For cleaning do not use liquid cleaners.

Never touch the power plug with wet-

hands.

When lightning and thundering, unplug

the monitor from the wall outlet and never

touch it.

Unplug this product from the wall outlet,

when It does not operate for a long time.

When smoking and noising from the

monitor, unplug the product from the wall

outlet and contact a service center.

How to fix

1. Do not open this product as it contains high voltage inside.

2. It may create an electric shock.

3. It the user disassembles and remove the back cover, it does not make sure

4. To make up for the damages and do a service and exchange the monitor..

3 7300 Bolsa Avenue, Westminster CA 92683 / Tel: 714-766-6300 / Fax: 714-766-6310 pg3

Installation and User’s Guide

htt

://www.orionima

es.com

Cautions

Install this monitor some distance

From the wall and do not install unless

Proper ventilation is provided.

Place this product on a stable place.

If not, it may fall, causing serious

Damages to the monitor and people.

The openings must not be blocked by

curtain, rug or other similar surface. When carrying this monitor, be careful

not to damage the panel and drop it

It may cause some trouble.

Take the power plug out from the wall

outlet. Do not pull the cable. It may

snap the inner wires and cause

overheating and fire.

Before carrying the monitor, tum it off

and Unplug the signal cables and the

power code From the wall outlet.

Install this monitor about 50cm far from

the eyes and an angle of 0~15 degrees

below eyes. Too close installation may

cause having weak sight.

Do not press the LCD panel with hands

or the sharpened material hardly.

For cleaning, unplug the monitor from

the Wall outlet. Do net use the liquid

cloth. Use the soft cloth.

Do not use the chemical liquid for

cleaning. It may cause fading and

breakage.

4 7300 Bolsa Avenue, Westminster CA 92683 / Tel: 714-766-6300 / Fax: 714-766-6310 pg4

Installation and User’s Guide

htt

://www.orionima

es.com

TABLE OF CONTENTS

.................................................................................................................

1. INSTALLATION 6

……....................................................................................................................

1.1 Parts

…..…..........................................................................................................

1.2 Connection

…..................................................................................................................

2. FEATURES 8

…….……..............................................................................................

2.1 Specifications 8

3. OSD SETTING ............................................................................................................ 9-11

....

.......................................................

................

.........................

4. CONTROL BUTTON 12

....

.......................................................

................

.........

5. INFORMATION TO THE USER 13

....

.......................................................

.................

....................

6. TROUBLESHOOTING 14

....

.......................................................

.................

...

7. LIMITED LIFETIME WARRANTY 15

5 7300 Bolsa Avenue, Westminster CA 92683 / Tel: 714-766-6300 / Fax: 714-766-6310 pg5

Installation and User’s Guide

htt

://www.orionima

es.com

INSTALLATION

1.1 P

Remove the package cover and place the product on a flat and secure surface or in the

installation location. Check whether all the following device and accessories are included with

the main system.

6 7300 Bolsa Avenue, Westminster CA 92683 / Tel: 714-766-6300 / Fax: 714-766-6310 pg6

Installation and User’s Guide

htt

://www.orionima

es.com

INSTALLATION

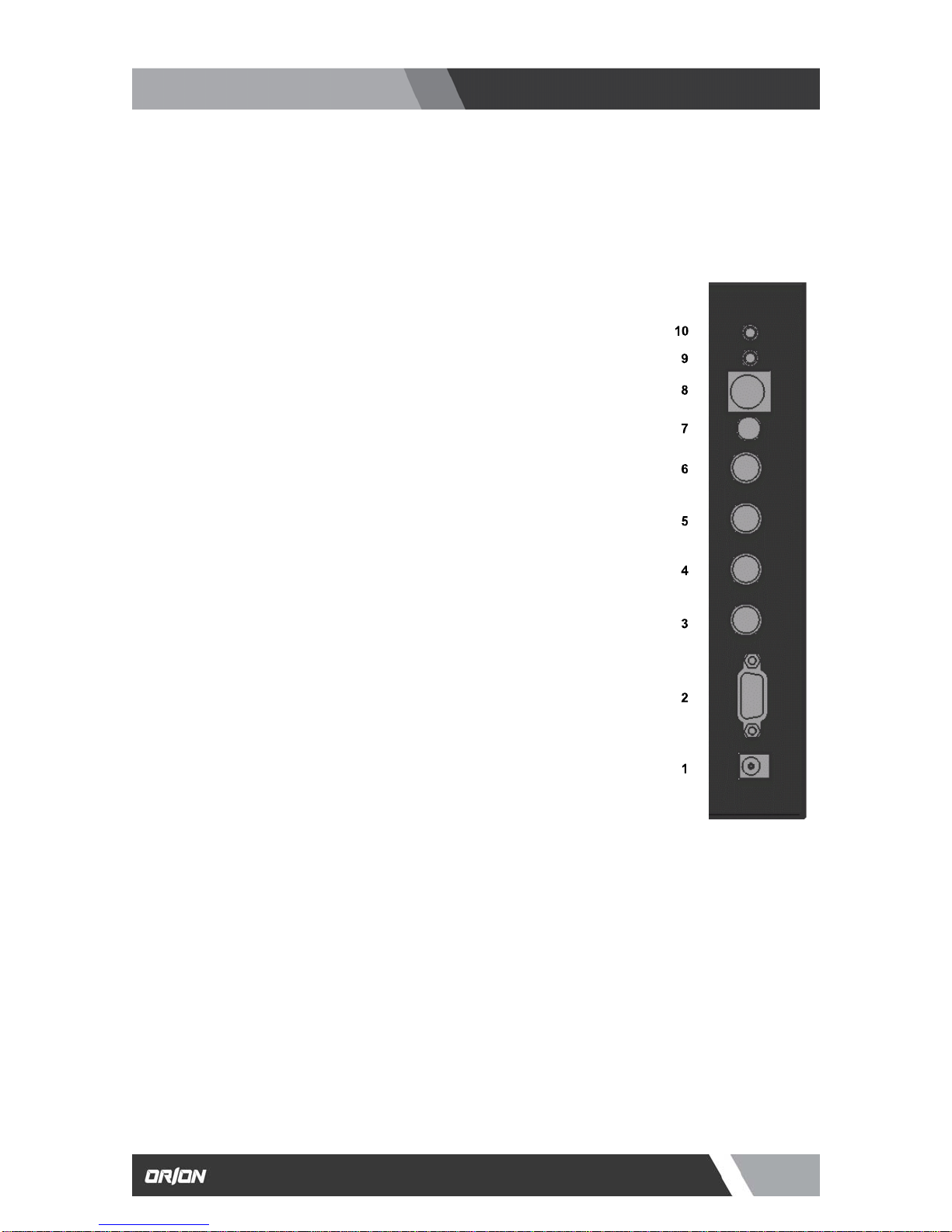

1.2 Connection

1. DC 12V IN

2. RGB IN

3. VIDEO1 IN

4. VIDEO1 OUT

5. VIDEO2 IN

6. VIDEO2 OUT

7. S-VIDEO (Y/C) IN

8. S-VIDEO (Y/C) OUT

9. PC STEREO IN

10. TRIGGER IN

RGB signal input

Composite signal input for VIDEO1

Video looping output for VIDEO1

Composite signal input for VIDEO2

Video looping output for VIDEO2

Y/C separated signal input

Y/C separated signal looping output

NO / NC signal input

7 7300 Bolsa Avenue, Westminster CA 92683 / Tel: 714-766-6300 / Fax: 714-766-6310 pg7

Installation and User’s Guide

htt

://www.orionima

es.com

FEATURES

2.1 Specifications (15 Inch)

VIDEO

Screen Size 8.4”

Pixel Type Active Matrix TFT

Max. Resolution 800 x 600 @ 60Hz (SVGA)

Pixel Pitch 0.213 x 0.213mm

Brightness 220 cd/㎡

Contrast Ratio 500 : 1

Aspect Ratio 5:4

Viewing Angle (H/V) 130 / 110

Display Color 16.2 Million

Response Time < 35ms

Video System NTSC / PAL / SECAM

Frequency (H) 31 ~ 48KHz

Frequency (V) 55 ~ 75Hz

Panel Lamp Life 20,000hours

MECHANICAL

Packing Dimension

W x H x D 9.8” x 9.6” x 4.3”

Weight 4.85lbs

Power Consumption 15W

Power Source DC12V adapter (Auto Switching) / 1.5A

NOTE : Technical specifications are subject to change without notice..

8 7300 Bolsa Avenue, Westminster CA 92683 / Tel: 714-766-6300 / Fax: 714-766-6310 pg8

Installation and User’s Guide

htt

://www.orionima

es.com

OSD (On Screen Display) SETTING

3.1 OSD MENU Description

Menu Selection

1. Press the MENU key to access the Main menu.

2. Use the and arrow key to highlight a selection

3. Press the INPUT/SELECT key to select an item.

4. Use the and arrow key to highlight a selection.

5. Use the and arrow key to adjust the setting on a selected item.

NOTE : If you don’t connect RGB port, RGB SETUP menu is not select.

A. Input Select

Inputs can be set to VIDEO, S-VIDEO and RGB mode.

Press the SOURCE/ key then you can change the input source.

B. Picture Menu

9 7300 Bolsa Avenue, Westminster CA 92683 / Tel: 714-766-6300 / Fax: 714-766-6310 pg9

Installation and User’s Guide

htt

://www.orionima

es.com

OSD (On Screen Display) SETTING

1. Press the MENU key and then ▼/◀ or ▲/▶ key to select the PICTURE menu.

2. Press the INPUT / SELECT key and then ▼/◀ or ▲/▶ key to select the adjustment item you

need.

Press the INPUT

SELECT

key to active the item.

EX) If you select the BRIGHTNESS, then the picture below appears on the screen.

4. Press the MENU key to move the previous menu..

C. Color Temp Menu

If you want to change of color value on RGB source,

1. Select COLOR MODE on RGB MENU.

2. Press the INPUT/SELECT key and then select COLOR TEMP.

3. Change the USER and then ▼/◀ or ▲/▶ key to select the adjustment item you

need.

4. Press the INPUT/SELECT key to active the item.

5. Press the MENU ke

to move the

revious menu.

10 7300 Bolsa Avenue, Westminster CA 92683 / Tel: 714-766-6300 / Fax: 714-766-6310 pg10
