Orion RNK22SNH Manuel utilisateur
VIDEO WALL SOLUTION
(22~82 inches)
Installation and User's Guide
All contents of this document may change without prior notice, and actual product appearance may differ from that depicted herein
1. SAFETY INSTRUCTION
Follow this safety instruction to use the monitor properly and prevent the damages.
Keep this user’s guide book for later use.
This safety instruction has “Warning” & “Caution” as below
Warning - If the user does not follow this instruction,
it may cause the serious damage to the user.
Caution - If the user does not follow this instruction, it may cause the slight
damage to the user or cause some damages to the monitor.
Warning
Keep away the monitor from the
direct sunlight and a heating appliance.
Never push objects of any kind into
this product as they may result in
a risk of fire or electric shock.
Connect the power code to the wall
outlet tightly. If the power code or plug
are defective and the wall outlet is not
tight, please do not use them.
Never remove the back over and
touch the inside of the monitor.
If you need a service, please
contact the service center.
2
Installation and User's Guide
Warning
Do not install this monitor on the outside
and near water. If may cause damage to
the product, electric shock and fire.
For cleaning do not use liquid cleaners.
Never touch the power plug with wet-hands.
When lightning and thundering, unplug the
monitor from the wall outlet and never touch
it.
When smoking and noising from the monitor,
unplug the product from the wall outlet and
contact a service center.
Unplug this product from the wall outlet, when
It does not operate for a long time.
W
WA
AR
RN
NI
IN
NG
G:
:
How to fix
Do not open this product as it contains high voltage inside.
It may create an electric shock.
It the user disassembles and remove the back cover, it does not make sure
to make up for the damages and do a service and exchange the monitor.
3
Installation and User's Guide
Cautions
Install this monitor some distance
From the wall and do not install unless
Proper ventilation is provided.
Place this product on a stable place.
If not, it may fall, causing serious
Damages to the monitor and people.
The openings must not be blocked by
curtain, rug or other similar surface.
Before carrying the monitor, tum it off and
Unplug the signal cables and the power code
From the wall outlet.
When carrying this monitor, be careful
not to damage the panel and drop it
It may cause some trouble.
Take the power plug out from the wall
outlet.
Do not pull the cable. It may snap the inner-
wires and cause overheating and fire.
4
Installation and User's Guide
5
Installation and User's Guide
Cautions
Install this monitor about 50cm far from
the eyes and an angle of 0~15 degrees
below eyes. Too close installation may
cause having weak sight.
Do not press the LCD panel with hands or
the sharpened material hardly.
Do not use the chemical liquid for cleaning.
It may cause fading and breakage.
For cleaning, unplug the monitor from the
Wall outlet. Do net use the liquid cloth.
Use the soft cloth.
WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT EXPOSE
THIS EQUIPMENT TO RAIN OR WATER.
Instructions for Disposal of Electrical and Electronic Equipment in Private
Households
Disposal of used Electrical and Electronic Equipment
(Applicable in the European Union and other European countries with garbage separate
disposal and collection methods)
This symbol on the product, or in the related documents in the package, indicates that this
product shall not be treated as normal household waste. Instead, it should be taken to a proper
applicable collection point or depot for the recycling of electrical and electronic equipment.
By ensuring this product is disposed of correctly, you will help prevent possible negative consequences for
the environment and human health, which could otherwise be caused by inappropriate waste handling of
this product. The recycling of materials will help to conserve natural resources.
For more detailed information about recycling of this product, please contact your local city authority, your
household waste disposal service or the place where you purchased the product.
2. FCC RF INTERFERENCE STATEMENT
NOTE
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following measures.
● Reorient or relocate the receiving antenna.
● Increase the separation between the equipment and receiver.
● Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
● Consult the dealer or an experienced radio, TV technician for help.
● Only shielded interface cable should be used.
Finally, any changes or modifications to the equipment by the user not expressly approved by the grantee or manufacturer could void
the users authority to operate such equipment.
DOC COMPLIANCE NOTICE
This digital apparatus does not exceed the Class A limits for radio noise emissions from digital apparatus set out in the radio
interference regulation of Canadian Department of communications.
6
Installation and User's Guide
2
1. SAFETY INSTRUCTION
1-1 Warning
1-2 Caution
6
2. FCC STATEMENT
3-1 Parts
3-2 How to Install
23
7. TROUBLESHOOTING
8
3. INSTALLATION
4-1 Mode Setting
4-2 Menu Setting
13
4. OSD MENU SETTING
21
5. FEATURES
22
6. MECHANICAL DRAWING
TABLE OF CONTENTS
7
Installation and User's Guide
3. INSTALLATION
3-1 Parts
LCD Monitor & Keypad
UTP Cable VGA Cable Serial Cable
Joint Bracket
Trigger Cable Power Cable Remote Controller
Battery Install CD User Manual
(Only 40 inches or more)
8
Installation and User's Guide
3-2 How to Install
UTP Cable (1.5m)
If you want to replace with a longer cable Please purchase separately
This KEYPAD is attached to a magnet, so you can freely paste
SHORT KEY FUNCTION
KEYPAD CONTROLLER
OSD KEY FUNCTION
On/off the OSD menu or exit the source selection menu
Move the cursor to choose on the OSD menu
Select the source on the INPUT menu
Move up the cursor to choose on the OSD menu
Activate the auto adjustment of RGB source
Control down on the OSD menu or move to the previous menu
Volume down
Select the OSD menu
Control up on the OSD menu
Volume up
Turn the power ON or OFF. There will be a few seconds delay before the
display appears. The power LED (next to the power switch) lights with green
when the power is turned ON. The power is turned off by pressing the power
switch again and the power LED goes red.
9
Installation and User's Guide

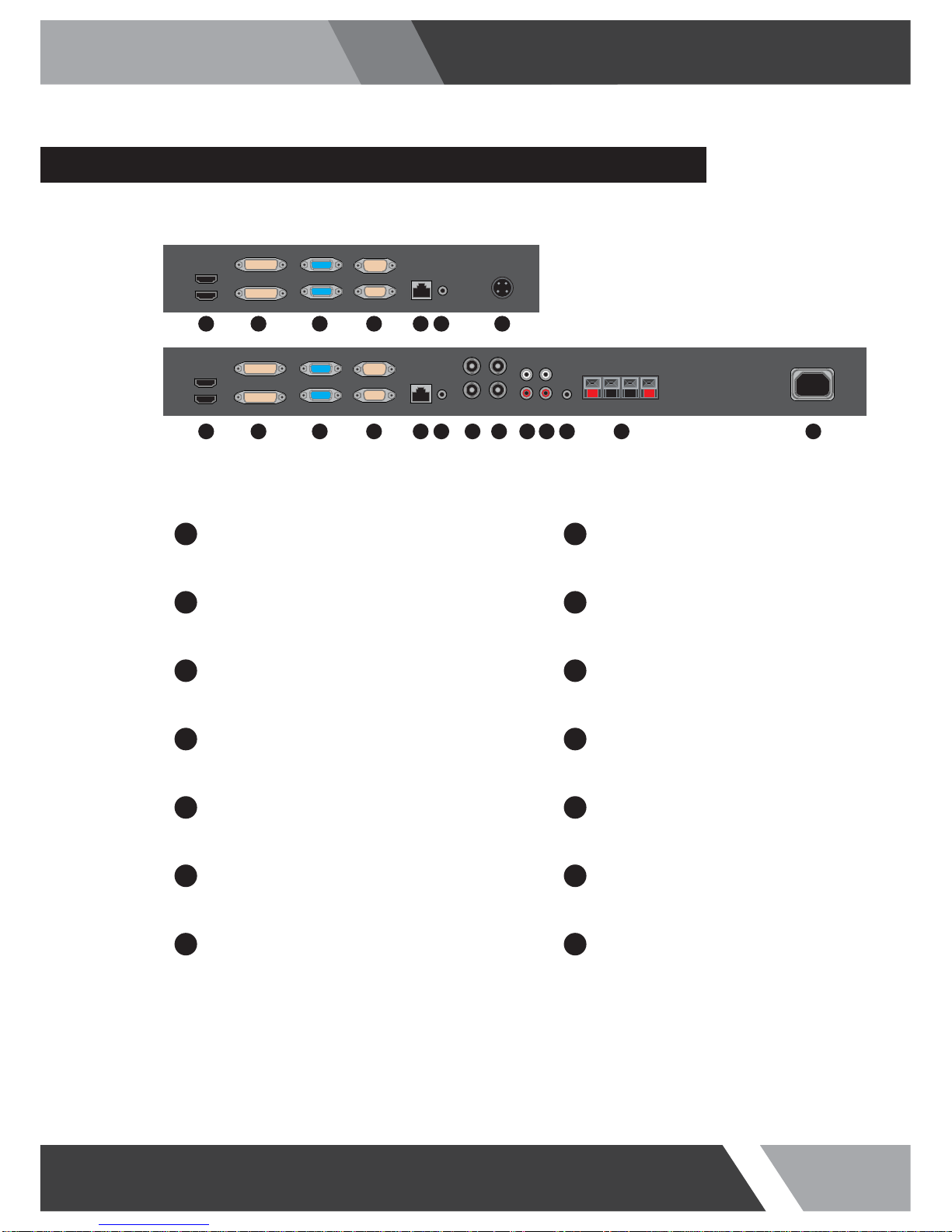

CONNECTION
1 2 3 4 5 6
1 2 3 4 5 6 14
7 8 9 10 11 12 13
HDMI
22 inches
40~82 inches
1VIDEO-2 IN / OUT
HDMI Signal input / loop output VIDEO-2 Signal input / loop output
8
DVI
2AUDIO (VIDEO-1)
DVI Signal input / loop output Stereo audio input for VIDEO-1
9
VGA
3AUDIO (VIDEO-2)
VGA (PC RGB) Signal input / loop output Stereo audio input for VIDEO-2
10
RS-232 IN / OUT
4TRIGGER
SERIAL Cable input / output for RS-232 TRIGGER Signal input
11
KEYPAD
5SPEAKER OUT
UTP Cable input for KEYPAD Stereo speaker output
12
AUDIO (PC)
6AC POWER
Stereo audio input for VGA AC 100-240V input
13
VIDEO-1 IN / OUT
7DC24V
VIDEO-1 Signal input / loop output DC 24V (Adapter) input
14
10
