Orion Economy Series Manuel utilisateur
Installation and User’s Guide
http://www.orionimages.com
All contents of this document may change without prior notice, and actual product appearance may differ
from that depicted herein
Installation and User’s Guide
TFT-LCD MONITOR
(SECURITY)
ECONOMY SERIES LCD MONITOR
2
Installation and User’s Guide
htt
p
://www.orionima
g
es.com
7300 Bolsa Avenue, Westminster CA 92683 / Tel: 714-766-6300 / Fax: 714-766-6310 pg2
* Follow this safety instruction to use the monitor properly and prevent the damages.
* Keep this user’s guide book for later use.
Warning Statements
* This safety instruction has “ Warning” and “ Caution” as below.
WARNING: If the user does not follow this instruction,
it may cause the serious damage to the user.
CAUTION: If the user does not follow this instruction, it may cause the slight
damage to the user or cause some damages to the monitor.
Never remove the back over and touch
the inside of the monitor. If you need a
service, please contact the service center.
Keep away the monitor from the
direct sunlight and a heating appliance.
Never push objects of any kind into this
product as they may result in a risk of fire
or electric shock.
Connect the power code to the wall
outlet tightly. If the power code or plug are
defective and the wall outlet is not tight,
p
lease do not use them.
3
Installation and User’s Guide
htt
p
://www.orionima
g
es.com
7300 Bolsa Avenue, Westminster CA 92683 / Tel: 714-766-6300 / Fax: 714-766-6310 pg3
Warning Statements
Do not install this monitor on the outside
and near water. If may cause damage to
the product, electric shock and fire.
For cleaning do not use liquid cleaners.
Never touch the power plug with wet-
hands.
When lightning and thundering, unplug
the monitor from the wall outlet and never
touch it.
Unplug this product from the wall outlet,
when It does not operate for a long time.
When smoking and noising from the
monitor, unplug the product from the wall
outlet and contact a service center.
How to fix
1. Do not open this product as it contains high voltage inside.
2. It may create an electric shock.
3. It the user disassembles and remove the back cover, it does not make sure
4. To make up for the damages and do a service and exchange the monitor..
4
Installation and User’s Guide
htt
p
://www.orionima
g
es.com
7300 Bolsa Avenue, Westminster CA 92683 / Tel: 714-766-6300 / Fax: 714-766-6310 pg4
Cautions
Install this monitor some distance
From the wall and do not install unless
Proper ventilation is provided.
Place this product on a stable place.
If not, it may fall, causing serious
Damages to the monitor and people.
The openings must not be blocked by
curtain, rug or other similar surface. When carrying this monitor, be careful
not to damage the panel and drop it
It may cause some trouble.
Before carrying the monitor, tum it off
and Unplug the signal cables and the
power code From the wall outlet.
Take the power plug out from the wall
outlet. Do not pull the cable. It may
snap the inner wires and cause
overheating and fire.
Install this monitor about 50cm far from
the eyes and an angle of 0~15 degrees
below eyes. Too close installation may
cause having weak sight.
Do not press the LCD panel with hands
or the sharpened material hardly.
For cleaning, unplug the monitor from
the Wall outlet. Do net use the liquid
cloth. Use the soft cloth.
Do not use the chemical liquid for
cleaning. It may cause fading and
breakage.
5
Installation and User’s Guide
htt
p
://www.orionima
g
es.com
7300 Bolsa Avenue, Westminster CA 92683 / Tel: 714-766-6300 / Fax: 714-766-6310 pg5
TABLE OF CONTENTS
1. INSTALLATION .................................................................................................................
1.1 Parts ……....................................................................................................................
1.2 How to install ............................................................................................................
2. FEATURES …..................................................................................................................
2.1 Display Mode
2.2 Specification (17INCH) ...............................................................................................
…….……..............................................................................................
2.3 Specification (19INCH) ...............................................................................................
3. OSD SETTING .................................................................................................................
3.1 OSD Menu(PC Mode)
3.2 OSD Menu(VIDEO/CVBS Mode)
................................................................................................
..........................................................................
4. INFORMATION TO THE USER ......................................................................................
5. TROUBLESHOOTING .....................................................................................................
6. LIMITED LIFETIME WARRANTY ...................................................................................
6
6
7
8
8
9
9
10
10
11-15
16
17
16
6
Installation and User’s Guide
htt
p
://www.orionima
g
es.com
7300 Bolsa Avenue, Westminster CA 92683 / Tel: 714-766-6300 / Fax: 714-766-6310 pg6

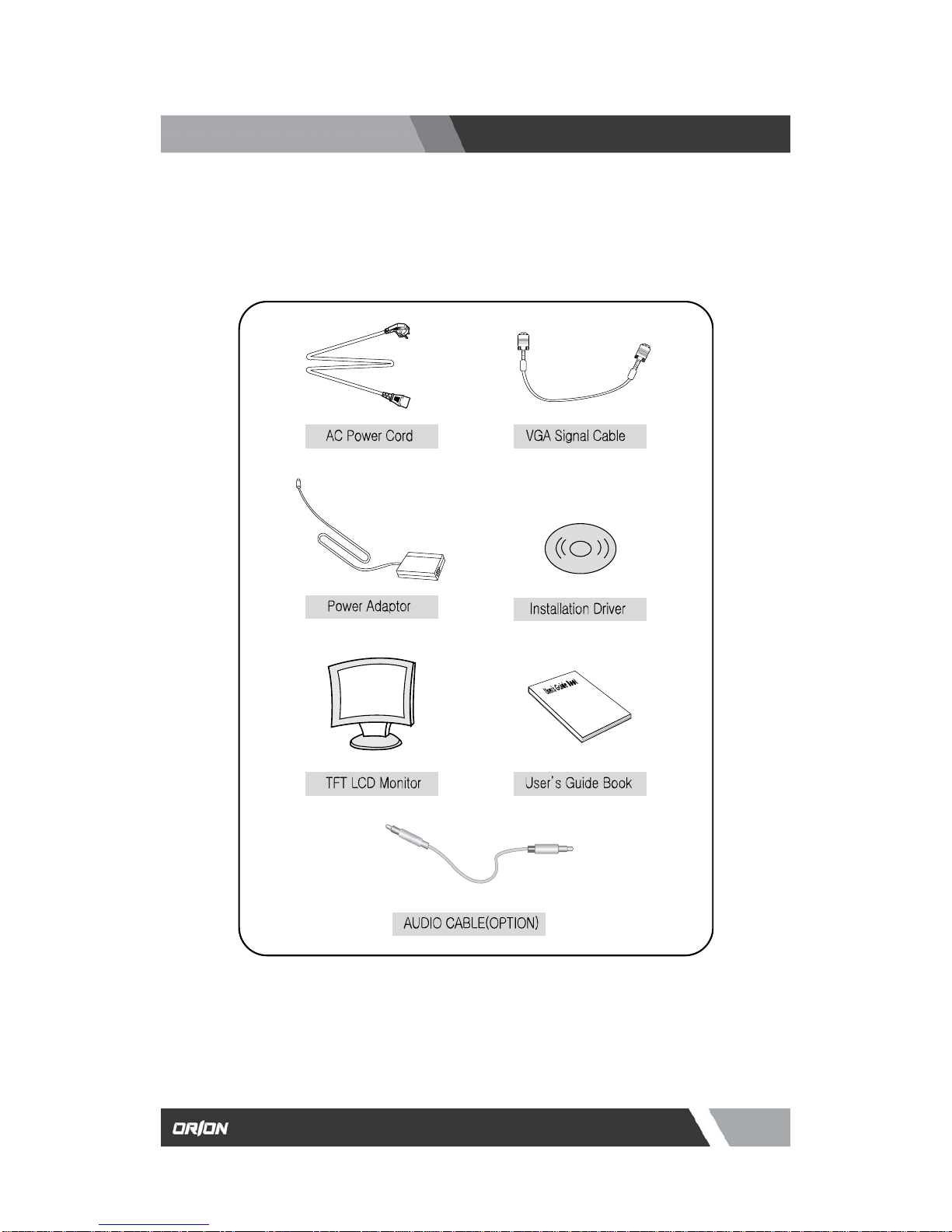

INSTALLATION
1.1 P
a
r
ts
7
Installation and User’s Guide
htt
p
://www.orionima
g
es.com
7300 Bolsa Avenue, Westminster CA 92683 / Tel: 714-766-6300 / Fax: 714-766-6310 pg7
INSTALLATION
1.2 H
o
w
to
In
sta
ll
* Warning: Tilting more than 10 degrees to the front or 30 degrees to the back
may cause collapse of the product.
8
Installation and User’s Guide
htt
p
://www.orionima
g
es.com
7300 Bolsa Avenue, Westminster CA 92683 / Tel: 714-766-6300 / Fax: 714-766-6310 pg8
FEATURES
2.1 Display Mode
9
Installation and User’s Guide
htt
p
://www.orionima
g
es.com
7300 Bolsa Avenue, Westminster CA 92683 / Tel: 714-766-6300 / Fax: 714-766-6310 pg9
FEATURES
2.2 Specification (17INCH)
2.2 Specification (19INCH)
10
Installation and User’s Guide
htt
p
://www.orionima
g
es.com
7300 Bolsa Avenue, Westminster CA 92683 / Tel: 714-766-6300 / Fax: 714-766-6310 pg10
OSD (On Screen Display) Setting
3.1 OSD MENU (PC MODE)
