Orient Cem65001b Manuel utilisateur

ENGLISH

MECHANICAL WATCH

INSTRUCTION MANUAL

Thank you for choosing our product. To ensure prolonged use and optimum

performance, please read this instruction manual carefully and familiarize

your-self with the terms of the guarantee.

Please keep this Instruction Manual handy for future reference.

SAFETY PRECAUTIONS

Make absolutely sure to observe the demarcated contents indicated below to

prevent any possible physical danger and property damage to you as well as

other people concerned.

... A demarcation with this symbol represents the contents

assuming possibility for death or serious injury

when the product is used in any manner different from

given instructions.

... A demarcation with this symbol represents the contents

assuming possibility of causing human injury or

material damage only when a product is used in any

manner different from given instructions.

WARNING

CAUTION

ENGLISH

IN HANDLING THE WATCH

(1) Water-resistance

Conditions

of use

Type

Underwater

operation of

crown and

operation

of crown

with drops

of water

on it

Exposure

to small

amounts

of water

(face-

washing,

rain, etc.)

Water sports

(swimming,

etc.),

frequent

contact with

water (car-

washing,

etc.)

Skin diving

(air tanks

are not

used)

Scuba

diving

(air tanks

are used)

Mixed-gas

Diving

(using

helium

gas)

Non water resistant

Without

WATER

RESISTANT

(WATER

RESIST)

××××××

Water

resistant

watches

Water

resistant for

daily life

WATER

RESISTANT

(WATER

RESIST) ×× × × ×

Reinforced

water

resistance

for daily

life I

WATER

RESISTANT

(WATER

RESIST)

50m (5bar)

×  × × ×

Reinforced

water

resistance

for daily

life II

WATER

RESISTANT

(WATER

RESIST)

100m (10bar)

200m (20bar)

×× ×

Diver’s

watches

Diver’s

watch for Air

Diving

AIR DIVER’S

100m / 150m

200m ×    ×

Diver’s

watch for

Mixed-gas

Diving

He-GAS

DIVER’S

200m / 300m /...

×

* It is recommended that you use the watch correctly following the above-mentioned scope of usage

after ascertaining water resistance precautions marked on the dial or caseback.

ENGLISH

1A watch with water resistance for daily life 30m (3 bar) can be used

during face-washing, etc. but cannot be used in an environment in which

it will be submerged in water.

2A watch with reinforced water resistance for daily life I 50m (5 bar) can be

used while swimming, etc. but cannot be used during any type of diving

including skin diving.

3A watch with reinforced water resistance for daily life II 100m or 200m (10

or 20 bar) can be used while skin diving, but cannot be used while scuba

diving using oxygen tanks or saturation diving using helium gas, etc.

4Keep the crown pushed in at all times (in the normal position) while using

the watch. If the crown is the screwed-down type, check that it is securely

screwed down.

5Do not operate the crown underwater, or while the watch is wet. Water

may enter the interior of the watch and defeat the water resistance.

6If your watch is non-water resistant, beware of splashes of water (during

face washing, rain, etc.) and sweat. If the watch becomes wet from water

or sweat, wipe the moisture off with a dry, soft cloth.

7Even with a water resistant watch for everyday use, avoid directing

strong jets of mains water onto the watch. Water pressure above the limit

can apply, which may defeat the water resistance.

8With a water resistant watch for everyday use, rinse sea water off the case

after exposure, then wipe it thoroughly to avoid corrosion and other effects.

9The interior of the watch contains some amount of moisture, which may

cause fogging on the inside of the glass when the outside air is cooler

than the internal temperature of the watch. If the fogging is temporary

it causes no harm inside the watch, but if prolonged, or if water enters

the watch, consult your place of purchase and do not leave the problem

untreated.

CAUTION

WARNING

ENGLISH

(2) Shock

1Be sure not to carry the watch when you engage in

strenuous sports, whereas playing such light sports as golf,

etc., will not adversely influence the watch.

2Avoid a violent shock such as dropping the watch on the

floor.

(3) Magnetism

1If the watch is left at a location with strong magnetism for an extended

period of time, the components may be magnetized, resulting in

malfunction. Be careful.

2The watch may temporarily speed up or slow down when exposed to

magnetism. Precision is restored when placed away from magnetism. In

such a case, reset the time.

(4) Vibration

The watch may lose precision if subjected to strong

vibrations such as from riding motorcycles, using

jackhammers, chain saws, etc.

(5) Temperature

In environments below and above normal temperatures (5°C-35°C), the

watch may malfunction and stop.

Do not use the watch at high temperatures, such as in a sauna. The

watch may heat and cause burns.

(6)Chemicals, Gases, etc.

Utmost caution must be exercised when coming into contact with gases,

mercury, chemicals (paint thinner, gasoline, various solvents, detergents

containing such components, adhesives, paint, drugs, perfumes,

cosmetics, etc.), and so forth. Such may cause discoloration of the

watchcase, watchband, and dial face. Discoloration, deformation, and

damage to various resin-based component parts may also occur.

CAUTION

ENGLISH

(7) About accessory parts

Do not attempt to disassemble or modify the watch.

Store the bracelet/strap pin and other small parts out of the reach of

children.

If any small parts are swallowed, immediately contact a doctor.

(8) Allergic reactions

If you develop a skin rash or your skin becomes abnormally irritated due

to contact with the watch or strap, stop wearing the watch immediately

and consult a doctor.

(9) About “luminous light”

Some models have luminous light on the hands and dial.

The luminous light is a safe paint that stores sunlight and artificial light

without using any radioactive material, and emits that light in a dark

setting. As the paint discharges the stored light, it will become dimmer

over time. The amount of light emitted and the time that light is emitted

depends on various factors when the light is stored, such as the shape

of the glass, the thickness of the paint, surrounding brightness level, the

distance from the watch to the light source, and the light absorption level.

Please note that when not enough light energy is stored, the watch may

emit weak light or emit light for only a short time.

(10)Water resistant watchband

Some models employ leather and nylon bands on which a special

treatment to resist perspiration and water absorption have been applied.

Please understand that the water resisting effect of this watchband can

be lost depending on the period and conditions of use.

CAUTION

WARNING

CAUTION

ENGLISH

HOW TO IDENTIFY THE CALIBER NUMBER

Check the caliber number by referring to the model number of your watch or

the case code on the watch’s case back.

1. Searching by 10-digit model number

Check the 10-digit model number on the guarantee supplied with your watch.

You can also see the number on the product tag put on the watch. Its second

and third digits indicate the caliber number of your watch.

Example: If the model number is “ DB05001B ”, the caliber number is “DB”.

2. Searching by the case code

See the case code on the case back of your watch.

A: If the case code is 6 digits, the first two digits indicate the caliber number.

B: If the case code is 8 or 9 digits, the first three digits indicate the

movement number. Search the caliber number corresponding to the

movement number referring to the correspondence table.

Example A

Case code

Example B

Example A : When the case code is “DB05-C0”, the caliber number is “DB”.

Example B : When the case code is “469396-81”, the movement number is

“469”. The caliber number corresponding the number will be

found “EM” on the table.

* The place of case code may vary and its letter size may be small and

difficult to see depending on the characteristics of watches.

* The pictures and illustrations on this manual may differ from the actual

appearance of your watch but the function and operation procedures are

the same.

ENGLISH

SPECIFICATIONS

Caliber Click-B Date Day of week Hand winding Daily accuracy Remark1*

DB 46A – – – – +25~-15s/day –

DW 48D –○– – +25~-15s/day 9:00 p.m.-2:00 a.m.

EM 469 ○ ○ ○ –+25~-15s/day 9:00 p.m.-4:00 a.m.

ER 487 –○– – +25~-15s/day 9:00 p.m.-2:00 a.m.

NB 555 – – – – +40~-30s/day –

NP 558 ○ ○ ○ ○ +40~-30s/day 8:30 p.m.-2:00 a.m.

NQ 559 –○ ○ ○ +40~-30s/day 8:30 p.m.-4:00 a.m.

NR 557 –○–○+40~-30s/day 8:30 p.m.-0:30 a.m.

PF 597 –○–○+40~-30s/day 8:30 p.m.-0:30 a.m.

PM 599 –○ ○ ○ +40~-30s/day 8:30 p.m.-4:00 a.m.

(1) Vibrations: 21,600 vibrations/hour

(2) Number of jewels: 21 jewels

(3) Running time: More than 40 hours

(4) Shock-proof bearings to protect the balance with hairspring from shocks.

The stated daily accuracy is in the following conditions:

• After 24 hours at room temperature with the mainspring wound fully and

the dial facing up.

• Due to the characteristics of the automatic winding watch, the time may

deviate from the stated “daily accuracy” depending on the following

conditions: amount of time the watch is worn each day, position of the

watch, movement of your arm, winding condition of the mainspring.

Product specifications may change without notice, for improvement.

CAUTION

* Avoid setting the date during the time periods listed in “Remark1” above

since the calendar changes during this time. If the date is set during this

time period, the date may not change or the watch may malfunction. Be

sure to move the hour and minute hands away from this time period when

setting the date.

ENGLISH

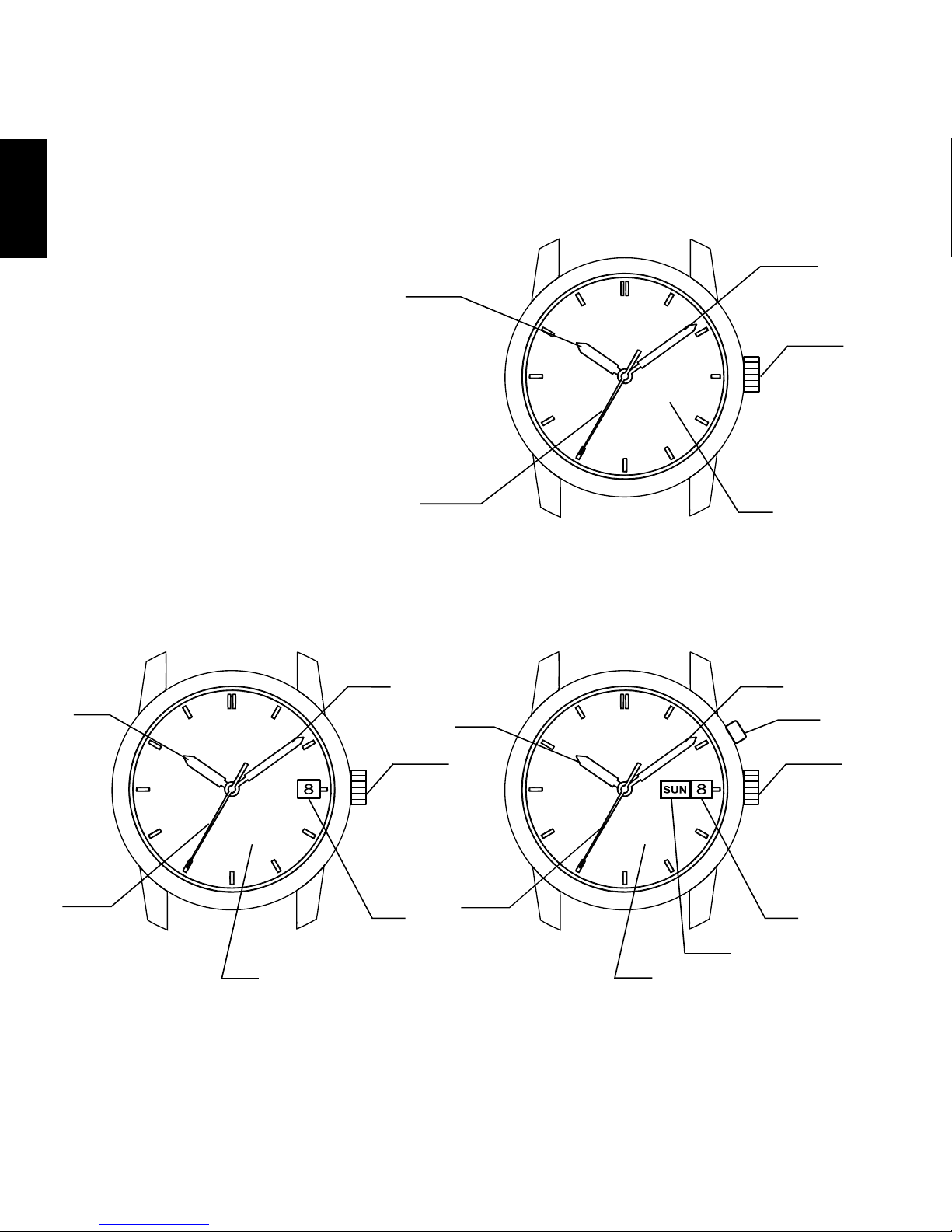

NAMES AND FUNCTIONS OF INDIVIDUAL COMPONENT PARTS

A:Hour hand

B:Minute hand

C:Second hand

D:Crown

E:Dial

F: Click button

* EM(469) & NP(558) only

Date

Day of the week

* The position of the crown, date indicator, or day of the week window may

be different, depending on the model.

<DB(46A), NB(555)>

<EM(469), NP(558), NQ(559), PM(599)>

<DW(48D), ER(487), NR(557), PF(597)>

ENGLISH

AUTOMATIC WINDING MECHANISM

(1) The mainspring is wound by natural movements of your

arm when wearing the watch on your wrist.

(2) If your watch stops, swing the watch back and forth ten

or more times to re-start the second hand. After it starts

moving, set the date and time.

(3)

This watch will run approximately 40 hours after it is fully

wound. If it is not wound enough, the watch may lose

accuracy. In order to maintain the watch’s accuracy, we

recommend wearing the watch at least 8 hours a day.

HAND WINDING MECHANISM

(1) The mainspring is wound up manually.

(2) To wind the spring, turn the crown clockwise.

When you turn the crown counterclockwise, the spring will not be wound.

(3) Once the spring is fully wound, the crown will no longer turn. Be careful

not to keep trying to turn it, or the spring or other parts may be broken.

(4) This watch will run approximately 40 hours after the spring is fully wound.

MODELS WITH SCREWED-DOWN CROWN

Depending on the model, you may not be able to pull the crown out without

unscrewing it (models with screwed-down crown).

Operate this type of watch as follows:

(1) Before setting the date and time, first turn the crown to the left to loosen

the screw lock.

(2) After setting the date and time, turn the crown to the right while pressing

in, until it stops turning to securely tighten the screw.

MODELS WITH A SCREWED-DOWN BUTTON RING

Some models may have a configuration that allows the button ring (ring on

the outer periphery) to be locked (fixed) into place by being screwed down.

Use the following operating method for this type of watch.

(1) When wanting to use the buttons, first turn the button ring to the left, and

then loosen it until the screw stops.

ENGLISH

* The buttons may not be able to be used if the button ring cannot be

loosened enough. Do not turn it more forcefully than necessary.

(2) After finishing using the buttons, turn the button ring to the right, and

firmly tighten it until the screw stops.

* Do not tighten it more forcefully than necessary.

HOW TO SET THE TIME [DB(46A), NB(555)]

(1) Pull the crown out.

(The second hand does not stop.)

(2) Turn the crown clockwise and set the

current time.

* When setting the time, first bring the

hand back slightly later than the actual

time and then move it forward to the

actual time.

(3) Press the crown in to the normal

position.

Turn clockwise

Ce manuel convient aux modèles suivants

Table des matières

Langues :

Autres manuels Orient Montre

Orient

Orient KFB TT Manuel utilisateur

Orient

Orient FFT00001W0 Manuel utilisateur

Orient

Orient FTD10002B0 Manuel utilisateur

Orient

Orient ST(KUD) Manuel utilisateur

Orient

Orient DD (48C) Manuel utilisateur

Orient

Orient CFA02001B Manuel utilisateur

Orient

Orient KU(RMC) Manuel utilisateur

Orient

Orient DA 40R Manuel utilisateur

Orient

Orient UB8A002B Series Manuel utilisateur

Orient

Orient VS75 Manuel utilisateur

Orient

Orient GNA Manuel utilisateur

Orient

Orient AA F69 Manuel utilisateur

Orient

Orient BEM5L003 Manuel utilisateur

Orient

Orient DB 46A Manuel utilisateur

Orient

Orient ES 46C Manuel utilisateur

Orient

Orient UU(KHA) Manuel utilisateur

Orient

Orient BF J50 Manuel utilisateur

Orient

Orient WE (KL7) Manuel utilisateur

Orient

Orient TT(KFB) Manuel utilisateur

Orient

Orient TX(VS75) Manuel utilisateur

Orient

Orient OrientStar DIVER'S WATCH 200m Manuel utilisateur

Orient

Orient EMAM80 Manuel utilisateur

Orient

Orient EW 46F Manuel utilisateur

Orient

Orient FUN8G001 Manuel utilisateur

Manuels Montre populaires d'autres marques

Pandora

Pandora WATCH2 Manuel utilisateur

Casio

Casio QW-4343 Manuel utilisateur

Suunto

Suunto X6 Manuel utilisateur

Seiko

Seiko N830 Manuel utilisateur

MotionX

MotionX 365 Manuel utilisateur

Garmin

Garmin VENU SQ 2 Manuel utilisateur

QCY

QCY Watch GTC Manuel utilisateur

Canyon

Canyon Cindy CNE-KW41WP Manuel utilisateur

Esq

Esq Watches Guide d'installation

Crane

Crane AA5-CDSM-3A Manuel utilisateur

Timex

Timex W-214 Manuel utilisateur

DETOMASO

DETOMASO MATERA Manuel utilisateur

Geemarc

Geemarc Watch N Shake Manuel utilisateur

LORUS

LORUS W590 Manuel utilisateur

STENLILLE

STENLILLE Actío Manuel utilisateur

Casio

Casio 5594 Manuel utilisateur

Sinn

Sinn HUNTER'S WATCH 3. Edition Manuel utilisateur

Slazenger

Slazenger SLZ800 Manuel utilisateur

Orient cem65001b Manuel utilisateur

Manuels Montre populaires d'autres marques
