ENGLISH

ANALOGUE QUARTZ WATCH

INSTRUCTION MANUAL

Thank you for choosing our product. To ensure prolonged use and optimum

performance, please read this instruction manual carefully and familiarize

your-self with the terms of the guarantee.

Please keep this Instruction Manual handy for future reference.

SAFETY PRECAUTIONS

Make absolutely sure to observe the demarcated contents indicated below to

prevent any possible physical danger and property damage to you as well as

other people concerned.

DANGER

...Ademarcationwiththissymbolrepresentsthecontents

assuming imminent danger for death or serious injury

when the product is used in any manner different from

given instructions.

WARNING

...Ademarcationwiththissymbolrepresentsthecontents

assuming possibility for death or serious injury

when the product is used in any manner different from

given instructions.

CAUTION

...Ademarcationwiththissymbolrepresentsthecontents

assuming possibility of causing human injury or

material damage only when a product is used in any

manner different from given instructions.

ENGLISH

IN HANDLING THE WATCH

(1) Water-resistance

Conditions

of use

Type

Underwater

operation of

crown and

operation

of crown

with drops

of water

on it

Exposure

to small

amounts of

water (face-

washing,

rain, etc.)

Water sports

(swimming,

etc.),

frequent

contact with

water (car-

washing,

etc.)

Skin diving

(air tanks

are not

used)

Scuba

diving

(air tanks

are used)

Mixed-gas

Diving

(using

helium

gas)

Non water resistant

Without

WATER

RESISTANT

(WATER

RESIST)

××××××

Water

resistant

watches

Water

resistant for

daily life

WATER

RESISTANT

(WATER

RESIST) ×××××

Reinforced

water

resistance

for daily

life I

WATER

RESISTANT

(WATER

RESIST)

50m (5bar)

×  ×××

Reinforced

water

resistance

for daily

life II

WATER

RESISTANT

(WATER

RESIST)

100m (10bar)

200m (20bar)

×× ×

Diver’s

watches

Diver’s

watch for Air

Diving

AIR DIVER’S

100m / 150m

200m ××

Diver’s

watch for

Mixed-gas

Diving

He-GAS

DIVER’S

200m / 300m /...

×

* It is recommended that you use the watch correctly following the above-mentioned scope of usage

after ascertaining water resistance precautions marked on the dial or caseback.

ENGLISH

CAUTION

1 Awatchwithwaterresistancefordailylife30m(3bar)canbeused

during face-washing, etc. but cannot be used in an environment in which

it will be submerged in water.

2 AwatchwithreinforcedwaterresistancefordailylifeI50m(5bar)canbe

used while swimming, etc. but cannot be used during any type of diving

including skin diving.

3 AwatchwithreinforcedwaterresistancefordailylifeII100mor200m(10

or20bar)canbeusedwhileskindiving,butcannotbeusedwhilescuba

diving using oxygen tanks or saturation diving using helium gas, etc.

4 Keepthecrownpushedinatalltimes(inthenormalposition)whileusing

the watch. If the crown is the screwed-down type, check that it is securely

screwed down.

5Do not operate the crown underwater, or while the watch is wet. Water

may enter the interior of the watch and defeat the water resistance.

6 Ifyourwatchisnon-waterresistant,bewareofsplashesofwater(during

facewashing,rain,etc.)andsweat.Ifthewatchbecomeswetfromwater

or sweat, wipe the moisture off with a dry, soft cloth.

7Even with a water resistant watch for everyday use, avoid directing

strong jets of mains water onto the watch. Water pressure above the limit

can apply, which may defeat the water resistance.

8With a water resistant watch for everyday use, rinse sea water off the case

after exposure, then wipe it thoroughly to avoid corrosion and other effects.

9The interior of the watch contains some amount of moisture, which may

cause fogging on the inside of the glass when the outside air is cooler

than the internal temperature of the watch. If the fogging is temporary

it causes no harm inside the watch, but if prolonged, or if water enters

the watch, consult your place of purchase and do not leave the problem

untreated.

ENGLISH

(2) Handling the Battery

DANGER

1If a button battery or coin battery is ingested, it may cause chemical

burns or perforation of mucous membrane even in a short period of time,

and in the worst-case scenario, may result in death. Never leave button

batteries or coin batteries within the reach of infants or young children.

If a button battery or coin battery is ingested, or there is a possibility

that one was ingested, it must be removed at once. Please treat as an

emergency situation and contact a doctor immediately.

WARNING

2Do not remove the battery from the watch. Contact the place of purchase

of the watch or your nearest ORIENT authorized service center for

assistance when wanting to remove the battery.

3The battery used in this watch is not a rechargeable battery, so it cannot

be recharged and used again. Do not attempt to charge the battery as

doing so could cause it to overheat or explode.

4 Askinrashorothersymptommaydevelopifleakingbatteryfluidcomes

into contact with skin. Do not leave depleted batteries sitting around for

long periods of time.

(3) Replacing the Battery

CAUTION

1Depleted batteries that are left sitting in the watch for long periods of time

may begin to leak battery acid, which could lead to malfunction. Be sure

to replace depleted batteries as soon as possible.

2Replace the watch battery only with the specified battery type.

3Battery replacement requires special-purpose tools, techniques, etc.

Reversing the polarities when inserting the battery may cause the battery

to overheat or explode. Contact the place of purchase or your nearest

ORIENT authorized service center for assistance when wanting to

replace the battery.

ENGLISH

(4) Shock

1Be sure not to carry the watch when you engage in

strenuous sports, whereas playing such light sports as golf,

etc., will not adversely influence the watch.

2 Avoidaviolentshocksuchasdroppingthewatchonthe

floor.

(5) Magnetism

1If the watch is left at a location with strong magnetism for an extended

period of time, the components may be magnetized, resulting in

malfunction. Be careful.

2The watch may temporarily speed up or slow down when exposed to

magnetism. Precision is restored when placed away from magnetism. In

such a case, reset the time.

(6) Vibration

The watch may lose precision if subjected to strong

vibrations such as from riding motorcycles, using

jackhammers, chain saws, etc.

(7) Temperature

 Inenvironmentsbelowandabovenormaltemperatures(5°C-35°C),the

watch may malfunction and stop.

Do not use the watch at high temperatures, such as in a sauna. The

watch may heat and cause burns.

(8) Chemicals, Gases, etc.

Utmost caution must be exercised when coming into contact with gases,

mercury,chemicals(paintthinner,gasoline,varioussolvents,detergents

containing such components, adhesives, paint, drugs, perfumes,

cosmetics,etc.),andsoforth.Suchmaycausediscolorationofthe

watchcase, watchband, and dial face. Discoloration, deformation, and

damage to various resin-based component parts may also occur.

CAUTION

ENGLISH

(9) About accessory parts

Do not attempt to disassemble or modify the watch.

 Storethebracelet/strappinandothersmallpartsoutofthereachof

children.

If any small parts are swallowed, immediately contact a doctor.

(10)Allergic reactions

If you develop a skin rash or your skin becomes abnormally irritated due

to contact with the watch or strap, stop wearing the watch immediately

and consult a doctor.

(11) About “luminous light”

 Somemodelshaveluminouslightonthehandsanddial.

The luminous light is a safe paint that stores sunlight and artificial light

without using any radioactive material, and emits that light in a dark

setting.Asthepaintdischargesthestoredlight,itwillbecomedimmer

over time. The amount of light emitted and the time that light is emitted

depends on various factors when the light is stored, such as the shape

of the glass, the thickness of the paint, surrounding brightness level, the

distance from the watch to the light source, and the light absorption level.

Please note that when not enough light energy is stored, the watch may

emit weak light or emit light for only a short time.

(12)Water resistant watchband

 Somemodelsemployleatherandnylonbandsonwhichaspecial

treatment to resist perspiration and water absorption have been applied.

Please understand that the water resisting effect of this watchband can

be lost depending on the period and conditions of use.

WARNING

CAUTION

ENGLISH

HOW TO IDENTIFY THE CALIBER NUMBER

Check the caliber number by referring to the model number of your watch or

the case code on the watch’s case back.

1. Searching by 13-digit model number

Check the 13-digit model number on the guarantee supplied with your watch.

You can also see the number on the product tag put on the watch. Its fourth

and fifth digits indicate the caliber number of your watch.

Example:Ifthemodelnumberis“RF-QA0001S10A”,thecalibernumberis

“QA”.

2. Searching by 10-digit model number

Checkthe10-digitmodelnumberontheguaranteesuppliedwithyourwatch.

You can also see the number on the product tag put on the watch. Its second

and third digits indicate the caliber number of your watch.

Example: If the model number is “UN00001B”,thecalibernumberis“UN”.

3. Searching by the case code

SeethecasecodeonthecasebackofyourwatchlikeXXXX-XXXXor

XXXX-XX.

The first two or three digits indicate the caiber number.

Example A : Whenthecasecodeis“UN00-C0”,thecalibernumberis“UN”.

Example B : Whenthecasecodeis"VT32-UAA0",thecalibernumberis

"VT3**".

* The place of case code may vary and its letter size may be small and

difficult to see depending on the characteristics of watches.

* The pictures and illustrations on this manual may differ from the actual

appearance of your watch but the function and operation procedures are

the same.

ENGLISH

SPECIFICATIONS

(1)Quartzfrequency:32,768Hz(One-secondfrequency)

(2)Drivemethod:Stepmotor

<2-hands type>

Caliber Wrist-Worn

Accuracy

Operating

Temperature

Range

Reset

Switch Battery

Battery Life

(withnew

battery)

UA HM0 ±20sec -5°C–+50°C SR516SW

1piece

Approx.

3 years

<3-hands type>

Caliber

Wrist-Worn

Accuracy

Operating

Temperature

Range

AdditionalFunctions

Battery

Life

(withnew

battery)

Reset

Switch

Second

Hand

Control

Battery

End of Life

Indicator

QC Y121 ±20sec. -5°C–+50°C   —SR626SW

1piece

Approx.

3 years

UB HM5 ±20sec. -5°C–+50°C   —SR521SW

1piece

Approx.

2 years

<2-hands type with Date Indicator>

Caliber

Wrist-Worn

Accuracy

Operating

Temperature

Range

AdditionalFunctions

Battery

Battery Life

(withnew

battery)

Reset

Switch

Second

Hand

Control

Battery

End of Life

Indicator

Date

Forwarding

Device

GW JP6 ±20sec. -5°C–+50°C — — SR920SW

1piece

Approx.

3 years

<3-hands type with Date Indicator>

Caliber

Wrist-Worn

Accuracy

Operating

Temperature

Range

AdditionalFunctions

Battery

Battery Life

(withnew

battery)

Reset

Switch

Second

Hand

Control

Battery

End of Life

Indicator

Date

Forwarding

Device

QA VT821 ±20sec. -5°C–+50°C   —SR621SW

1piece

Approx.

3 years

QD VT321 ±20sec. -5°C–+50°C   —SR920SW

1piece

Approx.

3 years

SZ HE7 ±20sec. -5°C–+50°C   —SR621SW

1piece

Approx.

3 years

UN HT7 ±15sec. -10°C–+60°C     SR920SW

1piece

Approx.

5years

ENGLISH

<3-hands type with Date and Day of the Week Indicator>

Caliber

Wrist-

Worn

Accuracy

Operating

Temperature

Range

AdditionalFunctions

Battery

Life

(withnew

battery)

Reset

Switch

Second

Hand

Control

Battery

End of Life

Indicator

Date

Forwarding

Device

Day of

the week

Forwarding

Device

UG HS9 ±20sec. -5°C–+50°C      SR920SW

1piece

Approx.

5years

* Whenwornaroundthewristat5°Cto35°C

Product specifications may change without notice, for improvement.



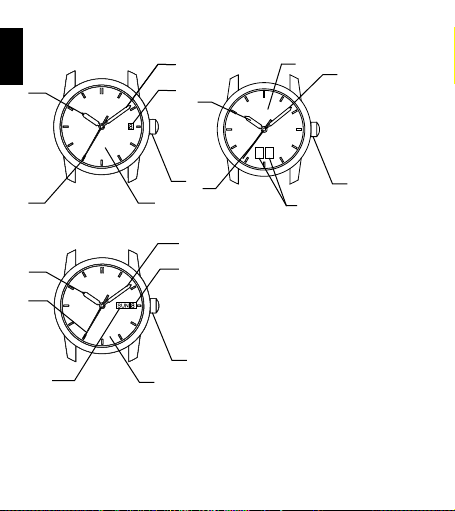

NAMES OF INDIVIDUAL COMPONENT PARTS

A: Hourhand

B: Minute hand

C: Secondhand

D: Crown

E: Dial

F: Date

G: Day of the week

<2 or 3-hands type>

* Somemodelsmaynothavesecondhands.

ENGLISH

<2 or 3-hands type with Date Indicator>

* Somemodelsmaynothavesecondhands.

㻭

㻮

㻲

㻤

㻯

㻜

㻱

<3-hans type with Date and Day of the week Indicator>

* The position of the crown, date or day of the week indicator etc. may vary

on some models.

Ce manuel convient aux modèles suivants

Table des matières

Langues :

Autres manuels Orient Montre

Orient

Orient KU(RMC) Manuel utilisateur

Orient

Orient KFA (TD) Manuel utilisateur

Orient

Orient TX(VS75) Manuel utilisateur

Orient

Orient GNA Manuel utilisateur

Orient

Orient DD (48C) Manuel utilisateur

Orient

Orient EMAM80 Manuel utilisateur

Orient

Orient RK-AU0301B Manuel utilisateur

Orient

Orient 32A00 Manuel utilisateur

Orient

Orient DA 40R Manuel utilisateur

Orient

Orient WE (KL7) Manuel utilisateur

Orient

Orient EW 46F Manuel utilisateur

Orient

Orient SDH00001 Manuel utilisateur

Orient

Orient OrientStar DIVER'S WATCH 200m Manuel utilisateur

Orient

Orient BF J50 Manuel utilisateur

Orient

Orient UB8A002B Series Manuel utilisateur

Orient

Orient BEM5L003 Manuel utilisateur

Orient

Orient TV(KFC) Manuel utilisateur

Orient

Orient VS75 Manuel utilisateur

Orient

Orient ES 46C Manuel utilisateur

Orient

Orient cem65001b Manuel utilisateur

Orient

Orient M14 Manuel utilisateur

Orient

Orient FUN8G001 Manuel utilisateur

Orient

Orient FFT00001W0 Manuel utilisateur

Orient

Orient XC Manuel utilisateur

Manuels Montre populaires d'autres marques

Pandora

Pandora WATCH2 Manuel utilisateur

Casio

Casio QW-4343 Manuel utilisateur

Suunto

Suunto X6 Manuel utilisateur

Seiko

Seiko N830 Manuel utilisateur

MotionX

MotionX 365 Manuel utilisateur

Garmin

Garmin VENU SQ 2 Manuel utilisateur

QCY

QCY Watch GTC Manuel utilisateur

Canyon

Canyon Cindy CNE-KW41WP Manuel utilisateur

Esq

Esq Watches Guide d'installation

Crane

Crane AA5-CDSM-3A Manuel utilisateur

Timex

Timex W-214 Manuel utilisateur

DETOMASO

DETOMASO MATERA Manuel utilisateur

Geemarc

Geemarc Watch N Shake Manuel utilisateur

LORUS

LORUS W590 Manuel utilisateur

STENLILLE

STENLILLE Actío Manuel utilisateur

Casio

Casio 5594 Manuel utilisateur

Sinn

Sinn HUNTER'S WATCH 3. Edition Manuel utilisateur

Slazenger

Slazenger SLZ800 Manuel utilisateur
