Orient TT(KFB) Manuel

ENGLISH

ANALOGUE QUARTZ WATCH

1/20 sec. CHRONOGRAPH <TT(KFB)>

INSTRUCTION MANUAL

Thank you for choosing our product. To ensure prolonged use and optimum

performance, please read this instruction manual carefully and familiarize

your-self with the terms of the guarantee.

Please keep this Instruction Manual handy for future reference.

SAFETY PRECAUTIONS

Make absolutely sure to observe the demarcated contents indicated below to

prevent any possible physical danger and property damage to you as well as

other people concerned.

... A demarcation with this symbol represents the contents

assuming imminent danger for death or serious injury

when the product is used in any manner different from

given instructions.

... A demarcation with this symbol represents the contents

assuming possibility for death or serious injury

when the product is used in any manner different from

given instructions.

... A demarcation with this symbol represents the contents

assuming possibility of causing human injury or

material damage only when a product is used in any

manner different from given instructions.

WARNING

CAUTION

DANGER

ENGLISH

IN HANDLING THE WATCH

(1) Water-resistance

Conditions

of use

Type

Underwater

operation of

crown and

operation

of crown

with drops

of water

on it

Exposure

to small

amounts

of water

(face-

washing,

rain, etc.)

Water sports

(swimming,

etc.),

frequent

contact with

water (car-

washing,

etc.)

Skin diving

(air tanks

are not

used)

Scuba

diving

(air tanks

are used)

Mixed-gas

Diving

(using

helium

gas)

Non water resistant

Without

WATER

RESISTANT

(WATER

RESIST)

××××××

Water

resistant

watches

Water

resistant for

daily life

WATER

RESISTANT

(WATER

RESIST) ×××××

Reinforced

water

resistance

for daily

life I

WATER

RESISTANT

(WATER

RESIST)

50m (5bar)

×  ×××

Reinforced

water

resistance

for daily

life II

WATER

RESISTANT

(WATER

RESIST)

100m (10bar)

200m (20bar)

×× ×

Diver’s

watches

Diver’s

watch for Air

Diving

AIR DIVER’S

100m / 150m

200m ××

Diver’s

watch for

Mixed-gas

Diving

He-GAS

DIVER’S

200m / 300m /...

×

* It is recommended that you use the watch correctly following the above-mentioned scope of usage

after ascertaining water resistance precautions marked on the dial or caseback.

ENGLISH

1A watch with water resistance for daily life 30m (3 bar) can be used during

face-washing, etc. but cannot be used in an environment in which it will be

submerged in water.

2A watch with reinforced water resistance for daily life I 50m (5 bar) can be

used while swimming, etc. but cannot be used during any type of diving

including skin diving.

3A watch with reinforced water resistance for daily life II 100m or 200m (10

or 20 bar) can be used while skin diving, but cannot be used while scuba

diving using oxygen tanks or saturation diving using helium gas, etc.

4Keep the crown pushed in at all times (in the normal position) while using

the watch. If the crown is the screwed-down type, check that it is securely

screwed down.

5Do not operate the crown underwater, or while the watch is wet. Water

may enter the interior of the watch and defeat the water resistance.

6If your watch is non-water resistant, beware of splashes of water (during

face washing, rain, etc.) and sweat. If the watch becomes wet from water

or sweat, wipe the moisture off with a dry, soft cloth.

7Even with a water resistant watch for everyday use, avoid directing strong

jets of mains water onto the watch. Water pressure above the limit can

apply, which may defeat the water resistance.

8With a water resistant watch for everyday use, rinse sea water off the case

after exposure, then wipe it thoroughly to avoid corrosion and other effects.

9The interior of the watch contains some amount of moisture, which may

cause fogging on the inside of the glass when the outside air is cooler than

the internal temperature of the watch. If the fogging is temporary it causes

no harm inside the watch, but if prolonged, or if water enters the watch,

consult your place of purchase and do not leave the problem untreated.

CAUTION

ENGLISH

(2) Handling the Battery

1If a button battery or coin battery is ingested, it may cause chemical burns

or perforation of mucous membrane even in a short period of time, and in

the worst-case scenario, may result in death. Never leave button batteries

or coin batteries within the reach of infants or young children.

If a button battery or coin battery is ingested, or there is a possibility

that one was ingested, it must be removed at once. Please treat as an

emergency situation and contact a doctor immediately.

2Do not remove the battery from the watch. Contact the place of purchase

of the watch or your nearest ORIENT authorized service center for

assistance when wanting to remove the battery.

3The battery used in this watch is not a rechargeable battery, so it cannot be

recharged and used again. Do not attempt to charge the battery as doing

so could cause it to overheat or explode.

4A skin rash or other symptom may develop if leaking battery fluid comes

into contact with skin. Do not leave depleted batteries sitting around for

long periods of time.

(3) Replacing the Battery

1Depleted batteries that are left sitting in the watch for long periods of time

may begin to leak battery acid, which could lead to malfunction. Be sure to

replace depleted batteries as soon as possible.

2Replace the watch battery only with the specified battery type.

3Battery replacement requires special-purpose tools, techniques, etc.

Reversing the polarities when inserting the battery may cause the battery

to overheat or explode. Contact the place of purchase or your nearest

ORIENT authorized service center for assistance when wanting to replace

the battery.

DANGER

CAUTION

WARNING

ENGLISH

4The watch comes equipped with a battery end of life indicator.

If the small second hand begins to advance two tick marks for every

movement, it means that the battery is nearing the end of its life and will

need to be replaced.

Contact the place of purchase or your nearest ORIENT authorized service

center immediately for assistance with battery replacement.

5Steps to be taken after the battery is replaced

After you have the battery replaced, be sure to set the time and set the

stopwatch hands to the “0” position.

(Refer to SETTING THE TIME AND ADJUSTING THE STOPWATCH

HAND POSITION (Hands for time display and stopwatch hands) for more

information.)

(4) Shock

1Be sure not to carry the watch when you engage in strenuous

sports, whereas playing such light sports as golf, etc., will not

adversely influence the watch.

2Avoid a violent shock such as dropping the watch on the

floor.

(5) Magnetism

1If the watch is left at a location with strong magnetism for an extended

period of time, the components may be magnetized, resulting in

malfunction. Be careful.

2The watch may temporarily speed up or slow down when exposed to

magnetism. Precision is restored when placed away from magnetism. In

such a case, reset the time.

(6) Vibration

The watch may lose precision if subjected to strong

vibrations such as from riding motorcycles, using

jackhammers, chain saws, etc.

(7) Temperature

In the environment below and above the normal temperatures

<5°C~35°C>, the watch may malfunction and stop.

ENGLISH

CAUTION

Do not use the watch at high temperatures, such as in a sauna. The watch

may heat and cause burns.

(8) Chemicals, Gases, etc.

Utmost caution must be exercised when coming into contact with gases,

mercury, chemicals (paint thinner, gasoline, various solvents, detergents

containing such components, adhesives, paint, drugs, perfumes,

cosmetics, etc.), and so forth. Such may cause discoloration of the

watchcase, watchband, and dial face. Discoloration, deformation, and

damage to various resin-based component parts may also occur.

(9) About accessory parts

CAUTION

Do not attempt to disassemble or modify the watch.

WARNING

Store the bracelet/strap pin and other small parts out of the reach of

children.

If any small parts are swallowed, immediately contact a doctor.

(10)Allergic reactions

CAUTION

If you develop a skin rash or your skin becomes abnormally irritated due to

contact with the watch or strap, stop wearing the watch immediately and

consult a doctor.

(11)About “luminous light”

Some models have luminous light on the hands and dial.

The luminous light is a safe paint that stores sunlight and artificial light

without using any radioactive material, and emits that light in a dark

setting. As the paint discharges the stored light, it will become dimmer

ENGLISH

over time. The amount of light emitted and the time that light is emitted

depends on various factors when the light is stored, such as the shape

of the glass, the thickness of the paint, surrounding brightness level, the

distance from the watch to the light source, and the light absorption level.

Please note that when not enough light energy is stored, the watch may

emit weak light or emit light for only a short time.

(12)Water resistant watchband

Some models employ leather and nylon bands on which a special

treatment to resist perspiration and water absorption have been applied.

Please understand that the water resisting effect of this watchband can be

lost depending on the period and conditions of use.

FEATURES

(1) This is an analog crystal oscillator watch.

(2) The current time is indicated by the hour, minute, and small second hands.

(3) The watch also comes with a calendar function (date) and stopwatch

function (measures up to 12 hours in 1/20 sec. increments) in addition to

the time display.

(4) The stopwatch function also records split times (the amount of time that

elapses from when the stopwatch is started until a certain point, while the

watch continues to record total time elapsed).

(5) When the battery life begins to run out, the small second hand starts to

move in 2-sec. intervals to warn that the battery is getting low. (Battery End

Of Life indicator)

SPECIFICATIONS

(1) Crystal oscillator frequency: 32,768 Hz (Hz = Oscillations per second)

(2) Wrist-worn accuracy: Mean monthly rate: ±20sec.

(at normal temperature <5°C ~ 35°C>)

(3) Operating temperature range: –5°C ~ +50°C

(4) Drive system: Step motor (4 pieces)

(5) Display system:

[Time function]

Hour and minute hands with a small second hand that moves at one-

second intervals.

ENGLISH

[Stopwatch function]

Stopwatch 1/20 second hand turns a full circle in a second at 1/20

second intervals.

Stopwatch minute hand turns a full circle in 60 minutes at one-minute

intervals.

Stopwatch second hand turns a full circle in 60 seconds at 1/5 sec.

intervals.

Stopwatch hour hand turns a full circle in 12 hours while moving

correspondingly with the stopwatch minute hand.

(6) Additional function: Reset switch, accumulated elapsed time counter, split

time function, battery end of life indicator

(7) Battery: SR927SW ; 1 piece

(8) Battery life: Approx. 3 years if the stopwatch is used for less than 2 hours

a day.

(9) IC (Integrated Circuit): C-MOS-1C ; 1 piece

The above specifications are subject to change without notice for improvement.

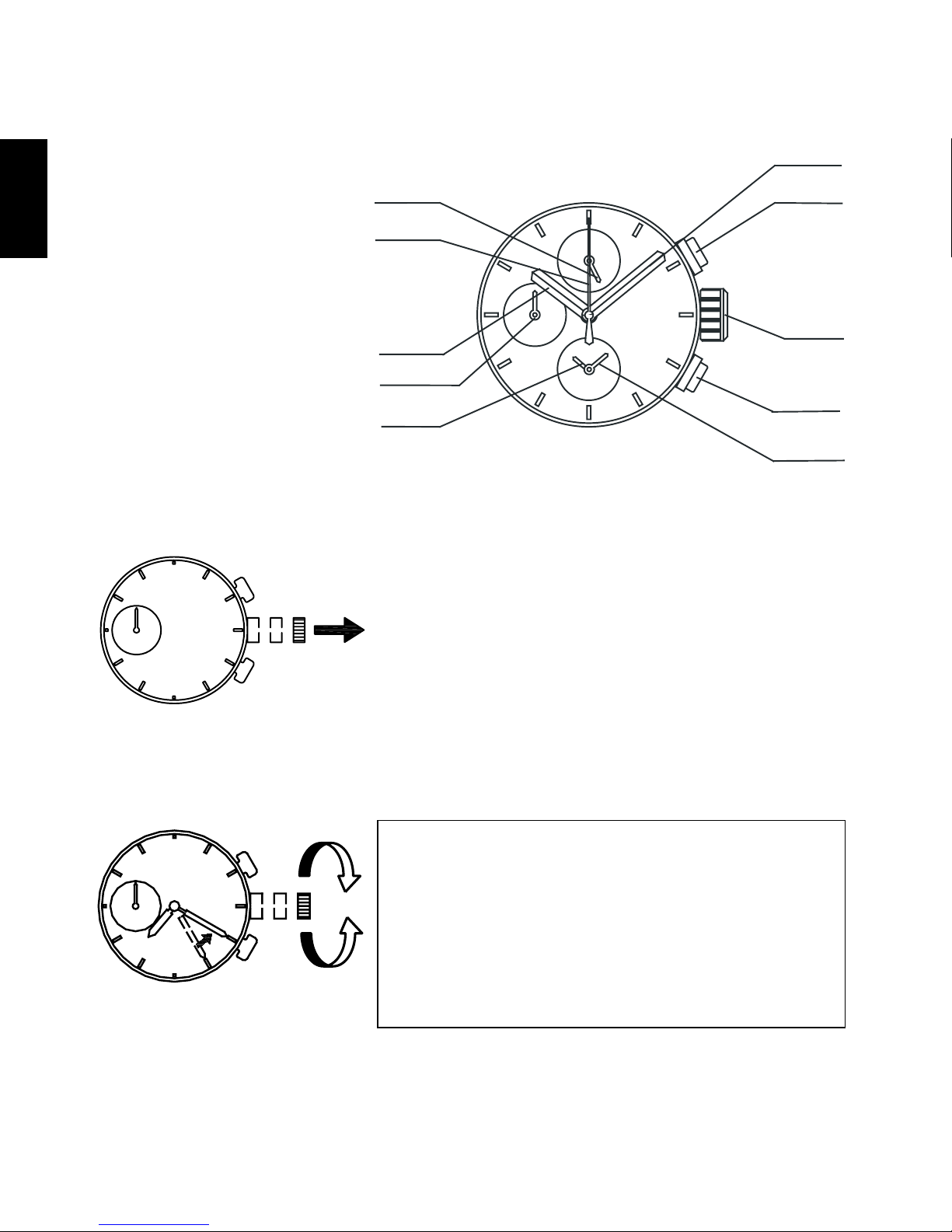

NAMES AND FUNCTIONS OF INDIVIDUAL COMPONENT PARTS

A :Tachymeter scale

B :Stopwatch 1/20 second hand

C :Stopwatch second hand

D :Hour hand

E :Small second hand

F :Stopwatch hour hand

G:Minute hand

H :Button A

I :Date

J :Crown

K :Button B

L :Dial

M:Stopwatch minute hand

1. Normal position

2. First click : Date setting

3. Second click : Time setting and adjusting the stopwatch hand position

ENGLISH

* Some models may not come with tachymeter scales.

* The position of the date indicator may vary on some models.

MODELS WITH SCREWED-DOWN CROWN

Depending on the model, you may not be able to pull the crown out without

unscrewing it (models with screwed-down crown).

Operate this type of watch as follows:

(1) Before setting the date and time, first turn the crown to the left to loosen

the screw lock.

(2) After setting the date and time, turn the crown to the right while pressing

in, until it stops turning to securely tighten the screw.

MODELS WITH A SCREWED-DOWN BUTTON RING

Some models may have a configuration that allows the button ring (ring on the

outer periphery) to be locked (fixed) into place by being screwed down.

Use the following operating method for this type of watch.

(1) When wanting to use the buttons, first turn the button ring to the left, and

then loosen it until the screw stops.

* The buttons may not be able to be used if the button ring cannot be

loosened enough. Do not turn it more forcefully than necessary.

(2) After finishing using the buttons, turn the button ring to the right, and firmly

tighten it until the screw stops.

* Do not tighten it more forcefully than necessary.

SETTING THE TIME AND ADJUSTING THE STOPWATCH HAND

POSITION (Hands for time display and stopwatch hands)

This watch allows you to both set the time and set the stopwatch hands to

the “0” position with the crown at the second click position. Once the crown is

pulled out to the second click, check the following two items, and if necessary,

make adjustments, and then push the crown back in.

(1) Time of the basic watch

(2) “0” position of the 4 stopwatch hands

ENGLISH

A :Stopwatch 1/20 second hand

B :Stopwatch second hand

C :Hour hand

D :Small second hand

E :Stopwatch hour hand

F :Minute hand

G:Button A

H :Crown

I :Button B

J :Stopwatch minute hand

How to set the time

(1) Pull out the crown to the second click when the small second hand is at the

12 o’clock position.

The small second hand stops on the spot.

* If the stopwatch is measuring, the stopwatch hands are automatically

reset to “0” position.

(2) Turn the crown to set the hour and minute hands to the current time.

After setting the time, also set the stopwatch

hands to the “0” position.

It is recommended that the hands be set to

the time a few minutes ahead of the current

time, taking into consideration the time

required to push the crown back in when all

the adjustments are completed.

䚷䚷䚷㻳

䚷䚷䚷㻲

䚷䚷䚷㻭

䚷

㻯䚷

䚷㻌㻌㻌㻌㻌㻵

䚷㻌㻌㻌㻌㻌㻶

䚷㻌㻌㻰䚷

䚷㻌㻮䚷

㻱

㻴

Autres manuels pour TT(KFB)

Table des matières

Langues :

Autres manuels Orient Montre

Orient

Orient XC Manuel utilisateur

Orient

Orient DA 40R Manuel utilisateur

Orient

Orient KFA (TD) Manuel utilisateur

Orient

Orient ST(KUD) Manuel utilisateur

Orient

Orient TT(KFB) Manuel utilisateur

Orient

Orient UT (H4A) Manuel utilisateur

Orient

Orient BEM5L003 Manuel utilisateur

Orient

Orient 32A00 Manuel utilisateur

Orient

Orient DB 46A Manuel utilisateur

Orient

Orient TX(VS75) Manuel utilisateur

Orient

Orient TZ(KFE) Manuel utilisateur

Orient

Orient GNA Manuel utilisateur

Orient

Orient ES 46C Manuel utilisateur

Orient

Orient SY(KFF) Manuel utilisateur

Orient

Orient RK-AU0301B Manuel utilisateur

Orient

Orient cem65001b Manuel utilisateur

Orient

Orient SDH00001 Manuel utilisateur

Orient

Orient KU(RMC) Manuel utilisateur

Orient

Orient DM 48Y Manuel utilisateur

Orient

Orient WE (KL7) Manuel utilisateur

Orient

Orient CFA02001B Manuel utilisateur

Orient

Orient FFT00001W0 Manuel utilisateur

Orient

Orient UU(KHA) Manuel utilisateur

Orient

Orient EW 46F Manuel utilisateur

Manuels Montre populaires d'autres marques

Pandora

Pandora WATCH2 Manuel utilisateur

Casio

Casio QW-4343 Manuel utilisateur

Suunto

Suunto X6 Manuel utilisateur

Seiko

Seiko N830 Manuel utilisateur

MotionX

MotionX 365 Manuel utilisateur

Garmin

Garmin VENU SQ 2 Manuel utilisateur

QCY

QCY Watch GTC Manuel utilisateur

Canyon

Canyon Cindy CNE-KW41WP Manuel utilisateur

Esq

Esq Watches Guide d'installation

Crane

Crane AA5-CDSM-3A Manuel utilisateur

Timex

Timex W-214 Manuel utilisateur

DETOMASO

DETOMASO MATERA Manuel utilisateur

Geemarc

Geemarc Watch N Shake Manuel utilisateur

LORUS

LORUS W590 Manuel utilisateur

STENLILLE

STENLILLE Actío Manuel utilisateur

Casio

Casio 5594 Manuel utilisateur

Sinn

Sinn HUNTER'S WATCH 3. Edition Manuel utilisateur

Slazenger

Slazenger SLZ800 Manuel utilisateur
