Oregon Scientific TimeSphere RM382P Manuel utilisateur

TimeSphere

Wireless Projection Clock

Model No: RM382P / RM382PA

USER MANUAL

CONTENTS

Introduction .............................................................. 2

Overview ................................................................... 2

Front View ............................................................. 2

Base View ............................................................. 3

LCD Display .......................................................... 3

Getting Started ........................................................ 3

Power .................................................................... 3

Clock Display Modes ............................................ 4

Clock Reception ...................................................... 4

Reception Signal .................................................. 5

Clock Settings ......................................................... 5

Alarm ......................................................................... 5

Projector .................................................................. 6

Temperature ............................................................. 7

Reset ......................................................................... 7

Precautions .............................................................. 7

Speciﬁcations ......................................................... 8

About Oregon Scientiﬁc ........................................ 9

EU-Declaration of Conformity ........................... 9

FCC Statement ........................................................ 9

Declaration of Conformity ................................... 10

RM382P_M_EN_OP_REVISED1.indd 1 4/19/06 6:03:02 PM

INTRODUCTION

Thank you for selecting the Oregon Scientiﬁc™

projection clock (RM382P / RM382PA).

NOTE Please keep this manual handy as you use

your new product. It contains practical step-by-step

instructions, as well as technical speciﬁcations and

warnings you should know about.

OVERVIEW

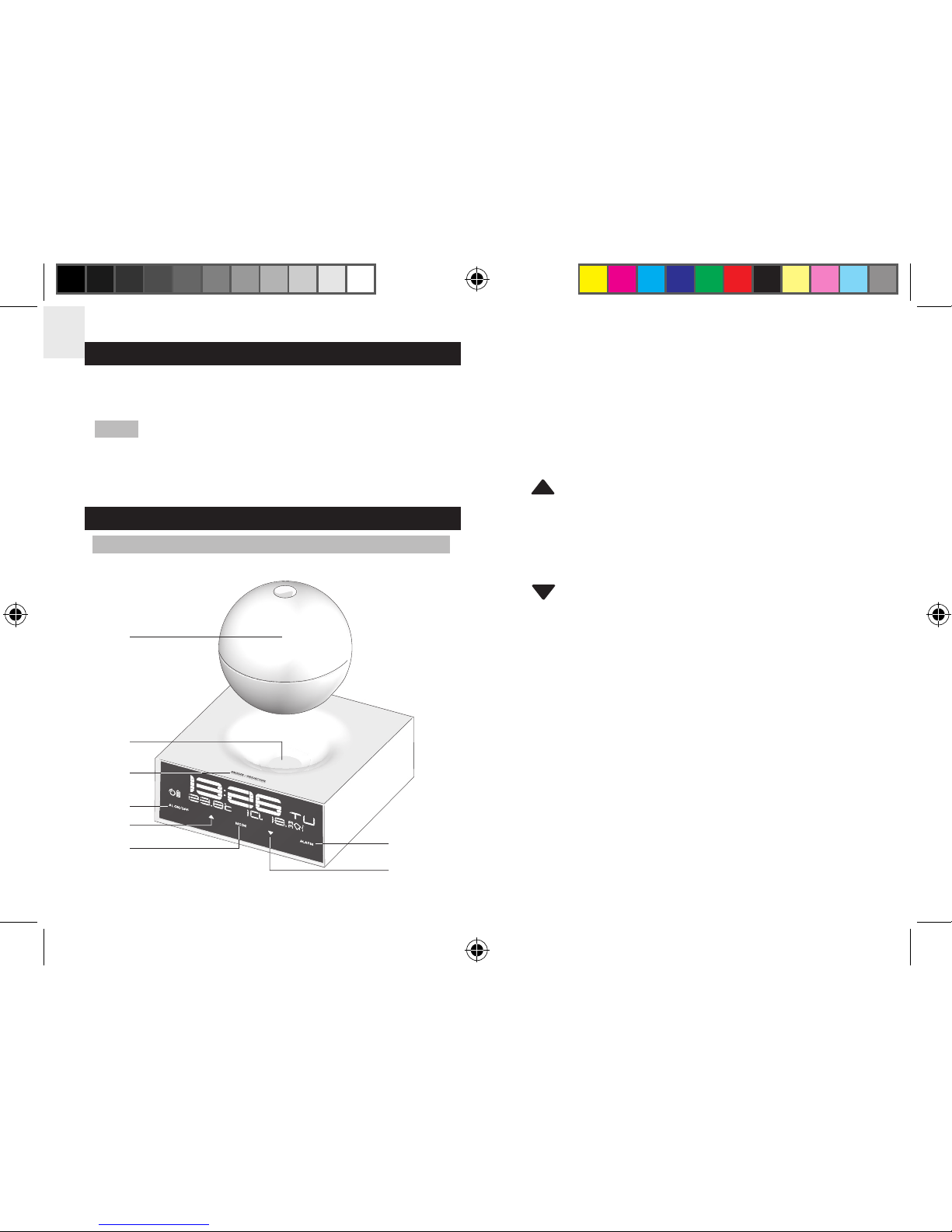

FRONT VIEW

1. Projection ball: Projects time on the wall or ceiling.

(Twist the closed projection unit to adjust the

focus.)

2. Charging pad

3. SNOOZE / PROJECTION: Activates 8-minute

snooze; turns the continuous projection function ON

/ OFF

4. AL ON / OFF: Activates / deactivates the alarm(s)

: Increases setting; enables clock radio

reception signal

6. MODE: Toggles between different clock displays;

enters clock setting mode

7. ALARM: Toggles between alarm 1, alarm 2 and

calendar mode; enters alarm setting mode

8. : Decreases setting; disables clock radio

reception signal

RM382P_M_EN_OP_REVISED1.indd 2 4/19/06 6:03:06 PM

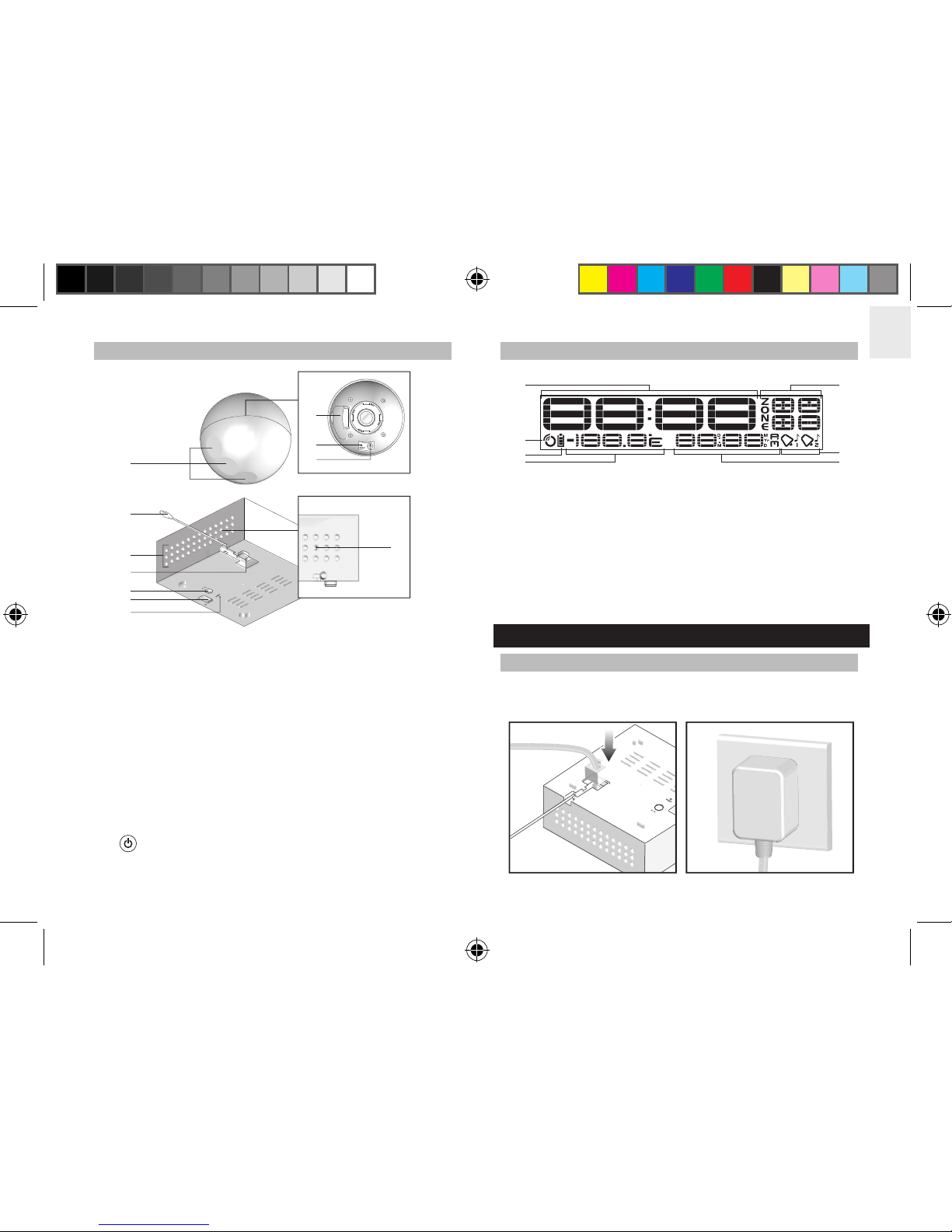

BASE VIEW

1. Charging base circles: Position the unit to project

the time vertically at 3 different angles

2. Indoor temperature sensor

3. Ventilation holes

4. Adapter slot

5. °C / °F: Selects temperature unit

6. EU / UK switch (RM382P only): Slide to select your

nearest radio signal base

7. RESET: Press to reset

8. Rechargeable battery compartment

9. RESET: Press to reset

10. : Press to turn projector ON / OFF

11. Light sensor: Control the brightness of backlight

LCD DISPLAY

1. Time

2. Clock radio reception signal

3. Rechargeable battery icon

4. Indoor temperature reading

5. Time zone / day of the week

6. Alarm 1 / 2 is activated

7. Alarm time / calendar

GETTING STARTED

POWER

MAIN UNIT

Plug in the AC adapter.

RM382P_M_EN_OP_REVISED1.indd 3 4/19/06 6:03:17 PM

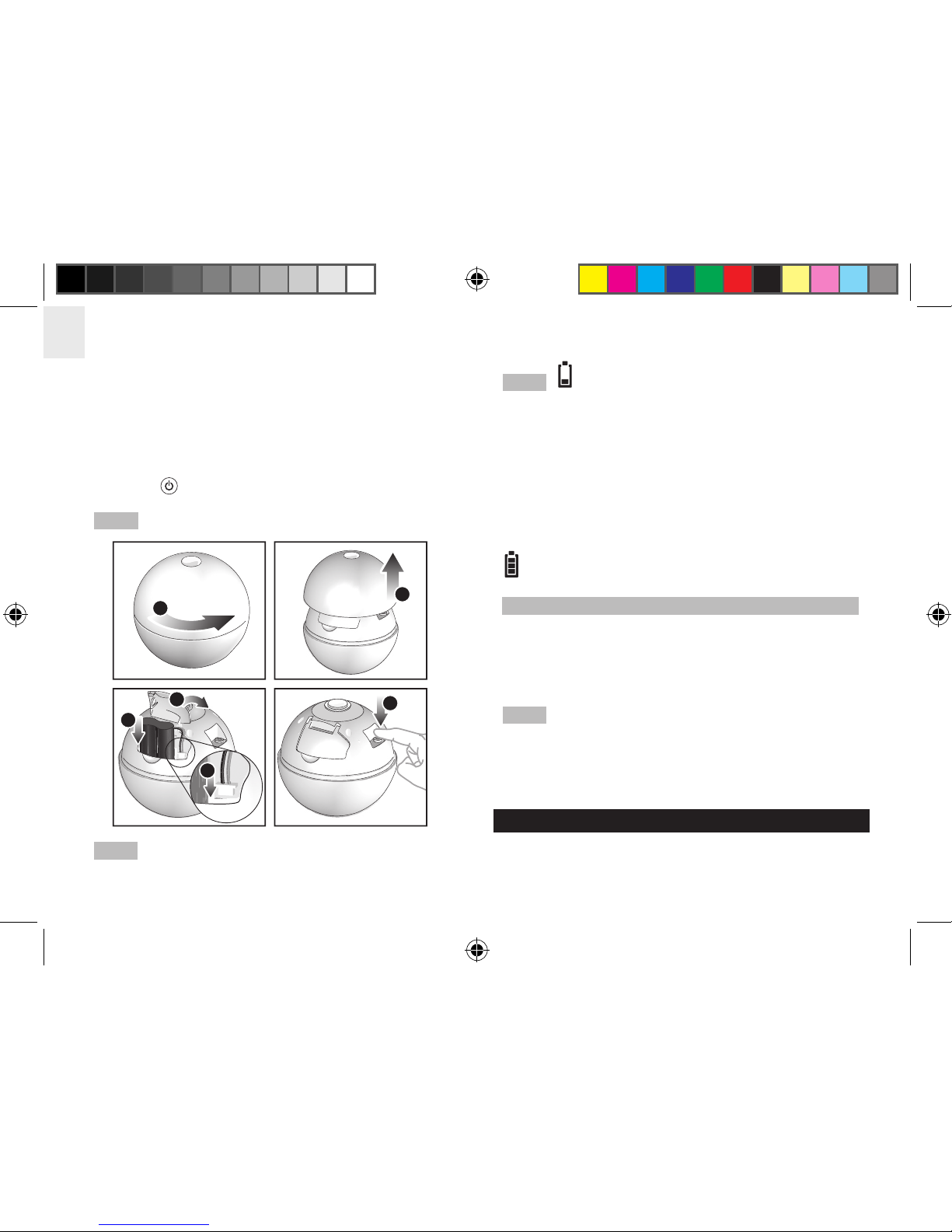

PROJECTION UNIT

Insert rechargeable batteries (2 x AAA 1.5V) before ﬁrst

use, matching the polarity (+ and -):

1. Twist the ball counter-clockwise until it loosens.

2. Pull the top half upwards.

3. Lift up the battery compartment cover.

4. Slide the battery in.

5. Insert the plastic plug into the slot.

6. Press to turn the projector ON.

NOTE Make sure it is fully charged before ﬁrst use.

NOTE When opening or closing the ball you will hear a

click signifying that it has opened or closed. Do not

keep

twisting beyond the click noise or you may break the unit.

NOTE appears with the projected time when the

projection unit batteries are low.

To charge the projection unit, place it on the main unit,

making sure that 1 of its 3 base circles is in contact with

the main unit, charging pad.

Charge the projection unit for 12 hours the ﬁrst time and

8 hours from then on. This will provide the projection

unit with 10 hours continuous projection time.

is animated during charging and static when full.

CLOCK DISPLAY MODES

Press MODE to toggle between the clock displays:

• Clock with seconds

• Clock with weekday

• Clock with time zone offset and weekday

NOTE The light sensor at the back of the clock will

detect the light level in the room and adjust the clock

display accordingly. Do not position the back of the

clock close to a wall or other object, otherwise the light

may not function.

CLOCK RECEPTION

This product is designed to synchronize its calendar

clock automatically once it is brought within range of

a radio signal:

RM382P_M_EN_OP_REVISED1.indd 4 4/19/06 6:03:31 PM

RM382P:

• DCF-77 generated from Frankfurt, Germany for

Central Europe

• MSF-60 generated from Rugby, England

The radio signal range is 1500 km (932 miles).

RM382PA:

• WWVB-60 generated from the atomic clock in Fort

Collins, Colorado

The radio signal range is 3219 km (2000 miles).

RM382P only – slide the EU / UK switch to the

appropriate setting based on your location. Press

RESET whenever you change the selected setting.

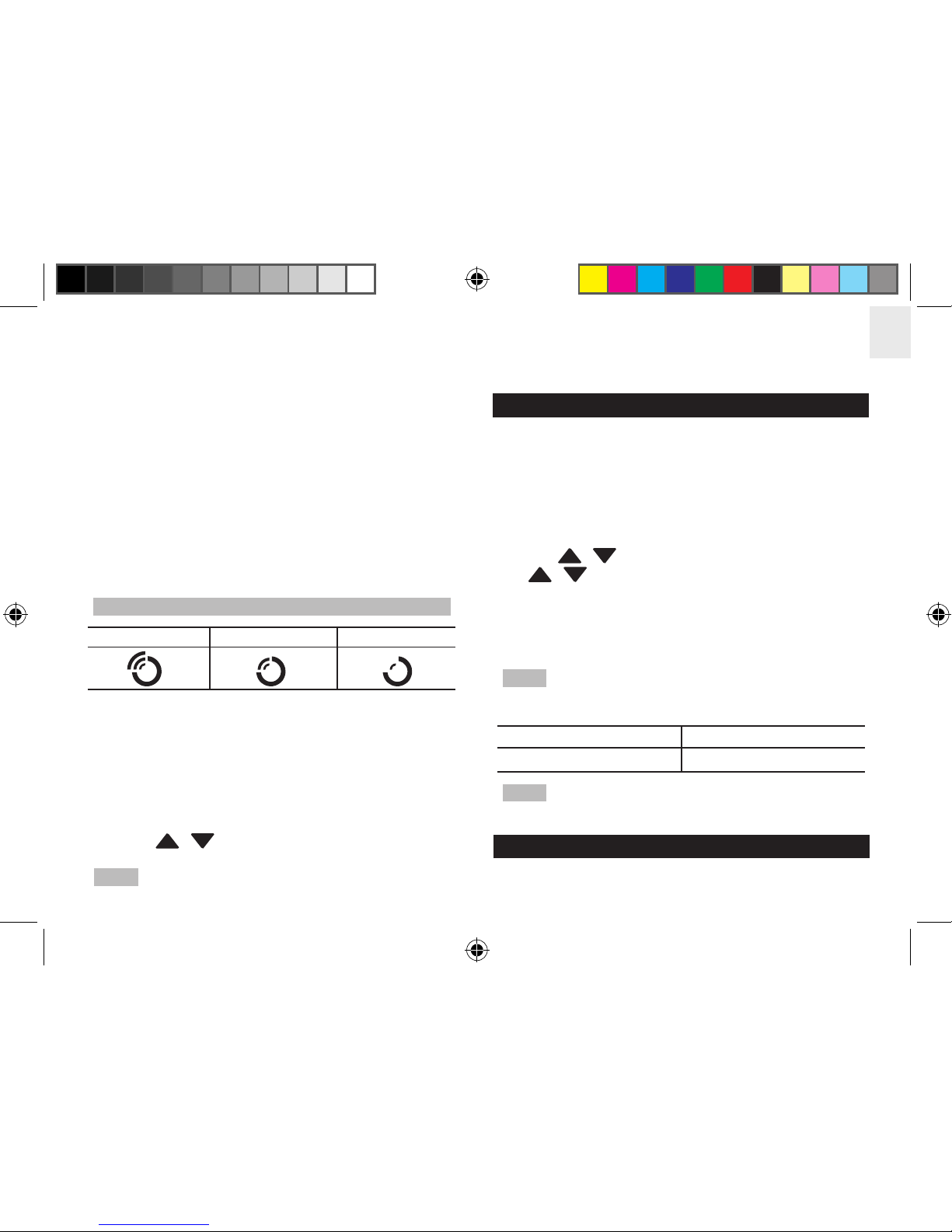

RECEPTION SIGNAL

STRONG WEAK NO SIGNAL

The reception icon will blink when it is searching for a

signal. If the radio signal is weak, it can take up to 24

hours to get a valid signal reception.

For best reception, place the clock away from metal

objects and electrical appliances and place near a

window.

To enable / disable the clock radio reception: Press

and hold / .

NOTE When the main unit synchronizes with the radio

signal, it will temporarily turn the projection charging

function off.

CLOCK SETTINGS

You only need to do this if you have disabled the clock

radio reception, or if you are too far from the radio

signal.

To set the clock:

1. Press and hold MODE for 2 seconds. The setting

will blink.

2. Use / to change the setting. Press and hold

/ to speed through values.

3. Press MODE to conﬁrm.

4. The setting sequence is: Time zone, 12 / 24 hour

format, hour, minute, year, day-month format,

month, day and display language.

NOTE If you enter +1 in the time zone setting, this will

give you your local time plus 1 hour. If you are in the US

(RM382PA only) set the clock to:

0 for Paciﬁc time +1 for Mountain time

+2 for Central time +3 for Eastern time

NOTE The language options are (E) English, (F)

French, (D) German, (I) Italian, and (S) Spanish.

ALARM

The clock has 2 alarms. To set an alarm:

RM382P_M_EN_OP_REVISED1.indd 5 4/19/06 6:03:37 PM

1. Press ALARM to toggle between the alarm displays

and select either alarm 1 or 2, for setting.

2. Press and hold ALARM to enter alarm setting mode.

The alarm setting will blink.

3. Press / to change the settings. Press and

hold / to speed through values.

4. Press ALARM to conﬁrm.

5. The setting sequence is: Hour and minute.

NOTE “-:--“ appears when the alarm is not activated.

The alarm icon will appear on the display to show which

alarm has been set:

ICON MEANING

/ Alarm 1 / alarm 2 is set

No icons No alarm is set

To activate / deactivate an alarm:

• Press AL ON / OFF to toggle between alarm 1 and

2, both alarms ON or OFF.

• Press ALARM to select alarm 1 or 2 and then press

AL ON / OFF.

To silence the alarm:

• Press SNOOZE, to silence it for 8 minutes. Press

ALARM or AL ON / OFF to turn it off during the 8-

minute snooze time.

•

Press any key except SNOOZE to stop the alarm and

reset it to activate at the same time the next day.

NOTE When the snooze function is activated, the alarm

icon will ﬂash.

PROJECTOR

When the projection unit is placed on the main unit it will

automatically recharge its batteries and synchronize its

time with the main unit.

To turn the projector ON / OFF when it is on the

main unit:

Press PROJECTION on the main unit.

ICON DESCRIPTION

The projection unit is out of

synch with main unit and is being

updated

The projection unit has just been

placed back on the main unit and

it is checking to see if it recognizes

the projection unit

The main unit

recognizes the

projection unit and

is charging it.

The main unit does not recognize

the projection unit. Adjust the

position of the projection unit until

the icon becomes animated.

icon

disappears

from display

RM382P_M_EN_OP_REVISED1.indd 6 4/19/06 6:03:42 PM

To use the projector remotely:

1. Make sure the projection unit has been fully charged

(see Power section).

2. Twist open the projection unit and press , the

projection beam should now be displayed.

3. Close the projection unit and twist until it clicks shut.

4. Twist the closed projection unit to adjust the focus.

NOTE Whenever you open the projection unit you will

need to adjust the focus of the projection once you have

closed it.

To change the projection angle:

Place the unit on 1 of the 3 ﬂat circles on its base to

display the time vertically at 3 different angles.

TEMPERATURE

To change the indoor temperature unit on the display,

press °C / °F on the base of the main unit.

RESET

To return the unit to the default settings, insert a blunt

stylus into the RESET hole on the base of the main unit

or on the inside of the projection unit.

PRECAUTIONS

This unit is engineered to give you years of

satisfactory service if you handle it carefully. Here are

a few precautions:

• Placement of this product on wood surfaces with

certain types of ﬁnishes, such as clear varnish, may

result in damage to the ﬁnish. Consult the furniture

manufacturer’s care instructions for direction as to

the types of objects that may safely be placed on

the wood surface. Oregon Scientiﬁc shall not be

responsible for any damage to wood surfaces from

contact with this product.

• Do not cover the ventilation holes. Make sure

items that are nearby such as newspapers,

tablecloths, curtains etc cannot accidentally cover

the ventilation holes.

• Do not immerse the unit in water. If you spill liquid

over it, dry it immediately with a soft, lint-free cloth.

• Do not clean the unit with abrasive or corrosive

materials. This may scratch the plastic parts and

corrode the electronic circuit.

• Do not subject the unit to excessive force, shock,

dust, temperature or humidity, which may result in

malfunction, shorter electronic life span, damaged

battery and distorted parts.

• This product may malfunction if electrostatic

discharge or radio interference appears in the

environment and / or affects the ac power line. The

unit will revert to normal operation when interference

stops.

• Do not tamper with the unit’s internal components.

Doing so will invalidate the warranty on the unit and

may cause unnecessary damage. The unit contains

no user-serviceable parts.

• Only use fresh batteries as speciﬁed in the user’s

RM382P_M_EN_OP_REVISED1.indd 7 4/19/06 6:03:42 PM

instructions. Do not mix new and old batteries as the

old ones may leak.

•

Do not dispose this product as unsorted municipal

waste. Collection of such waste separately for special

treatment is necessary.

• Due to printing limitations, the displays shown in this

manual may differ from the actual display.

• The contents of this manual may not be reproduced

without the permission of the manufacturer.

NOTE The technical speciﬁcations for this product and

the contents of the user manual are subject to change

without notice.

SPECIFICATIONS

TYPE DESCRIPTION

Calendar Day of week

Current date / month

format

Clock time 12 or 24-hour format

RF frequency DCF-77 (EU)

MSF-60 (UK)

WWVB-60 (US)

Alarm duration 2 minutes

Snooze 8 minutes

Temperature unit °C / °F

Indoor temp. -5°C to 50°C

measuring range (23°F to 122°F)

Temp. resolution 0.1°C (0.2°F)

Projection unit batteries 2 x AAA (UM-4) 1.5V

(rechargeable)

Main unit adapter AC power

Main unit 130 x 130 x 50 mm

(W x D x H) (5.1 x 5.1 x 2 inches)

Projection unit (Diameter) 70 mm (2.8 inches)

Main unit / Projection 560 g (19.8 ounces)

ball weight

RM382P_M_EN_OP_REVISED1.indd 8 4/19/06 6:03:43 PM

ABOUT OREGON SCIENTIFIC

Visit our website (www.oregonscientiﬁc.com) to

learn more about Oregon Scientiﬁc products such as

digital cameras; MP3 players; children’s electronic

learning products and games; projection clocks; health

and ﬁtness gear; weather stations; and digital and

conference phones. The website also includes contact

information for our Customer Care department in case

you need to reach us, as well as frequently asked

questions and customer downloads.

We hope you will ﬁnd all the information you need on

our website, however if you’re in the US and would

like to contact the Oregon Scientiﬁc Customer Care

department directly, please visit:

www2.oregonscientiﬁc.com/service/default.asp

Call 1-800-853-8883.

For international inquiries, please visit:

www2.oregonscientiﬁc.com/about/international.asp

EU-DECLARATION OF CONFORMITY

Hereby, Oregon Scientiﬁc, declares that the Projection

Clock (Model RM382P) is in compliance with the

essential requirements and other relevant provisions of

Directive 1999/5/EC.

A copy of the signed and dated Declaration of

Conformity is available on request via our Oregon

Scientiﬁc Customer Service.

FCC STATEMENT

This device complies with Part 15 of the FCC Rules.

Operation is subject to the following two conditions: (1)

This device may not cause harmful interference, and

(2) This device must accept any interference received,

including interference that may cause undesired

operation.

WARNING Changes or modiﬁcations not expressly

approved by the party responsible for compliance could

void the user’s authority to operate the equipment.

NOTE This equipment has been tested and found

to comply with the limits for a Class B digital device,

pursuant to Part 15 of the FCC Rules and for a Class

COUNTRIES RTTE APPROVAL COMPLIED

ALL EU countries, Switzerland CH

and Norway N

RM382P_M_EN_OP_REVISED1.indd 9 4/19/06 6:03:44 PM

B ISM equipment, pursuant to Part 18 of the FCC

Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential

installation. This equipment generates, uses and can

radiate radio frequency energy and, if not installed and

used in accordance with the instructions, may cause

harmful interference to radio communications.

However, there is no guarantee that interference will

not occur in a particular installation. If this equipment

does cause harmful interference to radio or television

reception, which can be determined by turning the

equipment off and on, the user is encouraged to try to

correct the interference by one or more of the following

measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and

receiver.

• Connect the equipment into an outlet on a

circuit different from that to which the receiver is

connected.

• Consult the dealer or an experienced radio / TV

technician for help.

DECLARATION OF CONFORMITY

The following information is not to be used as contact

for support or sales. Please call our customer service

number (listed on our website at www.oregonscientiﬁc.

com), or on the warranty card for this product) for all

inquiries instead.

Name: Oregon Scientiﬁc, Inc.

Address: 19861 SW 95th

Ave.,Tualatin, Oregon

97062 USA

Telephone No.: 1-800-853-8883

declare that the product

Product No.: RM382PA

Product Name: Projection Clock

Manufacturer: IDT Technology Limited

Address: Block C, 9/F, Kaiser

Estate, Phase 1, 41 Man

Yue St., Hung Hom,

Kowloon, Hong Kong

is in conformity with Part 15 of the FCC Rules.

Operation is subject to the following two conditions: 1)

This device may not cause harmful interference. 2) This

device must accept any interference received, including

interference that may cause undesired operation.

RM382P_M_EN_OP_REVISED1.indd 10 4/19/06 6:03:44 PM

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Oregon Scientific Horloge

Oregon Scientific

Oregon Scientific PROJI Manuel utilisateur

Oregon Scientific

Oregon Scientific RM622PA Manuel utilisateur

Oregon Scientific

Oregon Scientific PRYSMA B Manuel utilisateur

Oregon Scientific

Oregon Scientific JM889 Manuel utilisateur

Oregon Scientific

Oregon Scientific RM813 Manuel utilisateur

Oregon Scientific

Oregon Scientific Glaze JW208 Manuel utilisateur

Oregon Scientific

Oregon Scientific PRYSMA R Manuel utilisateur

Oregon Scientific

Oregon Scientific RM313P Manuel utilisateur

Oregon Scientific

Oregon Scientific rm318p Manuel utilisateur

Oregon Scientific

Oregon Scientific RM802 Manuel utilisateur

Oregon Scientific

Oregon Scientific RM309P Manuel utilisateur

Oregon Scientific

Oregon Scientific JM828CD Manuel utilisateur

Oregon Scientific

Oregon Scientific RM338P Manuel utilisateur

Oregon Scientific

Oregon Scientific RMR331ES Manuel utilisateur

Oregon Scientific

Oregon Scientific RM912TH Manuel utilisateur

Oregon Scientific

Oregon Scientific PRYSMA G RRM222P Instructions d'installation

Oregon Scientific

Oregon Scientific BAR332ES Manuel utilisateur

Oregon Scientific

Oregon Scientific PRYSMA RMR221P Manuel utilisateur

Oregon Scientific

Oregon Scientific RMB899P Manuel utilisateur

Oregon Scientific

Oregon Scientific rm318p Manuel utilisateur

Oregon Scientific

Oregon Scientific SENSES Aroma Clock with Brainwave Music... Manuel utilisateur

Oregon Scientific

Oregon Scientific RM912E Manuel utilisateur

Oregon Scientific

Oregon Scientific JM889NR Manuel utilisateur

Oregon Scientific

Oregon Scientific RM868PA Manuel utilisateur

Manuels Horloge populaires d'autres marques

Silicon Laboratories

Silicon Laboratories SI5324 Manuel utilisateur

Heathkit

Heathkit GC-1005 Manuel utilisateur

Andrew O'Malley

Andrew O'Malley DOTKLOK Manuel utilisateur

ALGE-Timing

ALGE-Timing ASC3 Manuel utilisateur

Bodet

Bodet Profil 960 Manuel utilisateur

Nixie Clock

Nixie Clock Divergence Meter Manuel utilisateur

La Crosse Technology

La Crosse Technology WS-8256-AL Manuel utilisateur

Mini Gadgets

Mini Gadgets MCPro Manuel utilisateur

Casio

Casio TMR-200 Manuel utilisateur

Progetti

Progetti ILTEMPOSTRINGE Manuel

BVItech

BVItech BV-101 Manuel utilisateur

Progetti

Progetti KALIMERO Manuel

La Crosse Technology

La Crosse Technology WT-3141b Manuel

La Crosse Technology

La Crosse Technology W86531 Manuel utilisateur

Sharp

Sharp SPC900 Manuel utilisateur

La Crosse Technology

La Crosse Technology 404-50447 Manuel utilisateur

Datexx

Datexx DF0063 Manuel utilisateur

LG LEC-005 Manuel utilisateur
