RADIO-CONTROLLED

PROJECTION CLOCK

MODELNO.:RM868P/RM868PU

USER’SMANUAL

SECTION 1 INTRODUCTION

Congratulations on your purchasing the RM868P Radio-controlled

projection Clock.

The Projection Clock is a compact, easy-to-handle device. The

RM868P — the Central Europe model — is designed to

automatically synchronize its current time and date when brought

within an approximate 1500km radius of the radio signal generated

fromFrankfurt,Germany(DCF77).TheRM868PU—theUKmodel

— will do the same when brought within range with MSF in the

United Kingdom.

The Projection Clock also comes with favorable features such as

clock projection, multilingual day-of-the-week display, back-light,

dual analog and digital displays of time and daily alarm with 8-

minute snooze function.

DISPLAY BUTTONS

A DIGITAL CLOCK DISPLAY

B ANALOG CLOCK DISPLAY

CONTROL BUTTONS

C [MODE/SET] BUTTON

Changes the display mode or holds to enter the setting routine

D [ALARM] BUTTON

Manipulates the daily alarm function

E[ ] AND [ ] BUTTONS

Change the value of a setting

SNOOZE ] BUTTON

Activates the snooze function or turns on the back-light and

clock projection

G [RESET] BUTTON

Returns all settings to default values

H [PROJECTIONON] BUTTON

Used with power adapter to enable continuous projection

I[ ] [IMAGEROTATION] KNOB

90º (left or right) image rotation

J [180ºROTATION] BUTTON

Flips the projected image horizontally

K [FOCUS] KNOB

Adjusts the focus of clock projection

L 3VDCJACK

For AC power adapter installation

M WALL-MOUNT HOLE

N PROJECTOR

POWER

This unit can be operated by batteries or AC power alone as well as

both together.

Battery Installation:

1. Remove the battery compartment door.

2. Insert two AA-sized (UM-3) 1.5V batteries as shown.

3. Press[RESET].

4. Replace the battery compartment door.

To install the adapter:

1. Insert adapter into jack at the bottom of the unit.

2. Plug the adapter into an electrical wall outlet.

Note: Make sure the voltage is correct.

When the power level of the installed batteries is low or when only

AC adapter is connected, the low battery indicator [ ] will light

up. In these cases, replace or install with new batteries.

Current Time &

Alarm-on/off Status Alarm Time &

Alarm-on/off Status

HOW TO ACTIVATE THE BACK-LIGHT

Press [ SNOOZE ] to turn on the back-light for 5 seconds.

HOW TO USE THE CLOCK PROJECTION

Theclock projection makesit easier foryou to readthe Current time

or Alarm time with alarm-on/off status at night. To use the feature,

1. Press [ SNOOZE ] to turn on the projection for 5 seconds. The

current time with alarm-on/off status ( [ ] on or off) will be

projected onto the surface the lens is facing.

2. To change to view the preset alarm time with its on/off status,

press [ SNOOZE ] when projection is already on.

3. Adjust the projected image as below.

Note: Make sure the [ PROJECTION ON ] switch is switched to the

back.

HOW TO USE THE PROJECTOR

WITH POWER ADAPTER

RM868P/RM868PU comes with an AC power adapter. Use of the

AC power adapter is required for continuous projection.

Once the power adapter is in place, you can select to turn on the

projector for longer time (such as throughout the night) by sliding

the [ PROJECTION ON ] switch on. To turn off the projector, slide

the switch back.

If you have press [ SNOOZE ] to change the projected image to

Alarm time with its on/off status when projection is on, please note

that the projected image will return to Current time with Alarm-on/

off status automatically after 10 seconds.

Note that this switch can only be used with the power

adapter installed. For momentary projection, use the

[ SNOOZE ].

SECTION 2 THECALENDARCLOCK

DIGITAL & ANALOG DISPLAY MODES

Press [MODE/SET] to display the following in sequence:

Digital Analog

1) Current Time with Second

------------------------------------

Calendar

ProjectorFeatures

Feature Effect Instructions

Adjustable Rotatesthe Tilt swivel projection to alter

Projector projection 180° the direction of projection

FOCUS Focusesprojection Rotate to focus projection

Knob

[ ] IMAGE Rotatesprojection Rotation of projection allows

ROTATION user to place clock in

knob convenient

180° Horizontally flips Flipsanimage to maintain

ROTATION the projection 180° an upright position

button

2) Current Time with Weekday

------------------------------------

Calendar

3) Current Time with Weekday

------------------------------------

2nd zone-time

4) 2nd zone-time with Weekday

------------------------------------

2nd zone-time Calendar

To display the alarm clock and details, press [ALARM]. The daily

alarm time will appear in the lower line of the digital display as well

as the analog display.

ABOUT RADIO RECEPTION

When the unit is within range of its respective radio signals, its

radio-control mechanism will override all manual settings unless

radio reception is being deactivated.

After battery installation, the unit will start to search for radio

signal automatically. When it is receiving radio signal, the radio-

reception icon will start to blink. A complete reception generally

takes about 2 to 10 minutes, depending on the strength of the radio

signal. After that, the periodical scanning will only take a few

seconds.

The antenna icon indicates the quality of reception.

STRONG

WEAK

NORECEPTION

RECEIVING

When the reception is complete, the radio-reception icon will

appear as [ ] and the received radio-controlled time will be

displayed accordingly.

Interference

Receptioncanbeaffectedbyanumberoffactors.Forbestreception,

place the device away from metal objects and electrical appliances.

Note: Interference from sources such as TV sets can affect the

signal. If, after batteries have been inserted for ten minutes, the

signal is not received, then set the time manually (see section: How

To Set The Clock & Calendar Manually).

HOW TO ENABLE OR DISABLE

AUTO-RECEPTION

If you wish to disable the auto-reception of radio signal feature

while the unit is within range, press and hold [ ] button for 2

seconds. The radio-reception icon on the will disappear and the

unit will NOT respond to radio signals.

To enable the feature again, press and hold [ ] for 2 seconds. The

radio-reception icon will be shown again and it will start blinking

to initiate reception automatically.

HOW TO SET THE CLOCK &

CALENDAR MANUALLY

1. Press and hold [MODE/SET] for 2 seconds.

2. Enter the 2nd time-zone offset hour using [ ] / [ ] . You can

select between + 23 and - 23 hours. Hold down either button to

rapidly increase or decrease the value. Press [MODE/SET] .

3. Entertheclockformatusing[ ]/[ ].Youcanselect12-hour

or 24-hour display.

4. Press[MODE/SET].

5. Enter the hours using [ ] / [ ] . The hand of hour on the

analog display will be adjusted simultaneously.

6. Press[MODE/SET].

7. Enter the minutes using [ ] / [ ] . The hand of minutes on

the analog display will be adjusted simultaneously.

8. Press[MODE/SET].

9. Follow the same pattern to set the year, date format (month-day

or day-month), month, day, and display language (English [E],

German[D],French[F],Italian[I]orSpanish[S])forday-of-the-

week.

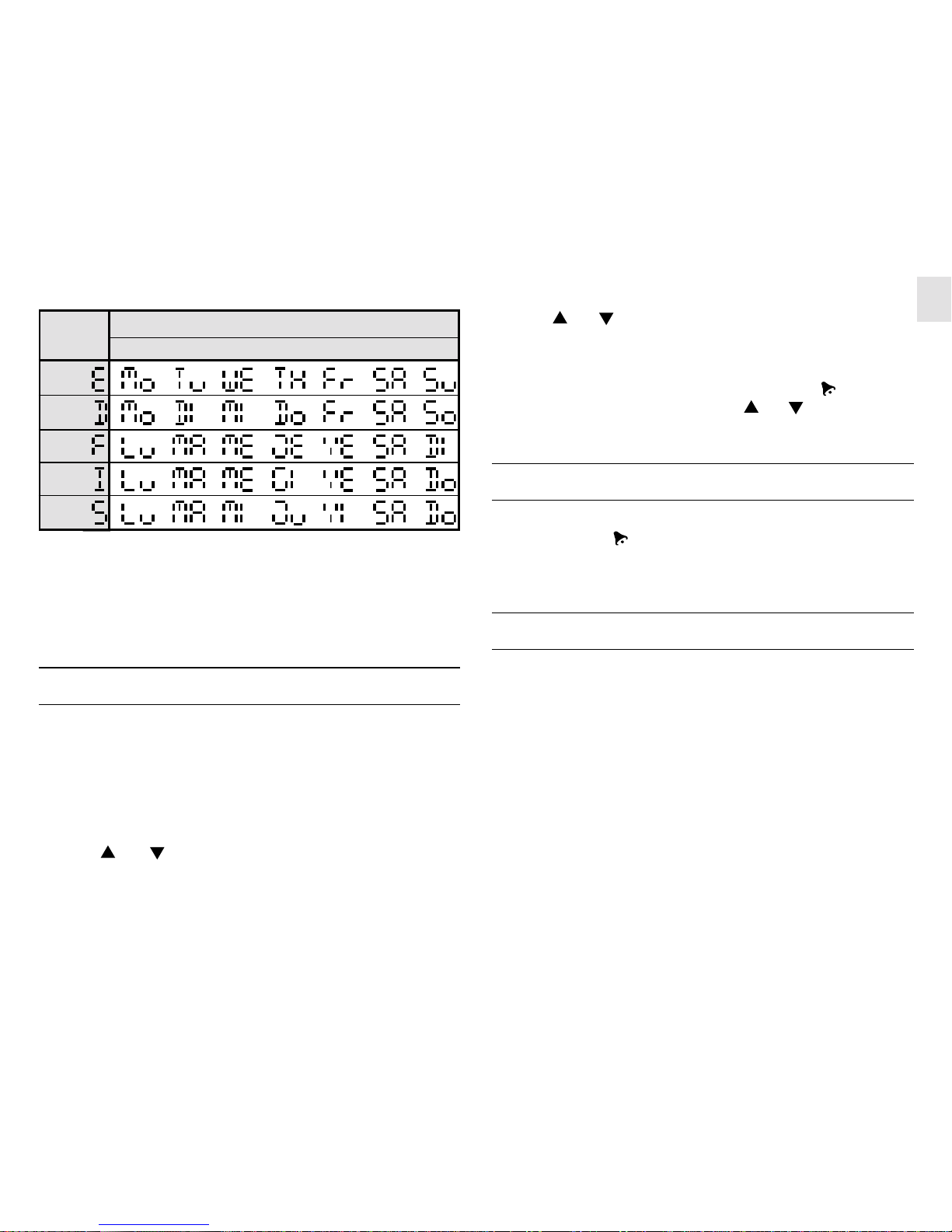

Day-of-the-week

Language Monday Tuesday Wed. Thursday Friday Saturday Sunday

English

German

French

Italian

Spanish

10.Press[MODE]to savethechangesandexit.Ifchangesaremade

during the process, the seconds will reset and start from zero.

The unit will also save all changes and return to normal display

automatically after the unit has been left idle for a minute.

ABOUT THE ALARM

This unit is equipped with a daily alarm function.

To set the alarm,

1. Press [ALARM] to change both the digital and analog display

to the alarm-time display mode.

2. Press and hold [ALARM] for 2 seconds.

3. Use [ ] / [ ] to enter the hours. The hand of hour on the

analog display will be adjusted simultaneously.

4. Press[ALARM].

5. Use [ ] / [ ] to enter the minutes. The hand of minutes on

the analog display will be adjusted simultaneously.

6. Press[ALARM].

The alarm will be automatically activated. The [ ] icon will

appear. To deactivate the alarm, press [ ] / [ ] when the alarm

time is displayed.

HOW TO USE THE DAILY ALARM

An alarm will go off for 2 minutes in two-step crescendo patterns if

undisturbed. The [ ] icon will flash, the back-light and the clock

projection will be activated for 5 seconds. To mute the alarm, press

any key. Pressing [ SNOOZE ] will activate the snooze function.

SNOOZE FUNCTION

When the snooze function is activated, the alarm will be muted

temporarily and set off again after 8 minutes. To disable the snooze

function,press[ALARM].

SECTION3

ADDITIONALINFORMATION

THE RESET BUTTON

The [RESET] button is used to enhance synchronization of signals

after battery replacement or when the unit is operating in an

unfavorable way or malfunctioning. Use a blunt stylus to hold

down the button. All settings will return to their default values.

WALL-MOUNT OR TABLE-STANDING

This unit is designed specially so that you can adjust the angles of

the different parts to facilitate table-standing or wall-mounting.

Wall-Mount Table-Stand

NOTES ON BACKLIGHT

- The EL panel that provides illumination will lose power after

extensive usage.

- The unit may emit an audible sound whenever the display is

illuminated by the EL backlight. This is due to vibration of the

EL panel used for illumination and does not indicate

malfunction of the unit.

PRECAUTIONS

This unit is engineered to give you years of satisfactory service if

handled carefully.

1. Do not immerse the unit in water.

2. Do not clean the unit with abrasive or corrosive materials.

3. Do not subject the unit to snow or excessive force, shock, dust,

temperature or humidity.

4. Do not tamper with the unit’s internal components.

5. Do not mix new and old batteries or batteries of different

specifications.

SPECIFICATIONS

Radio Control : Auto Synchronization of current

time and date

Calendar : Day-of-Week in English / German /

Franch / Italian / Spanish

Month / Day or Day / Month format

Clock Time : 12 / 24-hour format

Accuracy : +/- 0.5 second / day

(when RF is disabled)

Alarm : 2-minute crescendo alarm with

8-minute snooze function

Power : 2 pcs of UM-3 or AA-size batteries

PowerAdapter : 3VDC

Weight : 200 g (without battery)

Dimensions (mm) : 135 x 152 x 26 mm ( H x W x D )

NOTE ON COMPLIANCE

Warning: Changes or modifications to this unit not expressly

approved by the party responsible for compliance could void the

user’s authority to operate the equipment.

R&TTEComplianceNote

This device complies with the essential requirements of Article 3 of

the R&TTE 1999/5/EC Directive, if used for its intended use and

that the following standard(s) has been applied:

Electromagnetic compatibility (Article 3.1.b of the R&TTE

Directive)

Applied standards ETS 300 683 : 1997

Efficient use of the radio frequency spectrum (Article 3.2 of the

R&TTEDirective)

Applied standards EN300 220 –1 : 1997

INTENDEDUSE OFTHE DEVICE

CAUTION

— The content of this manual is subject to change without

further notice.

— Due to printing limitation, the displays shown in this

manual may differ from the actual display.

— The contents of this manual may not be reproduced

without the permission of the manufacturer.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Oregon Scientific Horloge

Oregon Scientific

Oregon Scientific BAR623P Manuel utilisateur

Oregon Scientific

Oregon Scientific RM832A Manuel utilisateur

Oregon Scientific

Oregon Scientific DP200 Manuel utilisateur

Oregon Scientific

Oregon Scientific CIR100 Manuel utilisateur

Oregon Scientific

Oregon Scientific JMR838WFA Manuel utilisateur

Oregon Scientific

Oregon Scientific RRM320P Manuel utilisateur

Oregon Scientific

Oregon Scientific TW331 Manuel utilisateur

Oregon Scientific

Oregon Scientific RRM320P Manuel utilisateur

Oregon Scientific

Oregon Scientific RM328P Manuel utilisateur

Oregon Scientific

Oregon Scientific RMB899P Manuel utilisateur

Oregon Scientific

Oregon Scientific RM313PNFA Manuel utilisateur

Oregon Scientific

Oregon Scientific RESONANCE CIR600 Manuel utilisateur

Oregon Scientific

Oregon Scientific RM309PU Manuel utilisateur

Oregon Scientific

Oregon Scientific TW223 Manuel utilisateur

Oregon Scientific

Oregon Scientific Jumbo JMR828A Manuel utilisateur

Oregon Scientific

Oregon Scientific RMB899P Manuel utilisateur

Oregon Scientific

Oregon Scientific RM318PA Manuel utilisateur

Oregon Scientific

Oregon Scientific PROJI Manuel utilisateur

Oregon Scientific

Oregon Scientific RM802 Manuel utilisateur

Oregon Scientific

Oregon Scientific BAR623PA Manuel utilisateur

Oregon Scientific

Oregon Scientific RM622P Manuel utilisateur

Oregon Scientific

Oregon Scientific RRM968P Manuel utilisateur

Oregon Scientific

Oregon Scientific Slim Projection Clock RA368P Manuel utilisateur

Oregon Scientific

Oregon Scientific IWA-80055 Manuel utilisateur

Manuels Horloge populaires d'autres marques

Silicon Laboratories

Silicon Laboratories SI5324 Manuel utilisateur

Heathkit

Heathkit GC-1005 Manuel utilisateur

Andrew O'Malley

Andrew O'Malley DOTKLOK Manuel utilisateur

ALGE-Timing

ALGE-Timing ASC3 Manuel utilisateur

Bodet

Bodet Profil 960 Manuel utilisateur

Nixie Clock

Nixie Clock Divergence Meter Manuel utilisateur

La Crosse Technology

La Crosse Technology WS-8256-AL Manuel utilisateur

Mini Gadgets

Mini Gadgets MCPro Manuel utilisateur

Casio

Casio TMR-200 Manuel utilisateur

Progetti

Progetti ILTEMPOSTRINGE Manuel

BVItech

BVItech BV-101 Manuel utilisateur

Progetti

Progetti KALIMERO Manuel

La Crosse Technology

La Crosse Technology WT-3141b Manuel

La Crosse Technology

La Crosse Technology W86531 Manuel utilisateur

Sharp

Sharp SPC900 Manuel utilisateur

La Crosse Technology

La Crosse Technology 404-50447 Manuel utilisateur

Datexx

Datexx DF0063 Manuel utilisateur

LG LEC-005 Manuel utilisateur
