Oregon Scientific MSR939A-01 Manuel utilisateur

POLERMO Projection Clock

with Motion Alert

Model: RMR939PA / MSR939A

USER MANUAL

RMR939PA English Cover R7 10/20/04, 10:34 AM1

CONTENTS

Introduction .............................................................. 2

Product Overview .................................................... 3

Front View .............................................................. 3

Back View .............................................................. 5

LCD Display ........................................................... 6

Remote Motion Sensor (MSR939A) - Front View .. 8

Remote Motion Sensor (MSR939A) - Back View .. 9

Safety and Care ...................................................... 10

Safety Precautions ............................................... 10

Caring for this Product ......................................... 10

Getting Started ....................................................... 10

Package Contents ............................................... 10

Batteries ............................................................... 11

AC Adaptor .......................................................... 12

About Atomic Clock Reception ............................ 12

Turning the Atomic Clock Signal ON / OFF ......... 13

Clock / Calendar ..................................................... 13

Clock / Calendar Display ..................................... 13

Setting the Clock / Calendar ................................ 14

Backlight ................................................................. 14

Temperature ............................................................ 14

Alarm ....................................................................... 15

Alarm Display ...................................................... 15

Setting the Alarm(s) ............................................. 15

Activating / Deactivating the Alarm(s) .................. 15

Alarm Sound ........................................................ 15

Snooze / Turning the Alarm OFF ......................... 15

Motion Alarm .......................................................... 16

Motion Alarm Setting Display ............................... 16

Setting the Motion Alarm ...................................... 16

Turning the Motion Alarm OFF ............................ 17

Sleep Timer ............................................................. 17

Projection Unit ....................................................... 18

Motion Sensor (MSR939A).................................... 18

Setup Sensor ....................................................... 18

Wake-Up Vibration Alarm - VR101A (Optional) .... 19

Resetting the Clock ............................................... 19

Warnings ................................................................. 20

Troubleshooting ..................................................... 20

Technical Specifications ....................................... 21

POLERMO Projection Clock

with Motion Alert

Model: RMR939PA / MSR939A

USER MANUAL

RMR939PA English R7 10/20/04, 10:34 AM1

INTRODUCTION

Thank you for selecting the Oregon ScientificTM

POLERMO Projection Clock with Motion Alert. This

device is designed to give you many years of reliable

service, including the following conveniences:

•US Atomic Calendar Clock

•Optional Wireless Vibration Alarm with 8-Minute

Snooze Function (Wake-Up Vibrating Alarm

VR101A can be purchased separately)

•Sleep Function with 6 Soothing Sounds

•5Alarm Melodies with 2 Volume Levels

•2-Minute Dual Alarm with 8-Minute Snooze Function

•Time / Alarm Status Projection Unit

•Security Alarm / Motion Sensor Unit

•Indoor Temperature Display

•Day of the Week in 1 of 5 Languages

•Time Zone Hour Offset Function

•Backlight for Clock

Keep this manual handy as you use your new product.

It contains practical step-by-step instructions, as well

as technical specifications and warnings you should

know.

Notices .................................................................... 23

Statement of Responsibility ................................. 23

About Oregon Scientific ........................................ 23

FCC Statement ....................................................... 24

Declaration of Conformity .................................... 23

RMR939PA English R7 10/20/04, 10:34 AM2

1. SOUND / SLEEP button

•Press to turn the soothing sound ON.

•Press to wrap around the sleep timer setting as

follows: 0 120 90 60 30 15

0 minutes.

•Press and hold for 2 seconds to choose 1 of

6 soothing sounds.

2. SNOOZE / LIGHT button

•Press to activate the 8-minute snooze function.

•Press and hold for 2 seconds to turn snooze OFF

and reset the alarm for the next day.

•Press to activate the backlight and projection for

5 seconds.

3. LCD display

4. CLOCK ALARM button

•Press to toggle between alarm 1 and alarm 2 -

ON / OFF.

•Press and hold for 2 seconds to enter the Alarm

Time Setting Mode.

5. MOTION ALARM button

•Press to enter the Motion Alarm Mode; press

again to toggle between motion alarm ON / OFF.

PRODUCT OVERVIEW

FRONT VIEW

RMR939PA English R7 10/20/04, 10:34 AM3

•Press and hold for 2 seconds to enter:

-Motion Sensor Code.

-Motion Alarm Setting Mode for motion alarm

period and alarm type.

6. Projector

Projects time and alarm status.

7. CLOCK button

•Press to toggle between the following display

modes:

-Clock with seconds and calendar.

-Clock with weekday and calendar.

-Clock with time zone hour offset and calendar.

•Press and hold for 2 seconds to enter the

Clock Setting Mode - US time zone hour offset,

12- / 24-hour format, hour, minute, year, MM / DD

or DD / MM format, month, day and day of the

week language.

8. UP / DOWN button

•Press to increase or decrease a setting.

•Press and hold for 2 seconds to activate or

deactivate atomic clock.

•Press to increase or decrease the soothing sound

volume.

RMR939PA English R7 10/20/04, 10:34 AM4

1. Projector FOCUS knob

• Twist to focus the projected image.

2. Projector IMAGE ROTATION knob

• Twist to get the est viewing angle of the projected

image.

3. PROJECTION ON switch

• Slide to ON for continuous image projection when

the AC power is connected.

4. Projector 18 ° ROTATION button

• Press to rotate the image upside down.

5. 6V AC / DC Power Socket

6. Battery Compartment (cover on)

• Uses 4 x UM-3 / AA 1.5V atteries.

7. RESET hole

• Insert a thin lunt instrument to return all values

to the default settings.

8. °C / °F switch

• Press to select etween °C / °F display format.

BACK VIEW

RMR939PA English R7 10/20/04, 11:38 AM5

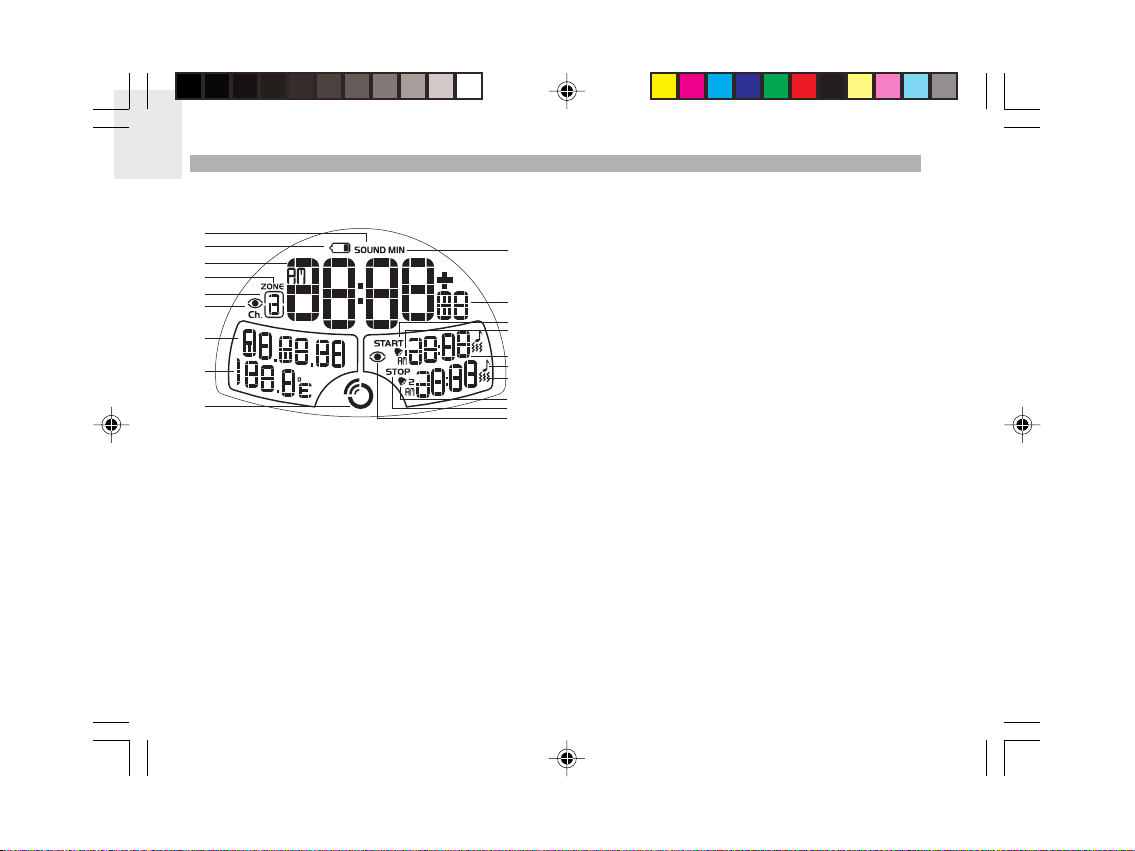

LCD DISPLAY

1. SOUND

•Appears when the sleep function is activated.

2. Battery Low icon

•Appears when the clock batteries are low or, no

batteries are installed and only the AC adaptor is

connected.

3. Time

•HH / MM, 12- / 24-Hour, AM / PM.

4. ZONE

•Appears when you are in the Time and Zone Hour

Offset display.

5. Channel 1 / 2

•Ch.1 or Ch.2 will appear when the related motion

sensor is activated.

6. Motion Alarm ON icon

7. Calendar

•DD / MM / YY or MM / DD / YY.

8. Temperature

•°C / °F.

9. Atomic Clock Signal Reception icon

• Shows the strength of the reception signal.

RMR939PA English R7 10/20/04, 10:34 AM6

10. MIN

•Appears when the sleep function is activated.

11. Time Zone Hour Offset / Day of the Week

•Offsets the atomic clock time setting when you

are in a different time zone (+ / -23 hours).

•Name of day available in 1 of 5 languages.

12. START

•Start time for the motion sensor to be activated.

13. Alarm 1

•Indicator to show this is alarm 1.

14. Alarm 1 / 2 Time

•Shows alarm times / AM or PM.

15. Melody Alarm icon

•Shows when the clock alarm is set.

16. Vibration Alarm icon (Wake-Up Vibration Alarm -

optional item)

•Appears on the display when the vibrating alarm

has been set.

17. Alarm 2

•Indicator to show this is alarm 2.

18. STOP

•Stop time for the motion sensor.

19. Motion Alarm Settings icon

RMR939PA English R7 10/20/04, 10:34 AM7

REMOTE MOTION SENSOR (MSR939A) - BACK VIEW

1. Wall Mount

2. Battery Compartment (cover on)

•Uses 3 x UM-3 / AA 1.5V batteries.

3. CHANNEL 1 / 2

•Slide to select either Channel 1 or Channel 2.

4. CODE switch

•Slide to change the Code.

5. RESET hole

•Insert a thin blunt instrument to return all values

to the default settings.

RMR939PA English R7 10/20/04, 10:34 AM9
