Oregon Scientific JW108 Manuel utilisateur

Jumbo Wall Clock

Model: JW108

USER MANUAL

JW108_M_EN.indd 1 14-7-10 1:27

Jumbo Wall Clock

Model:JW108

USER MANUAL

CONTENTS

Overview..................................................................... 3

Front View ............................................................... 3

Rear View................................................................ 3

Remote Sensor ....................................................... 4

Getting started ........................................................... 4

Insert Batteries ........................................................ 4

Remote Sensor .......................................................... 4

Sensor Data Transmission...................................... 5

Clock........................................................................... 5

Clock Reception ...................................................... 5

Set The Clock Manually .......................................... 6

Weather Forecast ...................................................... 6

Temperature............................................................... 6

Precautions ................................................................ 7

Specications ............................................................ 7

About Oregon Scientic ........................................... 8

EU - Declaration Of Conformity................................ 8

FCC Statement........................................................... 9

Declaration Of Conformity...................................... 10

JW108_M_EN.indd 2 14-7-10 1:27

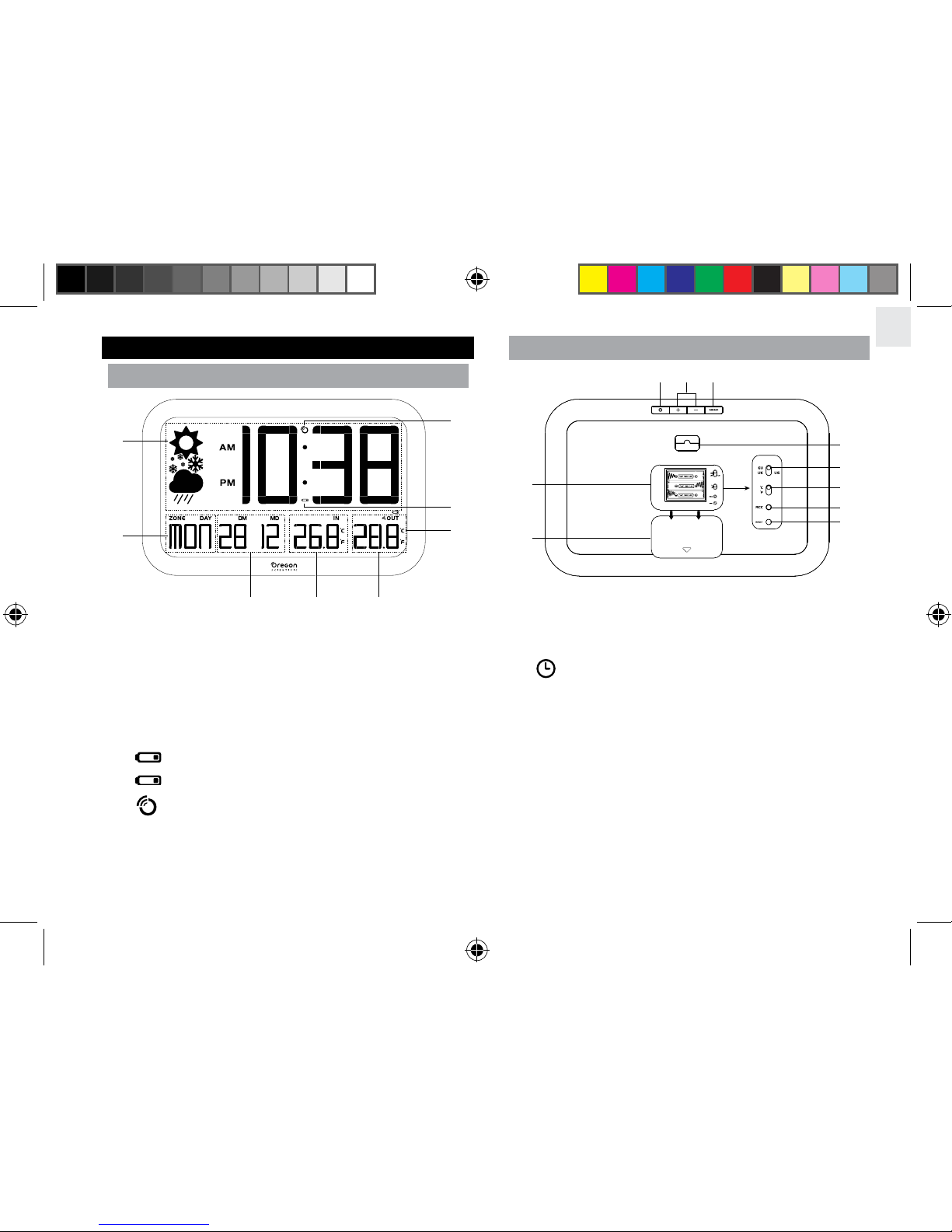

OVERVIEW

FRONT VIEW

34 5

1. Current time, weather display

2. Current weekday display

3. Current date display

4. Current indoor temperature reading

5. Current outdoor temperature and sensor

reception indication

6. : Main unit low battery display

7. : Outdoor remote sensor low battery display

8. : Clock signal reception indication

REAR VIEW

11 12 13

9. Battery compartment

10. Battery compartment door

11. : Manually adjust current time and date

12. +/- Increase/decrease settings

13. SENSOR: Enable/disable searching sensor signal

14. Wall mounting hole

15. EU/UK/US: Slide to select desired clock reception;

time and date setting

16. °C/°F: Slide to select desired temperature unit

17. RCC: Enable/disable clock signal reception

18. RESET: Reset the unit to default settings

JW108_M_EN.indd 3 14-7-10 1:27

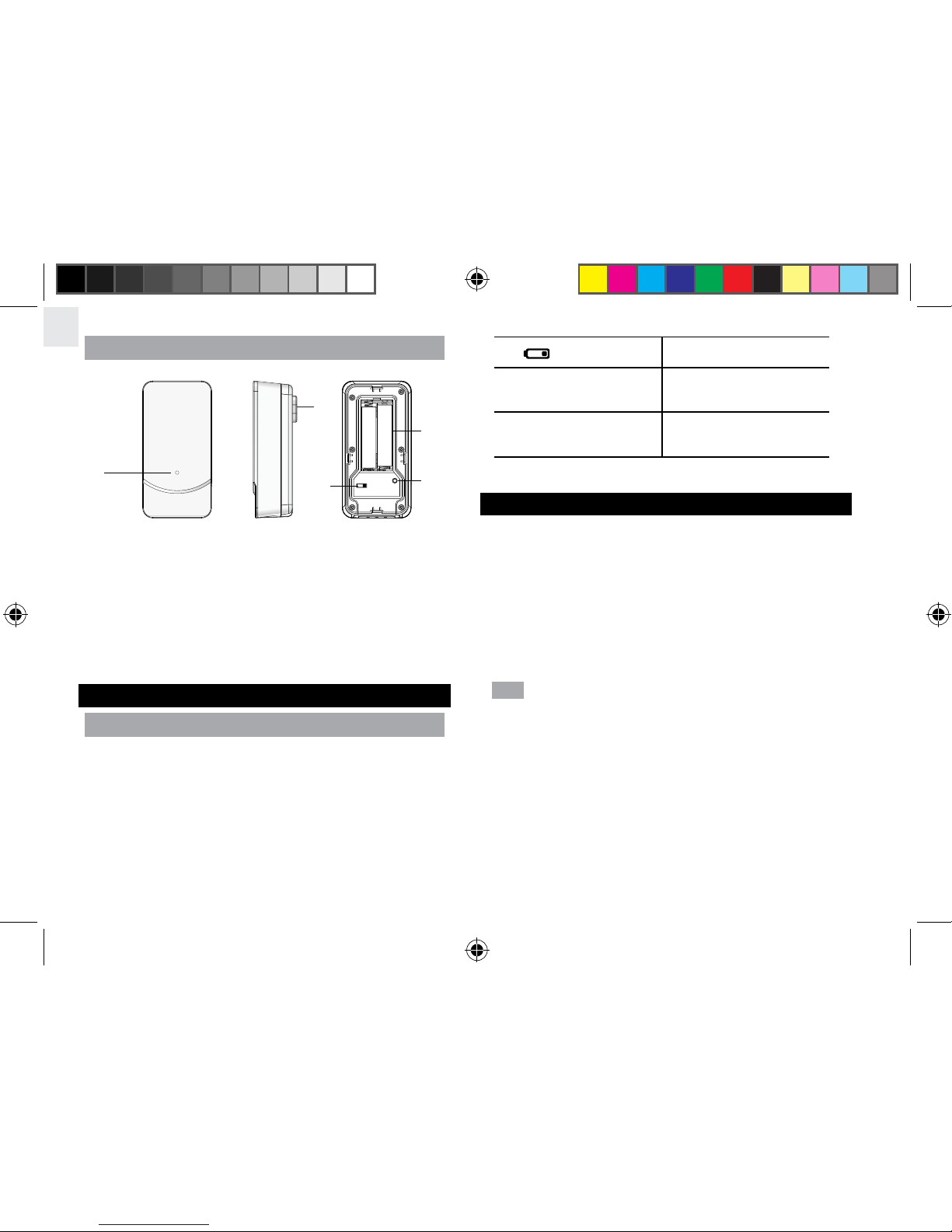

REMOTE SENSOR

21 1 2 3

Reset 22

19. LED status indicator

20. Wall mount hole

21. CHANNEL switch

22. RESET: Reset the unit to default settings

23. Battery compartment

GETTING STARTED

INSERT BATTERIES

1. Remove the battery compartment.

2. Insert the batteries, matching the polarities (+/-).

3. Press RESET after each battery replacement.

LOCATION MEANING

Clock/alarm area Main unit batteries

low

Outdoor temperature

area

ensor batteries low

REMOTE SENSOR

The main unit can collect data from up to 1 sensor.

To set up the sensor:

1. Open the battery compartment.

2. Slide the CHANNEL switch to 1, then press RESET.

3. Close the battery door.

4. Place the sensor within 98 ft (30 m) of the main unit

using the wall mount.

TIP Ideal placements for the sensor would be in any

location on the exterior of the home at a height of not

more than 5 ft (1.5 m) and which can shield it from direct

sunlight or wet conditions for an accurate reading.

JW108_M_EN.indd 4 14-7-10 1:27

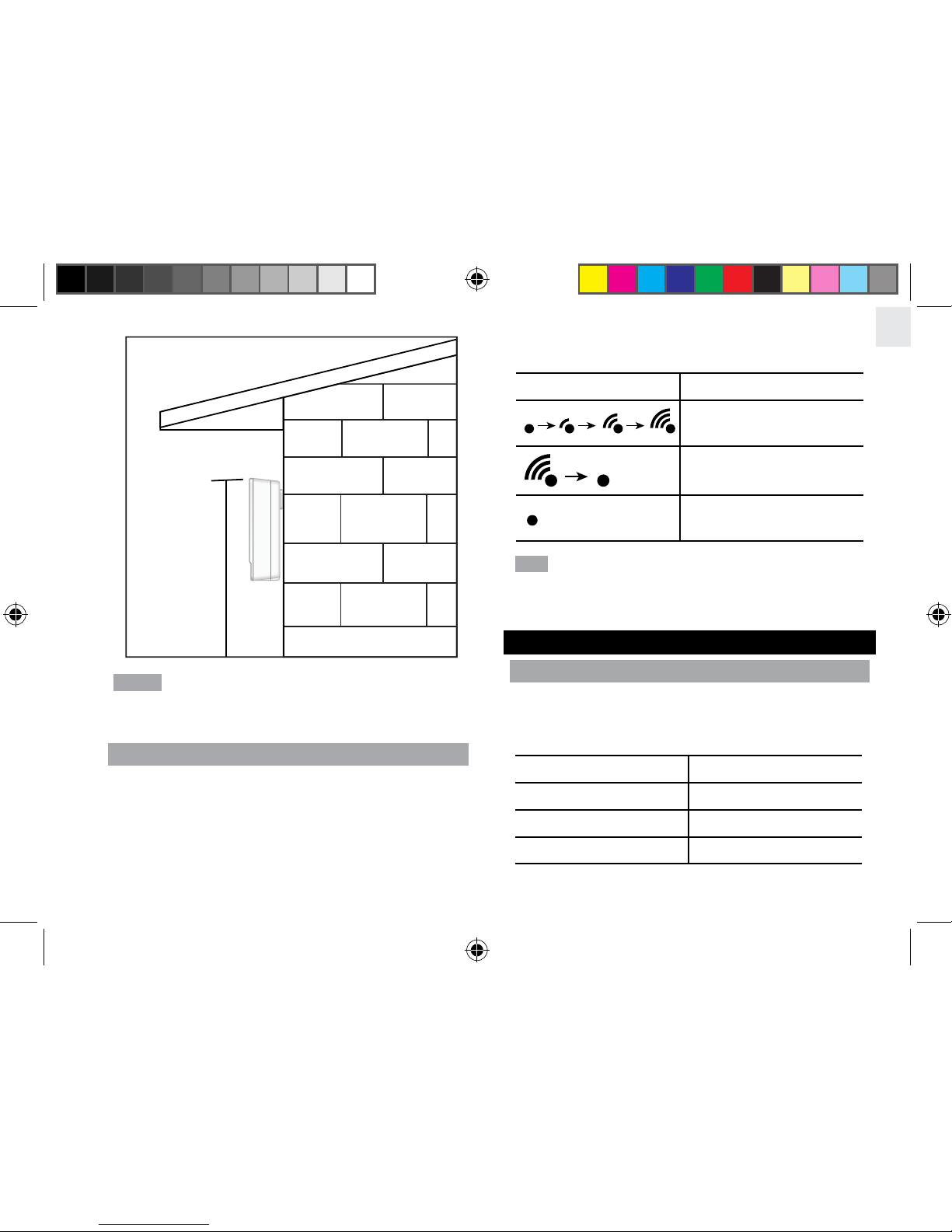

The sensor reception icon in the remote sensor area

shows the status:

Screen display Description

Main unit is searching

for sensor(s).

The channel has been

found.

The sensor cannot be

found.

TIP The transmission range may vary depending on

many factors. You may need to experiment with various

locations to get the best results.

CLOCK

CLOCK RECEPTION

This clock is designed to synchronize its clock

automatically with a clock signal.

Slide to select the desired region (EU/UK/US).

Region Signal

EU DCF

UK MSF

US WWVB

1.5m

(5ft)

NOTE Use alkaline batteries for longer usage and

consumer grade lithium batteries in temperatures

below freezing.

SENSOR DATA TRANSMISSION

To search for a sensor:

Press and hold SENSOR. Press and hold again to

stop searching.

JW108_M_EN.indd 5 14-7-10 1:27

Clock signal reception indicator:

Screen display Description

Searching for clock

signal reception

Excellent signal

Weak signal

No clock signal

reception

NOTE It takes 2-10 minutes to receive the clock signal.

If the signal is weak, it could take up to 24 hours to

receive a valid signal.

To enable/disable signal reception:

Press and hold RCC.

SET THE CLOCK MANUALLY

1. Press and hold RCC in the battery compartment to

disable the clock signal reception.

2. Press and hold .

3. Press +/- to change the settings.

4. Press to conrm.

5. Press once or press and hold +/- to adjust the setting.

For EU/UK, the time-zone offset sets the clock up to

+/- 23 hours from the received clock signal time. For

US, the time-zone setting is 0 (P), 1 (M), 2 (C), 3 (E).

6. Press to conrm.

7. The settings order is: 12/24 hour format, hour, minute,

year, calendar format (day-month/month-day), month,

day and language.

8. Press once or press and hold +/- to adjust the setting.

NOTE The language options are English (E), Spanish (S),

Italian (I), German (D) and French (F).

WEATHER FORECAST

This product forecasts the next 12 hours of weather

within a 19-31 mile (30-50 km) radius.

Screen display Description

Sunny

Cloudy

Rainy

Snowy

TEMPERATURE

To select temperature unit:

• Slide to °C or °F for temperature readings in the

battery compartment of the main unit.

JW108_M_EN.indd 6 14-7-10 1:27

PRECAUTIONS

• Do not subject the unit to excessive force, shock,

dust, temperature or humidity.

• Do not cover the ventilation holes with any items

such as newspapers, curtains etc.

• Do not immerse the unit in water. If you spill liquid

over it, dry it immediately with a soft, lint-free cloth.

• Do not clean the unit with abrasive or

corrosive materials.

• Do not tamper with the unit’s internal components.

This invalidates the warranty.

• Only use fresh batteries. Do not mix new and

old batteries.

• Images shown in this manual may differ from the

actual display.

• When disposing of this product, ensure it is

collected separately for special treatment and not

as household waste.

• Placement of this product on certain types of

wood may result in damage to its nish for which

Oregon Scientic will not be responsible. Consult

the furniture manufacturer's care instructions

for information.

• The contents of this manual may not be reproduced

without the permission of the manufacturer.

• Do not dispose old batteries as unsorted municipal

waste. Collection of such waste separately for

special treatment is necessary.

• Please note that some units are equipped with

a battery safety strip. Remove the strip from the

battery compartment before rst use.

NOTE The technical specications for this product and

the contents of the user manual are subject to change

without notice.

NOTE Features and accessories will not be available

in all countries. For more information, please contact

your local retailer.

SPECIFICATIONS

TYPE DESCRIPTION

MAIN UNIT

L x W x H 390 x 243 x 25 mm

15.3 x 9.57 x 0.98 in

Weight 1052 g (37.1 ounces)

without battery

Operation range -5°C to 50°C

(23°F to 122°F)

Time format 24/12 Hour with

AM/PM

Temperature format °C/°F

Date format MM:DD/DD:MM

JW108_M_EN.indd 7 14-7-10 1:27

Day-of-week display English/French/

German/Spanish/

Italian

Power 3 x UM-3 (AA) 1.5 V

batteries

REMOTE UNIT

L x W x H 94.5 x 48 x 27 mm

(3.72 x 1.89 x 1.06 in)

Weight 44 g (1.55 ounces)

without battery

Transmission range 98 ft (30 m)

unobstructed

Temperature range -20°C to 60°C

(-4°F to 140°F)

Power 2 x UM-3 (AA) 1.5 V

batteries

Splash-proof standard JIS-3

ABOUT OREGON SCIENTIFIC

Visit our website www.oregonscientic.com to learn

more about Oregon Scientic products.

For any enquiry, please contact our Customer Service

at info@oregonscientic.com.

Oregon Scientic Global Distribution Limited reserves

the right to interpret and construe any contents, terms

and provisions in this user manual and to amend it, at

its sole discretion, at any time without prior notice. To

the extent that there is any inconsistency between the

English version and any other language versions, the

English version shall prevail.

EU - DECLARATION OF CONFORMITY

Hereby, Oregon Scientic, declares that Jumbo Wall

Clock (Model: JW108) is in compliance with the essential

requirements and other relevant provisions of Directive

1999/5/EC. A copy of the signed and dated Declaration

of Conformity is available on request via our Oregon

Scientic Customer Service.

COUNTRIES RTTE APPROVAL COMPLIED

All EU countries, Switzerland

and Norway N

JW108_M_EN.indd 8 14-7-10 1:27

FCC STATEMENT

This device complies with Part 15 of the FCC Rules.

Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and

(2) This device must accept any interference received,

including interference that may cause undesired operation.

WARNING Changes or modications not expressly

approved by the party responsible for compliance could

void the user's authority to operate the equipment.

NOTE This equipment has been tested and found

to comply with the limits for a Class B digital device,

pursuant to Part 15 of the FCC Rules. These limits

are designed to provide reasonable protection against

harmful interference in a residential installation.

This equipment generates, uses and can radiate radio

frequency energy and, if not installed and used in

accordance with the instructions, may cause harmful

interference to radio communications. However, there

is no guarantee that interference will not occur in a

particular installation. If this equipment does cause

harmful interference to radio or television reception,

which can be determined by turning the equipment

off and on, the user is encouraged to try to correct the

interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment

and receiver.

Connect the equipment into an outlet on a circuit different

from that to which the receiver is connected.

Consult the dealer or an experienced radio/TV technician

for help.

JW108_M_EN.indd 9 14-7-10 1:27

DECLARATION OF CONFORMITY

The following information is not to be used as contact for

support or sales. Please call our customer service number

(listed on our website at www.oregonscientic.com), or on

the warranty card for this product) for all inquiries instead.

Name: Oregon Scientic, Inc.

Address: 10778 SW Manhasset Dr.

UNIT B-2 Tualatin,

Or 97062 USA

Telephone No.: 1-800-853-8883

declare that the product

Product No.: JW108

Product Name: Jumbo Wall Clock

Manufacturer: IDT Technology Limited

Address: Block C, 9/F, Kaiser Estate,

Phase 1, 41 Man Yue St.,

Hung Hom, Kowloon,

Hong Kong

is in conformity with Part 15 of the FCC Rules. Operation

is subject to the following two conditions: 1) This device

may not cause harmful interference. 2) This device must

accept any interference received, including interference

that may cause undesired operation.

JW108_M_EN.indd 10 14-7-10 1:27

Autres manuels pour JW108

Table des matières

Autres manuels Oregon Scientific Horloge

Oregon Scientific

Oregon Scientific RM602 Manuel utilisateur

Oregon Scientific

Oregon Scientific PRYSMA RMR221P Manuel utilisateur

Oregon Scientific

Oregon Scientific NR868A-01 Manuel utilisateur

Oregon Scientific

Oregon Scientific BAR368P Manuel utilisateur

Oregon Scientific

Oregon Scientific BAR223P Manuel utilisateur

Oregon Scientific

Oregon Scientific PROJI BAR369P Manuel utilisateur

Oregon Scientific

Oregon Scientific RM336PES Manuel utilisateur

Oregon Scientific

Oregon Scientific TW331 Manuel utilisateur

Oregon Scientific

Oregon Scientific RM338SP Manuel utilisateur

Oregon Scientific

Oregon Scientific MSR939 Manuel utilisateur

Oregon Scientific

Oregon Scientific RM928 Manuel utilisateur

Oregon Scientific

Oregon Scientific SENSES Aroma Clock with Brainwave Music... Manuel utilisateur

Oregon Scientific

Oregon Scientific RRM320P Manuel utilisateur

Oregon Scientific

Oregon Scientific RRM612P Manuel utilisateur

Oregon Scientific

Oregon Scientific PRYSMA B Manuel utilisateur

Oregon Scientific

Oregon Scientific BARM839 Manuel utilisateur

Oregon Scientific

Oregon Scientific EMR801 Manuel utilisateur

Oregon Scientific

Oregon Scientific JMR868 Manuel utilisateur

Oregon Scientific

Oregon Scientific TW369 Manuel utilisateur

Oregon Scientific

Oregon Scientific RM383PA - MANUAL 2 Manuel utilisateur

Oregon Scientific

Oregon Scientific RM998PS Manuel utilisateur

Oregon Scientific

Oregon Scientific RM813P Manuel utilisateur

Oregon Scientific

Oregon Scientific RM816P Manuel utilisateur

Oregon Scientific

Oregon Scientific RM338P Manuel utilisateur

Manuels Horloge populaires d'autres marques

Silicon Laboratories

Silicon Laboratories SI5324 Manuel utilisateur

Heathkit

Heathkit GC-1005 Manuel utilisateur

Andrew O'Malley

Andrew O'Malley DOTKLOK Manuel utilisateur

ALGE-Timing

ALGE-Timing ASC3 Manuel utilisateur

Bodet

Bodet Profil 960 Manuel utilisateur

Nixie Clock

Nixie Clock Divergence Meter Manuel utilisateur

La Crosse Technology

La Crosse Technology WS-8256-AL Manuel utilisateur

Mini Gadgets

Mini Gadgets MCPro Manuel utilisateur

Casio

Casio TMR-200 Manuel utilisateur

Progetti

Progetti ILTEMPOSTRINGE Manuel

BVItech

BVItech BV-101 Manuel utilisateur

Progetti

Progetti KALIMERO Manuel

La Crosse Technology

La Crosse Technology WT-3141b Manuel

La Crosse Technology

La Crosse Technology W86531 Manuel utilisateur

Sharp

Sharp SPC900 Manuel utilisateur

La Crosse Technology

La Crosse Technology 404-50447 Manuel utilisateur

Datexx

Datexx DF0063 Manuel utilisateur

LG LEC-005 Manuel utilisateur
