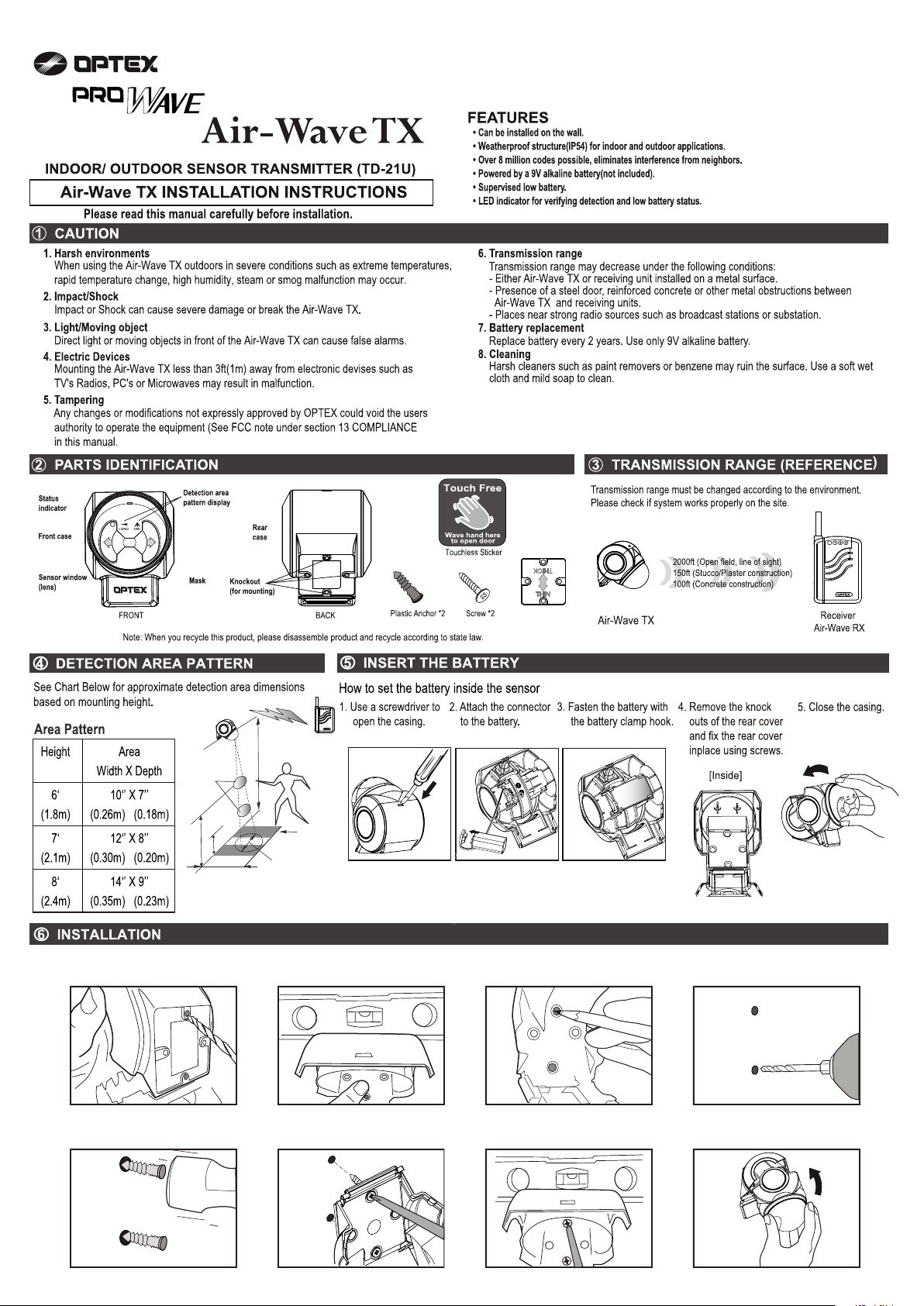

Optex PRO WAVE Manuel utilisateur
Angle plate
4. Drill holes at the 2 marks using
a 3/16” drill bit.
3. Mark the center of the two
mounting holes.
6. Install housing with supplied screws.
( DO NOT FULLY TIGHTEN )
1. Drill two 1/8” mounting holes on
back of housing.
2. Hold housing at desired mounting
location ensuring it is level.
8. Close the sensor casing.
7. Ensure housing is level and tighten
screws.
Detection
area
Less than 8”
30 - 44”
Sensitive area
7 feet
7-8”
Within 12” from mounting wall
PIR Sensor
Receiver
Touch free
5. Knock in the two plastic anchors.
Holes with
plastic anchors
THICK
THIN
7to8”
30 to 44”
For hand sticker: 30 to 44”
Touch Free
Wave hand here
to open door
Touch Free
Wave hand here
to open door
Angle plate
Thin
Angle Plate
Angle Plate
Thick
5918741
