Olympus SP 570 - UZ Digital Camera Guide de configuration

DIGITAL CAMERA

Advanced

Manual

Getting to know your

camera better

Quick Start Guide

This manual will help you get

started using your camera

right away.

Button operations

Menu operations

Printing pictures

Using OLYMPUS Master

(Thank you for purchasing an Olympus digital camera. Before you start to use your new camera, please read

these instructions carefully to enjoy optimum performance and a longer service life. Keep this manual in a

safe place for future reference.

(We recommend that you take test shots to get accustomed to your camera before taking important

photographs.

(In the interest of continually improving products, Olympus reserves the right to update or modify information

contained in this manual.

(The screen and camera illustrations shown in this manual were produced during the development stages

and may differ from the actual product.

Appendix

SP-570UZ

2EN

Contents

Quick Start Guide P.3

Camera diagram P.11 Learn the names of the camera parts

and get a general grasp of the

camera’s functions. Use this section

as reference for the functions.

Button operations P.16 Test out the functions of the camera

buttons by following the illustrations

and trying them out on the camera.

Operations using the control panel P.29 Learn how to use the control panel to

perform basic operations, and then try

them out.

Menu operations P.32 Learn everything about the menus,

from basic operations to the functions

of each menu and their various

settings.

Printing pictures P.59

Learn how to print pictures you have

taken.

Using OLYMPUS Master P.64

Learn how to transfer and save

pictures to a computer.

Getting to know your camera better P.68 Find out more about your camera and

learn what to do when you have a

question regarding operations.

Appendix P.81 Read about convenient functions and

safety precautions on how to use your

camera more effectively.

EN 3

Quick Start Guide

Gather these items (box contents)

Pull the strap tight so that it does not come loose.

Digital Camera StrapLens Cap

Lens Cap String

AA Batteries (four) USB cable AV Cable OLYMPUS Master 2

CD-ROM

Items not shown: Advanced Manual (this manual), Basic Manual and warranty card.

Contents may vary depending on purchase location.

Attach the strap and the lens cap

• Attach the strap to the other eyelet

in the same manner.

4EN

Quick Start Guide

Prepare the camera

a. Load batteries into the camera

Slide the battery compartment

lock from )to =and ensure

that the battery compartment

cover is securely locked (7).

Failure to do so may cause the

battery compartment cover to

open during shooting and the

batteries to fall out, resulting in

loss of image data.

Battery compartment

lock

EN 5

Quick Start Guide

Prepare the camera

b. Insert the (optional) xD-Picture Card into the camera

This camera allows you to take pictures without using an optional xD-

Picture Card™ (hereinafter called the card). When taking pictures

without the card, pictures will be stored in the internal memory.

For details on the card, please refer to “The card” (P.85).

Card cover

Notch

Contact area

Make sure the card is correctly

oriented and insert it straight into

the card slot.

Insert the card until it clicks into place.

To remove the card, push it all the way

in, release it slowly and remove.

6EN

Quick Start Guide

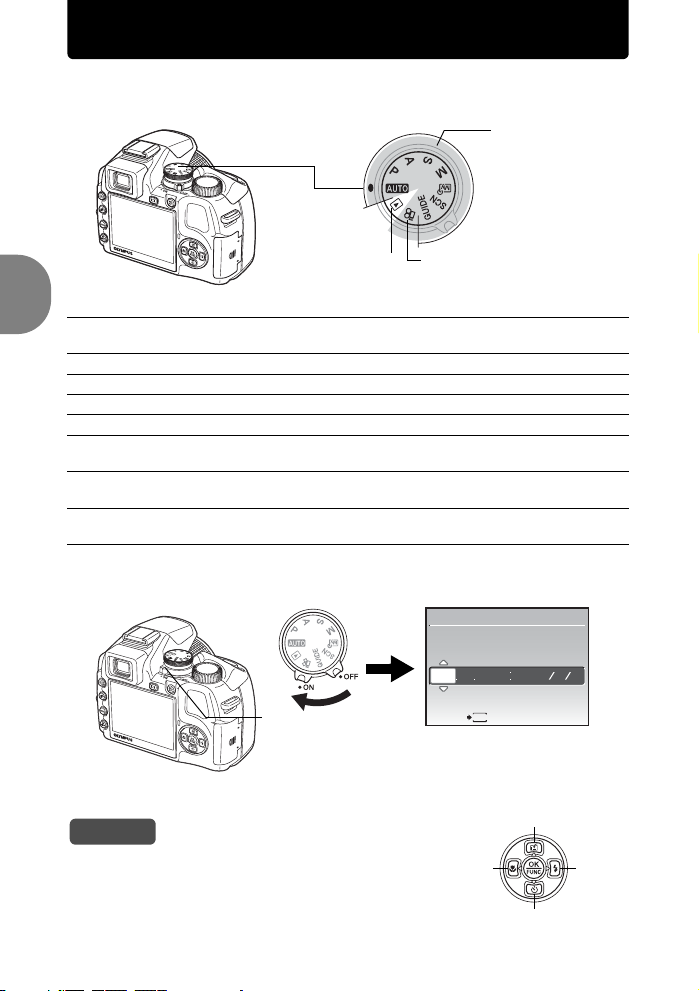

Turn the camera on

This explains how to turn on the camera in shooting mode.

a. Set the mode dial to h.

Still picture shooting modes

b. Remove the lens cap and set the camera’s power

switch to ON.

To turn off the camera, set the power switch to OFF.

hThe camera determines the optimum settings for the shooting conditions

automatically.

The camera automatically sets the optimum aperture value and shutter speed.

AThis function allows you to change the aperture manually.

SThis function allows you to change the shutter speed manually.

MThis function allows you to change the aperture and shutter speed manually.

rThis function allows you to set each shooting function manually and use as

your original shooting mode.

sThis function allows you to shoot pictures by selecting a scene according to

the shooting condition.

gThis function allows you to set the target items by following the shooting

guide displayed on the screen.

When shooting movies

(shooting mode)

When shooting

still pictures

(shooting mode)

When viewing pictures

(playback mode)

• When the date and time have

not yet been set, this screen

will appear.

YMD

D TIME

---- -- -- -- --

CANCEL

Power switch

Tips

The directions of the arrow pad are indicated with

124 3 in this manual.

EN 7

Quick Start Guide

Set date and time

a. Press the 1zbutton and the 2Ybutton to

select [Y].

The first two digits of [Y] are fixed.

b. Press the 3#button.

c. Press the 1zbutton and the

2Ybutton to select [M].

About the date and time setting screen

Y-M-D (Year-Month-Day)

Exits a setting.

Minute

Date formats (Y/M/D, M/D/Y, D/M/Y)

Hour

YMD

D TIME

---- -- -- -- --

CANCEL

1zbutton

2Ybutton

2008

-- -- -- --

YMD

D TIME

CANCEL

3#button

2008 08

-- -- --

YMD

D TIME

CANCEL

8EN

Quick Start Guide

Set date and time

d. Press the 3#button.

e. Press the 1zbutton and the

2Ybutton to select [D].

f. Press the 3#button.

g. Press the 1zbutton and the

2Ybutton to select the hours

and minutes.

The time is displayed in the 24-hour

format.

h. Press the 3#button.

i. Press the 1zbutton and the

2Ybutton to select [Y/M/D].

j. After all items have been set,

press the obutton.

For precise time setting, press the obutton as the time signal

strikes 00 seconds.

2008 08 26

-- --

YMD

D TIME

CANCEL

2008 08 26 12 30

YMD

D TIME

CANCEL SET

2008 08 26 12 30

YMD

TIME

CANCEL SET

obutton

AUTO

ORM

The number of remaining still

pictures is displayed.

EN 9

Quick Start Guide

Take a picture

a. Hold the camera

b. Focus

The AF target mark lights in green when the focus and exposure

are locked. The shutter speed and aperture value are displayed.

If the AF target mark blinks in red, the focus is not adjusted

properly. Try locking the focus again.

c. Shoot

a. Press the ubutton.

b. While looking through the

viewfinder, rotate the diopter

adjustment dial little by little.

When you can see the icons in the

viewfinder clearly, adjustment is

complete.

AUTO

ORM

Horizontal grip Vertical grip

Shutter button

AF target mark

1/400

F3.5

AUTO

(Pressed

Halfway)

Shutter button

The card access lamp blinks.

(Pressed

Completely)

Adjusting the viewfinder’s focus using the diopter

Diopter adjustment dial

ubutton

Viewfinder

10 EN

Quick Start Guide

View pictures

a. Set the mode dial to q.

a. Press the 4&button and the 3#button to display

the picture you want to erase.

b. Press the f/Sbutton.

c. Press the 1zbutton to select [YES], and press

the obutton to erase the picture.

Arrow pad

Next Picture

Prev. Picture

Mode Dial

2008.08.26

12:30

100-0001

ORM

Erase pictures

ERASE

N O

YES

SET

CANCEL

f/Sbutton

3#button

4&button

1zbutton

obutton

ERASE

YES

SET

CANCEL
