Olympus TG-1 Manuel utilisateur

DIGITAL CAMERA

Instruction Manual

TG-1

●Thank you for purchasing an Olympus digital camera. Before you start to use your new camera, please read these

instructions carefully to enjoy optimum performance and a longer service life. Keep this manual in a safe place for

future reference.

●We recommend that you take test shots to get accustomed to your camera before taking important photographs.

●The screen and camera illustrations shown in this manual may differ from the actual product.

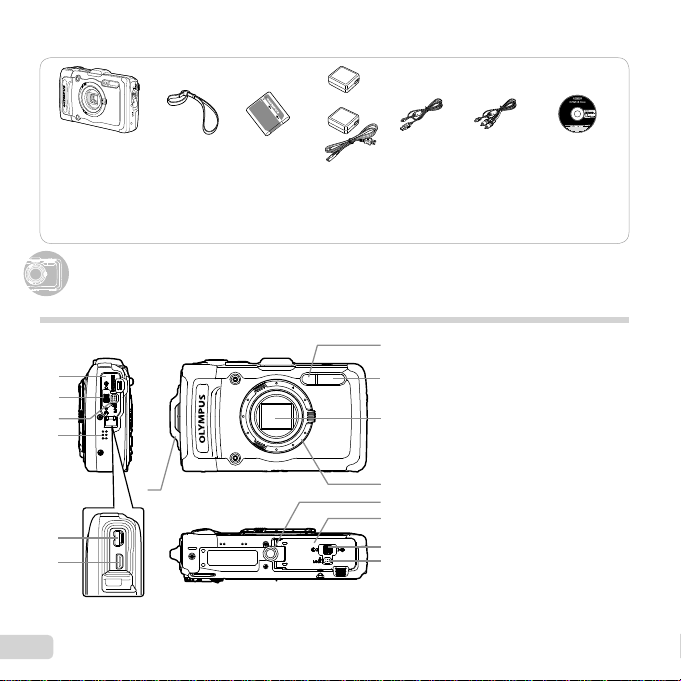

Checking the contents of the box

Digital camera Strap Lithium Ion

Battery

(LI-90B)

USB-AC

adapter

(F-2AC)

USB cable

(CB-USB8) AV cable

(CB-AVC3) OLYMPUS Setup

CD-ROM

Names of Parts

Camera unit

1Connector cover

Connector cover lock

LOCK knob

Speaker

5Multi-connector

6HDMI micro connector

7Strap eyelet

8Self-timer lamp/LED Illuminator/

AF illuminator

9Flash

10Lens

Lens ring

Tripod socket

13Battery/card compartment cover

Battery/card compartment lock

Other accessories not shown: Warranty card

Contents may vary depending on purchase location.

1Stereo microphone

2Monitor

3 Shutter button

4Indicator lamp

5 nbutton

6 Zoom buttons

7Rbutton (shooting movies)

8 Mode dial

9 qbutton (switching between

shooting and playback)

10Arrow pad

INFO (changing information display)

(erase)

11 Abutton (OK)

button

Attaching the camera strap

123

Pull the strap tight so that it does not come loose.

Monitor

Shooting mode display

F3.3F3.31/1001/100

0.00.0

AUTO

ISO

AUTO

ISO

ORM

0:340:34

Date

GPS

877hPa877hPa 1200m1200m

172021

22 19 1218 1516 14

3132

Shooting mode.......p. 17, 24

Landmark .....................p. 43

Flash.............................p. 20

Flash standby/Flash charge

....................................p. 59

Macro/super macro/

S-Macro LED..............p. 29

Self-timer......................p. 29

Exposure compensation

....................................p. 30

White balance...............p. 30

ISO...............................p. 31

Drive.............................p. 31

Image size (still images)

..............................p. 32, 66

Recording with sound

(movies)/

Wind noise reduction/

Recording Volume ......p. 40

Image size (movies)

..............................p. 40, 67

Recording length(movies)

....................................p. 18

Movie recording icon....p. 18

GPS icon......................p. 16

: Searching GPS signal

: Receiving GPS signal

Direction information

Metering .......................p. 37

Conversion Lens ....p. 38, 68

Date stamp...................p. 39

Compression (still images)

..............................p. 36, 66

Number of storable still

pictures (still images)

....................................p. 17

Current memory ...........p. 65

Battery check..........p. 13, 60

Histogram.....................p. 20

Atmospheric/

Hydraulic pressure......p. 16

Altitude/Water depth.....p. 16

Image stabilization

(still images)................p. 37

World time ....................p. 51

AF target mark..............p. 18

Aperture value..............p. 18

Shutter speed...............p. 18

Camera shake warning

Playback mode display

●Standard display 1Battery check..........p. 13, 60

23D image......................p. 35

3Eye-Fi transferred.........p. 45

4Protect..........................p. 44

5Adding sound ...............p. 42

6Upload order.................p. 44

7Print reservation/number of

prints..................p. 57/p. 56

8Landmark .....................p. 43

9Current memory ...........p. 65

10Frame number/total number

of images (still images)

....................................p. 21

Elapsed time/total shooting

time (movies)..............p. 22

Direction information

Shutter speed...............p. 18

Shooting mode.......p. 17, 24

Atmospheric/

Hydraulic pressure......p. 16

ISO...............................p. 31

Aperture value..............p. 18

Altitude/Water depth.....p. 16

12:30’12/02/26’12/02/26 12:30 0:12/0:340:12/0:34

1010

4/304/30

3D3D

11092 1

34 75 6

Still image Movie

●Advanced display

4/304/30

’12/02/26 12:30

10103D3D

2.02.01/10001/1000

100-0004

AUTO

100

ISO

100

ISO

ORM

MAGICMAGIC

F3.3F3.3

1200m

877hpa877hpa 1200m

’12/02/26 12:30

2.02.01/10001/1000

100-0004

AUTO

100

ISO

100

ISO

ORM

MAGICMAGIC

F3.3F3.3

1200m

877hpa877hpa 1200m

10 1191714

81312 15 16

2627

12 34 65

Histogram.....................p. 20

Exposure compensation

....................................p. 30

Shadow Adjustment

Technology..................p. 36

White balance...............p. 30

File number

Compression (still images)

..............................p. 36, 66

Date and time.........p. 15, 50

Image size

..................p. 32, 40, 66, 67

Grouped image.............p. 34

Pmode..................p. 28

Volume ...................p. 21, 46

Camera Settings

UsingtheButtons

Frequently used functions can be accessed using the buttons.

Arrow pad

H(left)

G(down) /

(erase) (p. 22, 44)

F(up) /INFO (changing information

display) (p. 20, 23)

I(right)

Abutton

Shutter button (p. 18, 59)

Zoom buttons (p. 19, 23)

Rbutton (shooting movies) (p. 18)

Mode dial (p. 17, 24)

qbutton (switching between shooting

and playback) (p. 18, 21, 46)

button (p. 9)

Operation guide

The symbols FGHI displayed for image selections

and settings indicate that the arrow pad shown on the

right is to be used.

02 26 12 30

:..

2012

XBack

Y/M/D

YMDTime

Operation guides displayed on the screen indicate that the

button, Abutton, or zoom buttons can be used.

4/30

Camera Menu 1

Image Stabilizer

ResetReset

Compression

AF Mode

Digital Zoom

Normal

Face/iESP

Off

Back

Shadow Adjust Auto

ESP/ ESP

4/30

Erase/Cancel

Operation guide

Operatingthecamerabytappingthe

body

You can operate the camera by tapping the body when

[Tap Control] (p. 52) is [On].

UsingtheMenu

Use the menu to change camera settings.

There may be menus that are unavailable depending on other related settings or the shooting mode (p. 24).

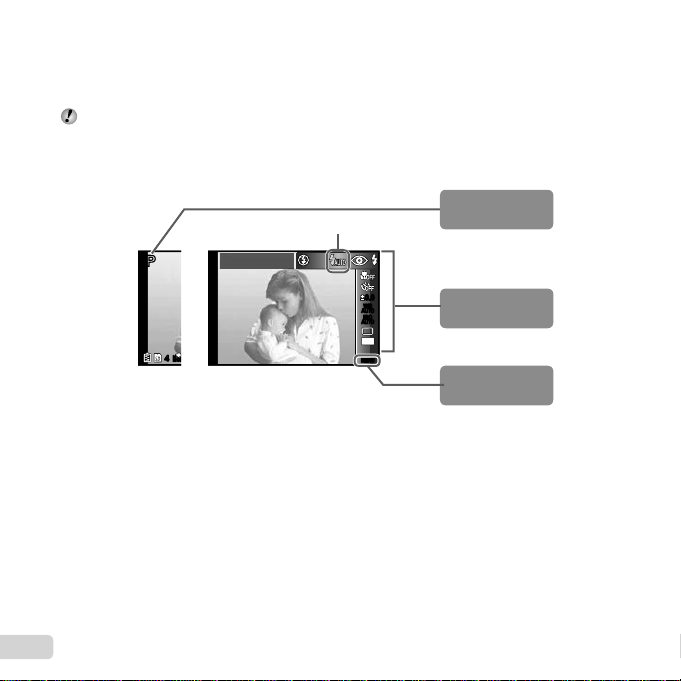

Function menu

Press Hduring shooting to display the function menu. The function menu provides access to frequently used

shooting settings.

0.00.0

AUTO

ISO

AUTO

ISO

MENUMENU

Program Auto

To select the function menu

Use FG to select a menu and use HI to select a menu option. Press the Abutton

to set the function menu.

Shooting

Selected option

Setup menu

Function menu

Shooting mode

1Press the button.

●The setup menu is displayed.

Camera Menu 1

Image Stabilizer

ResetReset

Compression

AF Mode

Digital Zoom

Normal

Face/iESP

Off

Back

Shadow Adjust Auto

ESP/ ESP

2Press Hto select the page tabs. Use FG

to select the desired page tab and press I.

Pixel Mapping

Info Off

Power SavePower Save Off

10sec

TV Out

English

File Name Reset

Settings Menu 2 Back

Page tab

File Name Reset

Pixel Mapping

Info Off

Power SavePower Save Off

10sec

TV Out

English

Settings Menu 2 Back

Submenu 1

3Use FG to select the desired submenu 1

and then press the Abutton.

Power SavePower Save Off

Pixel Mapping

Info Off 10sec

TV Out

English

File Name Reset

Settings Menu 2 Back

Power SavePower Save

Pixel Mapping

Info Off

TV Out

File Name

Settings Menu 2 Back

Off

Submenu 2

4Use FG to select the desired submenu 2

and then press the Abutton.

●Once a setting is selected, the display returns to

the Submenu 1.

There may be additional operations. “Menu

Settings” (p. 36 to 54)

Power SavePower Save On

Pixel Mapping

Info Off 10sec

TV Out

English

File Name Reset

Settings Menu 2 Back

5Press the button to complete the

setting.

Setup menu

Press the button during shooting or playback to display the setup menu. The setup menu provides access

to a variety of camera settings, including options not listed in the function menu, display options, and the time and

date.

Menu Index

1Shooting mode...........p.17, 24

P(Program Auto)

M(iAUTO)

(Low Light)

(Super Sport)

(Scene Mode)

P(Magic Filter)

C1 (Custom Mode 1)

C2 (Custom Mode 2)

2Flash.................................p.20

3Macro ...............................p.29

4Self-timer..........................p.29

5Exposure compensation...p.30

6White balance...................p.30

7ISO...................................p.31

8Drive.................................p.31

9Image Size .......................p.32

0z(Camera Menu 1)........p.36

Reset

Compression

Shadow Adjust

AF Mode

ESP/n

Digital Zoom

Image Stabilizer

az(Camera Menu 2)........p.38

Accessory Settings

AF Illuminat.

Rec View

Pic Orientation

Icon Guide

Date Stamp

Super-Res Zoom

bA(Movie Menu)..............p.37

Image Size

IS Movie Mode

R(Movie sound recording)

Wind Noise Reduction

Recording Volume

cq(Playback Menu) ........p.41

Slideshow

Photo Surﬁng

Edit

Erase

Print Order

R(Protect)

Upload Order

dd(Settings Menu 1).......p.45

Memory Format/Format

Backup

Eye-Fi

Custom Mode Setup

USB Connection

qPower On

Sound Settings

ed(Settings Menu 2)......p.47

File Name

Pixel Mapping

s(Monitor)

Info Off

TV Out

Power Save

l(Language)

fd(Settings Menu 3)......p.51

X(Date/time)

World Time

Reset Database

Beauty Settings

Tough Settings

GPS Settings

0.00.0

AUTO

ISO

AUTO

ISO

MENUMENU

Program Auto

Camera Menu 1

Image Stabilizer

ResetReset

Compression

AF Mode

Digital Zoom

Normal

Face/iESP

Off

Back

Shadow Adjust Auto

ESP/ ESP

Autres manuels pour TG-1

Table des matières

Autres manuels Olympus Appareil photo numérique

Olympus

Olympus E-10 RS Guide d'installation

Olympus

Olympus 226750 - Stylus Tough 8000 Digital Camera Manuel utilisateur

Olympus

Olympus E-P5 Manuel utilisateur

Olympus

Olympus Stylus 730 Guide de démarrage rapide

Olympus

Olympus 225690 - Stylus 600 6MP Digital Camera Guide de configuration

Olympus

Olympus SP 310 - Digital Camera - 7.1 Megapixel Guide d'installation

Olympus

Olympus CAMEDIA C-765 Ultra Zoom Guide d'installation

Olympus

Olympus STYLUS TOUGH-8000 Guide d'installation

Olympus

Olympus E-M10 Mark II Manuel utilisateur

Olympus

Olympus VG-110 Guide de configuration

Olympus

Olympus 227670 Manuel utilisateur

Olympus

Olympus FE 115 - Digital Camera - 5.0 Megapixel Guide de configuration

Olympus

Olympus CAMEDIA C-770 Ultra Zoom Manuel utilisateur

Olympus

Olympus Camedia C-21 Manuel utilisateur

Olympus

Olympus 226250 - Stylus 840 8.0MP Digital Camera Manuel utilisateur

Olympus

Olympus FE 115 - Digital Camera - 5.0 Megapixel Manuel utilisateur

Olympus

Olympus Stylus 500 Manuel utilisateur

Olympus

Olympus C-50 - Camedia 5MP Digital Camera Manuel utilisateur

Olympus

Olympus T-110 Manuel utilisateur

Olympus

Olympus FE 5020 - Digital Camera - Compact Instructions de montage

Olympus

Olympus FE-150/X-735 Guide d'installation

Olympus

Olympus Stylus 830 Manuel utilisateur

Olympus

Olympus E-P3 Manuel utilisateur

Olympus

Olympus CAMEDIA C-8080 Wide Zoom Manuel utilisateur

Manuels Appareil photo numérique populaires d'autres marques

Mercury

Mercury 350K Manuel utilisateur

Pentax

Pentax Optio LS 465 Manuel utilisateur

Sanyo

Sanyo VPC-S1085 Manuel utilisateur

GE SMART A1255 Manuel utilisateur

Point Grey

Point Grey Gazelle Manuel utilisateur

Nikon

Nikon COOLPIX A Manuel utilisateur

Pentax

Pentax P-5 Manuel utilisateur

BlazeVideo

BlazeVideo A280 Manuel utilisateur

Sony

Sony MCA-20 Manuel utilisateur

Sony

Sony Alpha DSLR-A290 Manuel utilisateur

ATIK Cameras

ATIK Cameras One Manuel utilisateur

CohuHD Costar

CohuHD Costar 3930 Series Manuel utilisateur

Leica

Leica M10-R Manuel utilisateur

FujiFilm

FujiFilm FinePix A700 Manuel utilisateur

Lorex

Lorex LNZ81P25 Series Manuel utilisateur

GE J1470S Manuel utilisateur

Sony

Sony A6700 Guide de l'utilisateur

Canon

Canon EOS ELAN7 Manuel utilisateur
