Olympus CAMEDIA C-100 Guide d'installation

DIGITAL CAMERA/APPAREIL PHOTO NUMÉRIQUE

DIGITALKAMERA/CAMERA DIGITAL/ 數碼相機

C-100/D-370

BASIC MANUAL/MANUEL DE BASE

KURZANLEITUNG/MANUAL BÁSICO/ 基本手冊

ENGLISH

FRANÇAIS

DEUTSCH

ESPAÑOL

中文

■Before using your camera, read this manual carefully to ensure correct use.

■We recommend that you take test shots to get accustomed to your camera before taking important

photographs.

■These instructions are only a basic manual. For more details on the functions described here, refer to

the software CD’s reference manual on CD-ROM. The CD-ROM reference manual also includes

instructions for connecting the camera to a PC.

■Avant d’utiliser votre appareil photo, veuillez lire attentivement ce mode d’emploi, de manière à obtenir

les meilleurs résultats possibles.

■Avant d’effectuer des prises de vues importantes, nous vous conseillons par ailleurs de faire quelques

essais afin de vous familiariser avec le maniement de l’appareil photo.

■Ces instructions ne sont qu’un manuel de base. Pour plus de détails sur les fonctions décrites ici, se

référer aux manuel de référence du CD logiciel sur le CD-ROM. Le manuel de référence compris dans

le CD-ROM comprend aussi des instructions pour la connexion à un ordinateur.

■Bitte lesen Sie vor dem Gebrauch dieser Kamera sorgfältig diese Bedienungsanleitung, um optimale

Ergebnisse beim Fotografieren zu erzielen.

■Wir empfehlen, vor wichtigen Aufnahmen Probeaufnahmen durchzuführen, um sich mit der

Bedienung und den Funktionen der Kamera vertraut zu machen.

■Die vorliegende Broschüre stellt nur eine einfache Anleitung dar. Falls Sie ausführlichere Angaben zu

den hier beschriebenen Funktionen benötigen, steht Ihnen die KURZANLEITUNG auf der CD-ROM

zur Verfügung. Das CD-ROM Nachschlage-Handbuch enthält auch Anweisungen für den Anschluss

der Kamera an einen PC.

■Antes de usar su cámara lea este manual detalladamente para asegurar el uso correcto.

■Nosotros le recomendamos que tome fotografías de prueba para familiarizarse con su cámara antes

de tomar fotografías importantes.

■Estas instrucciones constituyen sólo un manual básico. Para más detalles de las funciones descritas

aquí, refiérase a las manual de consultas del software CD en el CD-ROM. En el manual de consulta

de CD-ROM también se incluyen las instrucciones para conectar la cámara a un PC.

■在使用本相機之前，請仔細閱讀本手冊以掌握正確之用法。

■在進行重要的拍攝之前，最好先試拍數次以熟悉本相機之性能。

■本手冊僅為基本手冊。本手冊中所提到的功能之詳細說明，請參閱 CD-ROM 上的軟體 CD 參考手冊。CD-ROM

參考手冊中也包括相機與個人電腦連接的說明。

BasicC100HYO1-E˜Ct.65J 5/22/01, 4:39 PM1

Downloaded From camera-usermanual.com

2En

■ Introduction

About this manual

●The information contained in this manual may be subject to change without

notice. For the latest information on the product names, model numbers,

etc., plaese contact Olympus representative.

●The information contained in this manual has been compiled by taking all

possible measures to ensure its accuracy. However, if you find any errors

or incomplete information, please contact Olympus representative.

●It is prohibited by copyright laws to duplicate in part or in whole the

information contained in this manual, except for personal use. Reproduction

without permission of the copyright owner is prohibited.

●Olympus will not assume any liability for damages, loss of profit or claim

from a third party due to improper use of this product.

●Olympus will not assume any liability for damages and loss of profit due to

loss of image data resulting from servicing by a third party who is not

designated by Olympus or from other causes.

●The quality of the images shot with this product differs from that of the

images shot with ordinary film-based cameras.

Radio and Television Interference

Change or modifications not expressly approved by the manufacturer may

void the user’s authority to operate this equipment. This equipment has been

tested and found to comply with the limits for a Class B digital device, pursuant

to Part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installation. This

equipment generates, uses, and can radiate radio frequency energy and, if

not installed and used in accordance with the instructions, may cause harmful

interference to radio communications.

However, there is no guarantee that interference will not occur in a particular

installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off

and on, the user is encouraged to try to correct the interference by one or

more of the following measures:

• Adjust or relocate the receiving antenna.

• Increase the distance between the camera and receiver.

• Connect the equipment to an outlet on a circuit different from that to which

the receiver is connected.

Only the included USB cable should be used to connect the camera to a

personal computer (PC).

Basic01C-100hajimeni,E.65J 4/24/01, 3:36 PMPage 2 AdobePageMaker6.5J/PPC

Downloaded From camera-usermanual.com

3En

Declaration of conformity

Model Number: C-100/D-370

Trade Name: OLYMPUS

Responsible Party: Olympus America Inc.

Address: 2 Corporate Center Drive, Melville, New York

11747-3157 USA

Telephone Number: 631-844-5000

This device complies with Part 15 of the FCC rules. Operation is subject

to the following two conditions:

(1) This device may not cause harmful interference, and

(2) This device must accept any interference received, including

interference that may cause undesired operation.

This Class B digital apparatus meets all requirements of the Canadian

Interference-Causing Equipment Regulations

“CE”mark indicates that this product complies with the European

requirements for safety, health, environment and customer

protection.

Trademarks

●Microsoft products, such as Windows and Internet Explorer, are registered

trademarks or trademarks of Microsoft Corporation in the United States of

America and in other countries.

●Macintosh and Apple are registered trademarks of Apple Computers, Inc.

●Other brand names and product names mentioned in this manual are

trademarks or registered trademarks of their respective owners.

About the camera file system

The DCF (Design rule for Camera File system) is a standard established by

JEITA (Japan Electronics and Information Technology Association).

Basic01C-100hajimeni,E.65J 4/24/01, 3:36 PMPage 3 AdobePageMaker6.5J/PPC

Downloaded From camera-usermanual.com

4En

■CONTENTS

PREPARATIONS 5

Names of parts ................................ 5

Attaching the strap ........................... 6

Loading the batteries ....................... 6

Using a smartmedia card (optional) ....

Turning the camera on/off ................ 8

Adjusting the date and time ............. 9

TAKING PICTURES 11

Taking pictures ............................... 11

Using the flash ............................... 12

Macro mode ................................... 13

Selftimer ......................................... 13

Digital Tele mode ............................ 14

Sequence mode ............................. 14

Exposure compensation ................ 15

White balance ................................ 16

Image quality .................................. 17

Spot metering mode ...................... 18

PLAYING BACK PICTURES 19

Playing back an image ................... 19

Index playback ............................... 19

Auto playback ................................. 20

Close-up playback .......................... 20

Erasing an image ........................... 21

Erasing all images .......................... 22

Protecting important images .......... 22

OTHER FUNCTIONS 24

Recording a moving image ............ 24

Playing back moving images .......... 24

Rec view ........................................ 25

Beep sound .................................... 25

Adjusting the monitor brightness .... 25

Card format/memory setup ............ 26

Memory back-up ............................ 27

Displaying image information ......... 27

ERROR MESSAGES 29

Error codes .................................... 29

Specifications 30

Basic01C-100hajimeni,E.65J 4/24/01, 3:36 PMPage 4 AdobePageMaker6.5J/PPC

Downloaded From camera-usermanual.com

5En

REPARATIONS

8 0 ABC

■NAMES OF PARTS

1Shutter button

2Lens barrier

3Lens

4Flash

5Macro lever

6Selftimer lamp

7DC-IN jack

8Connector cover

9USB connector

0Monitor

AViewfinder

BGreen lamp

CArrow pad

DTripod socket

E(Monitor) button

F(OK/Menu) button

GCard cover

HStrap eyelet

IBattery compartment cover

Basic02C-100junbi,E.65J 4/24/01, 3:41 PMPage 5 AdobePageMaker6.5J/PPC

Downloaded From camera-usermanual.com

6En

■ATTACHING THE STRAP

1Pass the short end of the strap through the

strap eyelet.

Pass the long end of the strap through the loop.

3Pull tight and check that the strap is securely

attached.

■LOADING THE BATTERIES

This camera uses four AA alkaline (included), NiMH, lithium or NiCD batteries,

or two CR-V3 lithium battery packs.

1Check that the lens barrier is closed and both the monitor and the

green lamp are off.

2Pull the battery compartment cover

toward Aand pull up in the direction

of B.

3Insert the batteries as shown, making

sure that they are correctly oriented.

4Pull down the battery compartment

cover in the direction of Cand close

firmly by pressing the mark

in the direction of D.

Caution

• If the battery compartment cover is difficult to close, press on the

mark and [OPEN] mark on the cover with your both thumbs without applying

unreasonable force.

• If the camera is left without batteries for about one hour, all the settings will be

reset to the default settings.

• When powering the camera by batteries, if the batteries start to run low, the

red battery status will be displayed.When the batteries are close to exhaustion,

the LCD monitor turns off and the green lamp blinks.

Basic02C-100junbi,E.65J 4/24/01, 3:41 PMPage 6 AdobePageMaker6.5J/PPC

Downloaded From camera-usermanual.com

7En

Card

insertion mark

➜➜➜

■

USING A SMARTMEDIA CARD (OPTIONAL)

A SmartMedia card should be used if you need to store more pictures

than the internal memory can hold. (Please see the chart on the following

page.) SmartMedia is not included with this camera, it must be purchased

separately.

This camera accepts only SmartMedia removable memory. If you insert

a SmartMedia card, the image will be stored on the card and you can

playback the image with the card. If you remove the card from the camera,

the image will be stored on the internal memory and you can playback

the image with the internal memory.

1Make sure that the camera is turned off.

Close the lens barrier and check that both the monitor and the green

lamp are off.

2Open the card cover.

3Insert the SmartMedia card correctly as shown.

There is a mark showing the correct orientation of the card on the inside

of the card cover.

To remove the card, grasp it with your fingertips and pull it out in the

direction shown.

4Close the card cover until it clicks.

Note

Non-Olympus or non-Lexar cards, or cards formatted on other equipment, such

as a PC, may not be recognized by the camera. Format the card with the camera

before using it. See “Card format/Memory setup” ( p.26).

Caution

•Never open the card cover or remove the SmartMedia card or batteries when

the camera is turned on. The data on the card may be lost, and once lost, it

cannot be restored.

•

The SmartMedia card is a precision instrument. Do not subject it to unreasonable

force or impact. Do not touch the gold-colored metal area of the card.

1/Basic02C100-E.65J 5/24/01, 4:44 PMPage 7 AdobePageMaker6.5J/PPC

Downloaded From camera-usermanual.com

8En

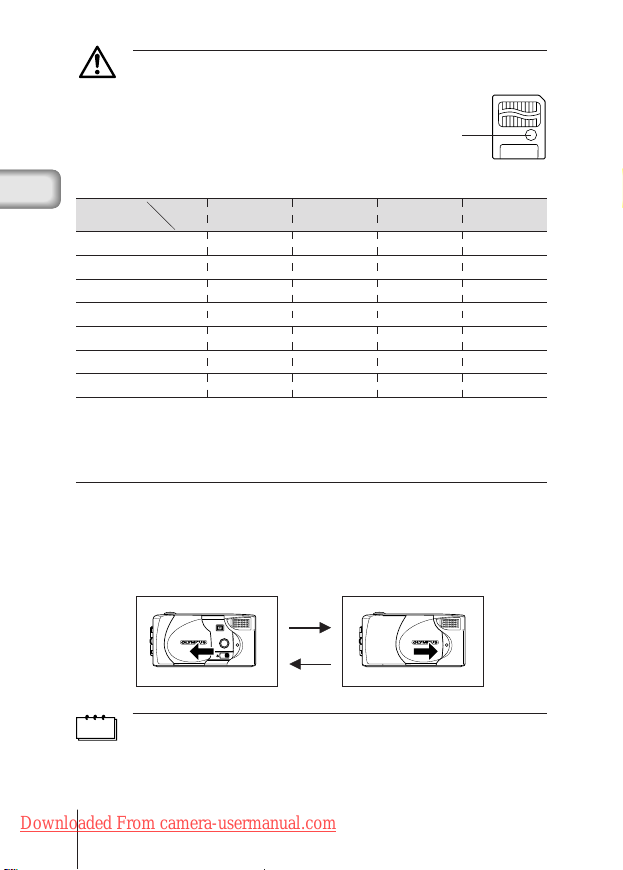

■TURNING THE CAMERA ON/OFF

WHEN TAKING PICTURES

Turning the camera on .... Open the lens barrier.

The camera will turn on in Record mode.

Turning the camera off ... Close the lens barrier.

The camera will turn off.

Note

•When the lens barrier is opened with no card inserted, “NO CARD”will be

displayed on the monitor. This is not a malfunction. Use the internal memory

of the camera to take pictures.

•The camera’s mode will change to power save mode if you do not carry out

any operation for 3 minutes. To take pictures, turn the camera on.

Camera turns on Camera turns off

Approx. number of recordable images

SHQ HQ SQ1 SQ2

Internal memory Approx. 1 3 4 7

4 MB 6 12 16 29

8 MB 12 24 33 58

16 MB 25 49 66 110

32 MB 51 99 132 221

64 MB 102 199 265 442

128 MB 204 399 532 887

Card memory

capacity


quality

Write-protect seal

Caution

•Some of the camera function are ignored if a write-protect seal is affixed to

the SmartMedia card. When you use these functions, remove the seal from

the card.

Basic02C-100junbi,E.65J 4/24/01, 3:41 PMPage 8 AdobePageMaker6.5J/PPC

Downloaded From camera-usermanual.com

9En

■ADJUSTING THE DATE AND TIME

1Press the button.

The monitor will turn on.

2Press the button.

The menu will be displayed.

3Select [SETUP] using the / buttons and

press the button.

4Select [ ] using the / buttons and

press the button.

5Select the date format [Y-M-D (Year-Month-

Day), M-D-Y (Month-Day-Year) or D-M-Y (Day-

Month-Year)] using the / buttons, and

press the button.

The date adjustment screen will be displayed.

Monitor turns on Monitor turns off

Camera with

the lens barrier

closed

lights up goes off

WHEN PLAYING BACK PICTURES

Turning the monitor on ... Press the button with the lens barrier

closed.

The camera will turn on in Play mode and the

monitor will turn on.

Turning the monitor off ... Press the button.

The camera and the monitor will turn off.

Note

The camera’s mode will change to power save mode if you do not carry out any

operation for 3 minutes. To play back pictures, turn the camera on.

Basic02C-100junbi,E.65J 4/24/01, 3:41 PMPage 9 AdobePageMaker6.5J/PPC

Downloaded From camera-usermanual.com

10 En

6Set the first item using the / buttons

and press the button.

Move to the next item.

7Repeat until the date and time settings are

adjusted.

8Press the button when the time reaches

00 seconds.

Setting of the date and time is completed.

9Press the button again.

The date and time adjustment menu will be

completed.

10 Press the button to turn the monitor off.

Caution

The date and time settings will be erased or become incorrect if the camera is

left without batteries or the batteries are exhausted. Make sure that the date and

time settings are correct before taking an important picture.

Note

The date and time can be adjusted both in Record mode and Play mode using

the same procedure.

Basic02C-100junbi,E.65J 4/24/01, 3:42 PMPage 10 AdobePageMaker6.5J/PPC

Downloaded From camera-usermanual.com

Autres manuels pour CAMEDIA C-100

Ce manuel convient aux modèles suivants

Table des matières

Langues :

Autres manuels Olympus Appareil photo numérique

Olympus

Olympus FE 230 - Digital Camera - Compact Manuel utilisateur

Olympus

Olympus C 725 - CAMEDIA Ultra Zoom Digital Camera Manuel utilisateur

Olympus

Olympus 226275 - Stylus 1010 10MP Digital Camera Guide de configuration

Olympus

Olympus Camedia C-5050Zoom Guide d'installation

Olympus

Olympus Camedia D-230 Manuel utilisateur

Olympus

Olympus FE-130/X-740 Guide d'installation

Olympus

Olympus X-865 Guide d'installation

Olympus

Olympus E420 - Evolt 10MP Digital SLR Camera Guide de configuration

Olympus

Olympus STYLUS-550WP Manuel utilisateur

Olympus

Olympus X-560WP - Digital Camera - Compact Manuel utilisateur

Olympus

Olympus 226065 - Stylus 820 Digital Camera Manuel utilisateur

Olympus

Olympus D-360L - 1.2MP Digital Camera Instructions de montage

Olympus

Olympus CAMEDIA D-435 Guide de configuration

Olympus

Olympus E-20 - Dual Monaural Earphones Mise à jour du firmware

Olympus

Olympus SH-60 Manuel utilisateur

Olympus

Olympus SP-310 Manuel utilisateur

Olympus

Olympus DP21-SAL Manuel utilisateur

Olympus

Olympus Stylus-7000 Guide d'installation

Olympus

Olympus OM-4 Manuel utilisateur

Olympus

Olympus SP-820UZ Manuel utilisateur

Olympus

Olympus Stylus-7000 Manuel utilisateur

Olympus

Olympus CAMEDIA D-395 Manuel utilisateur

Olympus

Olympus u[MJU:] 410 Manuel utilisateur

Olympus

Olympus E-PL1 Manuel utilisateur

Manuels Appareil photo numérique populaires d'autres marques

Mercury

Mercury 350K Manuel utilisateur

Pentax

Pentax Optio LS 465 Manuel utilisateur

Sanyo

Sanyo VPC-S1085 Manuel utilisateur

GE SMART A1255 Manuel utilisateur

Point Grey

Point Grey Gazelle Manuel utilisateur

Nikon

Nikon COOLPIX A Manuel utilisateur

Pentax

Pentax P-5 Manuel utilisateur

BlazeVideo

BlazeVideo A280 Manuel utilisateur

Sony

Sony MCA-20 Manuel utilisateur

Sony

Sony Alpha DSLR-A290 Manuel utilisateur

ATIK Cameras

ATIK Cameras One Manuel utilisateur

CohuHD Costar

CohuHD Costar 3930 Series Manuel utilisateur

Leica

Leica M10-R Manuel utilisateur

FujiFilm

FujiFilm FinePix A700 Manuel utilisateur

Lorex

Lorex LNZ81P25 Series Manuel utilisateur

GE J1470S Manuel utilisateur

Sony

Sony A6700 Guide de l'utilisateur

Canon

Canon EOS ELAN7 Manuel utilisateur
