●Thank you for purchasing an Olympus digital camera. Before you start to use your new camera, please read these

instructions carefully to enjoy optimum performance and a longer service life. Keep this manual in a safe place for

future reference.

●We recommend that you take test shots to get accustomed to your camera before taking important photographs.

●In the interest of continually improving products, Olympus reserves the right to update or modify information

contained in this manual.

Checking the contents of the box

Digital camera Strap Lithium Ion

Battery

(LI-50B)

USB-AC

adapter

(F-2AC)

USB cable

(CB-USB7) AV cable

(CB-AVC5) OLYMPUS Setup

CD-ROM

Names of Parts

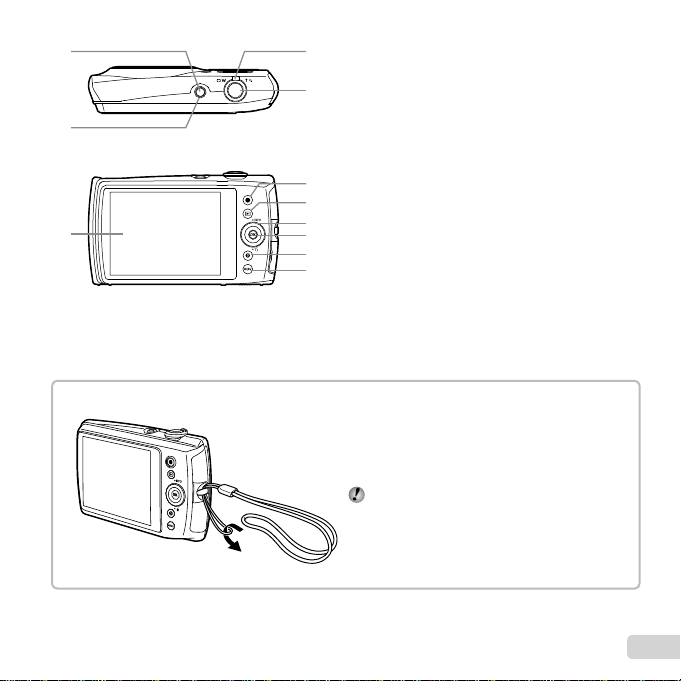

Camera unit

1Strap eyelet

2Connector cover

3Multi-connector

4HDMI micro connector

5Flash

6Self-timer lamp/AF illuminator

7Lens

8Microphone

9Battery/card compartment cover

Tripod socket

Speaker

Battery/card compartment lock

Other accessories not shown: Warranty card

Contents may vary depending on purchase location.

1 nbutton

2Indicator lamp

3Monitor

4 Zoom lever

5 Shutter button

6Rbutton (shooting movies)

7 qbutton (switching between

shooting and playback)

8 Arrow pad

INFO (changing information display)

(erase)

9 Abutton (OK)

10Ebutton (camera guide)

button

Attaching the camera strap

Pull the strap tight so that it does not come loose.

Monitor

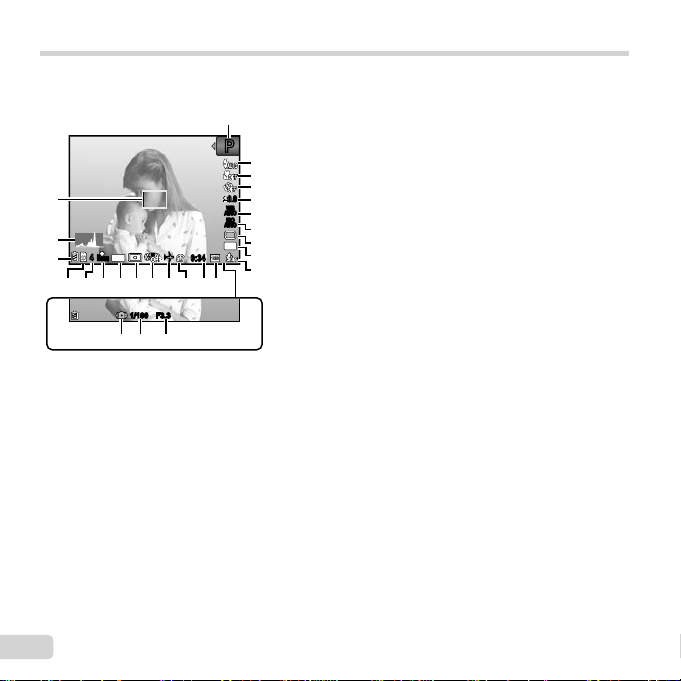

Shooting mode display

F3.3F3.31/1001/100

0.00.0

AUTO

ISO

AUTO

ISO

12M

ORM

0:340:34

Date

161819

20 17 111415 13

242526

Shooting mode.......p. 17, 24

Flash.............................p. 20

Flash standby/ﬂash charge

....................................p. 58

Macro/super macro ......p. 30

Self-timer......................p. 30

Exposure compensation

....................................p. 31

White balance...............p. 31

ISO...............................p. 32

Drive.............................p. 32

Image size (still images)

..............................p. 33, 65

Recording with sound

(movies)/wind noise

reduction.....................p. 40

Image size (movies)

..............................p. 39, 66

Continuous recording length

(movies)......................p. 18

Movie recording icon....p. 18

World time ....................p. 51

Image stabilization

(still images)................p. 38

Metering .......................p. 37

Date stamp...................p. 39

Compression (still images)

..............................p. 36, 65

Number of storable still

pictures (still images)

....................................p. 17

Current memory ...........p. 64

Battery check..........p. 13, 59

Histogram.....................p. 20

AF target mark..............p. 18

Aperture value..............p. 18

Shutter speed...............p. 18

Camera shake warning

Playback mode display

●Standard display 1Battery check..........p. 13, 59

23D image......................p. 35

3Eye-Fi transferred.........p. 45

4Protect..........................p. 44

5Adding sound ...............p. 42

6Upload order.................p. 44

7Print reservation/number of

prints..................p. 56/p. 55

8Current memory ...........p. 64

9Frame number/total number

of images (still images)

....................................p. 21

Elapsed time/total shooting

time (movies)..............p. 21

Pmode..................p. 26

Shutter speed...............p. 18

Shooting mode.......p. 17, 24

ISO...............................p. 32

Aperture value..............p. 18

Histogram.....................p. 20

Exposure compensation

....................................p. 31

Shadow Adjustment

Technology..................p. 36

White balance...............p. 31

File number

Compression (still images)

..............................p. 36, 65

Date and time.........p. 16, 51

Grouped image..............p.34

Image size

..................p. 33, 39, 65, 66

Volume ...................p. 21, 47

12:30’12/02/26’12/02/26 12:30

1010

4/304/30

3D3D

1 982

3 4 75 6

Still image Movie

0:12/0:340:12/0:34

●Advanced display

4/304/30

2.02.01/10001/1000

100-0004

AUTO

100

ISO

100

ISO

ORM

MAGICMAGIC

’12/02/26 12:30

F3.3F3.3

10103D3D

2.02.0F3.3F3.31/10001/1000

100-0004

AUTO

100

ISO

100

ISO

MAGICMAGIC

’12/02/26 12:30

ORM

98 1211 1310 14

1 2 3 4 65

Camera Settings

UsingtheButtons

Frequently used functions can be accessed using the buttons.

Zoom lever (p. 19, 22)

Shutter button (p. 18, 58)

Rbutton (shooting movies) (p. 18)

qbutton (switching between shooting

and playback) (p. 18, 21, 46)

Ebutton (camera guide) (p. 23)

button (p. 9)

Operation guide

The symbols FGHI displayed for image selections

and settings indicate that the arrow pad shown on the

right is to be used.

02 26 12 30

:..

2012

XBack

Y/M/D

YMDTime

Operation guides displayed on the screen indicate that

the button, Abutton, or zoom lever can be used.

4/30

Camera Menu 1

Image Stabilizer

ResetReset

Compression

AF Mode

Digital Zoom

Normal

Face/iESP

Off

Back

Shadow Adjust Auto

ESP/ ESP

4/30

Erase/Cancel

Operation guide

Arrow pad

H(left)

G(down) /

(erase) (p. 22)

F(up) /INFO (changing information

display) (p. 20, 23)

I(right)

Abutton

UsingtheMenu

Use the menu to change camera settings such as the shooting mode.

There may be menus that are unavailable depending on other related settings or the shooting mode (p. 24).

Function menu

Press Hduring shooting to display the function menu. The function menu is used to choose the shooting mode

and provides access to frequently used shooting settings.

0.00.0

AUTO

ISO

AUTO

ISO

MENUMENU

Program Auto

To select the shooting mode

Use HI to select the shooting mode and press the Abutton.

To select the function menu

Use FG to select a menu and use HI to select a menu option. Press the Abutton

to set the function menu.

Shooting

Selected option

Setup menu

Function menu

Shooting mode

1Press the button.

●The setup menu is displayed.

Camera Menu 1

Image Stabilizer

ResetReset

Compression

AF Mode

Digital Zoom

Normal

Face/iESP

Off

Back

Shadow Adjust Auto

ESP/ ESP

2Press Hto select the page tabs. Use FG

to select the desired page tab and press I.

Power SavePower Save Off

Pixel Mapping

TV Out

English

X’12.02.26 12:30

File Name Reset

Settings Menu 2 Back

Page tab

Power SavePower Save Off

Pixel Mapping

TV Out

English

X’12.02.26 12:30

File Name Reset

Settings Menu 2 Back

Submenu 1

3Use FG to select the desired submenu 1

and then press the Abutton.

Power SavePower Save Off

Pixel Mapping

TV Out

English

X’12.02.26 12:30

File Name Reset

Settings Menu 2 Back

Power SavePower Save

Pixel Mapping

TV Out

File Name

Settings Menu 2 Back

Off

Submenu 2

4Use FG to select the desired submenu 2

and then press the Abutton.

●Once a setting is selected, the display returns to

the Submenu 1.

There may be additional operations. “Menu

Settings” (p. 36 to 52)

Power SavePower Save On

Pixel Mapping

TV Out

English

X’12.02.26 12:30

File Name Reset

Settings Menu 2 Back

5Press the button to complete the

setting.

Setup menu

Press the button during shooting or playback to display the setup menu. The setup menu provides access

to a variety of camera settings, including options not listed in the function menu, display options, and the time and

date.

Menu Index

1Shooting mode...........p.17, 24

P(Program Auto)

M(iAUTO)

Q(Beauty)

(Scene Mode)

P(Magic Filter)

p(Panorama)

2Flash.................................p.20

3Macro ...............................p.30

4Self-timer..........................p.30

5Exposure compensation...p.31

6White balance...................p.31

7ISO...................................p.32

8Drive.................................p.32

9Image Size .......................p.33

0z(Camera Menu 1)........p.36

Reset

Compression

Shadow Adjust

AF Mode

ESP/n

Digital Zoom

Image Stabilizer

az(Camera Menu 2)........p.38

AF Illuminat.

Rec View

Icon Guide

Date Stamp

Super-Res Zoom

bA(Movie Menu)..............p.38

Image Size

IS Movie Mode

R(Movie sound recording)

Wind Noise Reduction

cq(Playback Menu) ........p.41

Slideshow

Photo Surﬁng

Edit

Erase

Print Order

R(Protect)

Upload Order

dd(Settings Menu 1).......p.45

Memory Format/Format

Backup

Eye-Fi

USB Connection

qPower On

KeepzSettings

Sound Settings

ed(Settings Menu 2)......p.47

File Name

Pixel Mapping

s(Monitor)

TV Out

Power Save

l(Language)

X(Date/time)

fd(Settings Menu 3)......p.51

World Time

Reset Database

Beauty Settings

0.00.0

AUTO

ISO

AUTO

ISO

MENUMENU

Program Auto

Camera Menu 1

Image Stabilizer

ResetReset

Compression

AF Mode

Digital Zoom

Normal

Face/iESP

Off

Back

Shadow Adjust Auto

ESP/ ESP

Autres manuels pour VH-510

Table des matières

Autres manuels Olympus Appareil photo numérique

Olympus

Olympus D 1000 Manuel utilisateur

Olympus

Olympus STYLUS 400 Digital Guide d'installation

Olympus

Olympus OM 101 Power Focus Manuel utilisateur

Olympus

Olympus SP-510UZ Guide d'installation

Olympus

Olympus FE 120 - Digital Camera - 6.0 Megapixel Manuel utilisateur

Olympus

Olympus 226125 - Stylus 830 Digital Camera Guide de configuration

Olympus

Olympus C-755 Ultra Zoom Manuel utilisateur

Olympus

Olympus IR 300 - Digital Camera - 5.0 Megapixel Manuel utilisateur

Olympus

Olympus VG-110 Guide de configuration

Olympus

Olympus E-500 - EVOLT Digital Camera Manuel utilisateur

Olympus

Olympus SP 570 - UZ Digital Camera Manuel utilisateur

Olympus

Olympus STYLUS 700 Guide d'installation

Olympus

Olympus 226065 - Stylus 820 Digital Camera Guide de configuration

Olympus

Olympus STYLUS 300 Manuel utilisateur

Olympus

Olympus FE170 - 6.0 Megapixel 3x Optical Zoom Digital... Guide de configuration

Olympus

Olympus OmniScan SX Manuel utilisateur

Olympus

Olympus SP-720UZ Manuel utilisateur

Olympus

Olympus S701 - Pearlcorder Microcassette Dictaphone Guide de configuration

Olympus

Olympus CAMEDIA C-370 ZOOM Guide d'installation

Olympus

Olympus Camedia C-150 Manuel utilisateur

Olympus

Olympus Stylus 7000 Manuel utilisateur

Olympus

Olympus FE-4000 Manuel utilisateur

Olympus

Olympus SP 100EE Manuel utilisateur

Olympus

Olympus STYLUS VERVE S Guide d'installation

Manuels Appareil photo numérique populaires d'autres marques

Mercury

Mercury 350K Manuel utilisateur

Pentax

Pentax Optio LS 465 Manuel utilisateur

Sanyo

Sanyo VPC-S1085 Manuel utilisateur

GE SMART A1255 Manuel utilisateur

Point Grey

Point Grey Gazelle Manuel utilisateur

Nikon

Nikon COOLPIX A Manuel utilisateur

Pentax

Pentax P-5 Manuel utilisateur

BlazeVideo

BlazeVideo A280 Manuel utilisateur

Sony

Sony MCA-20 Manuel utilisateur

Sony

Sony Alpha DSLR-A290 Manuel utilisateur

ATIK Cameras

ATIK Cameras One Manuel utilisateur

CohuHD Costar

CohuHD Costar 3930 Series Manuel utilisateur

Leica

Leica M10-R Manuel utilisateur

FujiFilm

FujiFilm FinePix A700 Manuel utilisateur

Lorex

Lorex LNZ81P25 Series Manuel utilisateur

GE J1470S Manuel utilisateur

Sony

Sony A6700 Guide de l'utilisateur

Canon

Canon EOS ELAN7 Manuel utilisateur
