Olympus C-5000Zoom Guide d'installation

DIGITAL CAMERA

APPAREIL PHOTO NUM

ÉRIQUE

DIGITALKAMERA

CÁMARA DIGITAL

C-5000Zoom

BASIC MANUAL

MANUEL DE BASE

EINFACHE ANLEITUNG

MANUAL BÁSICO

ENGLISH

FRANÇAIS

DEUTSCH

ESPAÑOL

basic_e_x193_6.fm Page 1 Wednesday, July 9, 2003 12:50 PM

2En

CONTENTS/TABLE DES MATIÈRES/INHALT/CONTENIDO

ENGLISH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

FRANÇAIS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

DEUTSCH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86

ESPAÑOL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 128

CONTENTS

GETTING STARTED . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

MENU FUNCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

SHOOTING BASICS . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

ADVANCED SHOOTING . . . . . . . . . . . . . . . . . . . . . . . . 33

PLAYBACK . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

PRINT SETTINGS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

DOWNLOADING PICTURES TO A COMPUTER . . . . . 41

ERROR CODES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

These instructions are only for quick reference. For more details

on the functions described here, refer to the “Reference Manual”

on CD-ROM.

basic_e_x193_6.fm Page 2 Wednesday, July 9, 2003 12:50 PM

En 3

JBefore using your camera, read this manual carefully to ensure correct use.

JWe recommend that you take test shots to get accustomed to your camera before

taking important photographs.

JThese instructions are only a basic manual. For more details on the functions described

here, refer to the Reference Manual on the CD-ROM. For connection to the PC or

installation of provided software, refer to the Software Installation Guide included in the

CD-ROM package.

For customers in North and South America

For customers in USA

Declaration of Conformity

Model Number : C-5000Zoom

RM-2 (Remote control)

Trade Name : OLYMPUS

Responsible Party : Olympus America Inc.

Address : 2 Corporate Center Drive, Melville, New York

11747-3157 U.S.A.

Telephone Number : 1-631-844-5000

Tested To Comply With FCC Standards

FOR HOME OR OFFICE USE

This device complies with Part 15 of the FCC rules. Operation is subject to

the following two conditions:

(1) This device may not cause harmful interference.

(2) This device must accept any interference received, including interference

that may cause undesired operation.

For customers in Canada

This Class B digital apparatus meets all requirements of the Canadian

Interference-Causing Equipment Regulations.

For customers in Europe

Trademarks

• IBM is a registered trademark of International Business Machines Corporation.

• Microsoft and Windows are registered trademarks of Microsoft Corporation.

• Macintosh is a trademark of Apple Computer Inc.

• All other company and product names are registered trademarks and/or

trademarks of their respective owners.

• The standards for camera file systems referred to in this manual are the “Design

Rule for Camera File System/DCF” standards stipulated by the Japan Electronics

and Information Technology Industries Association (JEITA).

“CE” mark indicates that this product complies with the European

requirements for safety, health, environment and customer

protection. “CE” mark cameras are intended for sales in Europe.

basic_e_x193_6.fm Page 3 Wednesday, July 9, 2003 12:50 PM

4En

GETTING STARTED

JNAMES OF PARTS

Strap eyelet

Remote control receiver

Hot shoe

DC-IN jack

Flash

Connector cover

Mode dial

Shutter button

Zoom lever (W/T•GU)

Lens

Self-timer/Remote control lamp

VIDEO OUT jack

USB connector

basic_e_x193_6.fm Page 4 Wednesday, July 9, 2003 12:50 PM

En 5

Viewfinder

AEL/Custom button (x)

Power switch

Monitor button (f)

Card access lamp

Arrow pad (acbd)

OK/Menu button (e)

Monitor

Flash mode button (#)

Macro/Spot button (()

Protect button (0)

Rotation button (y)

Battery/Card cover

Tripod socket

Erase button (S)

QUICK VIEW

AF target mark

Green lamp

Orange lamp

basic_e_x193_6.fm Page 5 Wednesday, July 9, 2003 12:50 PM

6En

VIEWFINDER AND MONITOR INDICATIONS

Shooting mode

Still picture Movie

Item Indications

Shooting modes P, A, S, M, N, o, m, L, K, J, I, r

Shutter speed 16 – 1/1000

Aperture value F2.8 – F8.0

Exposure compensation

Exposure differential

-2.0 – +2.0

-3.0 – +3.0

Battery check e, f

Green lamp 

Flash stand-by

Camera movement

warning/Flash charge

#(Lights)

#(Blinks)

Macro mode

Super macro mode

Manual focus

Noise reduction O

Flash mode !, #, $, #SLOW1, HSLOW,

#SLOW2

Flash intensity control w-2.0 – +2.0

Drive o, j, k, BKT

basic_e_x193_6.fm Page 6 Wednesday, July 9, 2003 12:50 PM

En 7

Self-timer

Remote control

Record mode TIFF, SHQ, HQ, SQ1, SQ2

Resolution

2560 × 1920, 2272 × 1704,

1280 × 960,640 × 480, 320 × 240 etc.

AF target mark [ ]

Number of storable still

pictures

Seconds remaining

36"

AE lock

AE memory

Spot metering n

ISO ISO 80, ISO 160, ISO 320

White Balance 5, 3, 1, w, x, y, V

White balance

compensation

B1 – B7, R1 – R7

Saturation 6-2 – +2

Sharpness N-2 – +2

Contrast J-2 – +2

Memory gauge a, b, c, d

Item Indications

basic_e_x193_6.fm Page 7 Wednesday, July 9, 2003 12:50 PM

8En

Playback mode

Still picture Movie

Item Indications

Battery check e, f

Print reservation,

Number of prints

Movie

<× 10

Protect 9

Record mode TIFF, SHQ, HQ, SQ1, SQ2

Resolution

2560 × 1920, 2272 × 1704,

1280 × 960,640 × 480, 320 × 240 etc.

Aperture value F2.8 – F8.0

Shutter speed 16 – 1/1000

Exposure compensation -2.0 – +2.0

White Balance WB AUTO, 5, 3, 1, w, V

ISO ISO 80, ISO 160, ISO 320

Date and time '03.12.17 15:30

File number, Frame

number

Playing time/

total recording time

FILE : 100 – 0030, 30

0"/20"

basic_e_x193_6.fm Page 8 Wednesday, July 9, 2003 12:50 PM

En 9

Memory gauge

The memory gauge lights up when you take a still

picture. While the gauge is lit, the camera is

storing the picture on the card. The memory

gauge indication changes as shown below

depending on the shooting status.

When recording movies

Battery check

If the remaining battery power is low, the battery check indication changes as

follows when the camera is turned on or while the camera is in use.

Battery check indication

Memory gauge

Before

shooting

(Gauge is off)

No more pictures

can be taken

(Fully lit)

Wait until the gauge

returns to the status

on the left to take the

next shot.

One picture

taken

(Lit)

More than

two taken

(Lit)

Shoot Shoot Shoot

Wait

abcd

Before

shooting

(Gauge is off)

Shoot

Wait

If you continue shooting

During shooting (Lit)

• Shooting is not possible until the lit area goes off completely.

• Movie recording ends automatically when the whole memory gauge is lit.

Green and orange lamp

on right of viewfinder blink

Remaining power level:

exhausted

Charge the battery.

Lights (green)

(Goes off after a while)

Remaining power level:

high

Lights (red)

Remaining power level: low

Recharge as soon as possible

especially for extended use.

No indication

basic_e_x193_6.fm Page 9 Wednesday, July 9, 2003 12:50 PM

10 En

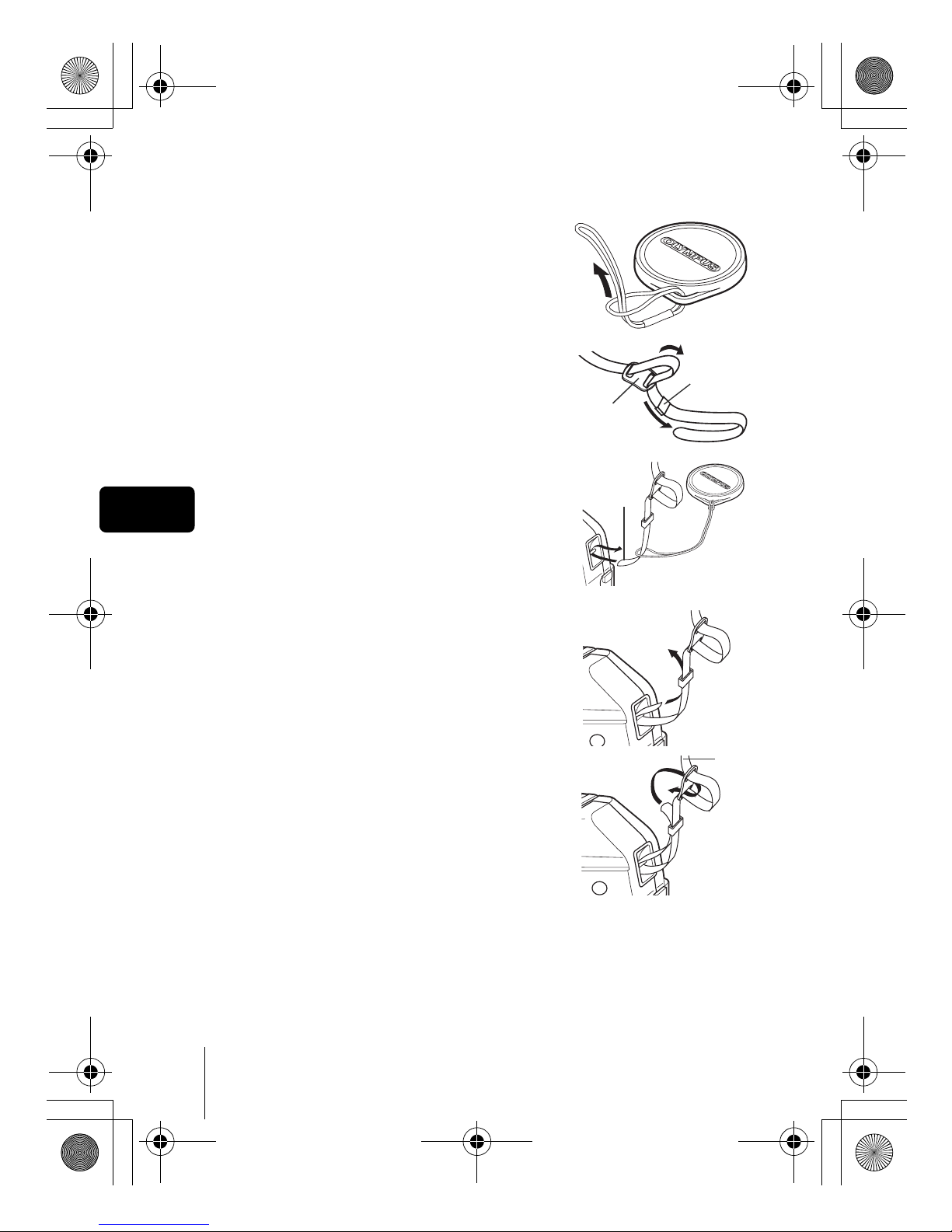

JATTACHING THE STRAP AND LENS CAP

1Pass the lens cap string through the

hole in the lens cap.

2Pull the ends of the strap out of the

stopper and ring.

3Thread one end of the strap A

through the string loop (attached to

the lens cap in step 1). Then thread

it through the strap eyelet on the

camera.

4Thread the end of the strap B

through the ring as indicated by the

arrows. Adjust the strap to the

desired length.

5Then thread the end of the strap

back through the stopper Cas

indicated by the arrows. Pull the

strap at Dto make sure it is

fastened securely.

6Attach the strap to the other eyelet

following steps 3 to 5.

Stopper

Ring

basic_e_x193_6.fm Page 10 Wednesday, July 9, 2003 12:50 PM
