Quick Start Guide CKW-55 Indicator

Ohaus Corporation www.ohaus.com iCKW-55 Indicator Quick Start Guide

CAUTION: Disconnect power before opening indicator.

ASSEMBLY

The Indicator housing has liquid-tight cable

connectors for load cell, communication (I/O),

and AC power, as shown.

To open the housing, remove two screws on

either side, and gently fold the front panel away

from the rear panel.

Pass the load cell cable through the liquid-tight

connector and the large ferrite bead attached to

a plastic clip. Remove the screws holding the

switch cover plate. Connect the load cell cable

and wires as indicated on the diagram below.

Adjust Jumpers to match the load cell:

For a 2 mv/v load cell: short W1.

For a 3 mv/v load cell: open W1.

For a 4-wire load cell with no sense wires:

short both W2 and W3. For a 6-wire load cell

with sense wires, open W2 and W3.

For a load cell with an extra ground shield

wire, connect the shield wire to “GND” on J2.

Mount the Indicator on its Wall/Table Bracket

Mount to a vertical or horizontal solid surface.

(Hardware not supplied.) Adjust angle, then tighten knobs.

Safety precautions:

•Be sure local power supply matches input

voltage printed on Indicator label.

•Be sure the power cord does not pose an

obstacle or tripping hazard.

•Disconnect the product when cleaning.

•Do not operate this product in hazardous or

unstable environments.

•Use only approved accessories and

peripherals.

•Operate the product only under ambient

conditions specified in the Instruction

Manual.

•Service should be performed by

authorized personnel only.

CKW-55 Indicator Quick Start Guide

CKW-55 Indicator Quick Start Guide ii Ohaus Corporation www.ohaus.com

CONTROLS

Primary Function

Short Press

Secondary Function

Long Press

Navigation Function

Menu Mode

ON/ZERO

Turns indicator on.

If indicator is on, sets zero.

Off

Turns indicator off.

Yes

Enters current menu

(shown on display)

Accepts current setting

Sends displayed value

to the serial interface

Units

Changes weighing unit

Advances to next menu.

Rejects displayed setting,

advances to next setting.

G/N/T

Displays gross, net, tare

values

Enters menu mode

Back

Moves back through menus.

Backs out of menu setting.

TARE

Performs tare operation.

Saves pre-set tare after

numeric entry.

Exit

Exits present mode,

returns to weighing mode.

LIBRARY

Initiates library sequence:

view/entry/edit.

Save

Saves library data, loads it

to active weighing mode.

NEXT+/−

−−

−

Adds displayed weight to

accumulation memory.

Toggles data:

+/−

−−

−

Displays statistical

information of

accumulation memory.

TARGET

Initiates target sequence.

Saves and steps through

target data.

Stability symbol

Percent, Weighing

units, Brutto/Gross,

Net, Tare, Preset Tare

Center of Zero Numeric keypad

Checkweigh Bar Graph

Capacity label window

Clear button

Quick Start Guide CKW-55 Indicator

Ohaus Corporation www.ohaus.com iii CKW-55 Indicator Quick Start Guide

OPERATION

On: Press ON. Indicator runs a display test, shows a series of

informational displays, and enters active weighing mode.

Off: Press and hold Off until OFF appears.

Press ZERO to zero the weight display. Scale must be stable.

Indicator zeros automatically at Power On.

Basic Weighing: Place item to be weighed on platform.

The illustration indicates a sample of 1.5 kg, Gross weight.

Manual Tare: If weighing an item in a container, place empty container on

the scale. Before taring, container’s weight is shown (example 0.5 kg).

Press TARE. Display shows zero.

(If container is removed, display shows container’s weight as negative.)

To clear the Tare value, empty the platform and press TARE.

The display shows gross weight (zero if platform is empty).

Pre-set Tare: enter a value on the keypad (eg, 1.000 kg). Press TARE.

Display shows Pre-set Tare as negative value, with PT indicator on.

(If TARE is not pressed within five seconds, display returns to previous

mode without saving a tare.)

To clear a Pre-set Tare value, clear platform, press TARE.

Display returns to 0 kg, Gross weight.

% kg lb g oz B/G Net Tare PT

-1.000

% kg lb g oz B/G Net Tare PT

000

Displaying Gross, Net, Tare: When a tare has been entered, press G/N/T

successively to display Tare, Gross, and Net weights. After a few seconds

indicator automatically reverts to displaying NET weight.

ADDITIONAL OPERATIONS

(See Instruction Manual for details.)

Changing Units of Measure: Press and hold Units until desired unit

appears. Only measuring units enabled in the Readout-Unit Menu are displayed.

Accumulation: collect data from multiple weighings, eg, number of samples,

total sample weight, average sample weight, standard deviation of sample

weight. To add a value to Accumulation memory, place item on the platform,

then short press NEXT +/-. Repeat this step for each additional item.

Checkweighing: enable it in Mode Menu. To check weight against preset target,

press Target. Enter value with numeric keypad. Press Next +/ −

−−

−for negative or

positive. Press Target to accept entry.

CKW-55 Indicator Quick Start Guide

CKW-55 Indicator Quick Start Guide iv Ohaus Corporation www.ohaus.com

MENU NAVIGATION

Press and hold

until MENU appears on the display. CAL appears.

Use Yes, No, Back,and Exit to navigate in Menu Mode:

Allows entry / Accepts displayed setting and advances to next menu item.

Skips displayed menu / Rejects setting or item, advances to next available item.

Moves backwards through menus.

Exits directly to active weighing mode.

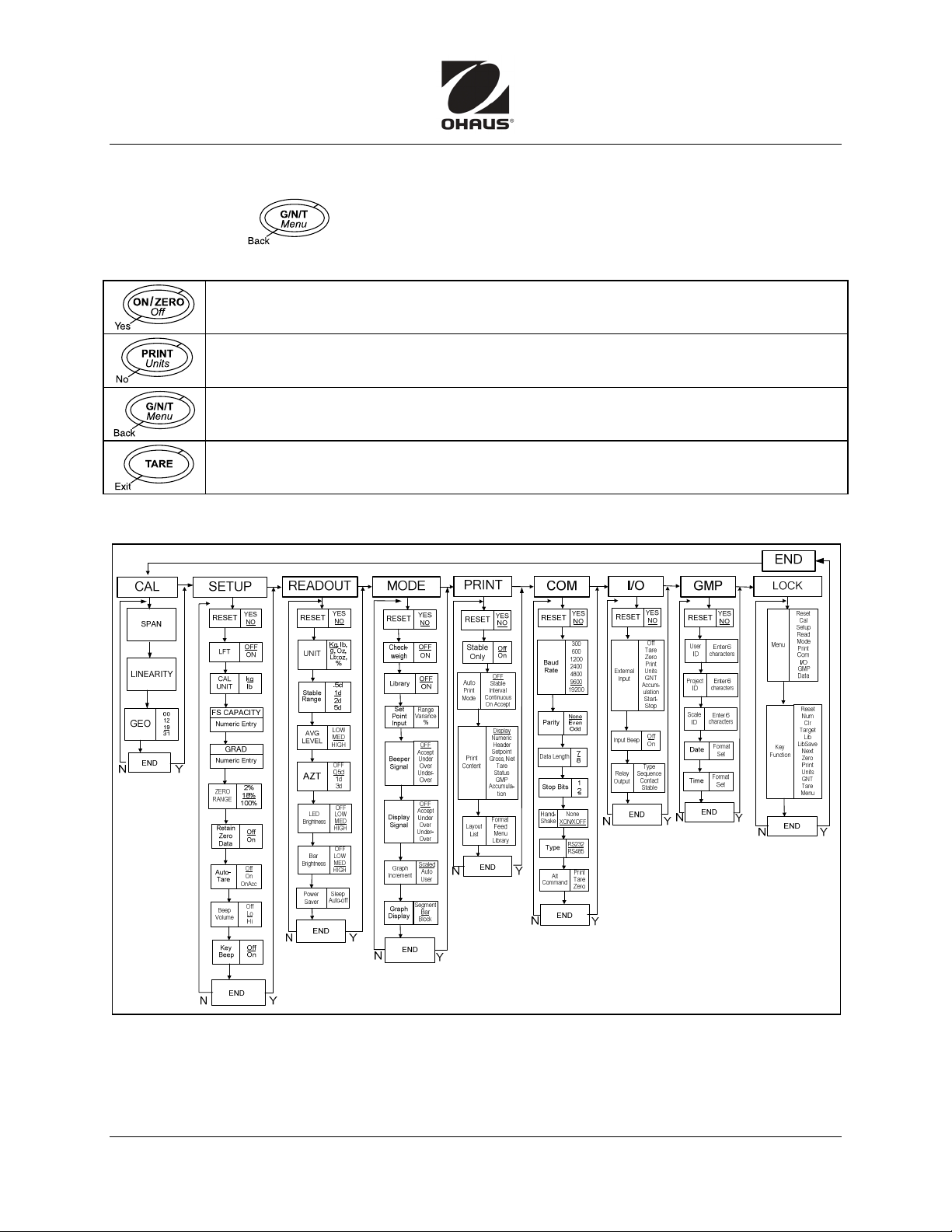

MENU STRUCTURE

(For more details, see Instruction Manual.)

*80253140*

P/N 80253140
