OHAUS A-AP30TUR Manuel utilisateur

a-AP30TUR

Turbidimeter

Instruction Manual

English

Español

Français

a-AP30 EN-1

TABLE OF CONTENTS

1. INTRODUCTION ................................................................................... 2

1.1 Safety Precautions............................................................................. 2

1.2 Intended Use...................................................................................... 3

2. NOTICE ................................................................................................. 4

3. OVERVIEW............................................................................................ 5

3.1 Menu Function ................................................................................... 5

3.2 Measuring Procedure......................................................................... 6

3.3 Calibration Procedure ........................................................................ 7

3.4 System Menu ..................................................................................... 8

3.5 View Log ............................................................................................ 8

4. OTHER OPERATION ............................................................................ 9

4.1 Test Record Checking........................................................................ 9

4.2 Software Update ................................................................................ 9

5. TECHNICAL DATA.............................................................................. 10

5.1 Specification..................................................................................... 10

5.2 Features............................................................................................11

6. MAINTENANCE .................................................................................. 12

6.1 Cleaning........................................................................................... 12

7. SERVICE INFORMATION................................................................... 12

8. COMPLIANCE..................................................................................... 12

EN-2 a-AP30

1. INTRODUCTION

AquaSearcher™ AP30TUR combines the scattered light method and the

transmitted light method, and uses a near-infrared light source to eliminate color

interference, which conforms to the ISO7027 standard. There are two detectors:

90° and 180° in the instrument. The 180° detector receives the transmitted light,

and the 90° detector receives the scattered light. The intensity of the scattered

light and the transmitted light is positive to the turbidity in the sample. The

intensity of light and transmitted light is used to calculate the turbidity value of the

sample.

It has the following features:

•Built-in filter to avoid background light interference.

•High-precision optical structure, accurate and stable measurement.

•Built-in high-performance micro-processing core, high data processing

power.

•Easy to use, text on the screen indicates operation instructions.

•Small size, light weight, dustproof and shockproof.

1.1 Safety Precautions

Definition of Signal Warnings and Symbols

Safety notes are marked with signal words and warning symbols. These show

safety issues and warnings. Ignoring the safety notes may lead to personal

injury, damage to the instrument, malfunctions and false results.

Signal Words

WARNING

For a hazardous situation with medium risk, possibly resulting in

severe injuries or death if not avoided.

CAUTION

For a hazardous situation with low risk, resulting in damage to the

device or the property or in loss of data, or minor or medium injuries

if not avoided.

ATTENTION

For important information about the product. May lead to equipment

damage if not avoided.

NOTE

For useful information about the product.

Warning Symbols

General hazard

Explosion hazard

Warning corrosion

a-AP30 EN-3

Safety Precautions

CAUTION: Read all safety warnings before installing, making

connections, or servicing this equipment. Failure to comply with

these warnings could result in personal injury and/or property

damage. Retain all instructions for future reference.

Operate the equipment only under ambient conditions specified in

these instructions.

The equipment is for indoor use only.

Do not operate the equipment in hazardous, or unstable environments.

Use only approved accessories and peripherals.

Service should only be performed by authorized personnel.

WARNING: Never work in an environment subject to explosion

hazards! The housing of the instrument is not gas tight. (Explosion

hazard due to spark formation, corrosion caused by the ingress of

gases).

WARNING: When using chemicals and solvents, comply with the

instructions of the producer and the general lab safety rules.

1.2 Intended Use

This instrument is intended for use in laboratories, pharmacies, schools,

businesses and light industry. It must only be used for measuring the parameters

described in these operating instructions. Any other type of use and operation

beyond the limits of technical specifications, without written consent from

OHAUS, is considered as not intended.This instrument complies with current

industry standards and the recognized safety regulations; however, it can

constitute a hazard in use.If the instrument is not used according to these

operating instructions, the intended protection provided by the instrument may be

impaired.

EN-4 a-AP30

2. NOTICE

1. When holding the bottle, please take the bottle cap directly, and do not

touch the part below the line of the bottle with your hand.

2. Clean the watch surface with a lens cleaning cloth before placing the

bottle in the slot.

3. Keep the white bottle intact, without scratches, and clean inside and

outside.

4. The silk screen"▽" on the black bottle should be aligned with the "△"on

the edge of the black groove.

5. During the testing, there must be no bubbles on the inner wall of the white

bottle, otherwise the measurement accuracy will be affected, and the

bubbles can be discharged by tilting slightly.

6. When recalibrating, it is necessary to place the standard solution strictly

according to the instructions on the interface. For AP30TURL Turbidimeter

perform four calibration points of 0/1/2/100 NTU must be calibrated, and

the four calibration points of 200/400/800/1000NTU can be freely selected

and work on AP30TURH Turbidimeter

7. Please put on the shading cover before testing.

8. Avoid any liquid or foreign objects entering the detection tank. After use,

please cover the rubber sealing plug in time, and pay attention to the

direction of the sealing plug (the arrow of the sealing plug is in the same

direction as the arrow of the instrument logo).

The illustrations are for reference only.

a-AP30 EN-5

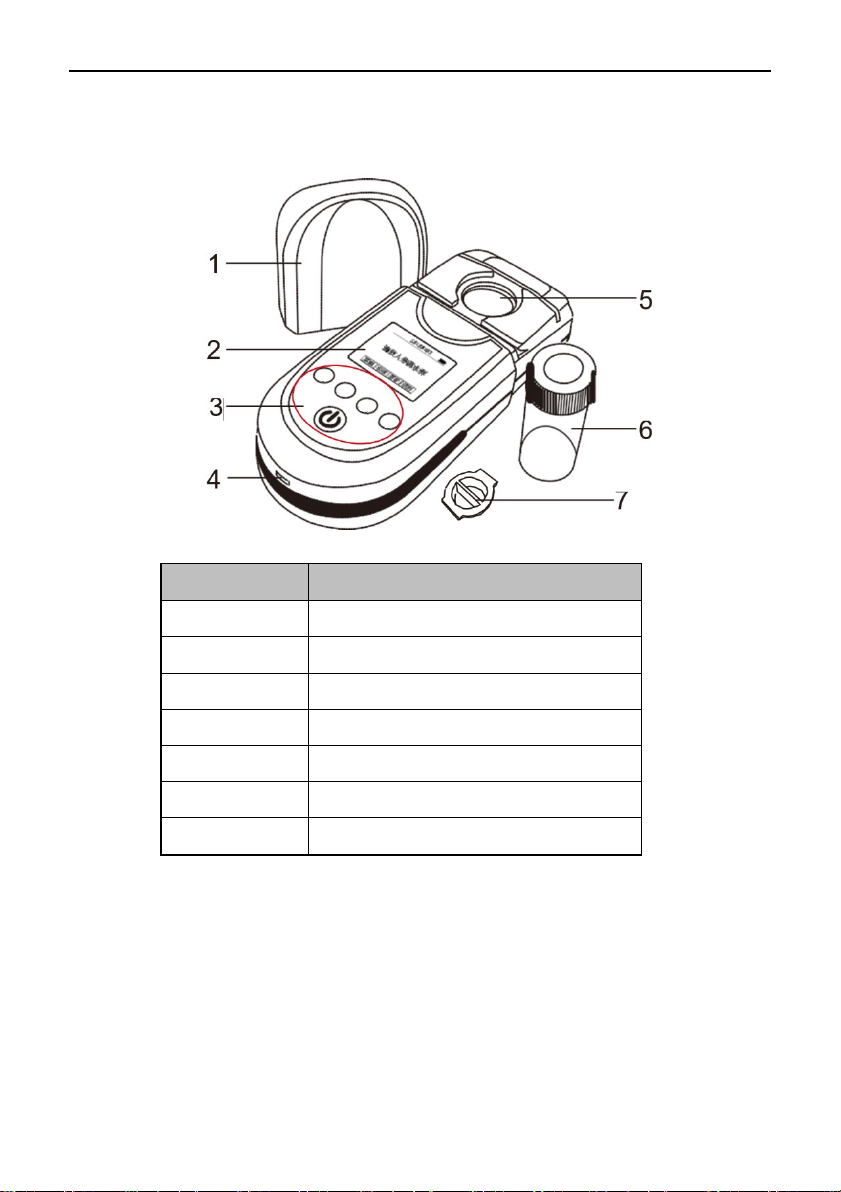

No. Description

1 Shading Cover

2 Display Screen

3 Button

4 USB

5 Cuvette

6 Colorimetric Tube

7 Rubber seal plug

3. OVERVIEW

3.1 Menu Function

EN-6 a-AP30

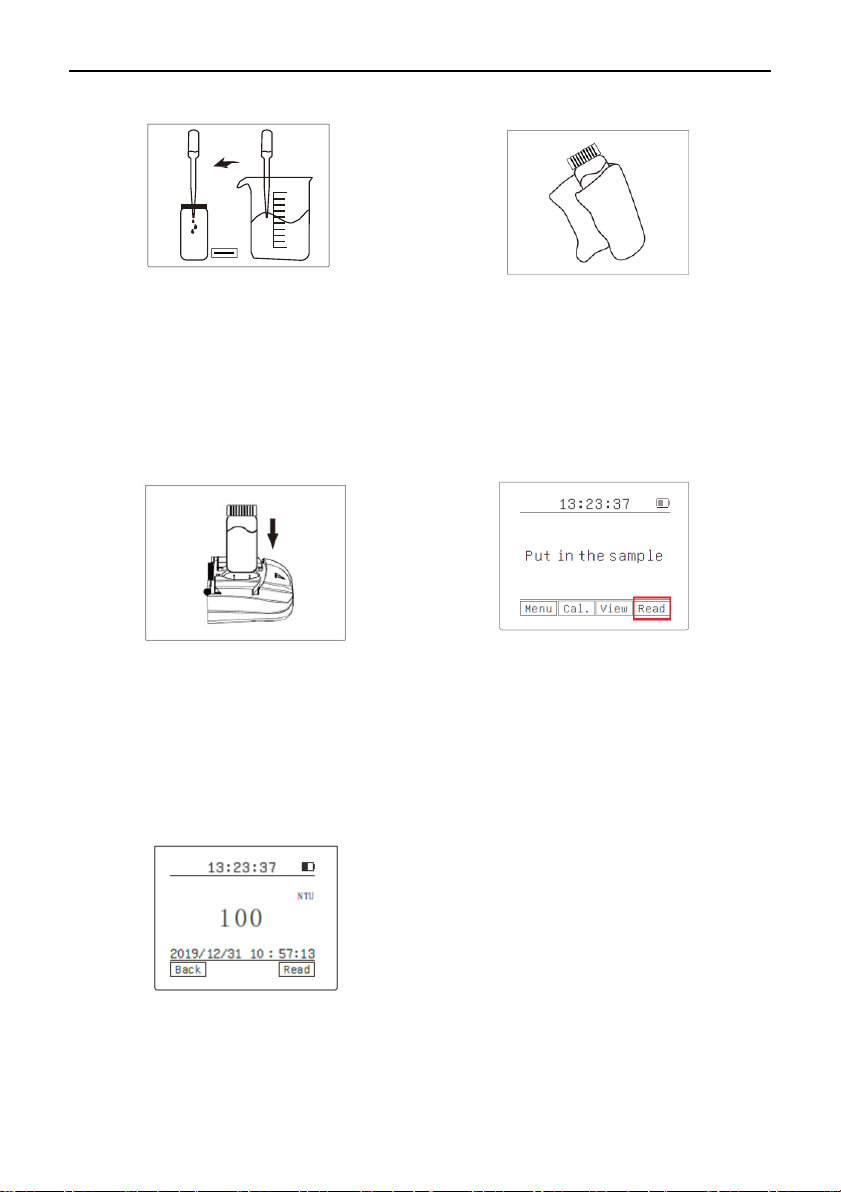

3.2 Measuring Procedure

1. Add more than 10ml of the

solution to be tested, tighten the

bottle cap, and add carefully to avoid

air bubbles.

2. Wipe the bottle with a soft cloth.

3. Put the colorimetric bottle into the

colorimetric tank.

4. Click "Read" to enter the

"Checking" interface.

5. After the test result is displayed,

click "Back" to return to the main

interface; click "Read" to perform the

next test.

a-AP30 EN-7

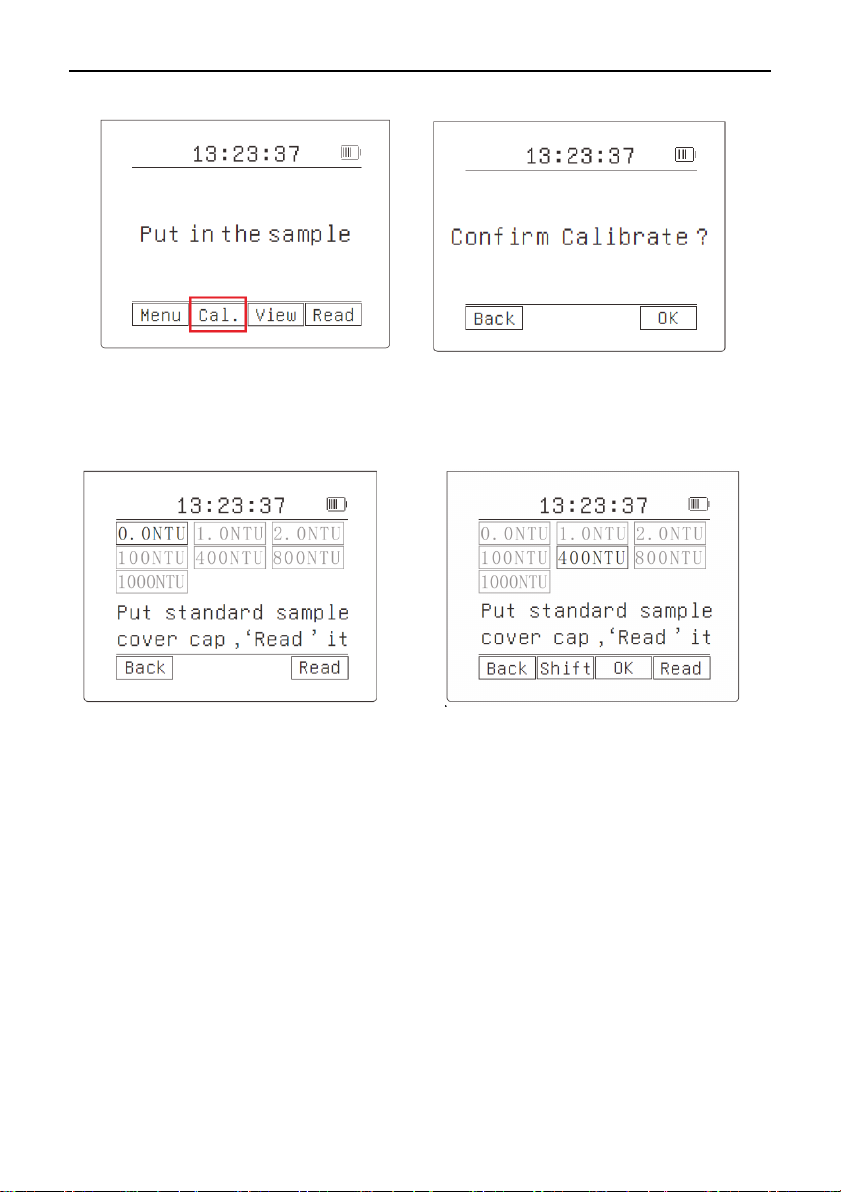

3.3 Calibration Procedure

1. Click "Calibration" on the main

screen to enter the " Confirm

Calibrate" screen.

2. Click "Back" to cancel the

calibration and return to

the main interface. Click "OK" to

enter the calibration

interface.

3. Click "Back" to cancel the

calibration and return to the main

interface. Click "Read" to enter the

"Checking" interface. Automatically

switch to the next calibration point,

and then complete the calibration of

4 calibration points of 0/1/2/100

NTU.

4. After completing the first 4 points

calibration, the subsequent

calibration interface adds "switch"

and "complete" two functions.

Click "OK" to complete the

calibration and return to the main

interface.

Click "Shift" to switch the calibration

density between the last 3

calibration points.

You can select the calibration point

by yourself and click "Read" to start

the calibration.
