Oasis PCPEBF Manuel utilisateur
FREE STANDING CONTACTLESS BOTTLE FILLER
Installation Instructions For:
UNFILTERED
PCPEBF
PCP10EBF
PCPEBFY 230V)
PCP10EBFY 230V)
FILTERED
PFCP10EBF
OASIS International
222 East Campus View Blvd.
Columbus, OH 43235
614-861-1350
www.oasiscoolers.com
1
INDEX
INDEXINDEX
INDEX
1. PRODUCT SPECIFICATIONS
2. IMPORTANT REQUIREMENTS
3. SAFETY WARNINGS
4. GETTING STARTED
5. PROPER QUICK CONNECT FITTING CONNECTION INSTRUCTIONS
6. INSTALLATION
7. SET-UP GUIDE FOR DISPENSER PCB ELECTRONICS
2
1. PRODUCT SPECIFICATIONS
1. PRODUCT SPECIFICATIONS1. PRODUCT SPECIFICATIONS
1. PRODUCT SPECIFICATIONS
Dimensions:
Depth 13.35” 339.0 mm)
Width 12” 304.8 mm)
Height 49.7” 1262.4 mm)
Refrigerant: R-134a
Input Voltage: 115 VAC, 60 HZ or 220/240 VAC, 50/60HZ –See Data Plate
3

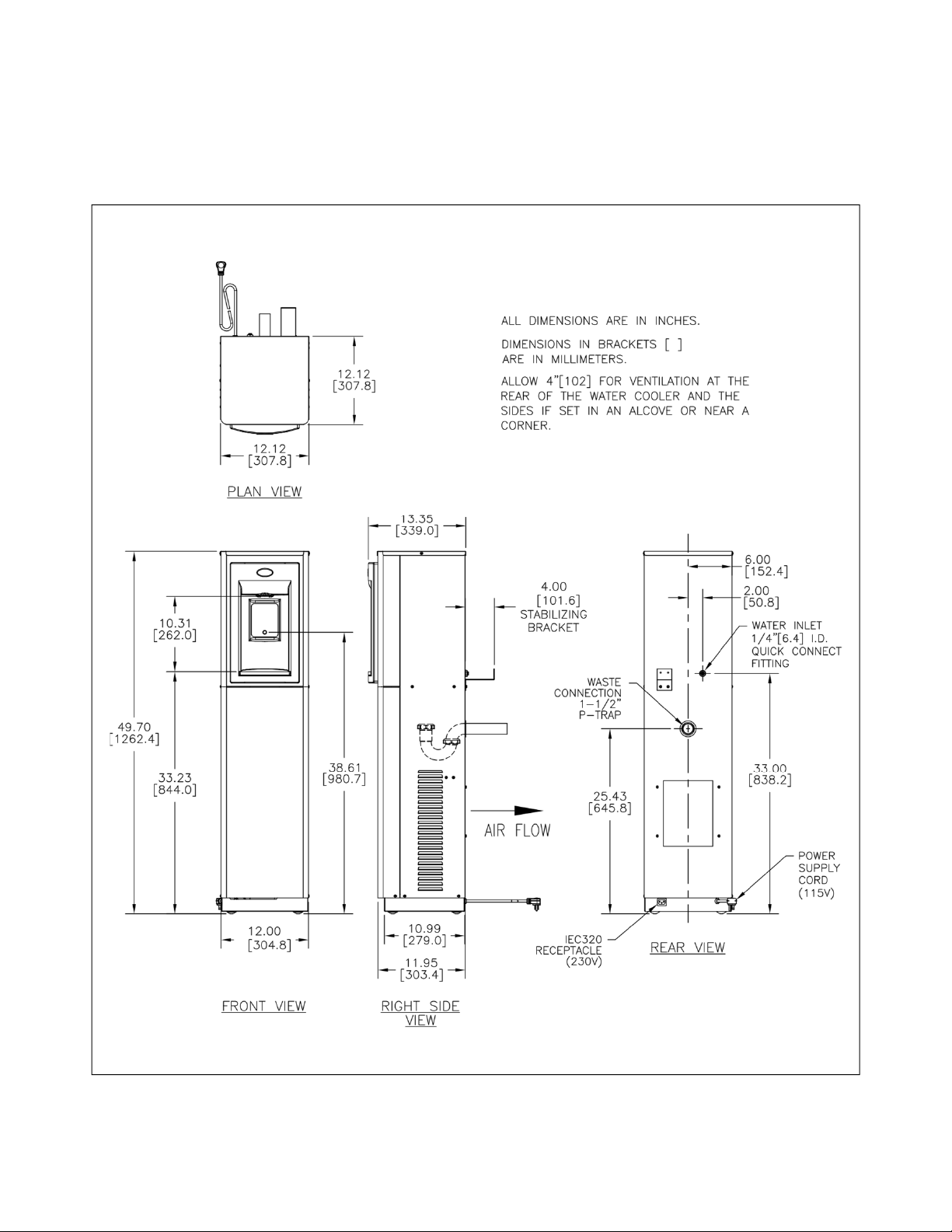

ROUGHING-IN AND DIMENSIONAL DRA ING
•Use only original and new parts to guarantee the reliability, optimization, and
performance of the OASIS water machine.
•Always wear proper protection when performing any type of service or
maintenance.
•When cleaning the unit, do not use corrosive acidic products, or metal
brushes.
•Do not wash the unit using high-pressure water.
•Connect to a water supply with a pressure of 45 PSI minimum to 100 PSI
maximum 3.10 bar minimum to 6.89 bar maximum ).
•ARNING: DO NOT USE WITH WATER THAT IS MICROBIOLOGICALLY UNSAFE
OF UNKNOWN QUALITY.
•ATTENTION: IT IS IMPORTANT TO MAKE PROPER CONNECTIONS TO THE
QUICK CONNECT FITTINGS TO AVOID LEAKS. SEE SECTION 5.
•CAUTION: DO NOT PLACE UNDUE STRESS OR SIDE LOAD ON ANY OF THE
PLASTIC FITTINGS.
2. IMPORTANT REQUIREMENTS
2. IMPORTANT REQUIREMENTS2. IMPORTANT REQUIREMENTS
2. IMPORTANT REQUIREMENTS
4
BEFORE YOU START USING THIS ATER DISPENSER, PLEASE READ THE
FOLLO ING INSTRUCTIONS CAREFULLY.
•The unit must be connected to a 115 VAC GFCI or 230VAC power supply as
listed on the equipment data label.
•The unit must be protected by a properly installed 20 amp circuit breaker.
Verify that the electrical current is correct for the power of this unit, which is
listed on the machine data label.
•To avoid electrical shock always unplug the unit from the electrical outlet
before servicing.
•If the power supply cord is damaged, it must be replaced by a special cord or
assembly available from the manufacturer or its service agent.
•This appliance must be earthed.
•Children should be supervised to ensure that they do not play with this
appliance.
3. SAFETY WARNINGS:
3. SAFETY WARNINGS:3. SAFETY WARNINGS:
3. SAFETY WARNINGS:
4. GETTING STARTED:
4. GETTING STARTED:4. GETTING STARTED:
4. GETTING STARTED:
5

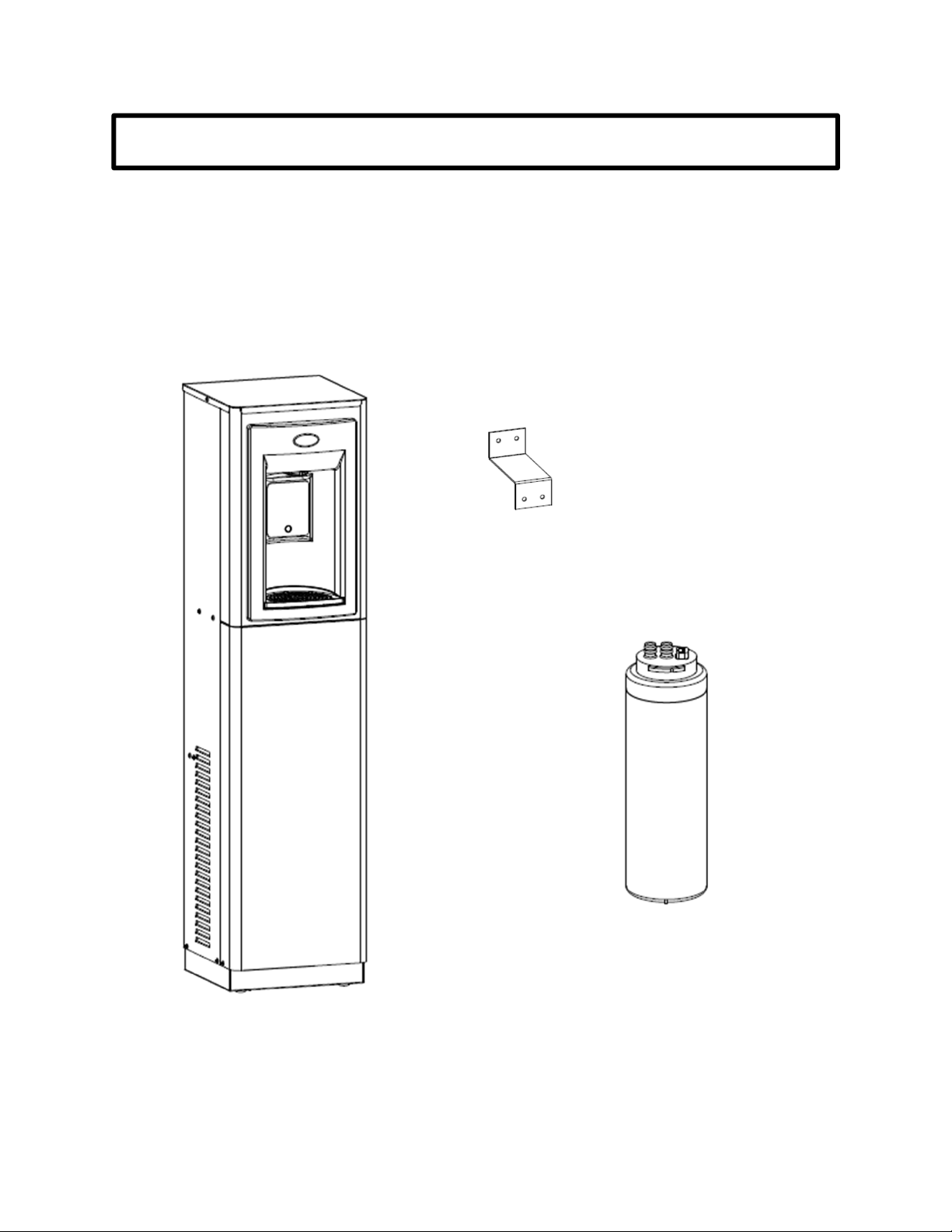

What’s Included:
a. CONTACTLESS BOTTLE FILLER
b. STABILIZER BRACKET
c. OPTIONAL VERSAFILTER III
5
VERSAFILTER III
Filtered models only)
CONTACTLESS
BOTTLE FILLER
STABILIZER BRACKET
Quick-Connect Fittings
•If you need to cut the plastic tubing, be sure to cut tube ends square
and straight. Do not deform the tube i.e., cause tube to compress its
diameter so it is no longer round, or it may result in a water leak at the
fitting).
•Make sure the outer surface of the tube is clear of marks or scratches
for a length equal to twice the tube diameter. This allows the “O” ring
to seat properly against the tube See figure below).
•Avoid sharp changes in direction when routing the tubing. Sharp turns
could cause the tubing to kink, which reduces its flow capacity and or
stops it completely.

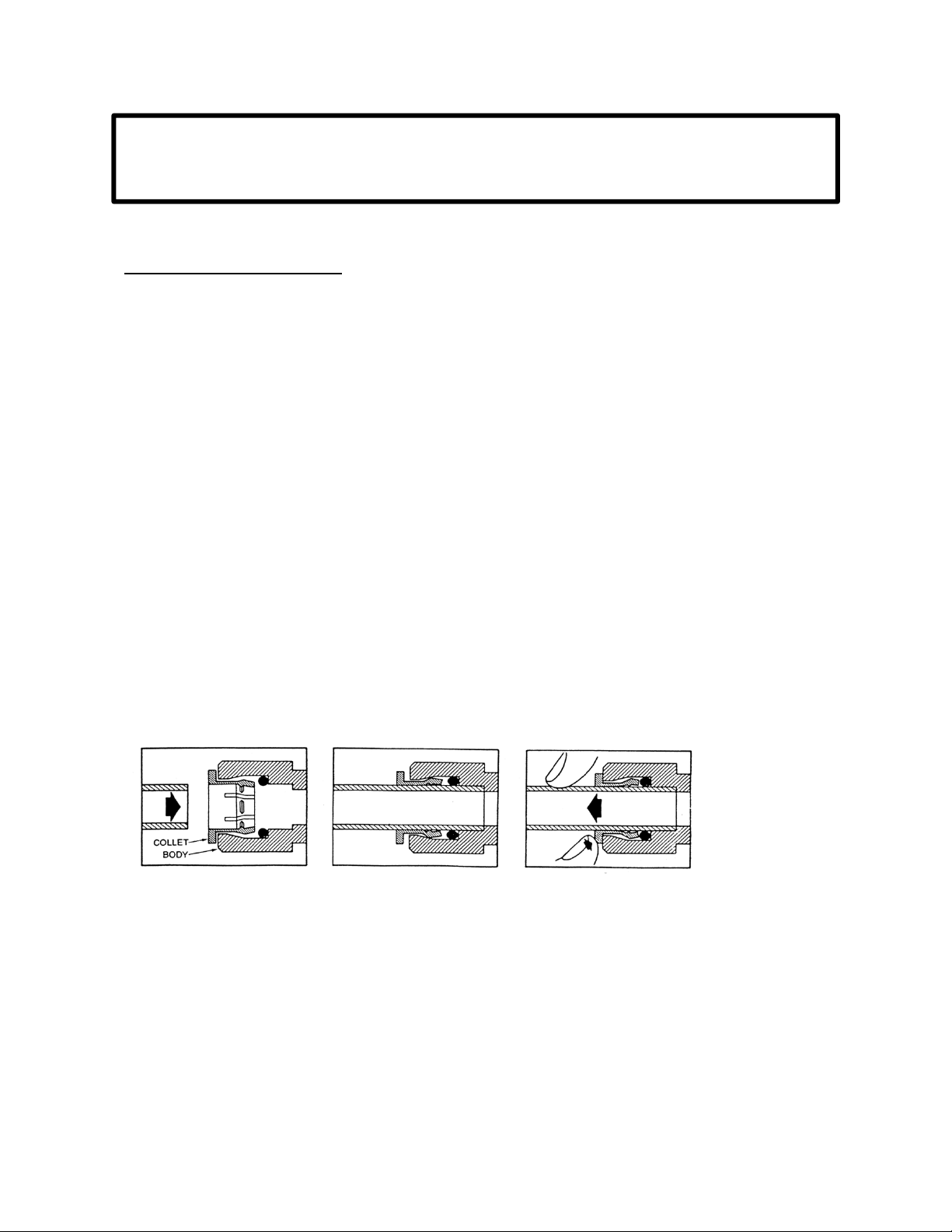

•Fittings consist of two parts: a body and a collet. See figure below).
•To install a tube, push it through the collet until it seats firmly at the
bottom of the fitting.
•To remove a tube, push and hold the collet against the body while
pulling the tube out. Pushing the tube into the body before pushing the
collet in will aid in the removal of the tube.
5. PROPER QUICK CONNECT FITTING CONNECTION
5. PROPER QUICK CONNECT FITTING CONNECTION 5. PROPER QUICK CONNECT FITTING CONNECTION
5. PROPER QUICK CONNECT FITTING CONNECTION
INSTRUCTIONS:
INSTRUCTIONS:INSTRUCTIONS:
INSTRUCTIONS:
Push tube through
Collet into Body
Tube must seat firmly
At bottom of fitting
Push Collet against
Body to release tube
6

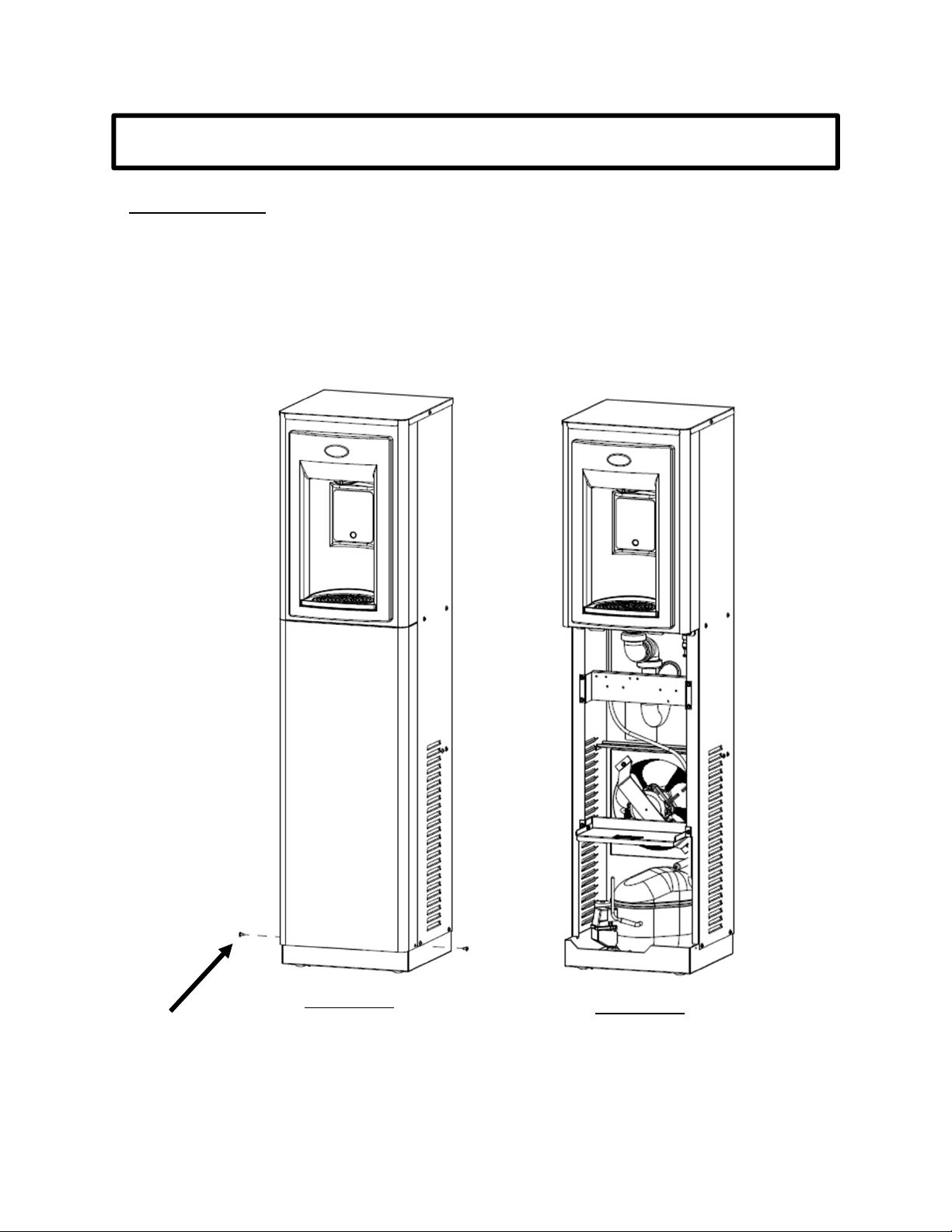

STEP 1 & 2:
1. Carefully unpack Water Dispenser and remove filter from the alcove
filtered models only).
2. Remove Front Panel by removing the 2 screws at the bottom of the panel
on the sides. See Diagram 1 and 2.
6. INSTALLATION:
6. INSTALLATION:6. INSTALLATION:
6. INSTALLATION:
7
DIAGRAM 1 DIAGRAM 2
REMOVE
T15 TORX SCREWS
QTY. 2
6. INSTALLATION:
6. INSTALLATION:6. INSTALLATION:
6. INSTALLATION:

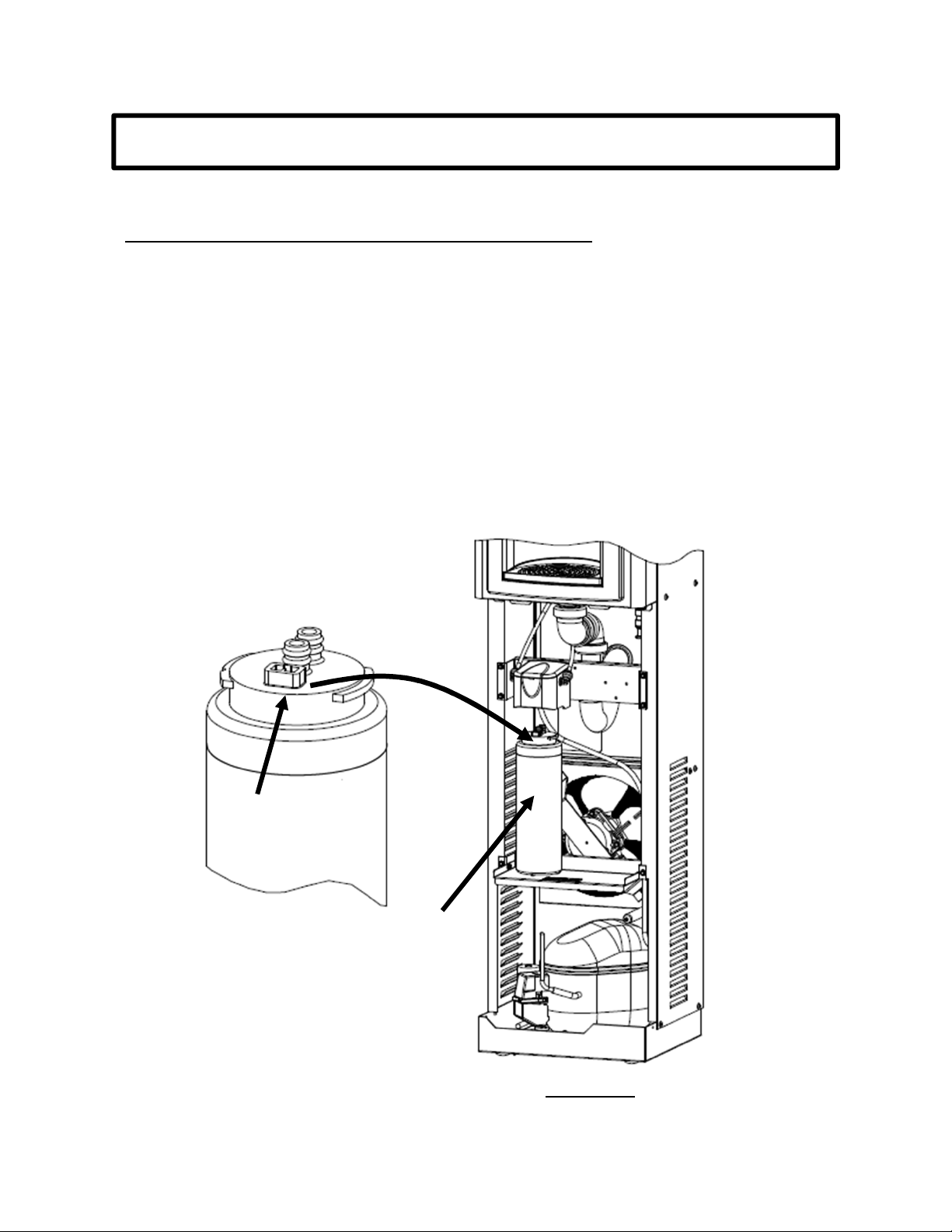

STEPS 3 through 5 (for optional filters)
Note: The VersaFilter III was placed in the alcove on the front of the cooler for
shipping.
3. Unpack the VersaFilter III and remove the sanitary cap.
4. Looking at the filter top, orient the filter so that the rectangular lug, on top
of the filter faces forward.
5. Push the filter up into the filter housing and rotate the filter one-quarter
turn to the right until it stops turning. Refer to Diagram 3
DIAGRAM 3
VERSAFILTER III
Lug
8

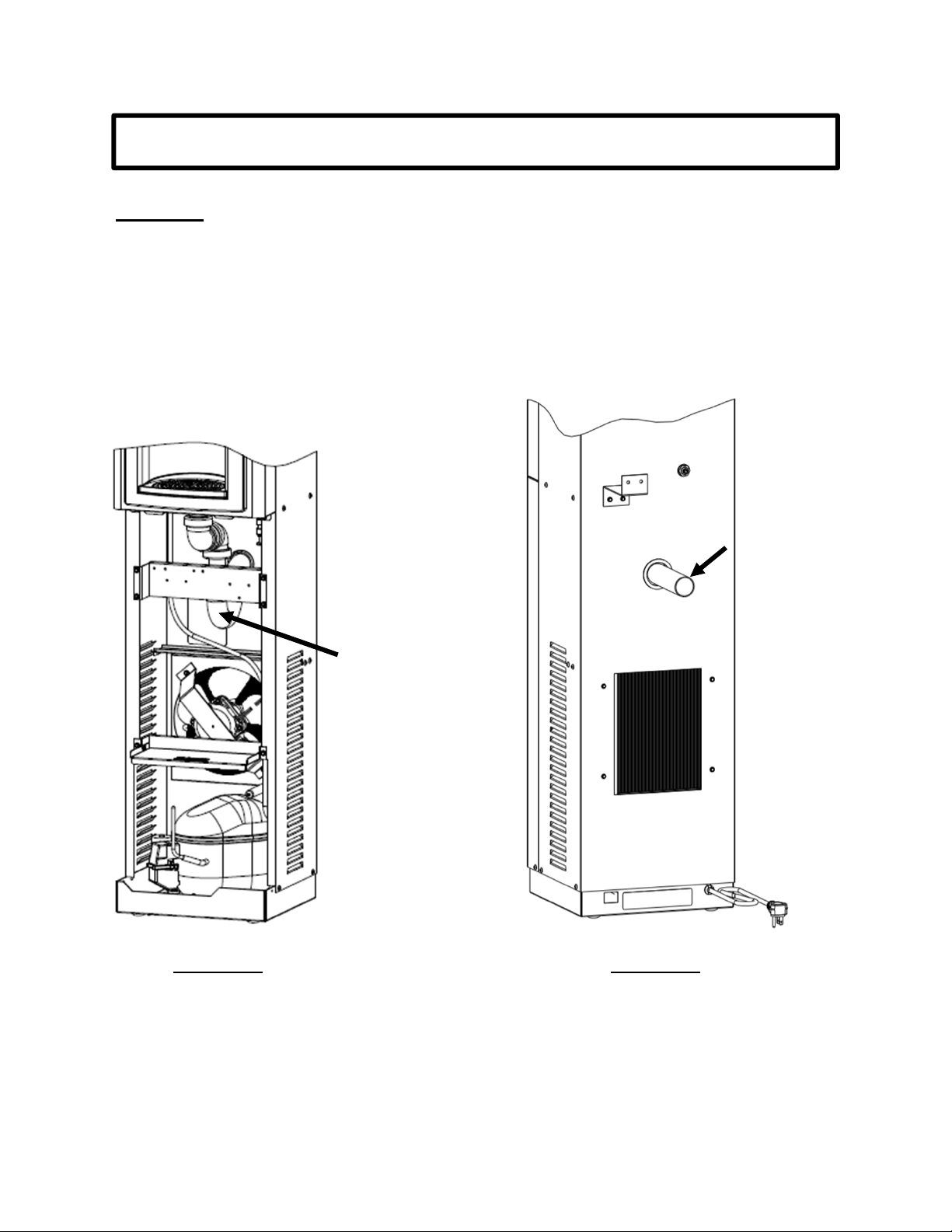

STEP 6:
6. Locate the Snap Bushing in the back of the cabinet and feed 1-1/2” OD Drain
Pipe through the hole. See Diagram 4 & 5.
6. INSTALLATION:
6. INSTALLATION:6. INSTALLATION:
6. INSTALLATION:
9
DIAGRAM 4
Front View
DIAGRAM 5
Rear View
P-Trap Located
behind the
filter mounting
bracket
Drain Pipe –
shown after
completing
Step 6.
6. INSTALLATION:
6. INSTALLATION:6. INSTALLATION:
6. INSTALLATION:

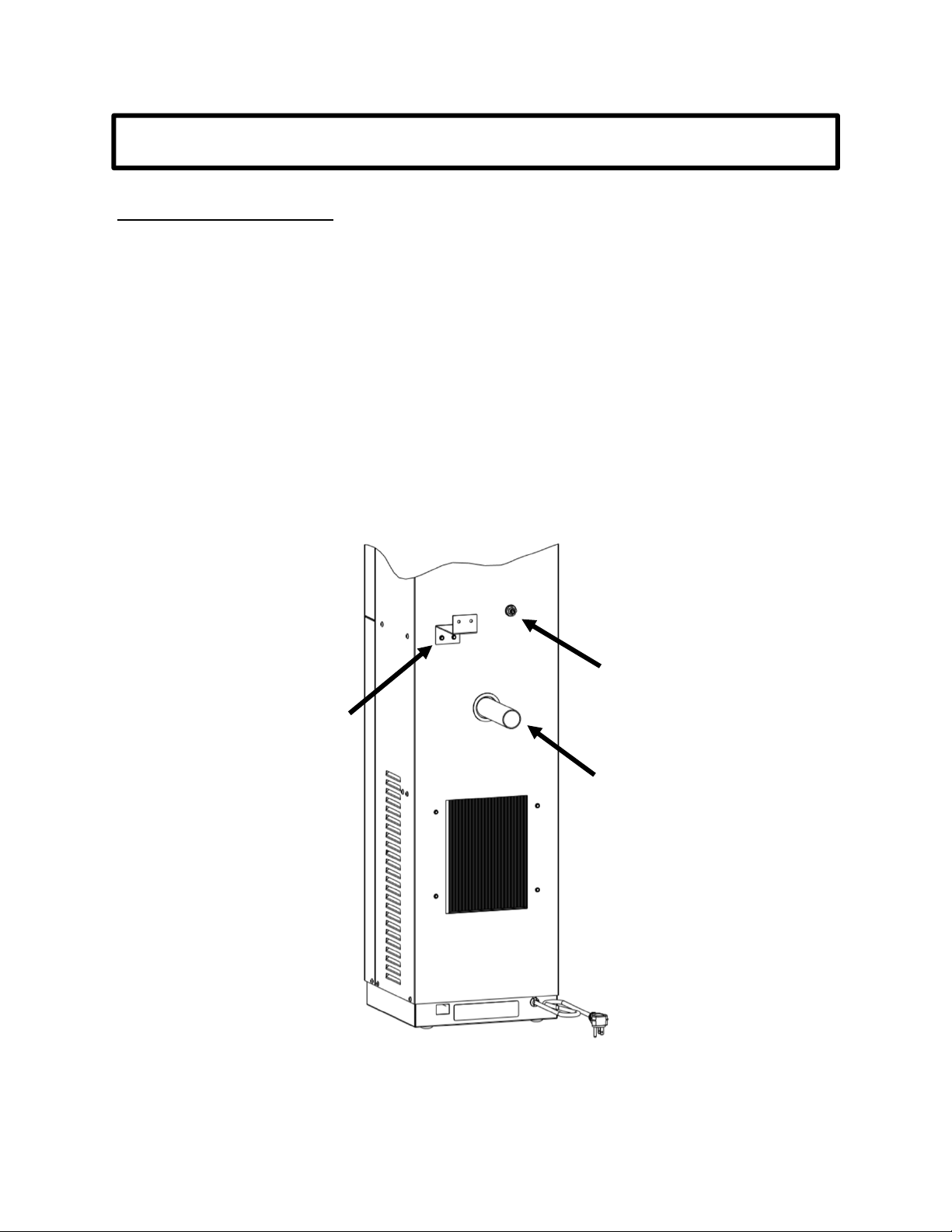

STEPS 7 through 9:
7. Connecting 1/4” OD water supply tube to 1/4” quick connect fitting on the
back of the unit. Refer to Section 5 for instructions on how to properly
connect to quick connect fittings. IMPORTANT: Before connecting water
supply to dispenser, flush building water supply.
8. Connect 1-1/2” OD drain pipe to Elbow Coupling not provided). Connect to
building drain.
9. Attach stabilizing bracket to the unit with screws provided. Then secure the
bracket to the wall with wall anchors provided by others.
10
CONNECT WATER SUPPLY
Rear View
10
CONNECT DRAIN
Diagram 6
ATTACH STABILIZER BRACKET
