Oasis PCPEBQ Manuel utilisateur
FREE STANDING CONTACTLESS BOTTLE
FILLER WITH QUASAR UV-C LED
Installation Instructions For
UNFILTERED
PCPEBQ
PCPEBQY (230V)
PCP10EBQ
PCP10EBQY (230V)
FILTERED
PF2CPEBQ
PF2CP10EBQ
OASIS International
222 East Campus View Blvd.
Columbus, OH 43235
614-861-135
www.oasiscoolers.com
1
INDEX
1. PRODUCT SPECIFICATIONS
2. IMPORTANT REQUIREMENTS
3. SAFETY WARNINGS
4. QUASAR UV-C LED OPERATION
5. GETTING STARTED
6. PROPER QUICK CONNECT FITTING CONNECTION INSTRUCTIONS
7. INSTALLATION
. SET-UP GUIDE FOR DISPENSER PCB ELECTRONICS
2
1. PRODUCT SPECIFICATIONS
Dimensions:
Depth 13-11/16” [34 mm]
Width 12-1/ ” [307. mm]
Height 49-11/16” [1262 mm]
Refrigerant: R-134a
Input Voltage: 115 VAC, 60 HZ or 220/240 VAC, 50/60HZ –See Data Plate

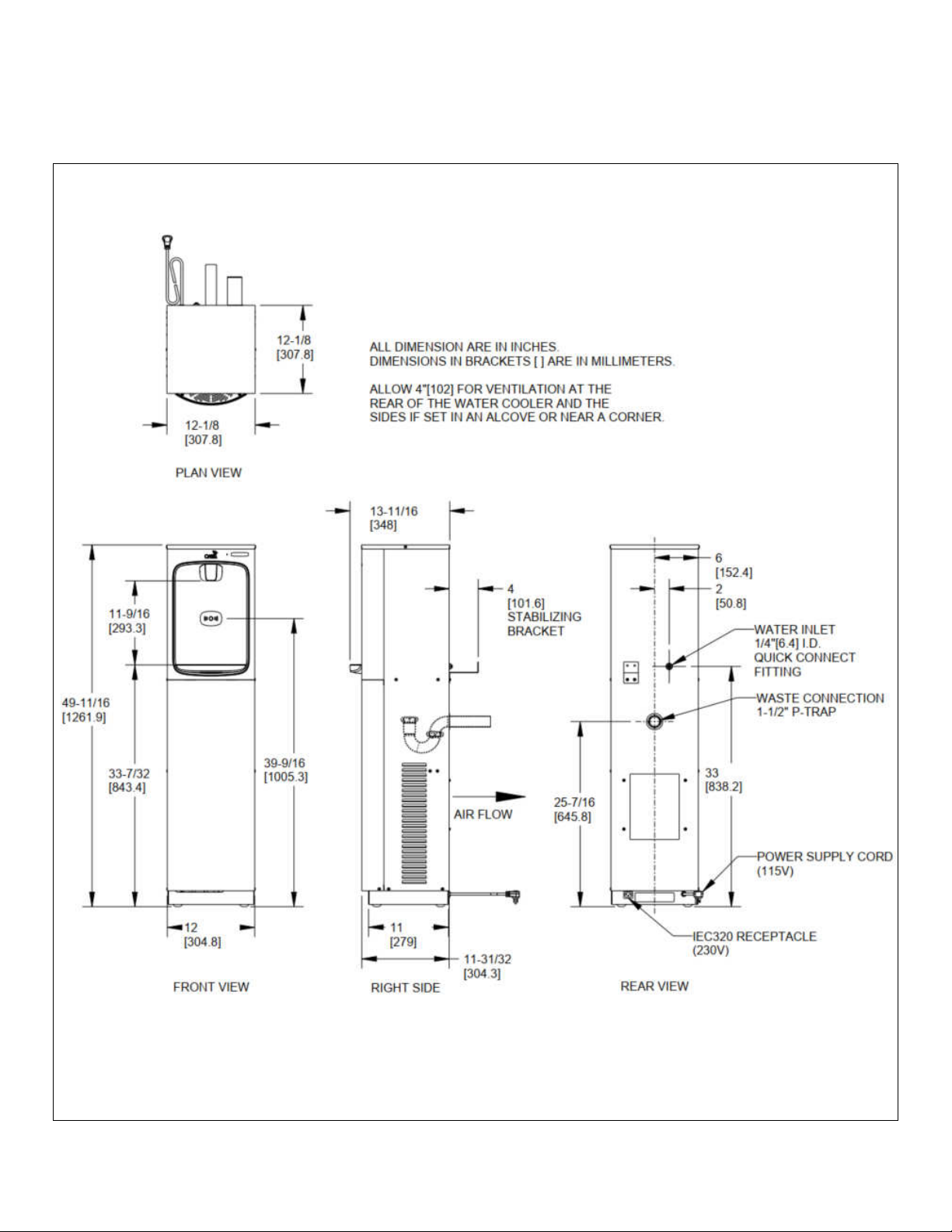

ROUGHING-IN AND DIMENSIONAL DRAWING
3
•Use only original and new parts to guarantee the reliability, optimization, and
performance of the OASIS water machine.
•Always wear proper protection when performing any type of service or
maintenance.
•When cleaning the unit, do not use corrosive acidic products, or metal
brushes.
•Do not wash the unit using high-pressure water.
•Connect to a water supply with a pressure of 45 PSI minimum to 100 PSI
maximum (3.10 bar minimum to 6. 9 bar maximum ).
•WARNING: DO NOT USE WITH WATER THAT IS MICROBIOLOGICALLY UNSAFE
OR OF UNKNOWN QUALITY.
•ATTENTION: IT IS IMPORTANT TO MAKE PROPER CONNECTIONS TO THE
QUICK CONNECT FITTINGS TO AVOID LEAKS. SEE SECTION 5.
•CAUTION: DO NOT PLACE UNDUE STRESS OR SIDE LOAD ON ANY OF THE
PLASTIC FITTINGS.
•CAUTION: DO NOT ACTIVATE ELECTRICAL EYE SENSOR WITHOUT RUNNING
WATER THROUGH THE UVC MODULE. DOING SO WILL DAMAGE THE UV-C
LEDS. SEE SECTION 4, STEP 2e, and SECTION 7, STEPS 13 - 1 .
2. IMPORTANT REQUIREMENTS
4
EFORE YOU START USING THIS WATER DISPENSER, PLEASE READ THE
FOLLOWING INSTRUCTIONS CAREFULLY.
•The unit must be connected to a 115 VAC GFCI or 230VAC power supply as
listed on the equipment data label.
•The unit must be protected by a properly installed 20 amp circuit breaker.
Verify that the electrical current is correct for the power of this unit, which is
listed on the machine data label.
•To avoid electrical shock always unplug the unit from the electrical outlet
before servicing.
•If the power supply cord is damaged, it must be replaced by a special cord or
assembly available from the manufacturer or its service agent.
•This appliance must be earthed.
•Children should be supervised to ensure that they do not play with this
appliance.
3. SAFETY WARNINGS:
4. QUASAR UV-C LED OPERATION
5
1. QUASAR is a form of dispense point water treatment that utilizes UV-C
LED’s to inactivate pathogens.
2. Operation:
a. The QUASAR activation is automatic. The UV-C LED’s turn ON when
water is dispensed and OFF when the dispense stops.
b. During non-use periods the QUASAR automatically cycles ON for
ten seconds every ten minutes. This keeps the dispense point more
sanitary between use.
c. When the QUASAR is ON, the LED light on the front of the alcove
near the top will turn ON. The LED will be BLUE when the QUASAR
is working properly.
d. If QUASAR is not working properly, then the LED light on the front
of the alcove near the top will be ORANGE. The light will remain ON
and the system will not allow water to be dispensed until the
problem is resolved unless “Override Stop Dispense” is selected in
the program menu. See “SET-UP GUIDE FOR QUASAR PCB
ELECTRONICS” for instructions on how to change this setting.
e. IMPORTANT: Never operate the QUASAR without water connected
to the system. Lack of water can cause the QUASAR to overheat. If it
is necessary to activate QUASAR to purge the system of air, then do
not activate the QUASAR dry for more than 4-5 seconds at a time.
Wait 60 seconds to allow the QUASAR to “cool” before the next
“dry” activation. Dry activations normally occur during initial setup
or during filter changes.
4. QUASAR UV-C LED OPERATION
6
Condition
Orange
Green
Yellow
Red
Blue
LED Color
While dispensing, UVC
temperature is too high.
Ensure water supply is ON.
If initial start-up: Activate the
bottle filler to dispense water.
LED will turn BLUE when water
flows.
ActionDisplay
“UVC OFF- TURN
ON WATER SUPPLY”
Standby mode – filter life
<8 % used. No action needed.
“BOTTLES SAVED”
Standby mode – filter life
>8 % used but <1 %. Order new filter.
“BOTTLES SAVED”
Standby mode – filter life
=1 % used. Replace the filter.
“BOTTLES SAVED”
Orange
Dispensing – bottle sensed
by IR sensor and UVC
operating properly.
No action needed.
“UVC DISINFECTION
IN PROCESS”
Water cannot be dispensed
(unless Override Stop
Dispense is selected in the
program menu).
Check electrical connections
to UVC and reset power first.
Replace UVC if necessary.
“UVC REQUIRES
SERVICE”
(Remains ON even in
standby.)
Display
LED Indicator
5. GETTING STARTED:

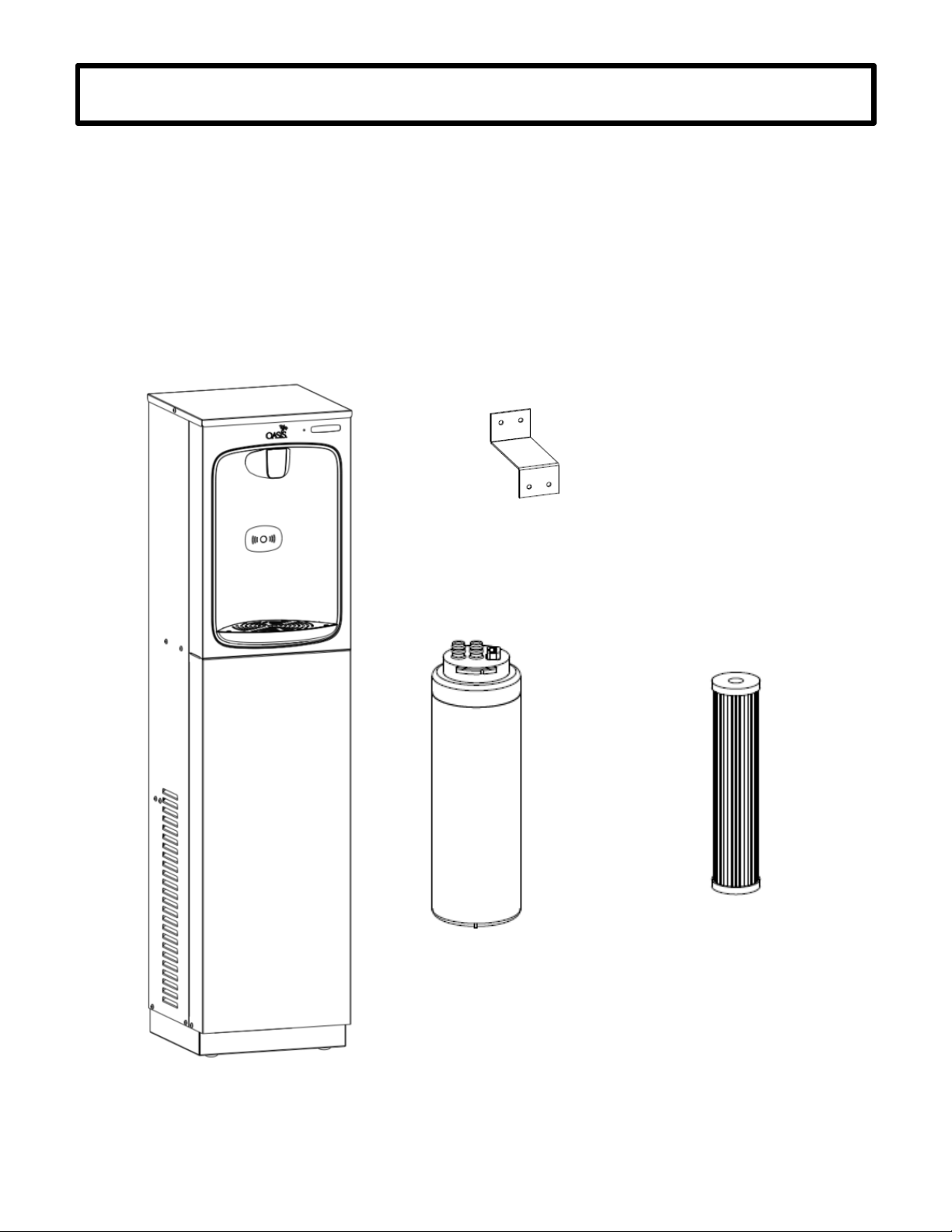

What’s Included:
a. CONTACTLESS BOTTLE FILLER
b. STABILIZER BRACKET
c. DRAINPIPES, DRAIN ELBOWS and P-TRAP (NOT SHOWN)
d. VERSAFILTER III (FILTERED MODELS ONLY)
e. REMEDI FILTER (FILTERED MODELS ONLY)
7
VERSAFILTER III
(filtered models
only)
CONTACTLESS
BOTTLE FILLER
STABILIZER BRACKET
Remedi filter element
(filtered models only)
NOTE: This comes
installed in the cooler.
Quick-Connect Fittings
•If you need to cut the plastic tubing, be sure to cut tube ends square
and straight. Do not deform the tube (i.e., cause tube to compress its
diameter so it is no longer round, or it may result in a water leak at the
fitting).
•Make sure the outer surface of the tube is clear of marks or scratches
for a length equal to twice the tube diameter. This allows the O” ring
to seat properly against the tube (See figure below).
•Avoid sharp changes in direction when routing the tubing. Sharp turns
could cause the tubing to kink, which reduces its flow capacity and or
stops it completely.

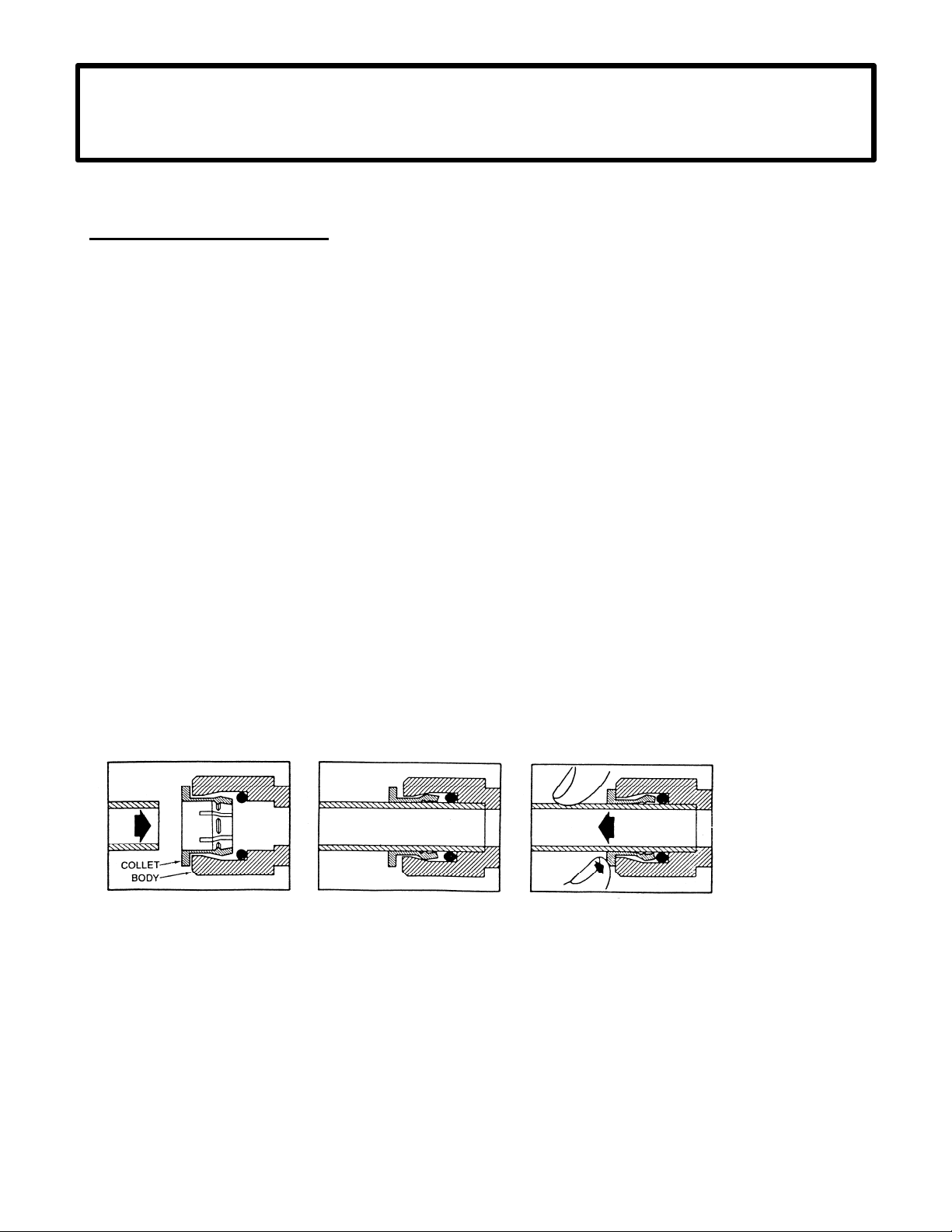

•Fittings consist of two parts: a body and a collet. (See figure below).
•To install a tube, push it through the collet until it seats firmly at the
bottom of the fitting.
•To remove a tube, push and hold the collet against the body while
pulling the tube out. Pushing the tube into the body before pushing the
collet in will aid in the removal of the tube.
6. PROPER QUIC CONNECT FITTING CONNECTION
INSTRUCTIONS:
Push tube through
Collet into Body
Tube must seat firmly
At bottom of fitting
Push Collet against
Body to release tube
8
7. INSTALLATION:
DIAGRAM 1 DIAGRAM 2
REMOVE
T15 TORX SCREWS
QTY. 2
9

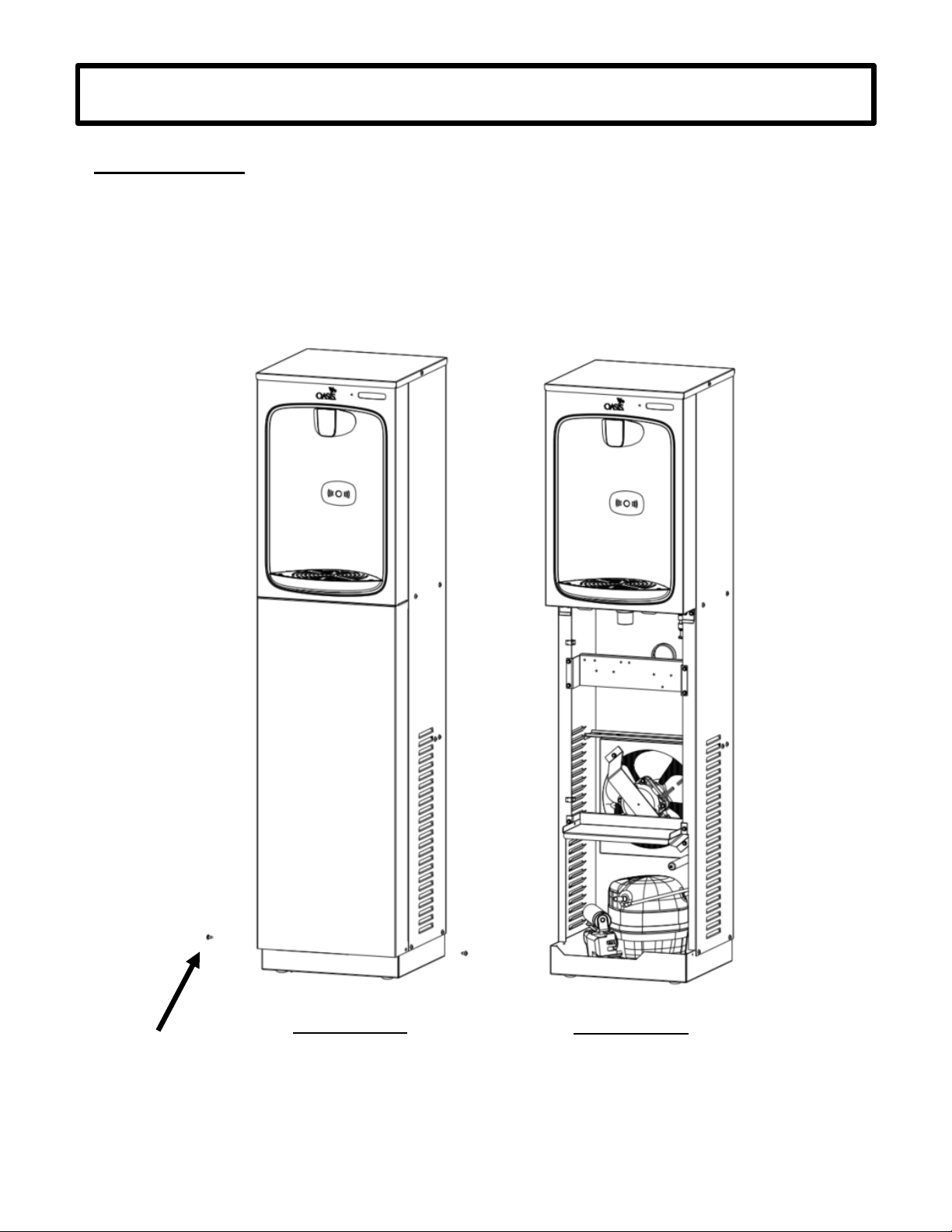

STEP 1 & 2:
1. Carefully unpack Water Dispenser.
2. Remove Front Panel by removing the 2 screws at the bottom of the panel
on the sides. Carefully remove Drainpipes, Drain Elbows and P-Trap
packaged inside unit. See Diagram 1 and 2.
STEP 3 & 4:

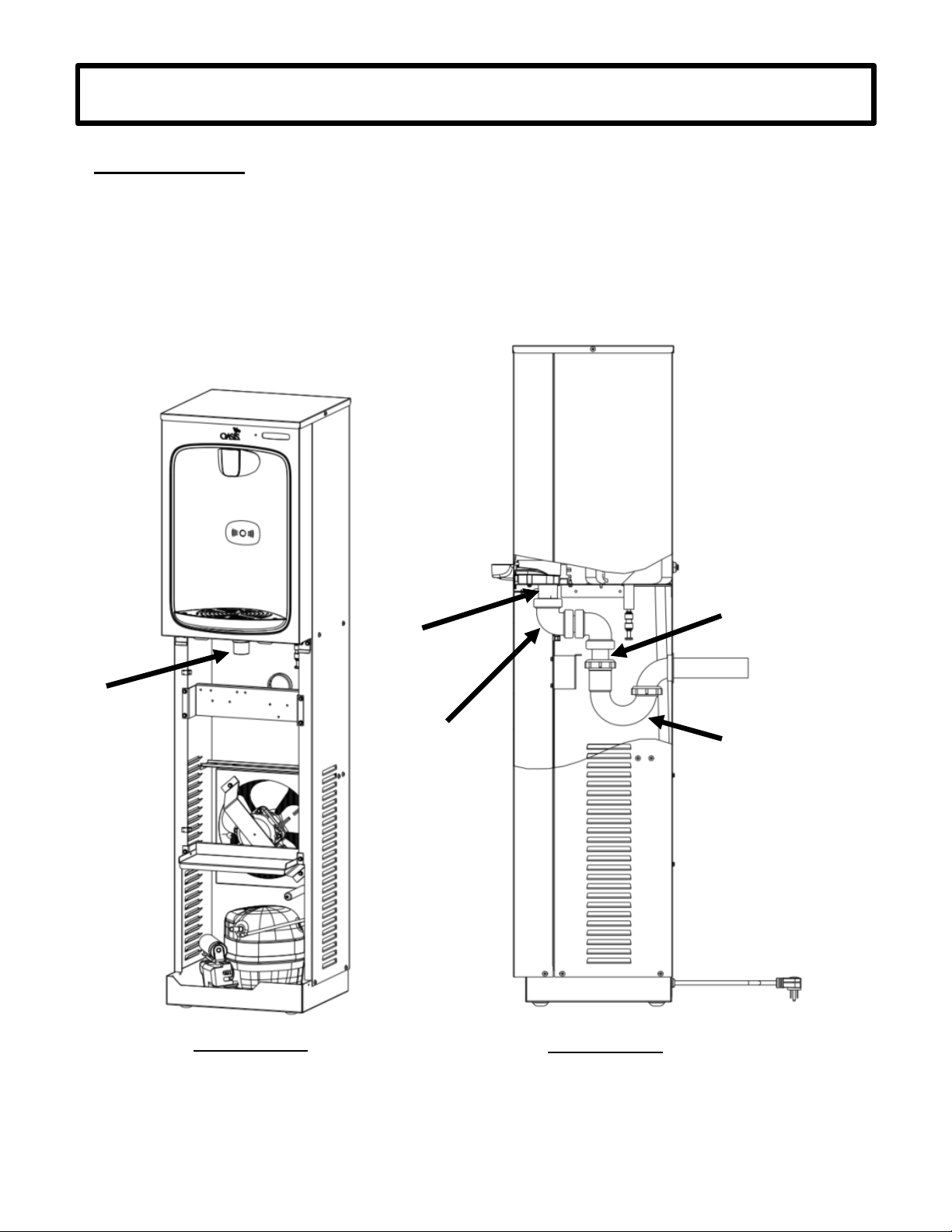

3. Assemble Drainpipes, Drain Elbow and P-Trap to Driptray Tailpiece.
4. Locate the Snap Bushing in the back of the cabinet and feed 1-1/2” OD
P-Trap through the hole. See Diagram 3 and 4.
7. INSTALLATION:
10
DIAGRAM 3 DIAGRAM 4
DRIPTRAY
TAILPIECE
DRIPTRAY
TAILPIECE
DRAIN
ELBOW
QTY. 2
P-TRAP
DRAINPIPE
QTY. 2
