Confidential Numark Service Manual

Numark

MixTrack Platinum FX

[NKCH]

Service Manual

v1.0

2020-03-19

The information in this document contains privileged and confidential information. It is intended only for the use of

those authorized by Numark. If you are not the authorized, intended recipient, you are hereby notified that any review,

dissemination, distribution or duplication of this document is strictly prohibited. If you are not authorized, please

contact Numark and destroy all copies of this document. You may contact Numark at support@numark.com.

ATTENTION!

This document contains sensitive proprietary information.

All recipients must have a current non-disclosure agreement on file

with Numark.

Do not make illegal copies of this document.

Confidential Numark Service Manual

Preface

This document is intended to assist the service technician in the operation, maintenance and repair of the Numark

device. Together with the User Reference Manual, this document provides a complete description of the

functionality and serviceability of the Device. Any comments or suggestions you may have pertaining to the

document are welcome and encouraged.

Read This!

In addition to any purchase price that Numark may charge as consideration for Numark selling or otherwise

transferring this service manual (“Manual”) to you, if you are not a service and repair facility (“Service Center”)

authorized by Numark in writing to be an authorized Service Center, Numark sells or transfers the Manual to you on

the following terms and conditions:

Only Service Centers authorized by Numark in writing are authorized to perform service and repairs covered by an

Numark warranty (if any), and transfer of the Manual to you does not authorize you to be an authorized Service

Center. Therefore, if you perform, or if the Manual is used to perform, any service or repairs on any Numark

product or part thereof, any and all warranties of Numark as to that product and any service contract with

Numark for that product shall be voided and shall no longer apply for such product, even if your services or

repairs were done in accordance with the Manual.

All service or repairs done by you or with reference to the Manual shall be solely your responsibility, and Numark

shall have no liability for any such repairs or service work. All such service or repairs are performed at the sole

risk of the person performing the service or repairs. You agree that all such work will be performed in a

competent, professional and safe manner at all times and to indemnify and fully hold Numark and its successors

and assigns harmless in the event of any failure to so perform.

Your purchase of the Manual shall be for your own ultimate use and shall not be for purposes of resale or other

transfer.

As the owner of the copyright to the Manual, Numark does not give you the right to copy the Manual, and you agree

not to copy the Manual without the written authorization of Numark. Numark has no obligation to provide to you

any correction of, or supplement to, the Manual, or any new or superseding version thereof.

Numark shall have the right to refuse to sell or otherwise transfer repair parts or materials to you in its sole

discretion. You shall not use, sell or otherwise transfer spare or replacement parts supplied by Numark to you (i) to

repair or be used in products manufactured for or by third parties or (ii) to any third parties for any purpose.

You shall not make any warranties or guarantees with respect to the products of Numark or the use thereof on

behalf of Numark or in your own name.

The foregoing describes the entire understanding related to sale or transfer of the Manual to you, and no other

terms shall apply unless in a writing signed by an authorized representative of Numark.

All Trademarks are property of their respective companies.

Confidential Numark Service Manual

Warnings

TO REDUCE THE RISK OF ELECTRIC SHOCK OR FIRE, DO NOT EXPOSE THIS PRODUCT TO WATER OR

MOISTURE.

The arrowhead symbol on a lightning flash inside a triangle is intended to alert the user to

the presence of uninsulated “dangerous voltage” within the enclosed product which may

be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point inside a triangle is intended to alert the user to the presence of

important operating, maintenance and servicing instructions in the literature which

accompanies the product.

REPAIR BY ANY PERSON OR ENTITY OTHER THAN AN AUTHORIZED NUMARK SERVICE CENTER

WILL VOID THE NUMARK WARRANTY.

PROVISION OF THIS MANUAL DOES NOT AUTHORIZE THE RECIPIENT TO COMPETE WITH ANY

NUMARK DISTRIBUTOR OR AUTHORIZED REPAIR SERVICE CENTER IN THE PROVISION OF REPAIR

SERVICES OR TO BE OR MAKE REPAIRS AS AN AUTHORIZED SERVICE CENTER.

ALL REPAIRS DONE BY ANY ENTITY OTHER THAN AN AUTHORIZED NUMARK SERVICE CENTER

SHALL BE SOLELY THE RESPONSIBILITY OF THAT ENTITY, AND NUMARK SHALL HAVE NO LIABILITY

TO THAT ENTITY OR TO ANY OTHER PARTY FOR ANY REPAIRS BY THAT ENTITY.

Regarding the Power Supply Fuse

Caution: The product under service may employ the use of a replaceable fuse. Danger of

fire or electrocution if fuse is incorrectly replaced. Replace with only the same type or

equivalent type recommended by the equipment manufacturer.

Regarding the Internal Battery

Caution: The product under service may employ the use of a internal battery. Danger of

explosion if battery is incorrectly replaced. Replace only with the same or equivalent type

recommended by the manufacturer. Dispose of used batteries according to the

manufacturer’s instruction.

Confidential Numark Service Manual

Safety Instructions

Carefully read the applicable items of the operating instructions and these safety suggestions before using this

product. Use extra care to follow the warnings written on the product itself and in the operating instructions. Keep

the operating instructions and safety suggestions for reference in the future.

1. Power Source. The product should only be connected to a power supply which is described either in the

operating instructions or in markings on the product.

2. Power Cord Protection. AC power supply cords should be placed such that no one is likely to step on the

cords and such that nothing will be placed on or against them.

3. Periods of Non-use. If the product is not used for any significant period of time, the product’s AC power supply

cord should be unplugged from the AC outlet.

4. Foreign Objects and Liquids. Take care not to allow liquids to spill or objects to fall into any openings of the

product.

5. Water or Moisture. The product should not be used near any water or in moisture.

6. Heat. Do not place the product near heat sources such as stoves, heat registers, radiators or other heat

producing equipment.

7. Ventilation. When installing the product, make sure that the product has adequate ventilation. Improperly

ventilating the product may cause overheating, which may damage the product.

8. Mounting. The product should only be used with a rack which the manufacturer recommends. The

combination of the product and rack should be moved carefully. Quick movements, excessive force or uneven

surfaces may overturn the combination which may damage the product and rack combination.

9. Cleaning. The product should only be cleaned as the manufacturer recommends.

10. Service. The user should only attempt the limited service or upkeep specifically described in the operating

instructions for the user. For any other service required, the product should be taken to an authorized service

center as described in the operating instructions.

11. Damage to the Product. Qualified service personnel should service the unit in certain situations including

without limitation when:

a. Liquid has spilled or objects have fallen into the product,

b. The product is exposed to water or excessive moisture,

c. The AC power supply plug or cord is damaged,

d. The product shows an inappropriate change in performance or does not operate normally, or

e. The enclosure of the product has been damaged.

SPECIFICATION

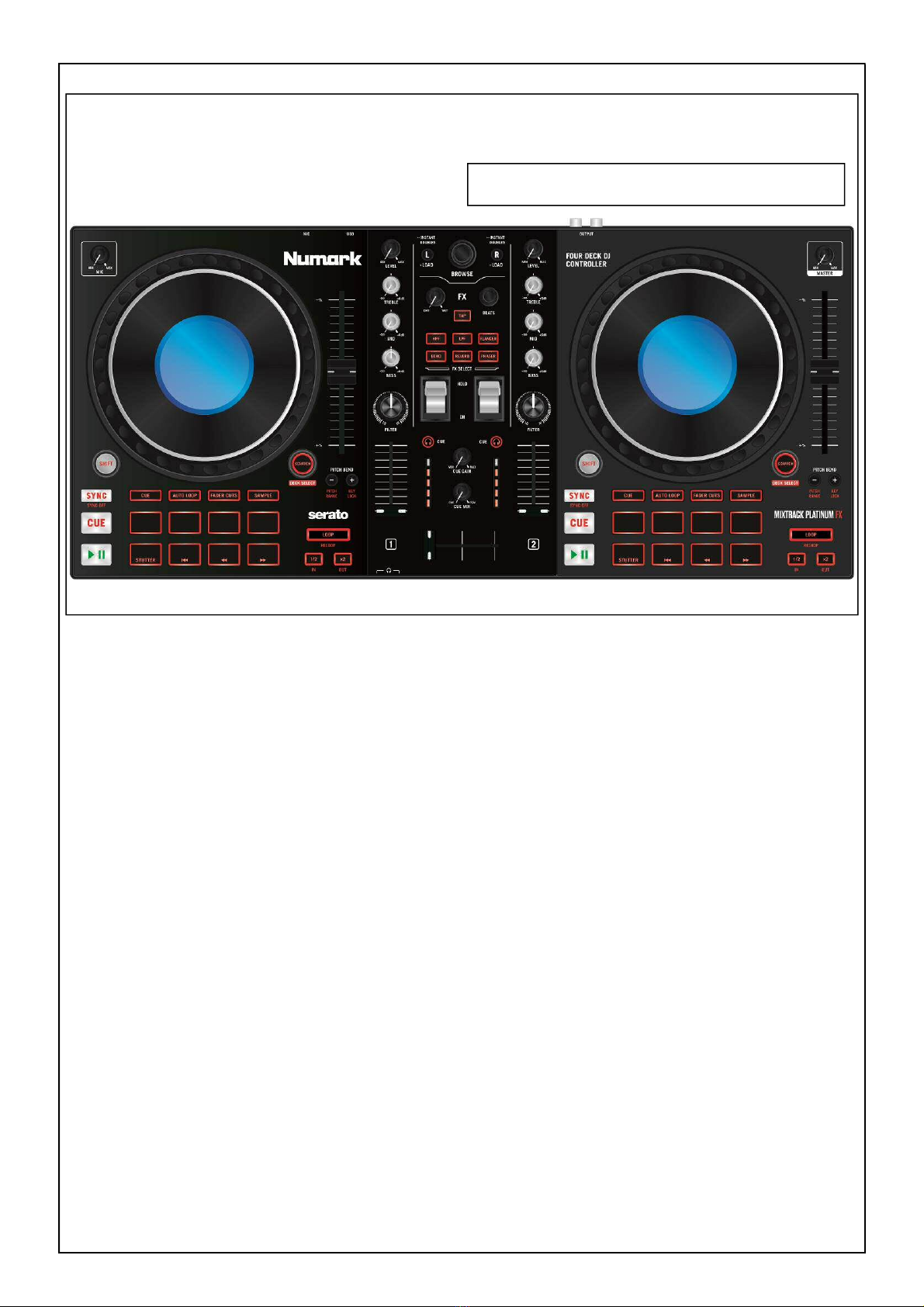

FUNCTION

1. UI Browser-----------------A standard detented encoder with push switch is used to navigate through the software

2. Master Volume------------Controls the gain of the master outputs.

3. Gain-------------------------This pot controls the gain for its associated channel on the mixer.

4. Treble-----------------------This knob controls the high end treble output of its associated channel on the mixer.

5. Mid--------------------------This knob controls the Mid-range frequency of its associated channel on the mixer.

6. Bass--------------------------This knob controls the low end bass frequencies of its associated channel on the mixer.

7. Filter-------------------------This center detented knob acts as a low pass filter from center sweeping left and a high pass

filter from center sweeping right.

8. Channel Fader--------------This is the volume controller for the channel. Channel faders are not user replaceable.

9. Cross Fader-----------------This fader is for transitioning from Left assigned (A) Cross fader Deck Position to Right

assigned (B) Cross fader Position.

10. Channel PFL--------------This button activates the Headphone CUE for its associated channel allowing users to preview

tracks in the Headphone CUE.

11. Software FX---------------These radio style buttons will allow the end-user to have instant access to choose a single

software effect.

12. FX Paddle On/Off--------This is used to activate software FX for the corresponding deck.

13. Software FX Wet/Dry----This knob Adjusts the Wet/Dry of all FX.

14. Beats Multiplier Knob---This pot determines the Time division associated with the selected effect.

15. Tap--------------------------This allows the end-user the ability to manually tap in the tempo of the software effects

engine. SHIFT + returns the tempo to the tracks default BPM.

16. DECK Selector------------This switch will select deck control and focus between decks 1 & 3 on the Left side and 2 & 4

on the right side.

17. Platter/Jog------------------This control sends Relative MIDI data when turned, and when the jog is touched sends a

separate momentary MIDI message.

18. Pitch Fader-----------------This control sends absolute MIDI data.

19. Pitch Bend “-”-------------This momentary button will temporarily increase the play back speed of the track allowing the

user to better align their mix.

Pitch Bend “+”------------This momentary button will temporarily increase the play back speed of the track allowing the

user to better align their mix.

SERVICE MANUAL

MODEL: MIXTRACKPLATINUMFX

20. Sync-----------------------This control sends a momentary MIDI message. This control is used to force the track to align

with the other deck’s tempo and phase. It is up to the software to either hard align or gently

nudge it into place, depending on the Smart or Simple Sync chosen from the settings. The LED

for this control will light when active.

21. Cue Gain------------------adjusts volume of headphone pot.

22. Cue Mix-------------------Selects Master or PFL outputs in the headphones.

23. Loop On/Off--------------Loop On/Off (Tact Switch w/ Amber LEDs) When pressed, activates autoloop on/off. Loop size i

is determined by what is set in the software.

24. ½ Loop--------------------When a loop is active this will decrease the loop size by ½.

When inactive changes the default trigger size.

25. 2x Loop-------------------When a loop is active this will double the loop size.

When off changes the default trigger size.

26. Shift------------------------this button will add/perform secondary functions when another button is pressed while still

holding.

This control will adjust the Input volume of the Microphone.

The Microphone GAIN is summed with the master output of the software.

AUDIO OUTPUT

LINE OUT

OUTPUT LEVEL-------------1.3±0.2Vms(1KHz 0dB)

S/N RATIO---------------------MORE THAN 80dB

CHANNEL SEPARATION--MORE THAN 80dB

HARMONIC DISTORTION-LESS THAN 0.03%

HEADPHONE OUT(Load:32Ω)

OUTPUT LEVEL--------------0.65±0.1Vms(1KHz 0dB)

S/N RATIO--------------------- MORE THAN 80dB

HARMONIC DISTORTION-LESS THAN 0.03%

MIC INPUT(Load:32)

OUTPUT LEVEL--------------1.4±0.2 Vms (1KHz 0dB)

DISASSEMBLY PROCEDURES

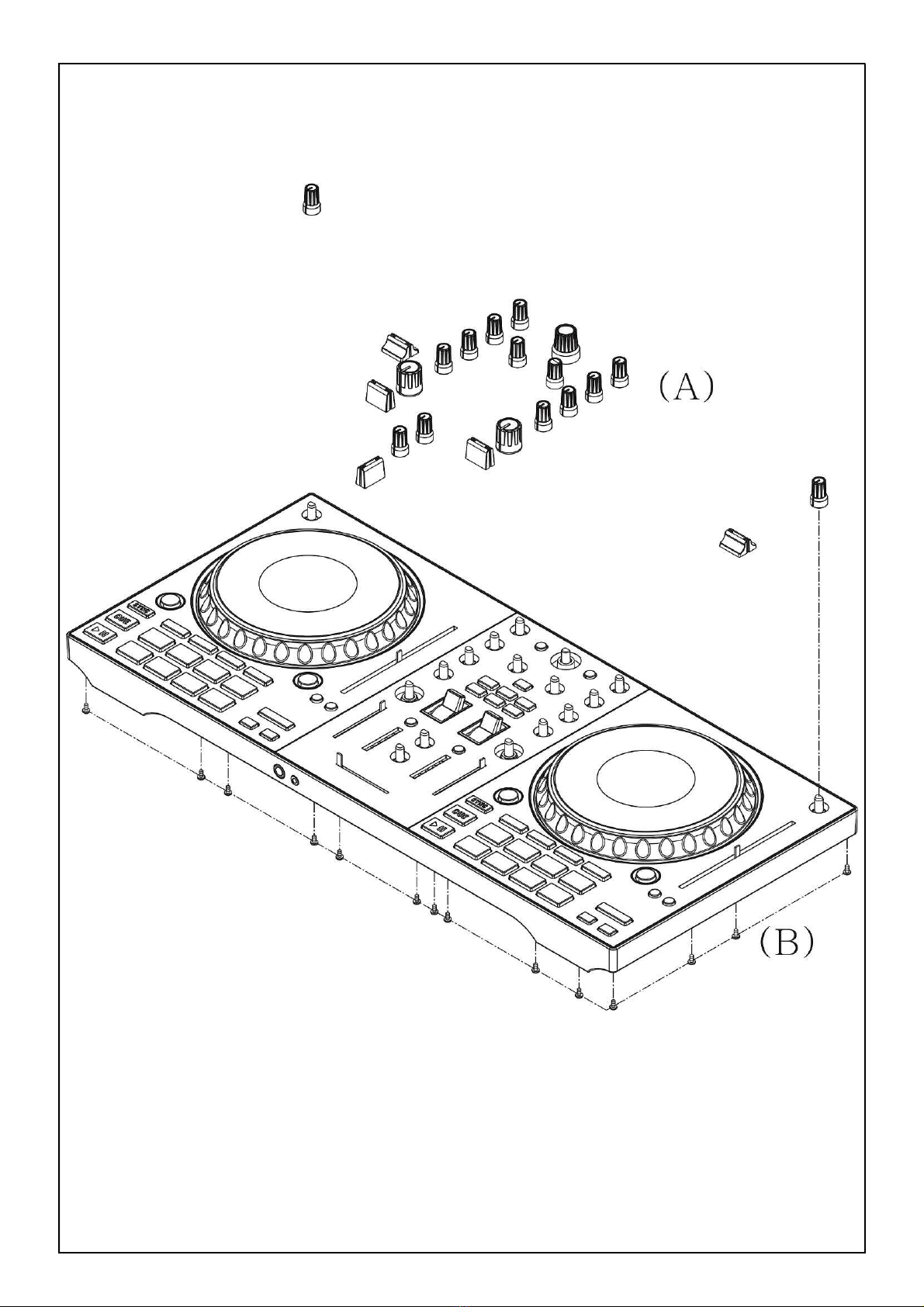

1. REMOVAL OF THE B CABINET .(Fig1)

(A) TAKE OUT THE 5 PCS VR CAP AND 17 PCS KNOB FROM OF CABINET.

(B) TAKE OUT THE 14 PCS SCREWS FROM OF BOTTOM CHASSIS.

Fig.1

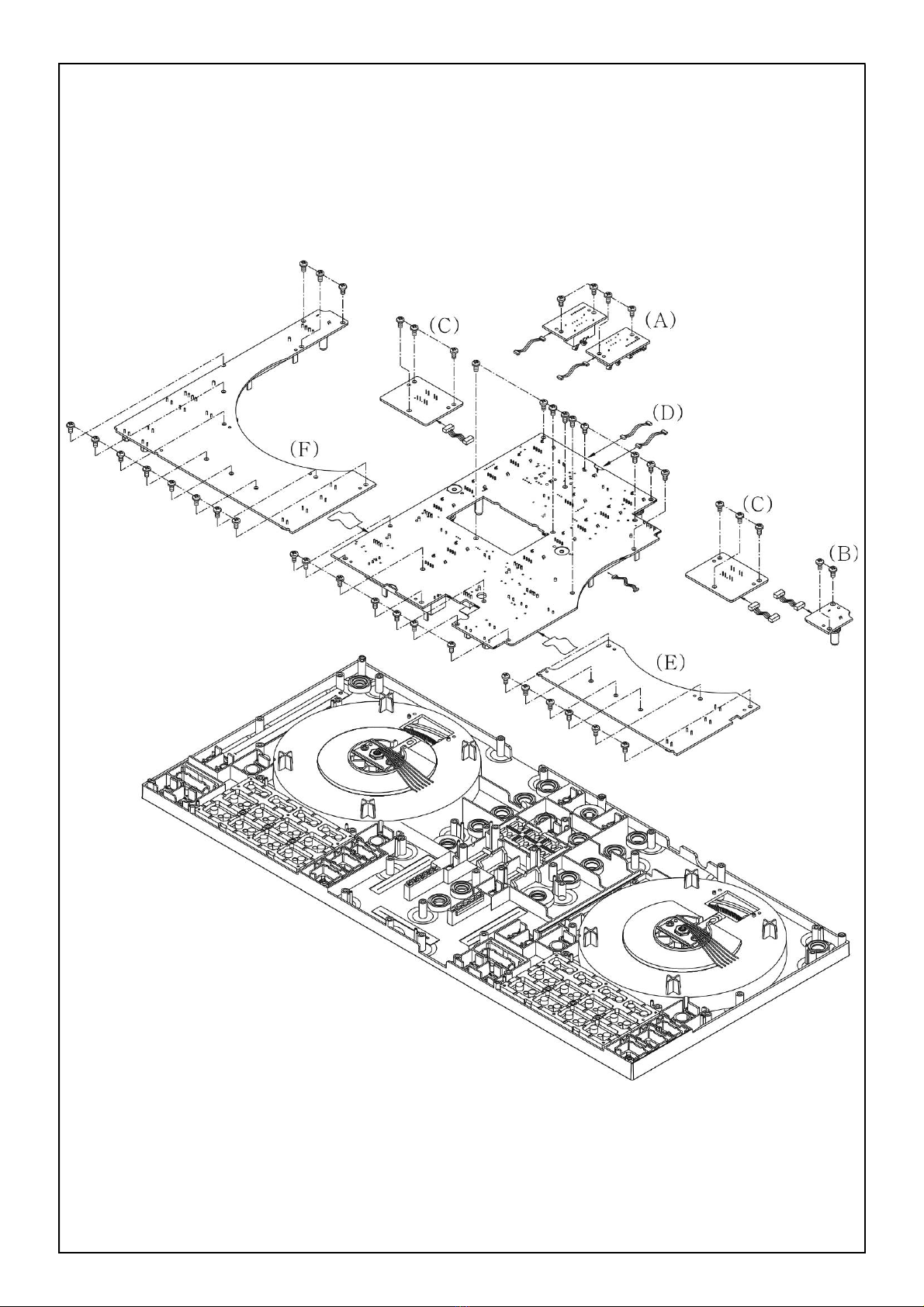

2. REMOVAL PCB ASSEMBLY. (Fig. 2)

(A)REMOVE THE 4 PCS SCREWS AND 2 PCS CONNECTORS BEFORE REMOVAL OF TOGGLE SW PCB DIP ASSEMBLY.

(B)REMOVE THE 2 PCS SCREWS AND 1 PC CONNECTOR BEFORE REMOVAL OF IC VR PCB DIP ASSEMBLY.

(C)REMOVE THE 6 PCS SCREWS AND 2 PCS CONNECTORS BEFORE REMOVAL OF LEFT& RIGHT SENSOR PCB SMT

ASSEMBLY.

(D) REMOVE THE 16 PCS SCREWS AND 5 PCS CONNECTORS BEFORE REMOVAL OF MAIN PCB SMT ASSEMBLY.

(E) REMOVE THE 6 PCS SCREWS BEFORE REMOVAL OF LEFT PAD PCB SMT ASSEMBLY.

(F) REMOVE THE 11 PCS SCREWS BEFORE REMOVAL OF RIGHT PAD PCB SMT ASSEMBLY.

Fig.2

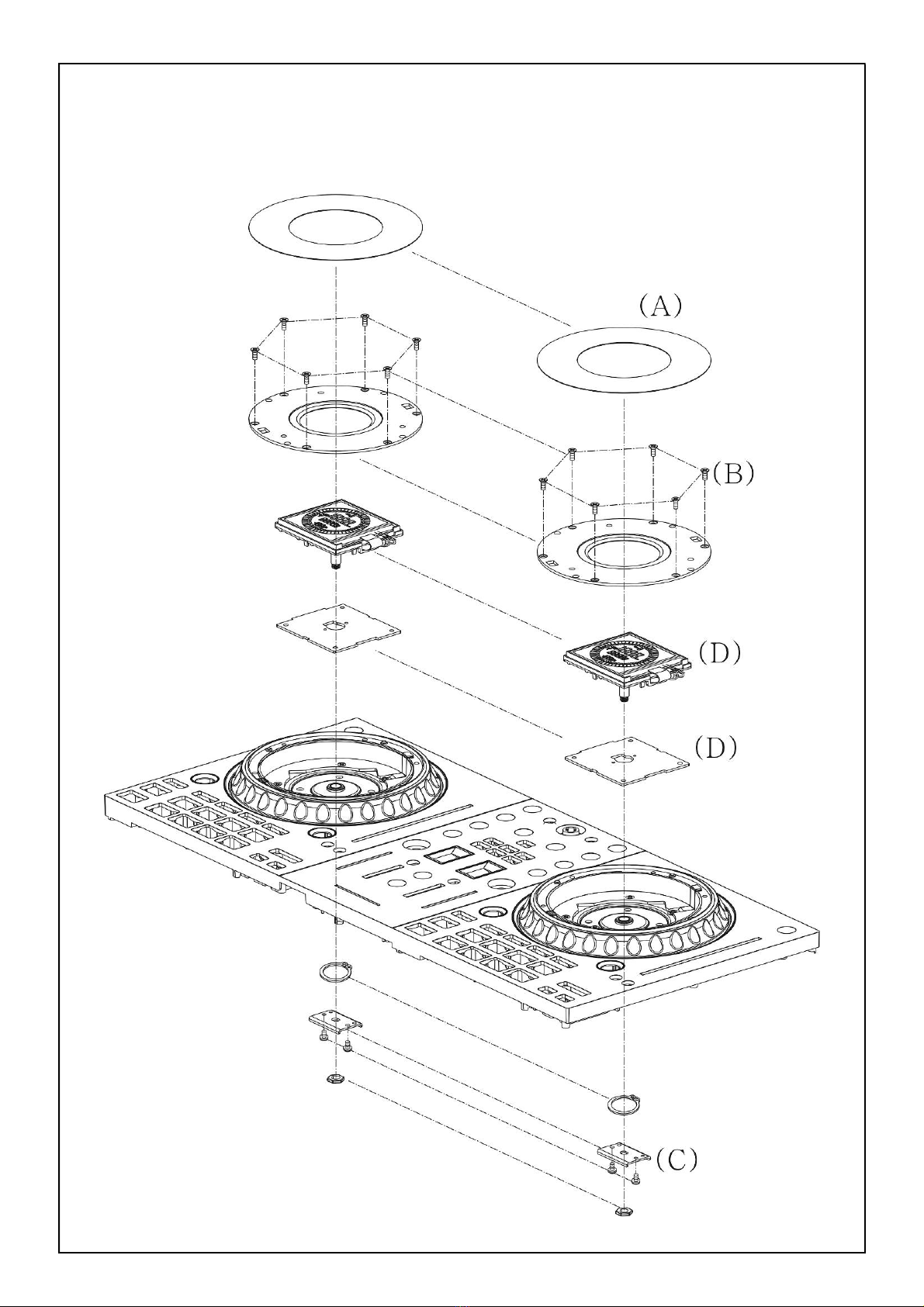

3. REMOVAL OF 3.5 INCH PCB ASSEMBLY. (Fig.3)

(A) TAKE APART THE 2 PCS WHEEL PLATE.

(B) REMOVE THE 12 PCS SCREWS BEFORE REMOVAL OF WHEEL FIXED HOLDER.

HOLDER.

(D) TAKE APART THE 2 PCS TFT HOLDER BEFORE REMOVAL OF 3.5 INCH PCB ASSEMBLY.

Fig.3

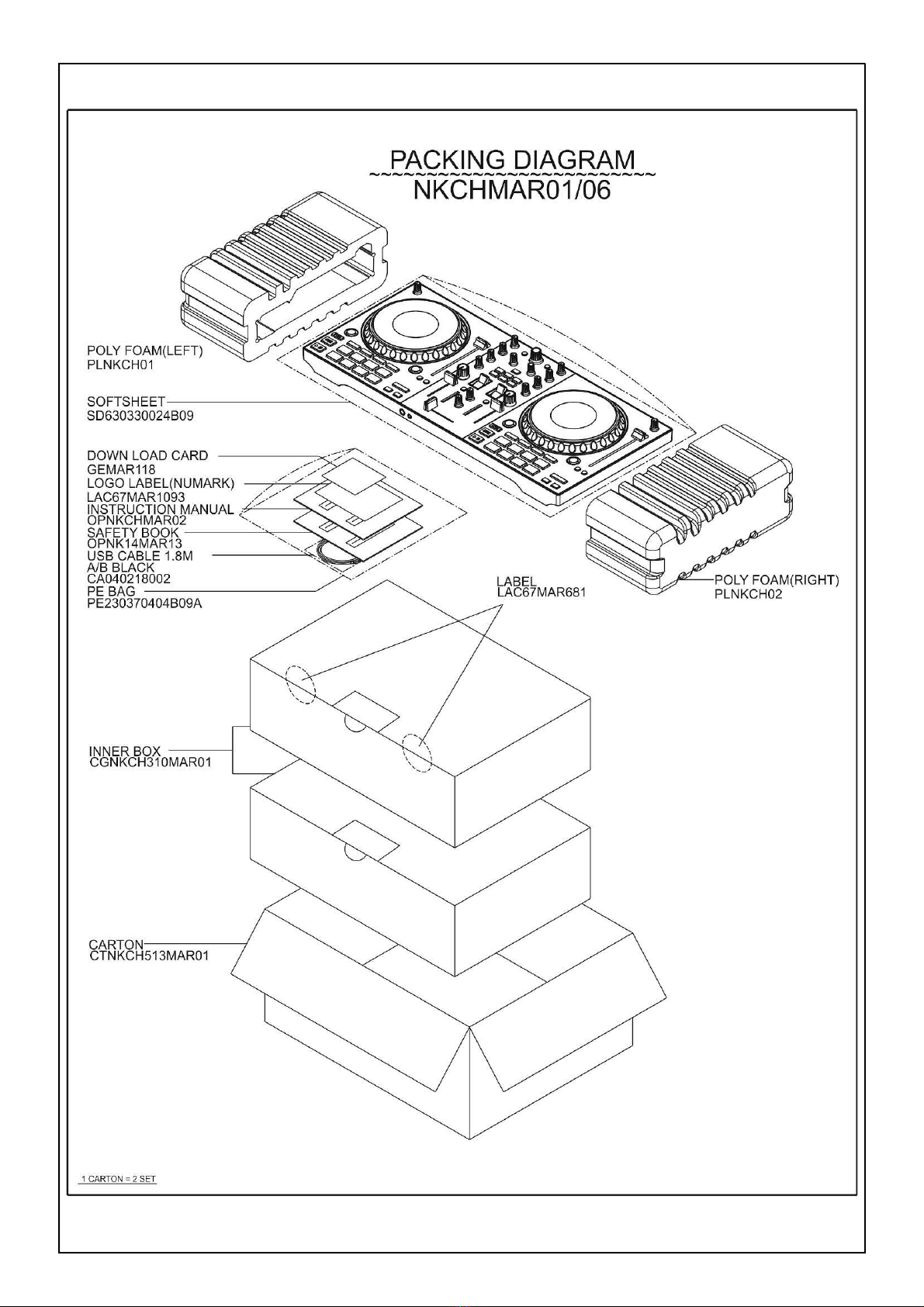

Autres manuels pour MIXTRACK PLATINUM FX

Table des matières

Autres manuels Numark Matériel de DJ

Numark

Numark MIXTRACK PLATINUM FX Manuel utilisateur

Numark

Numark STEALTH CONTROL Manuel d'instructions

Numark

Numark IDJ PRO Manuel utilisateur

Numark

Numark DJio Manuel utilisateur

Numark

Numark PARTY MIX Manuel utilisateur

Numark

Numark OMNI CONTROL Manuel d'instructions

Numark

Numark 4TRAK Manuel utilisateur

Numark

Numark Party Mix Pro Manuel utilisateur

Numark

Numark STEREO iO Manuel utilisateur

Numark

Numark NS7FX Manuel utilisateur

Numark

Numark MIXTRACK PLATINUM FX Manuel utilisateur

Numark

Numark MIXSTREAM PRO Manuel utilisateur

Numark

Numark NV Manuel utilisateur

Numark

Numark iDJ3 Manuel utilisateur

Numark

Numark MIXDECK Manuel utilisateur

Numark

Numark iDJLIVE Manuel utilisateur

Numark

Numark MIX DECK Manuel utilisateur

Numark

Numark Mixtrack Pro Manuel utilisateur

Numark

Numark AXIS 9 Manuel de service

Numark

Numark DXM01 Document technique

Numark

Numark M4 Manuel utilisateur

Numark

Numark PARTY MIX LIVE Manuel utilisateur

Numark

Numark NDX 800 Manuel de l'opérateur

Numark

Numark NDX900 Manuel utilisateur

Manuels Matériel de DJ populaires d'autres marques

ALPHA LITE

ALPHA LITE ALPHA 1500 Manuel du propriétaire

Chauvet

Chauvet OVATION E-930VW Manuel utilisateur

Zumtobel

Zumtobel APHRODITE Home Manuel utilisateur

Snow Masters

Snow Masters Zig Oscillator Manuel utilisateur

EuroLite

EuroLite 50530554 Manuel utilisateur

Beamz

Beamz BUV243 Manuel utilisateur

thomann

thomann Stairville DJ Lase 40-G MK-III Manuel utilisateur

Eagletone

Eagletone 6 Eyes Flower Manuel utilisateur

EuroLite

EuroLite FLD-1508 Manuel utilisateur

Technical Pro

Technical Pro LG8xSEA Manuel utilisateur

JB Systems

JB Systems Lounge Laser DMX Manuel utilisateur

Lightmaxx

Lightmaxx Vega Halo 90 Manuel utilisateur

Elation

Elation FUZE WASH Z350 Manuel utilisateur

Maverick

Maverick MK3 WASH Manuel utilisateur

Infinity

Infinity TF-260C7 Fresnel Manuel utilisateur

Chauvet

Chauvet EVE E-50Z Manuel utilisateur

Eliminator Lighting

Eliminator Lighting E 138 Manuel utilisateur

EuroLite

EuroLite Mini Multicolor LED Flashing Light SC Manuel utilisateur
