NordicTrack NTL15809.1 Manuel utilisateur

www.nordictrack.com

CAUT ON

Read all precautions and instruc-

tions in this manual before using

this equipment. Save this manual

for future reference.

Serial

Number

Decal

Model No. NTL15809.1

Serial No.

Write the serial number in the space

above for reference.

QUEST ONS?

If you have questions, or if parts are

damaged or missing, DO NOT CON-

TACT THE STORE; please contact

Customer Care.

MPORTANT: Please register this

product (see the limited warranty

on the back cover of this manual)

before contacting Customer Care.

CALL TOLL-FREE:

1-888-825-2588

Mon.–Fri. 6 a.m.–6 p.m. MT

Sat. 8 a.m.–4 p.m. MT

ON THE WEB:

www.nordictrackservice.com

USER'S MANUAL

TABLE OF CONTENTS

WARNINGD CALPLAC M NT ..............................................................2

IMPORTANTPR CAUTIONS .................................................................3

B FOR YOUB GIN .......................................................................5

ASS MBLY ...............................................................................6

OP RATIONANDADJUSTM NT ............................................................11

HOWTOFOLDANDMOV TH TR ADMILL ..................................................24

TROUBL SHOOTING ......................................................................25

X RCIS GUID LIN S ...................................................................28

PARTLIST ...............................................................................29

XPLOD DDRAWING .....................................................................31

ORD RINGR PLAC M NTPARTS ..................................................BackCover

LIMIT DWARRANTY...............................................................BackCover

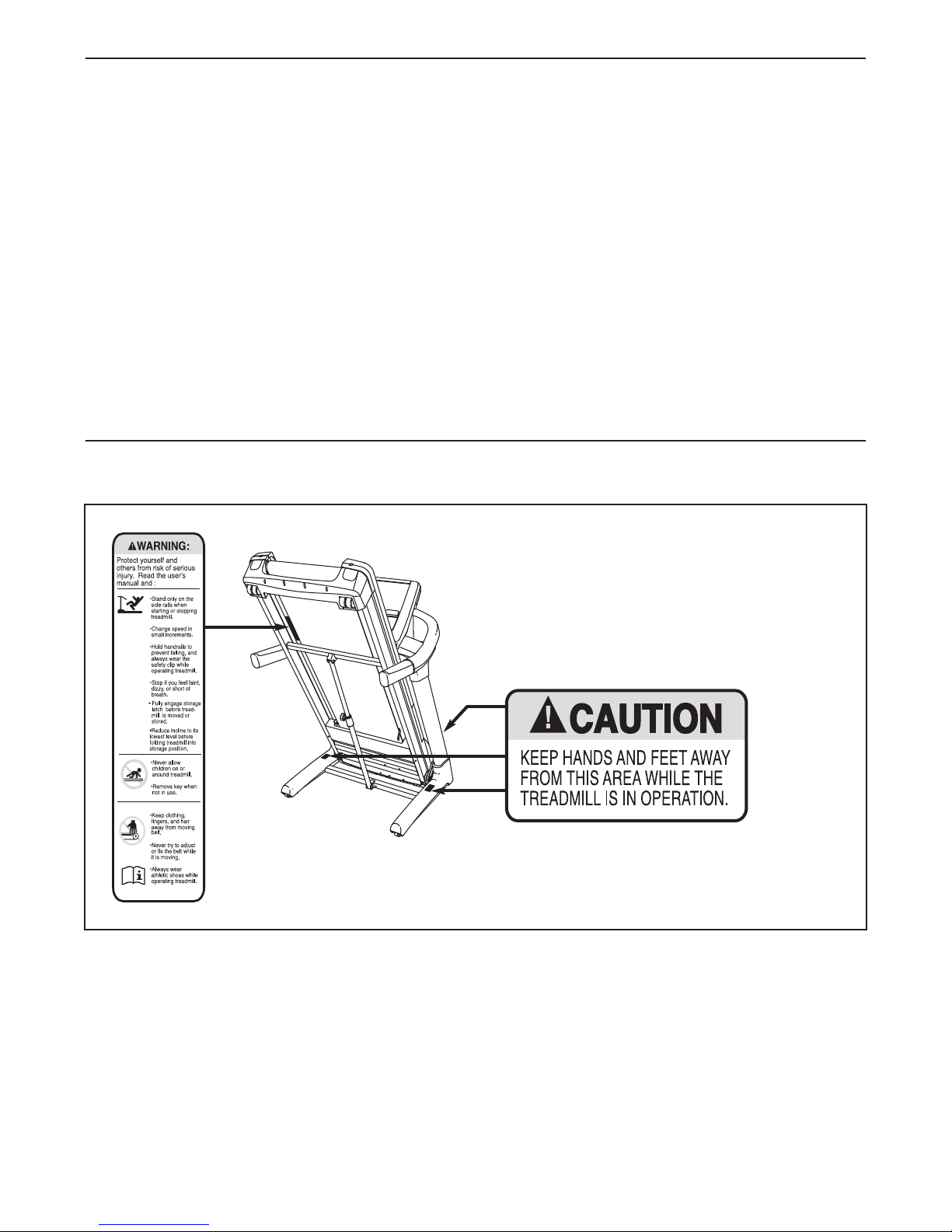

This drawing shows the locations of the warning

decals. f a decal is missing or illegible, call the

telephone number on the front cover of this

manual and request a free replacement decal.

Apply the decal in the location shown. Note:

The decals may not be shown at actual size.

WARN NG DECAL PLACEMENT

NordicTrack is a registered trademark of ICON IP, Inc.

1. Before beginning this or any exercise pro-

gram, consult your physician. This is espe-

cially important for persons over age 35 or

persons with pre-existing health problems.

2. t is the responsibility of the owner to ensure

that all users of this treadmill are adequately

informed of all warnings and precautions.

3. Use the treadmill only as described.

4. Place the treadmill on a level surface, with at

least 8 ft. (2.4 m) of clearance behind it and 2

ft. (0.6 m) on each side. Do not place the

treadmill on any surface that blocks air open-

ings. To protect the floor or carpet from dam-

age, place a mat under the treadmill.

5. Keep the treadmill indoors, away from mois-

ture and dust. Do not put the treadmill in a

garage or covered patio, or near water.

6. Do not operate the treadmill where aerosol

products are used or where oxygen is being

administered.

7. Keep children under age 12 and pets away

from the treadmill at all times.

8. The treadmill should be used only by per-

sons weighing 350 lbs. (159 kg) or less.

9. Never allow more than one person on the

treadmill at a time.

10. Wear appropriate exercise clothes when

using the treadmill. Do not wear loose

clothes that could become caught in the

treadmill. Athletic support clothes are recom-

mended for both men and women. Always

wear athletic shoes. Never use the treadmill

with bare feet, wearing only stockings, or in

sandals.

11. When connecting the power cord (see page

11), plug the power cord into a surge sup-

pressor (not included) and plug the surge

suppressor into a grounded circuit capable

of carrying 15 or more amps. No other appli-

ance should be on the same circuit. Do not

use an extension cord.

12. Use only a single-outlet surge suppressor

that meets all of the specifications described

on page 11. To purchase a surge suppressor,

see your local NordicTrack dealer or call the

telephone number on the front cover of this

manual and order part number 146148, or see

your local electronics store.

13. Failure to use a properly functioning surge

suppressor could result in damage to the

control system of the treadmill. f the control

system is damaged, the walking belt may

slow, accelerate, or stop unexpectedly, which

may result in a fall and serious injury.

14. Keep the power cord and the surge suppres-

sor away from heated surfaces.

15. Never move the walking belt while the power

is turned off. Do not operate the treadmill if

the power cord or plug is damaged, or if the

treadmill is not working properly. (See

TROUBLESHOOT NG on page 25 if the tread-

mill is not working properly.)

16. Read, understand, and test the emergency

stop procedure before using the treadmill

(see HOW TO TURN ON THE POWER on page

13).

17. Never start the treadmill while you are stand-

ing on the walking belt. Always hold the

handrails while using the treadmill.

WARN NG: To reduce the risk of serious injury, read all important precautions and in-

structions in this manual and all warnings on your treadmill before using your treadmill. CON as-

sumes no responsibility for personal injury or property damage sustained by or through the use of

this product.

MPORTANT PRECAUT ONS

18. The treadmill is capable of high speeds.

Adjust the speed in small increments to

avoid sudden jumps in speed.

19. The pulse sensor is not a medical device.

Various factors, including the user's move-

ment, may affect the accuracy of heart rate

readings. The pulse sensor is intended only

as an exercise aid in determining heart rate

trends in general.

20. Never leave the treadmill unattended while it

is running. Always remove the key, unplug

the power cord, and press the power switch

into the off position when the treadmill is not

in use. (See the drawing on page 5 for the lo-

cation of the power switch.)

21. Do not attempt to raise, lower, or move the

treadmill until it is properly assembled. (See

ASSEMBLY on page 6, and HOW TO FOLD

AND MOVE THE TREADM LL on page 24.)

You must be able to safely lift 45 lbs. (20 kg)

to raise, lower, or move the treadmill.

22. Do not change the incline of the treadmill by

placing objects under the treadmill.

23. nspect and properly tighten all parts of the

treadmill regularly.

24. Never insert or drop any object into any

opening on the treadmill.

25. DANGER: Always unplug the power

cord immediately after use, before cleaning

the treadmill, and before performing the main-

tenance and adjustment procedures de-

scribed in this manual. Never remove the

motor hood unless instructed to do so by an

authorized service representative. Servicing

other than the procedures in this manual

should be performed by an authorized service

representative only.

26. The treadmill is intended for in-home use

only. Do not use the treadmill in any commer-

cial, rental, or institutional setting.

27. Over exercising may result in serious injury

or death. f you feel faint or if you experience

pain while exercising, stop immediately and

cool down.

SAVE THESE NSTRUCT ONS

Thank you for selecting the revolutionary NordicTrack®

COMM RCIAL 1750 treadmill. The COMM RCIAL

1750 treadmill offers an impressive selection of fea-

tures designed to make your workouts at home more

enjoyable and effective. And when youʼre not exercis-

ing, the unique treadmill can be folded up, requiring

less than half the floor space of other treadmills.

For your benefit, read this manual carefully before

using the treadmill. If you have questions after read-

ing this manual, please see the front cover of this man-

ual. To help us assist you, note the product model

number and serial number before contacting us. The

model number and the location of the serial number

decal are shown on the front cover of this manual.

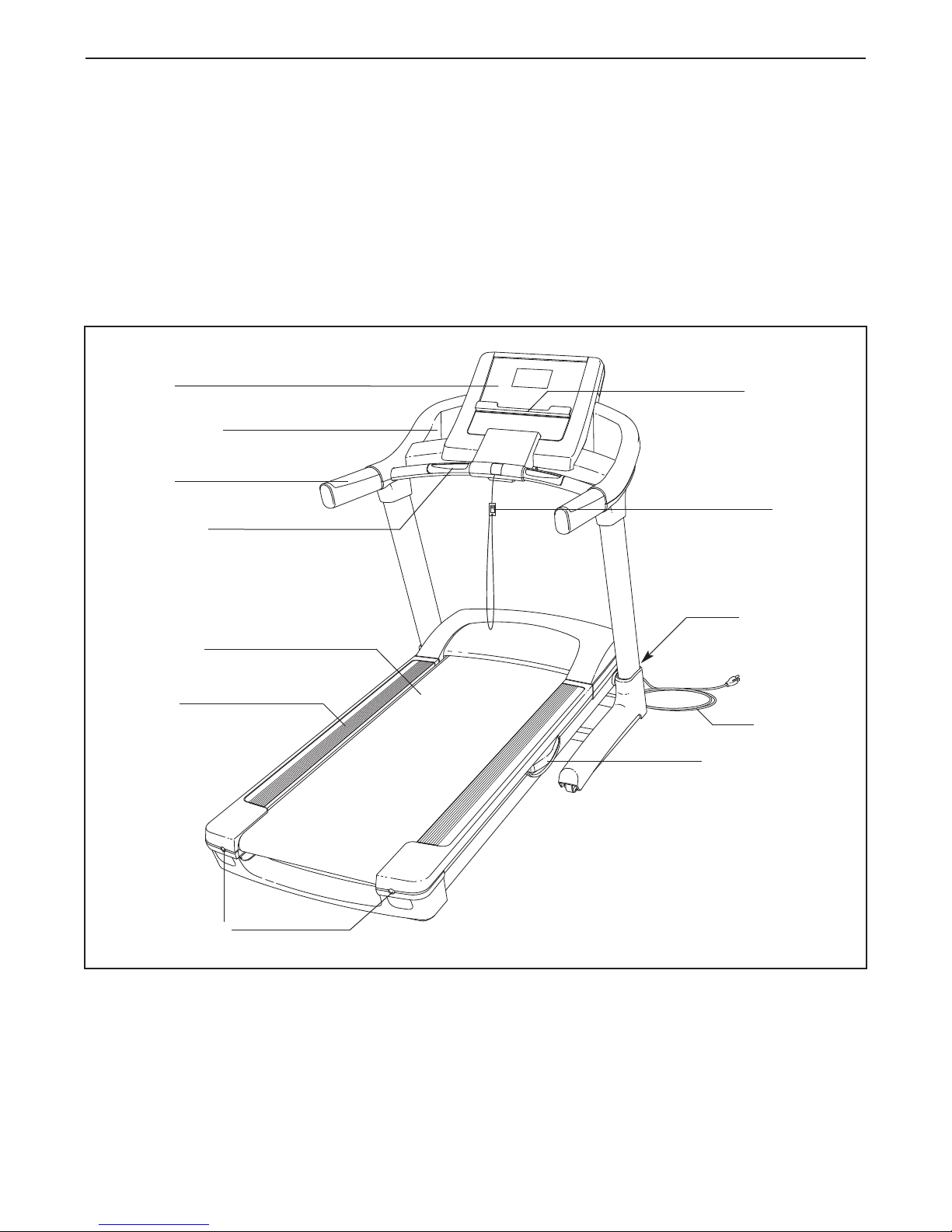

Before reading further, please look at the drawing

below and familiarize yourself with the labeled parts.

BEFORE YOU BEG N

Handrail

Console Book Holder

Key/Clip

Power Switch

Walking Belt

Foot Rail

Power Cord

Adjustable Cushion

Idler Roller

Adjustment Bolts

Accessory Tray

Pulse Sensor

ASSEMBLY

Assembly requires two persons. Set the treadmill in a cleared area and remove all packing materials. Do not

dispose of the packing materials until assembly is completed. Note: The underside of the treadmill walking

belt is coated with high-performance lubricant. During shipping, some lubricant may be transferred to the top of

the walking belt or the shipping carton. This is normal and does not affect performance. If there is lubricant on top

of the walking belt, simply wipe off the lubricant with a soft cloth and a mild, non-abrasive cleaner.

Assembly requires the included hex keys and your own Phillips screwdriver and adjustable

wrench .

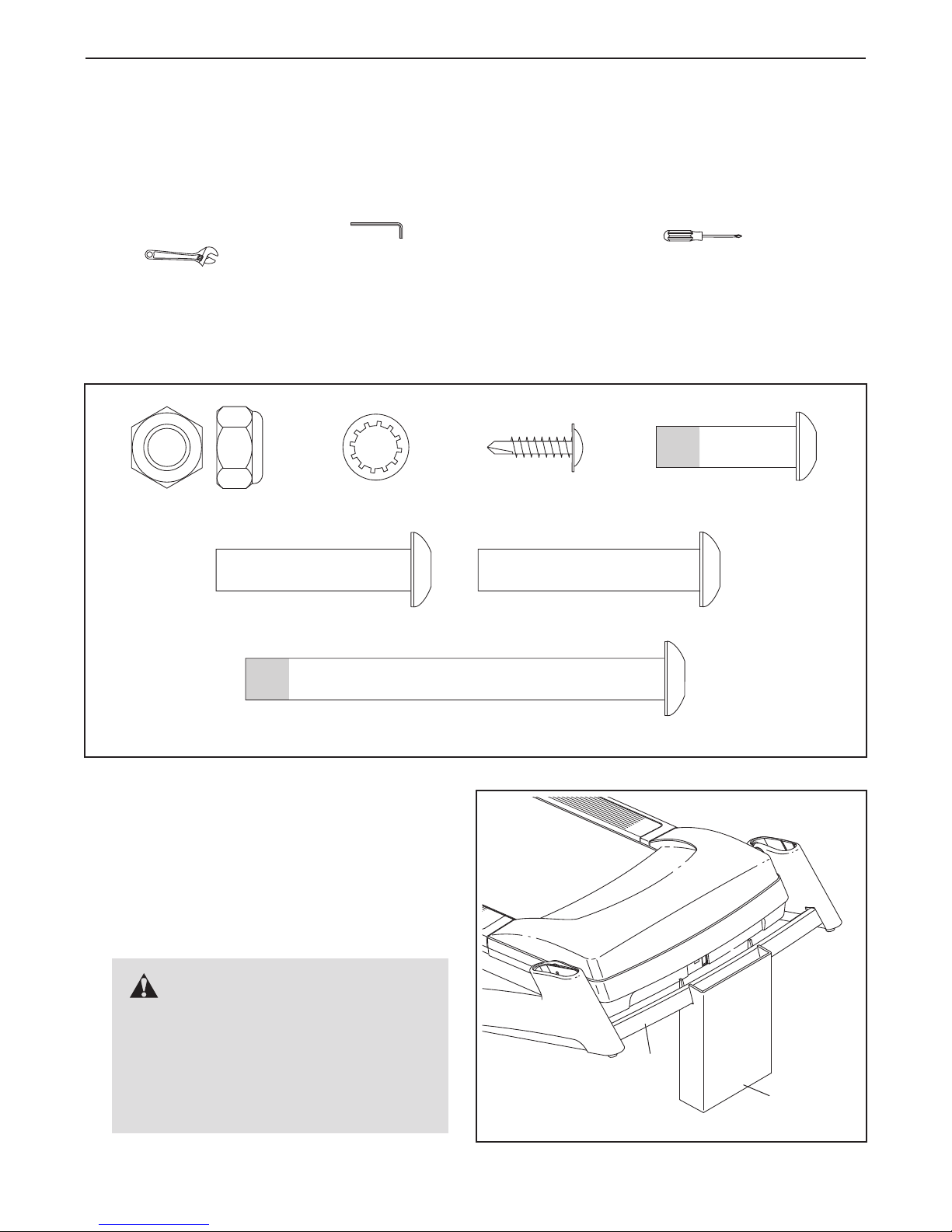

Use the drawings below to identify the assembly hardware. The number in parentheses below each drawing is the

key number of the part, from the PART LIST near the end of this manual. The number after the parentheses is the

quantity needed for assembly. Note: Some small parts may have been pre-assembled. To avoid damaging

parts, do not use power tools for assembly.

3/8" Star Washer

(6)–10

3/8" Jam Nut (7)–2

#8 x 3/4"

Tek Screw (24)–4

3/8" x 3 3/4" Patch Bolt (5)–4

3/8" x 1 1/4"

Patch Bolt (2)–6

3/8" x 2" Bolt (4)–1

3/8" x 1 3/4" Bolt (3)–1

103

Cardboard

Stand

1. Make sure that the power cord is unplugged.

With the help of a second person, raise the front

of the treadmill and insert the crossbar on the

Base (103) into the cutout in the cardboard

stand as shown. Have the second person hold

the treadmill until assembly step 3 to prevent

it from moving forward or backward.

WARN NG: Serious injury

may occur if the treadmill moves for-

ward or backward and falls off the card-

board stand. A second person must

hold the treadmill until assembly step 3

to prevent the treadmill from moving,

tipping, or falling.

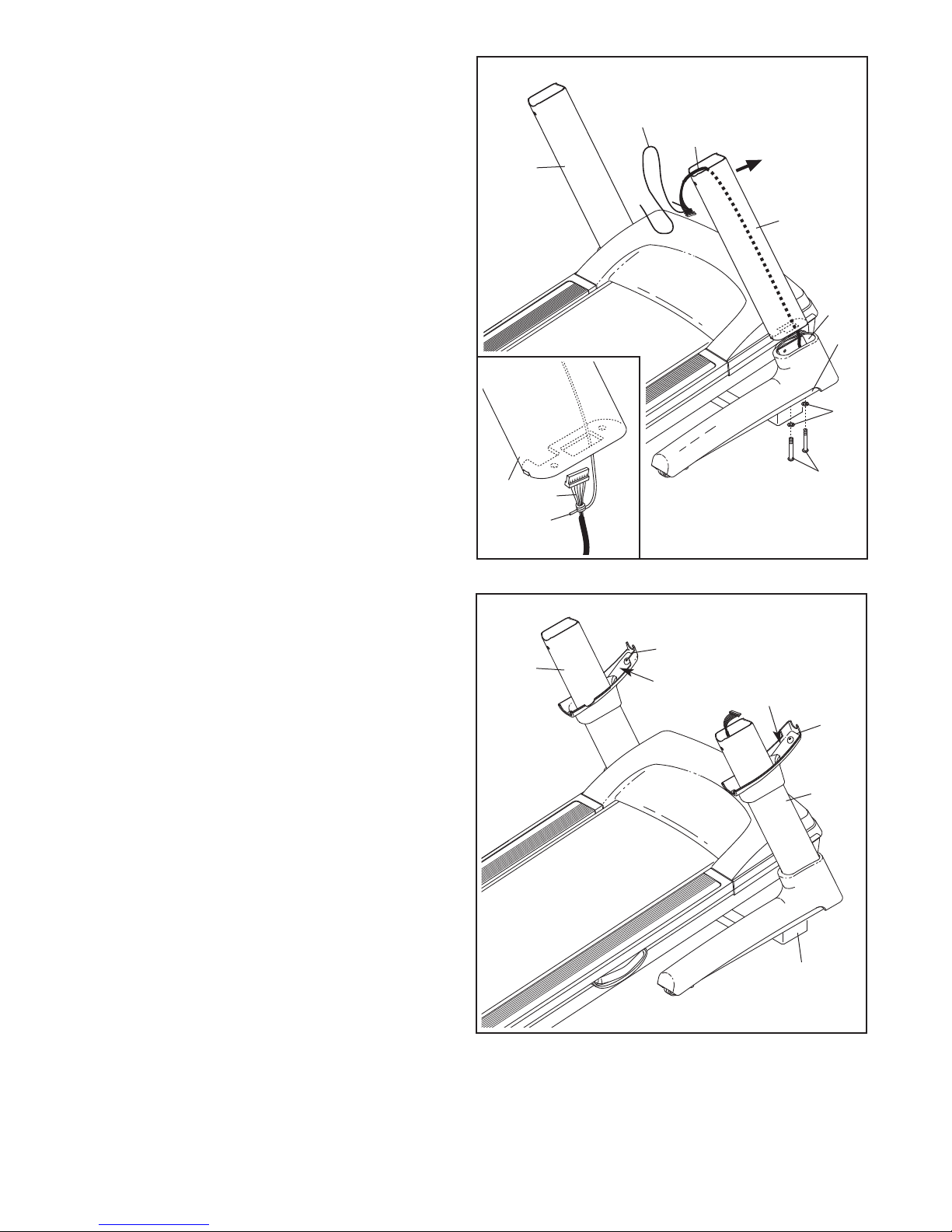

2. Identify the Right Upright (92), which is marked

with a “Right” sticker.

Have a second person hold the Right Upright

(92) near the Right Base Cover (102). See the

inset drawing. Tie the wire tie in the lower end

of the Right Upright securely around the end of

the Upright Wire (93). Then, pull the other end

of the wire tie in the top of the Right Upright until

the Upright Wire is routed through the Right

Upright.

Gently pull up on the Upright Wire (93) as you

set the Right Upright (92) on the Base (103) in-

side the Right Base Cover (102). Be careful not

to pinch the Upright Wire.

Attach the Right Upright (92) to the Base (103)

with two 3/8" x 3 3/4" Patch Bolts (5) and two

3/8" Star Washers (6). Note: It may be neces-

sary to tip the top of the Right Upright forward

slightly as you thread the Patch Bolts into it. Do

not tighten the Patch Bolts yet.

Attach the Left Upright (91) in the same way.

Note: There are no wires on the left side.

103

102

Wire

Tie

Wire

Tie

3. With the help of a second person, lower the

treadmill off the cardboard stand. The stand will

be used again in assembly step 9.

Identify the Right Upright Sleeve (90) and the

Left Upright Sleeve (89), which are labeled

“Right” and “Left.”

Slide the Right Upright Sleeve (90) onto the

Right Upright (92), and slide the Left Upright

Sleeve (89) onto the Left Upright (91).

“Right”

Cardboard

Stand

“Left”

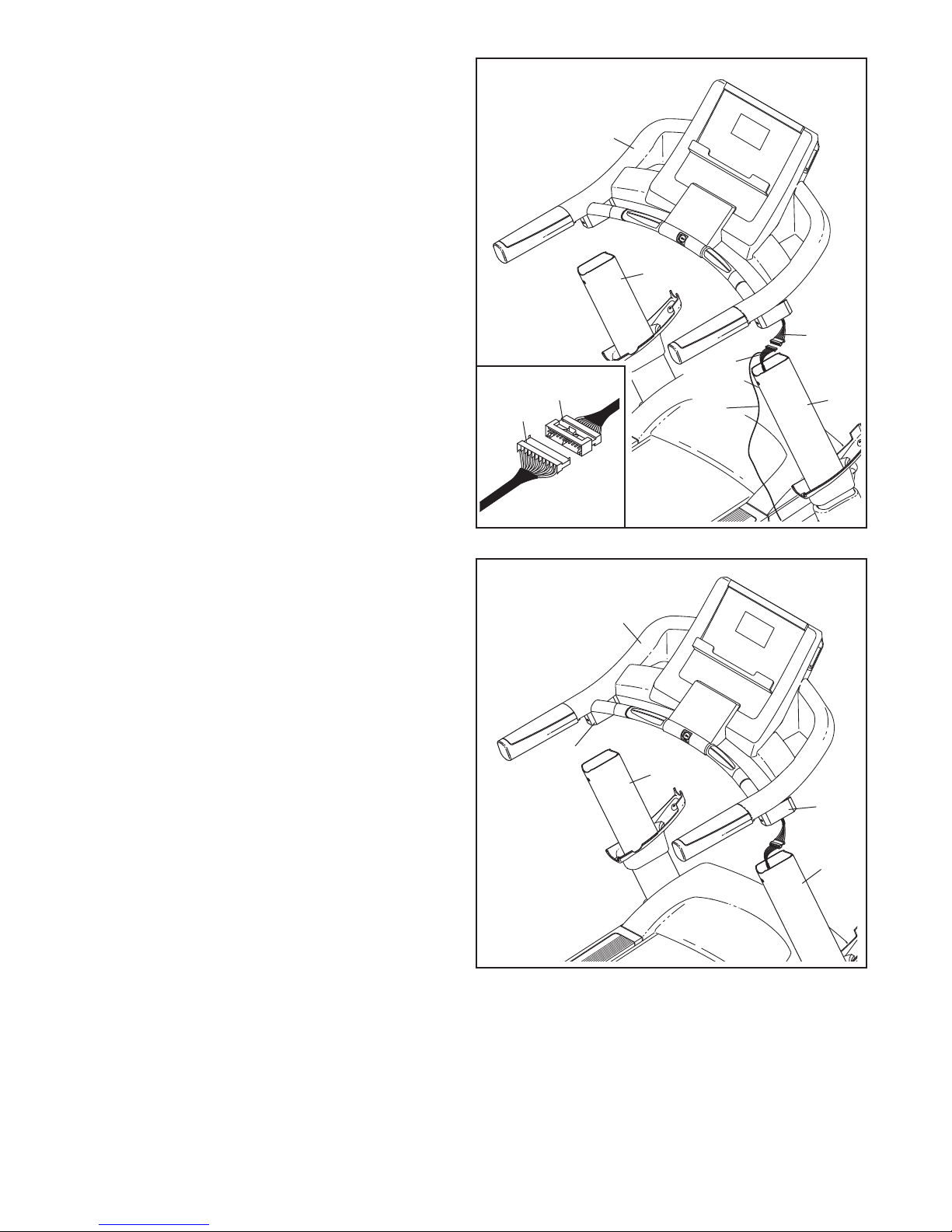

4. Have a second person hold the console assem-

bly near the Uprights (91, 92).

Connect the Upright Wire (93) to the Console

Wire (114). See the inset drawing. The con-

nectors should slide together easily and

snap into place. If they do not, turn one con-

nector and try again. F YOU DO NOT CON-

NECT THE CONNECTORS PROPERLY, THE

CONSOLE MAY BECOME DAMAGED WHEN

YOU TURN ON THE POWER. Remove the wire

tie from the Upright Wire. Insert the connectors

down into the Right Upright (92).

114

Console

Assembly

114 Wire

Tie

5. Insert the brackets on the Handrail (110) into the

Uprights (91, 92). Make sure that no wires are

pinched.

110

Console

Assembly

110

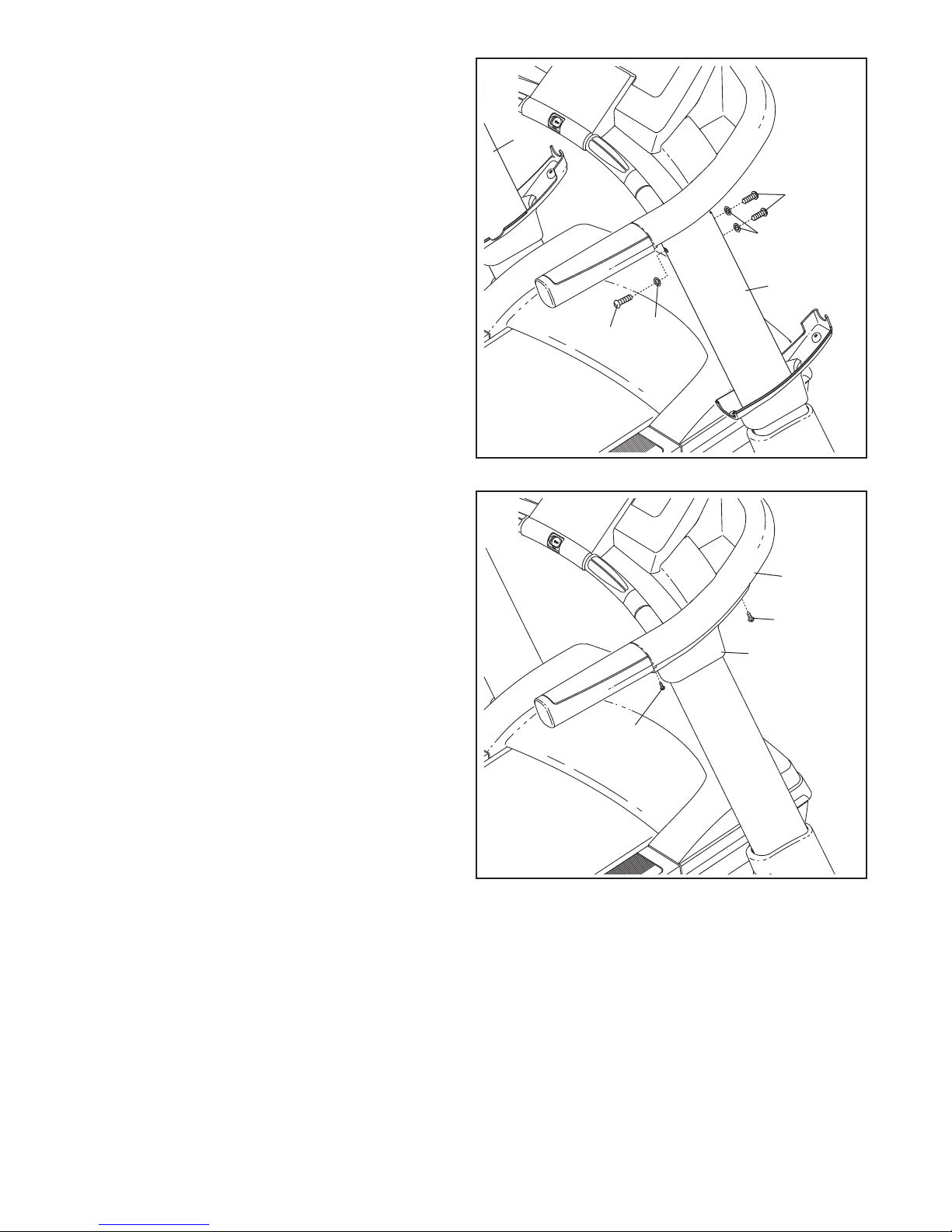

6. Partially tighten three 3/8" x 1 1/4" Patch Bolts

(2) with three 3/8" Star Washers (6) into the

Right Upright (92); do not fully tighten the

Patch Bolts yet.

Repeat this step with the Left Upright (91).

Firmly tighten all six 3/8" x 1 1/4" Patch Bolts

(2).

7. Slide the Right Upright Sleeve (90) up against

the console assembly. Attach the Right Upright

Sleeve with two #8 x 3/4" Tek Screws (24).

Attach the Left Upright Sleeve (not shown) to

the console assembly in the same way.

Console

Assembly

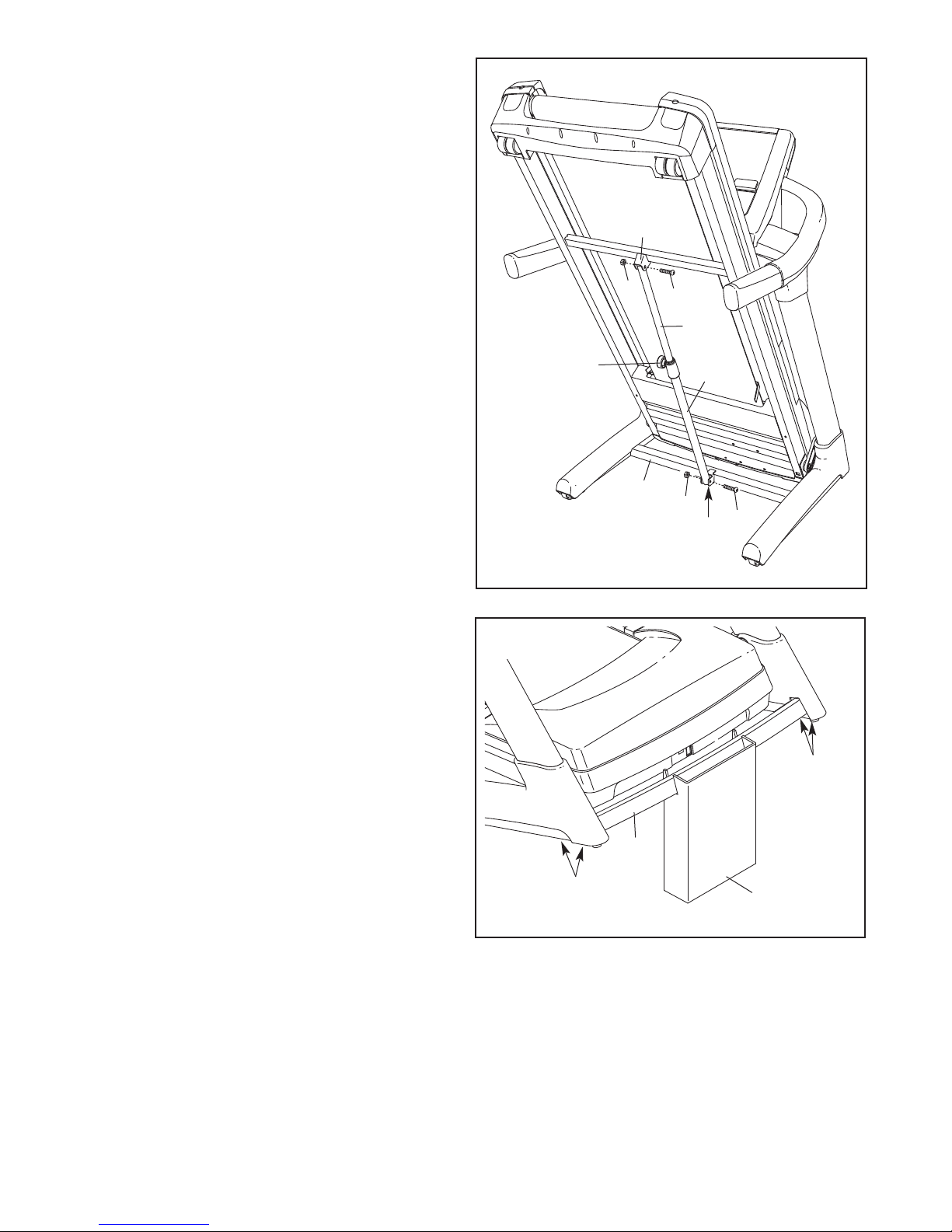

8. Raise the Frame (67) to the position shown.

Have a second person hold the Frame until

this step is completed.

Orient the Storage Latch (87) so that the large

barrel and the latch knob are in the positions

shown.

Remove the tie from the upper end of the

Storage Latch (87). Attach the upper end of the

Storage Latch to the bracket on the Frame (67)

with a 3/8" x 1 3/4" Bolt (3) and a 3/8" Jam Nut

(7).

Remove the tie from the lower end of the

Storage Latch (87). Keep the holes in the latch

cap aligned with the holes in the Storage Latch.

Make sure to keep the latch cap inside the

Storage Latch. Attach the Storage Latch to the

bracket on the Base (103) with a 3/8" x 2" Bolt

(4) and a 3/8" Jam Nut (7). Note: It may be nec-

essary to move the Frame (67) back and forth

slightly to align the Storage Latch with the

bracket.

Lower the Frame (67) (see HOW TO LOW R

TH TR ADMILL FOR US on page 24).

Large

Barrel

103

10. Make sure that all parts are properly tightened before you use the treadmill. Keep the included hex keys

in a secure place; one of the hex keys is used to adjust the walking belt (see pages 26 and 27). To protect

the floor or carpet from damage, place a mat under the treadmill. Extra hardware may be included.

9. With the help of a second person, raise the

front of the treadmill and insert the crossbar on

the Base (103) into the cutout in the cardboard

stand as shown. Have the second person

hold the treadmill to prevent it from moving

forward or backward.

Firmly tighten the four 3/8" x 3 3/4" Patch Bolts

(5).

With the help of the second person, lower the

treadmill off the cardboard stand.

Cardboard

Stand

103

Latch

Knob

Latch

Cap

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels NordicTrack tapis roulant

NordicTrack

NordicTrack NETL15900 Manuel utilisateur

NordicTrack

NordicTrack C900 Pro Manuel utilisateur

NordicTrack

NordicTrack Ex 3300 Treadmill Manuel utilisateur

NordicTrack

NordicTrack EXP 1000i NTTL09901 Manuel utilisateur

NordicTrack

NordicTrack T 12.2 Treadmill Guide de l'utilisateur

NordicTrack

NordicTrack C3000 Treadmill Manuel d'utilisation et d'entretien

NordicTrack

NordicTrack A2350 Manuel utilisateur

NordicTrack

NordicTrack NTL29105.0 Manuel utilisateur

NordicTrack

NordicTrack EXP 2000i NTTL11902 Manuel utilisateur

NordicTrack

NordicTrack T25.0 Treadmill Manuel utilisateur

NordicTrack

NordicTrack X7i Incline Trainer Manuel utilisateur

NordicTrack

NordicTrack NTL12941 Manuel utilisateur

NordicTrack

NordicTrack 19.0 Treadmill Manuel utilisateur

NordicTrack

NordicTrack E 3200 Manuel du système

NordicTrack

NordicTrack ViewPoint 2800 30602.0 Manuel utilisateur

NordicTrack

NordicTrack Ex 3300 Treadmill Guide de l'utilisateur

NordicTrack

NordicTrack NTL08010.0 Manuel utilisateur

NordicTrack

NordicTrack ELITE 1400 Manuel utilisateur

NordicTrack

NordicTrack Elite 9500 Treadmill Manuel utilisateur

NordicTrack

NordicTrack T 17.2 Treadmill Manuel d'utilisation et d'entretien

NordicTrack

NordicTrack C2300 NTL12905.5 Manuel utilisateur

NordicTrack

NordicTrack NTL14951 Manuel utilisateur

NordicTrack

NordicTrack T 9.2 Treadmill Guide de démarrage rapide

NordicTrack

NordicTrack T 12.2 Treadmill Manuel utilisateur

Manuels tapis roulant populaires d'autres marques

Treadly

Treadly TREADLY 2 Manuel utilisateur

HEALTH ONE

HEALTH ONE Walk Ro Manuel utilisateur

Gold's Gym

Gold's Gym ADVANTAGE GGTL12920 Manuel utilisateur

Merax

Merax MS282992 Manuel utilisateur

FYTTER

FYTTER RU-2SX Manuel utilisateur

Precor

Precor 903 Manuel utilisateur

FitLogic

FitLogic freewill d225 Manuel utilisateur

HOP-SPORT

HOP-SPORT ESTIMA HS-3200LB Manuel utilisateur

Horizon Fitness

Horizon Fitness Adventure 5 Plus Manuel utilisateur

Stamia

Stamia InMotion II Manuel utilisateur

Smooth Fitness

Smooth Fitness EVO 3i Manuel utilisateur

Schwinn

Schwinn 830/Journey 8.0 Manuel utilisateur

Keys Fitness

Keys Fitness HealthTrainer HT-740T Manuel utilisateur

Spirit

Spirit XT8 Manuel utilisateur

Master

Master F22 Manuel utilisateur

Precor

Precor PRECISION SERIES Manuel technique

Horizon Fitness

Horizon Fitness DT680 Manuel utilisateur

Matrix

Matrix T130 XI Manuel utilisateur
