Required mounting parts:

Dear customer,

The NH-D9L is a premium grade dual tower CPU cooler that has

been designed to provide excellent quiet cooling performance

at a height of only 110mm. Its comparably low profile (15mm

lower than classic 9cm tower coolers such as the NH-U9S)

doesn’t only guarantee full 3U compliance but also makes the

NH-D9L ideal for compact HTPC and Small Form Factor cases.

Enjoy your NH-D9L!

Yours sincerely,

Roland Mossig, Noctua CEO

This manual will guide you through the installation process of the

SecuFirm2™ mounting system step by step.

Prior to installing the cooler, please consult the compatibility list

on our website (www.noctua.at/compatibility) and verify that

the cooler is fully compatible with your motherboard.

Should you encounter any difficulties, please check the FAQs on

our website (www.noctua.at/faqs) and don’t hesitate to contact

our support team at support@noctua.at.

Noctua cannot be held responsible for any damage or losses

caused by compatibility issues.

Multilingual versions of this manual are available on our

website: www.noctua.at/manuals

Removing the mainboard

In case you want to use the cooler on an assembled system and

your case doesn’t have a cut-out at the rear side of the mainboard

tray, you first have to remove the mainboard from the case in

order to be able to install the supplied backplate.

Step 1

2x NM-IMB2 Mounting Bars1x NM-IBP2 Backplate

4x NM-ITS1 Thumbscrews4x NM-IPS1 Spacers

Place the backplate on the rear side of the mainboard so that the

bolts stick through the mounting holes.

Caution: Please make sure that the three cut-outs in the

supplied backplate align with the screws of the mainboard’s stock

backplate.

Installing the mounting bars

Caution: Choose the alignment of the mounting bars according to

the desired final orientation of the cooler:

Step 3

First put the plastic spacers onto the bolts of the backplate, then

add the mounting bars.

Attaching the backplate

Caution: The supplied backplate will install over the mainboard’s

stock backplate, so the mainboard’s stock backplate must not be

taken off.

Step 2

Orientation A Orientation B

Noctua NH-D9L | Installation Manual | LGA115x

LGA115x

Caution: Make sure that the curved sides of the mounting bars are

pointing outwards.

Fix the mounting bars using the 4 thumb screws.

Caution: Gently tighten the screws until they stop, but don’t use

excessive force.

Applying thermal paste

If there are residual traces of thermal paste or thermal pads on

your CPU, please clean them off first. Then press a small drop

(4-5mm diameter) of NT-H1 onto the centre of the heatspreader.

Step 4

Caution: Applying too much thermal paste will lower heat

conductivity and cooling performance!

Then put the heatsink onto the CPU and screw it to the screw

threads of the mounting bars.

Caution: Tighten the screws until they stop.

Noctua NH-D9L | Installation Manual | LGA115x

LGA115x

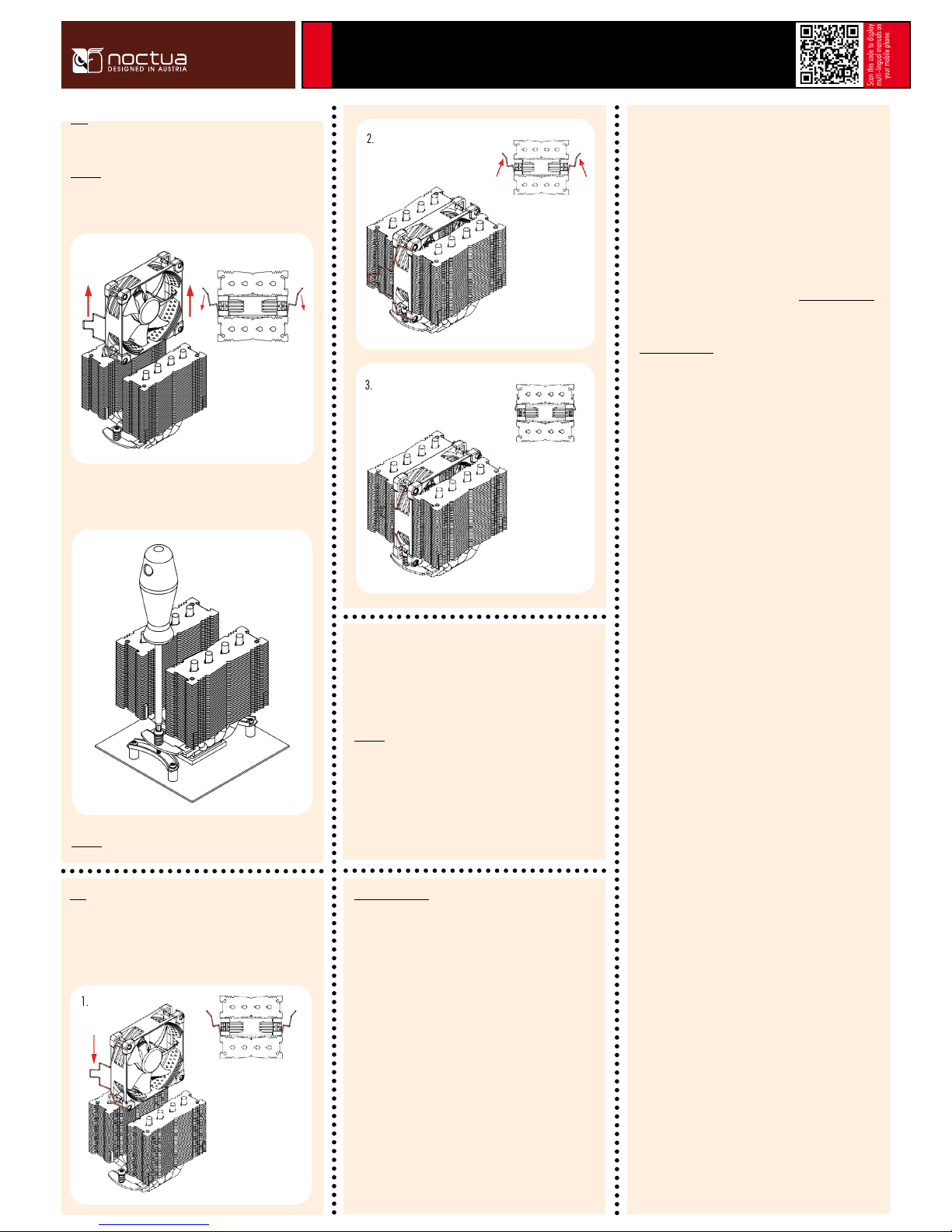

Fastening the heatsink to the CPU

Caution: Please first take off the fan and the cardboard between

the fan and the fins as well as the protection cover at the bottom

side of the heatsink.

Step 5

Fan Setup

Step 6

Reattach the centre fan using the supplied steel clips:

Connect the fan to the mainboard’s CPU fan header. Depending

on your CPU and the temperature inside the case, you may

interconnect the supplied NA-RC7 Low-Noise Adaptors (L.N.A.)

in order to further reduce the fans’ operating noise.

Caution: When using the L.N.A., check the temperature of your

CPU using appropriate software (e.g. the respective applications

of your mainboard manufacturer), in order to evade automatic

throttling of the CPU due to the increased temperature. If the

cooling performance is insufficient, please increase case

ventilation or remove the L.N.A.

Even with high-grade products and strict quality control, the

possibility of defects cannot be eliminated entirely. Therefore,

we aim at providing the highest possible level of reliability and

convenience by offering a warranty period of 6 years and direct,

fast and straightforward RMA service.

Should you encounter any problems with your NH-D9L, please

don’t hesitate to contact our support team ([email protected]).

Please also consult the FAQ section on our website:

www.noctua.at/faqs.

Warranty, Support and FAQs

Adding a second fan

The NH-D9L includes an extra set of fan clips and anti-vibration

strips for installing a second NF-A9 fan to the front fin stack in

push/pull mode in order to further improve cooling performance.

The y-cable supplied with the retail NF-A9 fan can be used to

control the speed of both fans via the same mainboard fan header.

Installing the mounting bars

First screw the NM-IBT2 bolts into the screw threads of the

LGA2011 socket frame.

Step 1

Then put the NM-IMB2 mounting-bars onto the bolts.

Caution: Make sure that the curved sides of the mounting bars are

pointing outwards.

Noctua NH-D9L | Installation Manual | LGA2011

LGA2011

Caution: Choose the alignment of the mounting bars according to

the desired final orientation of the cooler:

Orientation A Orientation B

Fix the mounting bars using the 4 thumb screws.

Caution: Gently tighten the screws until they stop, but don’t use

excessive force.

Required mounting parts:

Dear customer,

The NH-D9L is a premium grade dual tower CPU cooler that has

been designed to provide excellent quiet cooling performance

at a height of only 110mm. Its comparably low profile (15mm

lower than classic 9cm tower coolers such as the NH-U9S)

doesn’t only guarantee full 3U compliance but also makes the

NH-D9L ideal for compact HTPC and Small Form Factor cases.

Enjoy your NH-D9L!

Yours sincerely,

Roland Mossig, Noctua CEO

This manual will guide you through the installation process of the

SecuFirm2™ mounting system step by step.

Prior to installing the cooler, please consult the compatibility list

on our website (www.noctua.at/compatibility) and verify that

the cooler is fully compatible with your motherboard.

Should you encounter any difficulties, please check the FAQs on

our website (www.noctua.at/faqs) and don’t hesitate to contact

our support team at support@noctua.at.

Noctua cannot be held responsible for any damage or losses

caused by compatibility issues.

Multilingual versions of this manual are available on our

website: www.noctua.at/manuals

2x NM-IMB2 Mounting Bars

4x NM-ITS1 ThumbscrewsNM-IBT2 Bolts

Applying thermal paste

If there are residual traces of thermal paste or thermal pads on

your CPU, please clean them off first. Then press a small drop

(4-5mm diameter) of NT-H1 onto the centre of the heatspreader.

Step 2

Caution: Applying too much thermal paste will lower the heat

conductivity and cooling performance!

Noctua NH-D9L | Installation Manual | LGA2011

LGA2011

Then put the heatsink onto the CPU and screw it to the screw

threads of the mounting bars.

Caution: Tighten the screws until they stop.

Fastening the heatsink to the CPU

Caution: Please first take off the fan and the cardboard between

the fan and the fins as well as the protection cover at the bottom

side of the heatsink.

Step 3

Fan Setup

Step 4

Reattach the centre fan and, optionally, install the second fan (in

grey) using the supplied steel clips:

Even with high-grade products and strict quality control, the

possibility of defects cannot be eliminated entirely. Therefore,

we aim at providing the highest possible level of reliability and

convenience by offering a warranty period of 6 years and direct,

fast and straightforward RMA service.

Should you encounter any problems with your NH-D9L, please

don’t hesitate to contact our support team ([email protected]).

Please also consult the FAQ section on our website:

www.noctua.at/faqs.

Warranty, Support and FAQs

Connect the fan to the mainboard’s CPU fan header. Depending

on your CPU and the temperature inside the case, you may

interconnect the supplied NA-RC7 Low-Noise Adaptors (L.N.A.)

in order to further reduce the fans’ operating noise.

Caution: When using the L.N.A., check the temperature of your

CPU using appropriate software (e.g. the respective applications

of your mainboard manufacturer), in order to evade automatic

throttling of the CPU due to the increased temperature. If the

cooling performance is insufficient, please increase case

ventilation or remove the L.N.A.

Adding a second fan

The NH-D9L includes an extra set of fan clips and anti-vibration

strips for installing a second NF-A9 fan to the front fin stack in

push/pull mode in order to further improve cooling performance.

The y-cable supplied with the retail NF-A9 fan can be used to

control the speed of both fans via the same mainboard fan header.

Attaching the mounting bars

First put the plastic spacers onto the screw threads, then fix the

mounting bars using the 4 long screws.

Step 2

Caution: The SecuFirm2™ mounting system requires a back-

plate, which is preinstalled on most AMD mainboards. If your

mainboard doesn’t have a backplate, please contact our support

team at support@noctua.at.

Removing the retention module

If your mainboard uses a retention module for CPU cooler instal-

lation, please remove it first. The SecuFirm2™ mounting system

will install directly to your mainboard’s stock backplate on the rear

side of the socket.

Step 1

AMD stock backplate

Noctua NH-D9L | Installation Manual | AMD

AMD

Caution: Tighten the screws until they stop.

Caution: Make sure that the curved sides of the mounting bars are

pointing outwards.

Required mounting parts:

Dear customer,

The NH-D9L is a premium grade dual tower CPU cooler that has

been designed to provide excellent quiet cooling performance

at a height of only 110mm. Its comparably low profile (15mm

lower than classic 9cm tower coolers such as the NH-U9S)

doesn’t only guarantee full 3U compliance but also makes the

NH-D9L ideal for compact HTPC and Small Form Factor cases.

Enjoy your NH-D9L!

Yours sincerely,

Roland Mossig, Noctua CEO

This manual will guide you through the installation process of the

SecuFirm2™ mounting system step by step.

Prior to installing the cooler, please consult the compatibility list

on our website (www.noctua.at/compatibility) and verify that

the cooler is fully compatible with your motherboard.

Should you encounter any difficulties, please check the FAQs on

our website (www.noctua.at/faqs) and don’t hesitate to contact

our support team at support@noctua.at.

Noctua cannot be held responsible for any damage or losses

caused by compatibility issues.

Multilingual versions of this manual are available on our

website: www.noctua.at/manuals

2x NM-AMB1 Mounting Bars

4x NM-APS1 Plastic Spacers4x NM-ALS1 Screws

Applying thermal paste

If there are residual traces of thermal paste or thermal pads on

your CPU, please clean them off first. Then press a small drop

(4-5mm diameter) of NT-H1 onto the centre of the heatspreader.

Step 2

Caution: Applying too much thermal paste will lower the heat

conductivity and cooling performance!

Noctua NH-D9L | Installation Manual | AMD

AMD

Then put the heatsink onto the CPU and screw it to the screw

threads of the mounting bars.

Caution: Tighten the screws until they stop.

Fastening the heatsink to the CPU

Caution: Please first take off the fan and the cardboard between

the fan and the fins as well as the protection cover at the bottom

side of the heatsink.

Step 4

Fan Setup

Step 5

Reattach the centre fan and, optionally, install the second fan (in

grey) using the supplied steel clips:

Even with high-grade products and strict quality control, the

possibility of defects cannot be eliminated entirely. Therefore,

we aim at providing the highest possible level of reliability and

convenience by offering a warranty period of 6 years and direct,

fast and straightforward RMA service.

Should you encounter any problems with your NH-D9L, please

don’t hesitate to contact our support team ([email protected]).

Please also consult the FAQ section on our website:

www.noctua.at/faqs.

Warranty, Support and FAQs

Connect the fan to the mainboard’s CPU fan header. Depending

on your CPU and the temperature inside the case, you may

interconnect the supplied NA-RC7 Low-Noise Adaptors (L.N.A.)

in order to further reduce the fans’ operating noise.

Caution: When using the L.N.A., check the temperature of your

CPU using appropriate software (e.g. the respective applications

of your mainboard manufacturer), in order to evade automatic

throttling of the CPU due to the increased temperature. If the

cooling performance is insufficient, please increase case

ventilation or remove the L.N.A.

Adding a second fan

The NH-D9L includes an extra set of fan clips and anti-vibration

strips for installing a second NF-A9 fan to the front fin stack in

push/pull mode in order to further improve cooling performance.

The y-cable supplied with the retail NF-A9 fan can be used to

control the speed of both fans via the same mainboard fan header.

Autres manuels Noctua Matériel informatique

Noctua

Noctua NF-A6x25 PWM Manuel utilisateur

Noctua

Noctua NH-U12DX i4 Manuel utilisateur

Noctua

Noctua NH-D15S Manuel utilisateur

Noctua

Noctua NF-A6x25 5V PWM Manuel utilisateur

Noctua

Noctua NH-D9 DX-3647 4U Manuel utilisateur

Noctua

Noctua NH-P1 Manuel utilisateur

Noctua

Noctua NF-F12 5V Manuel utilisateur

Noctua

Noctua NH-L9 65 Series Manuel utilisateur

Noctua

Noctua NF-A9 14 PWM Series Manuel utilisateur

Noctua

Noctua NM-i115-1200 Series Manuel utilisateur

Noctua

Noctua NF-A14 5V Manuel utilisateur

Noctua

Noctua NM-TR5-SP6 Manuel utilisateur

Noctua

Noctua NA-IS1-14 Sx2 Manuel utilisateur

Noctua

Noctua NF-A20 5V Manuel utilisateur

Noctua

Noctua NM-AM4 UxS Manuel utilisateur

Noctua

Noctua NH-D14 SE2011 Manuel utilisateur

Noctua

Noctua NF-A8 Manuel utilisateur

Noctua

Noctua NA-FH1 Manuel utilisateur

Noctua

Noctua NA-IS1-14 Sx2 Manuel utilisateur

Noctua

Noctua DX Series Manuel utilisateur

Noctua

Noctua NH-D15S chromax.black Manuel utilisateur

Noctua

Noctua NH-U12S SE-AM4 Manuel utilisateur

Noctua

Noctua NF-A14 5V Manuel utilisateur

Noctua

Noctua NF-A12x15 PWM Manuel utilisateur

Manuels Matériel informatique populaires d'autres marques

EMC2

EMC2 VNX Series Manuel du propriétaire

Panasonic

Panasonic DV0PM20105 Manuel utilisateur

Mitsubishi Electric

Mitsubishi Electric Q81BD-J61BT11 Manuel utilisateur

Gigabyte

Gigabyte B660M DS3H AX DDR4 Manuel utilisateur

Raidon

Raidon iT2300 Manuel utilisateur

National Instruments

National Instruments PXI-8186 Manuel utilisateur

Hauppauge

Hauppauge WinTV-HVR-2250 Manuel utilisateur

Kontron

Kontron CP6002 Manuel utilisateur

Manhattan

Manhattan 702843 Manuel utilisateur

Aphex

Aphex 230 Manuel utilisateur

AMD

AMD Phenom II Manuel d'exploitation

Intel

Intel NUC 12 Pro Manuel utilisateur

dbx

dbx Zone Pro 1260 Manuel utilisateur

Galaxy

Galaxy GHDX2-2430S-24F4D Manuel utilisateur

Intel

Intel AXXRMFBU4 Manuel utilisateur

Kontron

Kontron DIMM-PC/MD Manuel utilisateur

ST X-NUCLEO-SAFEA1B Mode d'emploi

STEINWAY LYNGDORF

STEINWAY LYNGDORF SP-1 Manuel utilisateur
