NIVELCO EasyTREK SCD-300 Series Instructions de montage

BKI16ATEX0020X ♦scd3404a0600p_03 ♦1 / 36

Manufacturer:

H-1043 Budapest, Dugonics u. 11.

Phone: (36-1) 889-0100 Fax: (36-1) 889-0200

NIVELCO Process Control Co.

E-mail: [email protected] www.nivelco.com

EasyTREK

SCD-300 integrated ultrasonic level transmitter

series for free flowing solids

2/ 36 ♦BKI16ATEX0020X ♦scd3404a0600p_03

PRINCIPLES OF ULTRASONIC LEVEL MEASUREMENT

Max. measuring distance of the device (X )

DEFAULT va ue of: P04=X

Max. measuring range of the device Min. meas. distance (Xm)

DEFAULT va ue of: P05=Xm

Max. measuring distance of the

app ication (H)

Programmed va ue of: P04=H

Programmed measurement range

C ose end b ocking (XB)

Progr. va ue of: P05=XB>Xm

LEV= level calculated H-DIST)(

VOL= volume (calculated from LEV)

DEFAULT va ue of: P06=0

Far end b ocking

DIST

Angle of repo e:

DIST=di tance (mea ured)

Displayable range

BKI16ATEX0020X ♦scd3404a0600p_03 ♦3 / 36

CONTENTS

1. INTRODUCTION................................................................................... 5

2. TECHICAL DATA ................................................................................. 7

2.1. GENERAL DATA........................................................................................... 7

2.2. SPECIAL DATA ............................................................................................ 7

2.3. ACCESSORIES............................................................................................. 8

2.4. ORDER CODES ............................................................................................ 8

2.5. DIMENSIONS................................................................................................ 9

3. INSTALLATION .................................................................................. 10

4. WIRING ............................................................................................... 12

4.1. WIRING CONDITIONS.................................................................................. 12

4.2. CONNECTION CABLE EXTENSION ............................................................... 12

5. PUTTING INTO OPERATION, ADJUSTING, PROGRAMMING ....... 14

5.1. PUTTING INTO OPERATION ......................................................................... 14

5.1.1. Status indication signals in measuring mode............................ 15

5.2. SPECIAL CONDITIONS FOR SAFE USE ......................................................... 15

5.3. PROGRAMMING ......................................................................................... 15

5.4. PARAMETERS –DESCRIPTION AND PROGRAMMING ..................................... 16

5.4.1. Measurement Configuration...................................................... 16

5.4.2. Current value............................................................................. 21

5.4.3. Relay output .............................................................................. 22

5.4.4. Measurement optimalization ..................................................... 23

5.4.5. Volume measurement ............................................................... 28

5.4.6. Linearisation.............................................................................. 29

5.4.7. Informational parameters .......................................................... 30

5.4.8. Test parameters ........................................................................ 31

5.4.9. Error codes................................................................................ 32

6. MAINTENANCE, REPAIR................................................................... 33

7. STORAGE CONDITIONS ...................................................................33

8. WARRANTY........................................................................................ 33

9. PARAMETER TABLE ......................................................................... 34

BKI16ATEX0020X ♦scd3404a0600p_03 ♦4 / 36

BKI16ATEX0020X ♦scd3404a0600p_03 ♦5 / 36

Thank you for choosing a NIVELCO instrument.

We are sure that you will be satisfied throughout its use.

1. INTRODUCTION

APPLICATION

The EasyTREK SCD-300 series compact ultrasonic transmitters from NIVELCO are designed to measure the level of free flowing solids, granules and powders.

The unit does not touch the material to be measured and does not include any moving parts. Thus, it is not exposed to mechanical loading, no abrasive effect is

expected and regular maintenance is not required.

A Total beam angle of 5°at –3 dB is a feature of all NIVELCO’s ultrasonic sensors designed for the level measurement of free flowing solids.

This uniquely narrow beam angle ensures reliable measurement in narrow silos with uneven side walls or sometimes even in the presence of dusting.

Furthermore, as a result of the narrow beam angle – the emitted ultrasonic signals have an outstanding focusing – a sufficient signal penetration through dust is

ensured. Modifying of the factory default settings of the level transmitter is possible only via HART communication.

PRINCIPLE OF OPERATION

The ultrasonic level metering technology is based on the principle of measuring

the time required for the ultrasound pulses to make a round trip from the sensor to

the level to be measured and back.

The sensor emits an ultrasonic pulse train and receives the echoes reflected. The

intelligent electronic device processes the received signals by selecting the

echoes reflected from the surface and calculates the distance from the time o

flight between the sensor and the surface of the medium. This is the basis for all

other output signals (level or volume) of the EasyTREK! For measuring the level o

the medium the greatest distance of the application (H) has to be programmed.

5 m 0,7 m

10 m 1,2 m

20 m 2 m

30 m 3 m

40 m 3,8 m

50 m 4,7 m

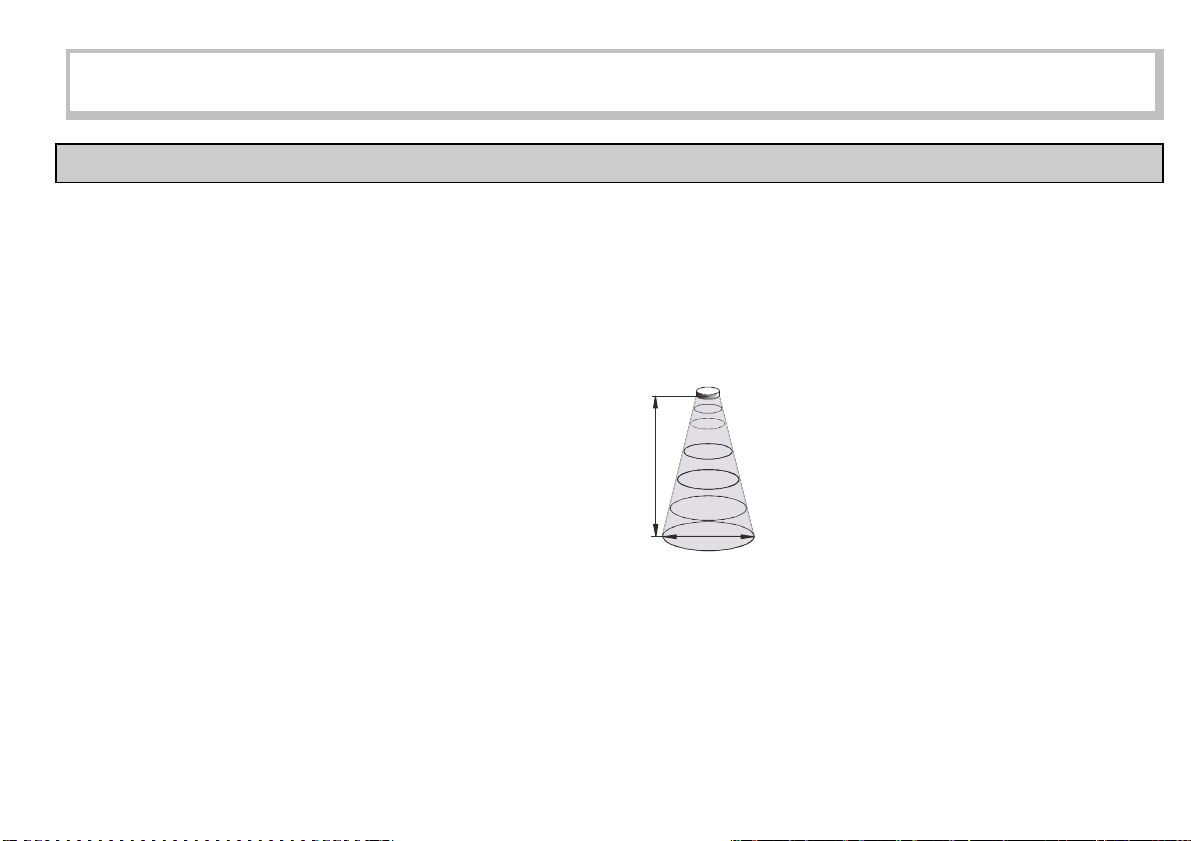

Diameters corresponding to the

5° beam angle

Minimum measuring distance (Xm) is the construction defined smallest distance within which measurement is not possible (Dead Band; see 5.3. Parameters P05).

In special applications this range should be extended with programming (close end blocking)

Maximum measuring distance (XM): is the construction defined greatest distance, which can be measured by the unit under ideal conditions. No measurement is

possible over this distance i.e. maximum distance of the application H must not be greater than XM. Under unfavourable circumstances such as bad reflection or

heavy dusting of the material the measuring capability may be reduced up to the half of the unit’s best performance.

6/ 36 ♦BKI16ATEX0020X ♦scd3404a0600p_03

THE FOLLOWING TYPES OF APPLICATIONS ARE POSSIBLE DEPENDING ON THE COMMUNICATION AND WHAT THE OUTPUT SIGNAL IS USED FOR:

1. Using the unit as a three - or four -wire current transmitter.

Normally, we use the analogue (4…20 mA) output signal of the EasyTREK. The application parameters of the device are set through HART communication at

installation (right after installation or in a laboratory, prior to installation). In this case the short address of the device should stay the factory default: P19 = 0.

2. Using both, current transmission and digital (HART) signal transfer in single transmitter systems.

Digital signal transfer is also used beside the standard utilisation of the output current of the EasyTREK. In this case, there can be one or more devices in the

current loop that use analogue signals (with their total resistance being Rt= 250 … 600 Ω) and one HART master device.

The short address of the EasyTREK should stay the factory default: P19 = 0. This application can be achieved with using a MultiCONT unit as the HART master

which ensures the power supply of the EasyTREK too.

3. Simultaneous control of several EasyTREK transmitters with the help of a MultiCONT.

In this case all of the EasyTREK s keep the connection with the MultiCONT through HART communication only.

This means that the measurement values are collected in cycles, and that the modifications of the transmitter settings are arbitrary.

The short addresses of the units are P19 = 1 ... 15. All types of setting and programming tasks can be done through a MultiCONT.

BKI16ATEX0020X ♦scd3404a0600p_03 ♦7 / 36

2. TECHICAL DATA

2.1. GENERAL DATA

Type SCD-3-4 SCD-3-8 Ex

Transducer material Closed cell Polyurethane foam sensor face (PUR)

PP and Aluminum transducer housing and fitting

Closed cell Polyurethane foam sensor face (PUR)

Aluminum transducer housing and fitting

Total beam angle (-3dB) ∼5°

Process temperature -30 °C … + 60 °C -30 °C … +60 °C

Max. surface temperature - 130 °C

Process pressure (absolute) 0.07 ... 0.11 MPa (0.7 … 1.1 bar) Pabsolute and ± 0.01 MPa (0.1 bar) difference between ambient and tank pressure

Power supply / consumption 11.4 … 40 V DC / 4.1 W or 11.4 … 28 V AC (50/60Hz) / 4.6 VA

Analogue output 4 – 20 mA Rtmax= 600 Ω, galvanic isolation, protection against surge transients

Error indication by the current output if no echo: continuous 3.6 mA or 22 mA (selectable with programming)

Digital communication 4-20 mA + HART

output Relay (SPST)

Programmable functions: hysteresis control or error indication

Electronic solid state switch (SPST)

Programmable functions: hysteresis control or error indication

Switch

rating 48V AC / 5 A 48V AC 50V DC / 1 A

Accuracy* ±(0.2 % of the measured distance + 0.1% of the measurement range)

Resolution of the

distance and level measurement 10 mm

Damping time 3 ... 1000 s (selectable with programming) Default value: 300 s

Electrical connection 7x0.5 mm2shielded cable ∅7.5 mm standard length: 3 m (available to order up to 30 m)

Electrical protection Class III

Ingress protection IP65

Ex marking – II 1 D Ex ma ta IIIC T85°C…T130 °C Da

*Under optimal circumstances of reflection and stabilised sensor temperature

2.2. SPECIAL DATA

Type SCD-34-4 SCD-34-8 Ex SCD-33-4 SCD-33-8 Ex SCD-31-4 SCD-31-8 Ex

Maximum measuring distance XM15 m 30 m 60 m

Minimum measuring distance Xm0.6 m 0.6 m 1 m

Ultrasound frequency 40 kHz 30 kHz 15 kHz

Mass ∼3.5 kg ∼3.5 kg ∼6.5 kg

8/ 36 ♦BKI16ATEX0020X ♦scd3404a0600p_03

2.3. ACCESSORIES

• Installation and Programming Manual

• Warranty Card

• Declaration of Conformity

• EView configuration software and description on CD

ACCESSORIES TO BE ORDERED

• Split flange (order code: SFA – 35)

2.4. ORDER CODES

Eas

TREK S C D – 3 – *

RANGE CODE MOUNTING CODE OUTPUT /EXCODE

60 m 1 1” BSP + nut 0 4 … 20 mA + HART+ Relay 4

30 m 3 1” BSP + fast connecting gland F

15 m 4 Aiming device J

4 … 20 mA + HART+

electronic switch / Dust-Ex ma ta 8

200 mm bracket K

500 mm bracket L

700 mm bracket M

*The order code of an Ex version should end in “Ex”

BKI16ATEX0020X ♦scd3404a0600p_03 ♦9 / 36

2.5. DIMENSIONS

SCD-310- SCD-310-Ex SCD-330-SCD-340-SCD-330-8 Ex SCD-340-8 Ex

Ø37

Ø292

~118

15.5

1" BSP

~118

Ø294

1" BSP

Ø37

15.5

106

Ø148

1" BSP

15.5

Ø37

1" BSP

106

Ø146

15.5

Ø37

SCD-31J-SCD-31J-8 Ex SCD-33J-

SCD-34J-

SCD-33J-8 Ex

SCD-34J-8 Ex

Ball-joint Housing

(view from above)

Ø292

~750

max.20°

~765

Ø294

~750

max.20°

~765

Ø148

~740

max.20°

~725

Ø148

~740

~725

max.20°

10 / 36 ♦BKI16ATEX0020X ♦scd3404a0600p_03

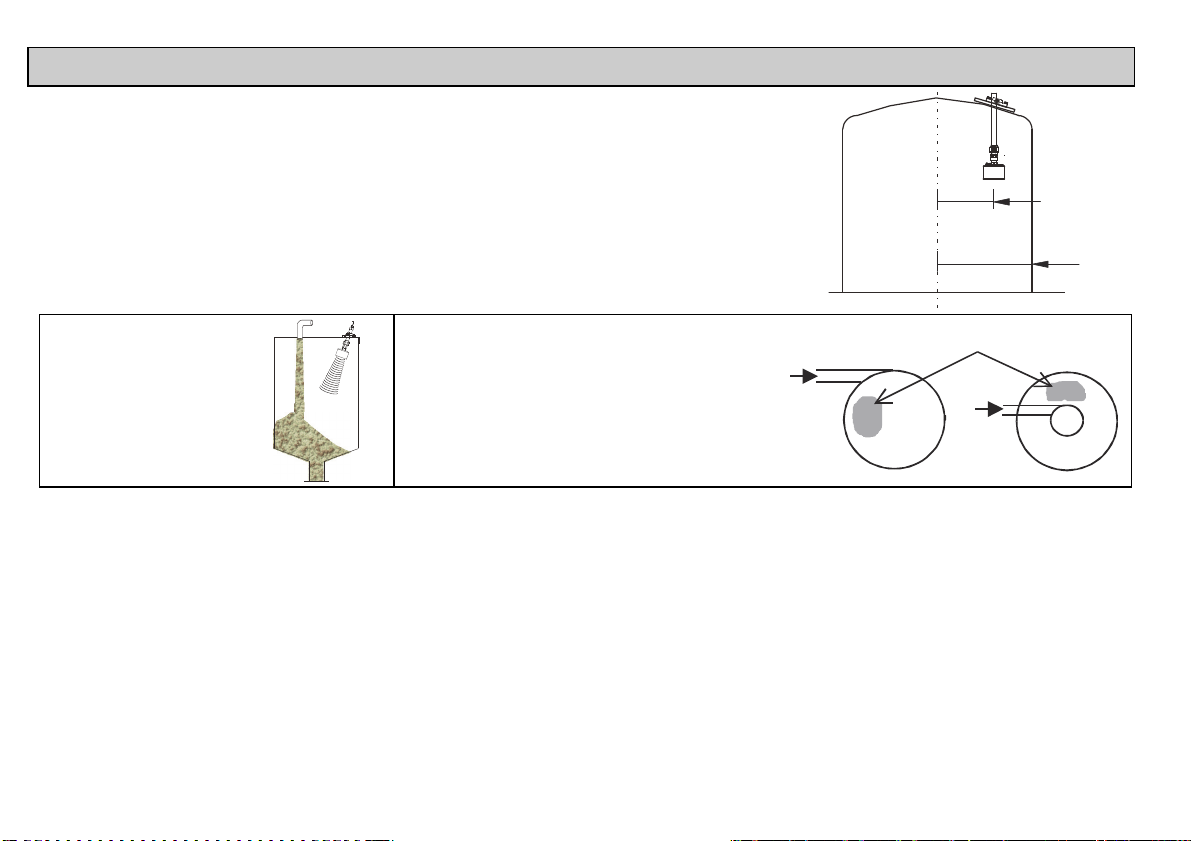

3. INSTALLATION

PLACEMENT

To find the ideal position for the location of the EasyTREK level transmitter various considerations should be

made.The transmitter should not be installed in the centre of the tank/silo when the tank roof is dome shaped

or conical. The ideal position for the EasyTREK is on the r = (0.3 … 0.5) R (in case of cylindrical tank).

Avoid that the 5° conical beam angle of the transmitter contact the tank/silo wall. This case the transmitter is

mounted too close to the wall, therefore it should be tilted (See section “Aiming”).

To avoid overheating the instrument should be protected against direct sunshine.

GRAVITY FILLING

Select a location that is as

far away from the filling

point(s) as possible.

PNEUMATIC FILLING

Select a location where the speed of the in-flowing

material is the smallest.

Ex type units are not allowed to be installed in the

dust path of the pneumatic filling!

Suggested location (view from above)

40 m 3,8 m

50 m 4,7 m

MOUNTING (see illustration of mounting options on the next page)

The EasyTREK consists of a sensor that is attached to the aiming arm (a pipe with a ball-joint housing incorporating a ball joint) that is attached to the integrated level

transmitter. It is recommended to mount the transmitter on the roof of the tank/silo using a flange (see drawing above). The Ball-joint housing has a screw-hole

diameter of 125 mm for fixing it. For easy installation we recommend using our special flange with a split insertion, available in four sizes of DN125/150/200/300 (to

be ordered separately). Removing the split insertion, the flange is to be put around the aiming arm and the ball-joint housing is to be fixed to the split flange. It is

essential to use the washers and the bolts (4 pcs each) delivered with the split flange. The ball-joint will be pressed to the housing by a spring allowing

adjustment/aiming.

The 4 pcs of M12 bolts have to be tightened only after completing the adjustments/aiming. The maximum torque for tightening the bolts is 3.5 Nm.

Autres manuels pour EasyTREK SCD-300 Series

Table des matières

Autres manuels NIVELCO Émetteur

NIVELCO

NIVELCO NIVOPRESS NT Series Manuel utilisateur

NIVELCO

NIVELCO NIPRESS DD-6 Seies Manuel utilisateur

NIVELCO

NIVELCO EasyTREK SP-300 Instructions de montage

NIVELCO

NIVELCO NIVOPRESS DT Series Instructions de montage

NIVELCO

NIVELCO EasyTREK SP-500 Pro Instructions de montage

NIVELCO

NIVELCO PiloTREK 2-wire Instructions de montage

NIVELCO

NIVELCO EasyTREK SCD-300 Series Instructions de montage

NIVELCO

NIVELCO EchoTREK SG-300 series Instructions de montage

NIVELCO

NIVELCO MicroTREK HT-700 Manuel utilisateur

NIVELCO

NIVELCO NIPRESS DRD-6 Series Manuel utilisateur

NIVELCO

NIVELCO NIPRESS D-A00 Series Manuel du propriétaire

NIVELCO

NIVELCO NIPRESS D-300 Series Manuel utilisateur

NIVELCO

NIVELCO NIVOPRESS DT 1 Series Instructions de montage

NIVELCO

NIVELCO N H Series Manuel utilisateur

NIVELCO

NIVELCO NIPRESS D 9 Series Manuel utilisateur

NIVELCO

NIVELCO EchoTREK ST-400 Series Instructions de montage

NIVELCO

NIVELCO NIVOPRESS NPK Manuel utilisateur

NIVELCO

NIVELCO NIVOCAP C-200 Manuel du propriétaire

NIVELCO

NIVELCO NIVOTRACK M-300 series Instructions de montage

NIVELCO

NIVELCO MicroTREK Instructions de montage

NIVELCO

NIVELCO NIPRESS D-500 Series Manuel utilisateur

NIVELCO

NIVELCO Nivotrack MI-5 Series Manuel du propriétaire

NIVELCO

NIVELCO NIPRESS DD-400 Manuel utilisateur

NIVELCO

NIVELCO PiloTREK W-200 Manuel du propriétaire

Manuels Émetteur populaires d'autres marques

Honeywell

Honeywell 5816WMBR Manuel utilisateur

Kamstrup

Kamstrup READy MTU Mode d'emploi

Omega

Omega ZW Series Manuel utilisateur

ABB

ABB Field 264H Mode d’emploi

Alinco

Alinco DJ-V17T Manuel utilisateur

Dejero

Dejero EnGo 3x Manuel utilisateur

Rosemount

Rosemount 4600 Manuel utilisateur

Speaka Professional

Speaka Professional 2342740 Manuel utilisateur

trubomat

trubomat GAB 1000 Manuel utilisateur

Teledyne Analytical Instruments

Teledyne Analytical Instruments LXT-380 Manuel utilisateur

Rondish

Rondish UT-11 Manuel utilisateur

MG 10JRE Manuel utilisateur

Burkert

Burkert 8177 Manuel utilisateur

Firetide

Firetide HotPort 3203 Manuel

Tele Radio

Tele Radio T9-02 Manuel utilisateur

Rotronic

Rotronic HygroFlex HF3 Series Manuel utilisateur

Jamara

Jamara FCX6 Pro Tel Manuel utilisateur

Excalibur

Excalibur SoundMaster FM Transmitter 144 Manuel utilisateur
