Nilfisk-Advance Advance ES300 ST Manuel utilisateur
ES300 ST, ES300 XP, ES400 XLP
Instructions for use
Model No:
56265500 (ES300 XP)
56265501 (ES400 XLP)
56265502 (ES300 ST)
9/2015 revised 6/2017 REV B
Form no. 56091171
Instructions for Use
Original Instructions
Instrucciones de uso
Mode d’ emploi
A-English
B-Español
C-Français
A - 2 ES300 ST, ES300 XP, ES400 XLP - 56091171 9/2015
INSTRUCTIONS FOR USEA - ENGLISH
TABLE OF CONTENTS
Page
Introduction................................................................................... A-3
Parts and Service ........................................................................... A-3
Nameplate ...................................................................................... A-3
Uncrating the Machine.................................................................... A-3
Cautions and Warnings .................................................................. A-4
Grounding Instructions ................................................................... A-5
Know Your Machine – ES400™..........................................A-6 – A-7
Know Your Machine – ES300™..........................................A-8 – A-9
Know Your Control Panel........................................................... A-10
Preparing the Machine for Use
Filling the Solution Tank.................................................................A-11
Before Using..................................................................................A-11
Pre-Spraying the Carpet................................................................A-11
Plan for Cleaning...........................................................................A-11
Operation
Operating the Machine ......................................................A-12 – A-13
Using Attachments.............................................................A-12 – A-13
Hard Floor Kits.............................................................................. A-13
After Use
After Using the Machine ............................................................... A-14
Maintenance
Maintenance Schedule................................................................. A-14
Vacuum Shoe Maintenance.......................................................... A-14
Spray Nozzle Maintenance........................................................... A-15
Power Cord Maintenance............................................................. A-15
Power Brush Maintenance ........................................................... A-15
Removing the Brush..................................................................... A-15
Troubleshooting............................................................................ A-16
Accessories / Options................................................................... A-17
Technical Specifications ............................................................... A-17
9/2015 A - 356091171 - ES300 ST, ES300 XP, ES400 XLP
ENGLISH - AINSTRUCTIONS FOR USE
INTRODUCTION
This manual will help you get the most from your Advance™carpet extractor. Read it thoroughly before operating the machine.
This product is intended for commercial use only.
PARTS AND SERVICE
Repairs, when required, should be performed by your Authorized Advance Service Center, who employs factory trained service personnel, and
maintains an inventory of Advance original replacement parts and accessories.
MODIFICATIONS
Modifications and additions to the cleaning machine which affect capacity and safe operation shall not be performed by the customer or user without
prior written approval from Nilfisk, Inc. Unapproved modifications will void the machine warranty and make the customer liable for any resulting
accidents.
NAMEPLATE
The Model Number (also known as Part Number) and Serial Number of your machine are shown on the Nameplate, located on the rear base of the
machine. This information is needed when ordering repair parts for the machine. Use the space below to note the Part Number and Serial Number
of your machine for future reference.
PART NO. ______________________________________________
SERIAL NO. ____________________________________________
UNCRATING THE MACHINE
When the machine is delivered, carefully inspect the shipping carton and the machine for damage. If damage is evident, save the shipping carton
so that it can be inspected. Contact the Advance Customer Service Department immediately to file a freight damage claim.
WARNING!
The Products sold with this Manual contain or may contain chemicals that are known to certain governments (such as the State of California, as
identified in its Proposition 65 Regulatory Warning Law) to cause cancer, birth defects or other reproductive harm. In certain locations (including the
State of California) purchasers of these Products that place them in service at an employment job site or a publicly accessible space are required
by regulation to make certain notices, warnings or disclosures regarding the chemicals that are or may be contained in the Products at or about
such work sites. It is the purchaser’s responsibility to know the content of, and to comply with, any laws and regulations relating to the use of these
Products in such environments. The Manufacturer disclaims any responsibility to advise purchasers of any specific requirements that may be
applicable to the use of the Products in such environments.
A - 4 ES300 ST, ES300 XP, ES400 XLP - 56091171 9/2015
INSTRUCTIONS FOR USEA - ENGLISH
IMPORTANT SAFETY INSTRUCTIONS
This machine is only suitable for commercial use, for example in hotels, schools, hospitals, shops and offices other than normal
residential housekeeping purposes.
When using an electrical appliance, basic precautions should always be followed, including the following:
Read all instructions before using this appliance.
WARNING!
To reduce the risk of fire, electric shock, or injury:
•Do not leave the appliance when it is plugged in. Unplug the unit from the outlet when not in use and before servicing.
•To avoid electric shock, do not expose to rain. Store indoors.
•This machine is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities,
or lack of experience and knowledge.
•Do not allow to be used as a toy. Close attention is necessary when used near children.
•Use only as described in this manual. Use only the manufacturer’s recommended attachments.
•Do not use with damaged cord or plug. If the appliance is not working as it should be, has been dropped, damaged, left
outdoors or dropped into water, return it to a service center.
•Do not pull or carry by the cord, use the cord as a handle, close a door on the cord, or pull the cord around sharp edges
or corners. Do not run the appliance over the cord. Keep the cord away from heated surfaces.
•Do not unplug by pulling on the cord. To unplug, grasp the plug, not the cord.
•Do not handle the plug, cord or appliance with wet hands.
•Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint, hair, and anything that
may reduce air flow.
•Keep loose clothing, hair, fingers, and all parts of body away from openings and moving parts.
•Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes, or any health endangering
dusts.
•Turn off all controls before unplugging.
•Use extra care when cleaning on stairs.
•Do not use to pick up flammable or combustible liquids such as petrol or use in areas where they may be present.
•If foam or liquid comes out with the vacuum exhaust, switch power off immediately. Verify that there are no foreign
objects obstructing the float ball from moving freely. Contact Advance if the problem persists.
•Liquid ejected at the spray nozzle could be dangerous as a result of its temperature, pressure or chemical content.
•Only use the brushes provided with the appliance or those specified in the instruction manual. The use of other brushes
may impair safety.
SAVE THESE INSTRUCTIONS
9/2015 A - 556091171 - ES300 ST, ES300 XP, ES400 XLP
ENGLISH - AINSTRUCTIONS FOR USE

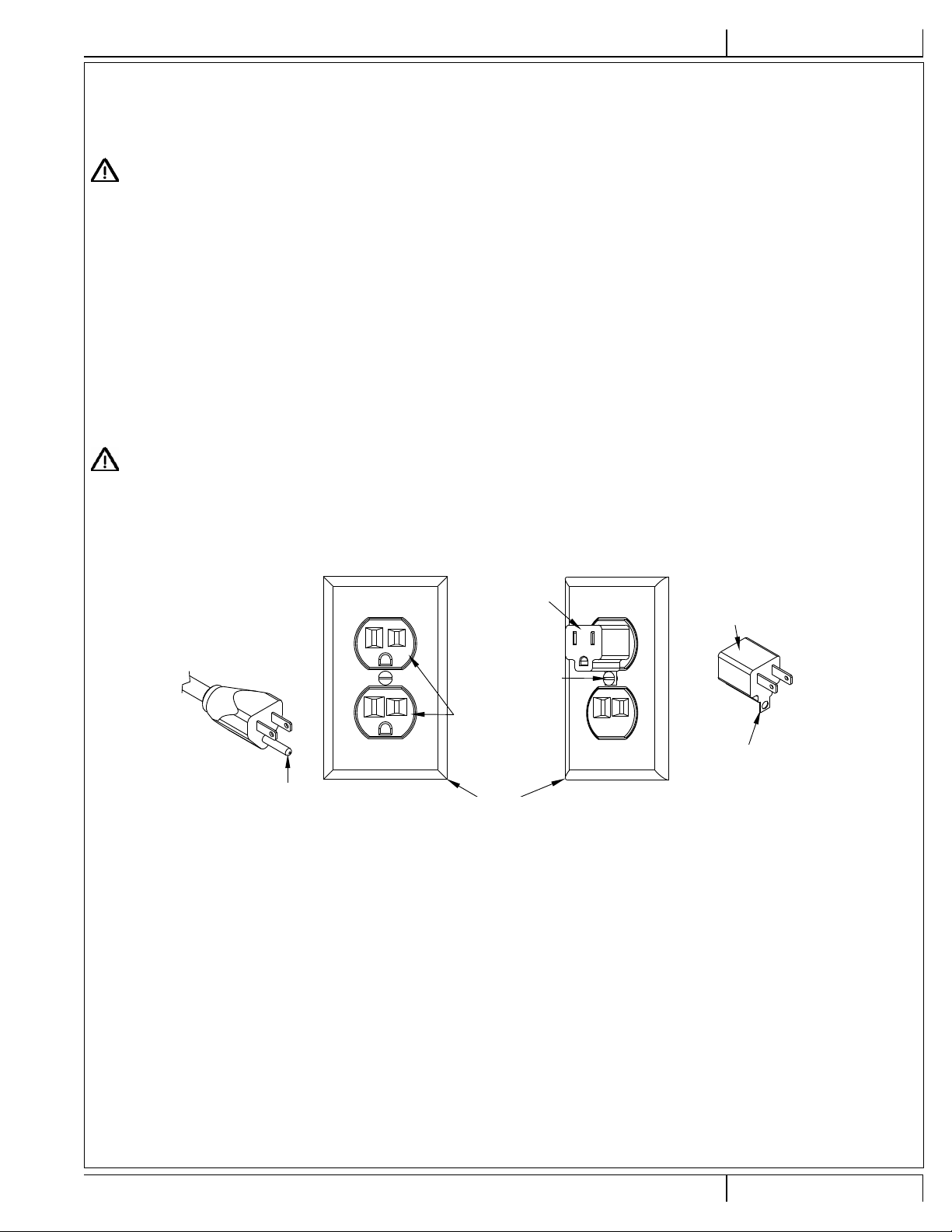

120VAC GROUNDING INSTRUCTIONS
This appliance must be grounded. If it should electrically malfunction, grounding provides a path of least resistance for electric current to reduce
the risk of electric shock. This appliance is equipped with a cord having an equipment-grounding conductor and grounding plug. The plug must be
plugged into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances.
DANGER!
Improper connection of the equipment-grounding conductor can result in a risk of electric shock. Check with a qualified
electrician or service person if you are in doubt as to whether the outlet is properly grounded. Do not modify the plug
provided with the appliance. If it will not fit the outlet, have a proper outlet installed by a qualified electrician.
This appliance is for use on a nominal 120-volt circuit, and has a grounding plug that looks like the plug illustrated in Figure 1 below. A temporary
adapter illustrated in Figures 2 and 3 may be used to connect this plug to a 2-pole receptacle as shown in Figure 2 if a properly grounded outlet is
not available. The temporary adapter should be used only until a properly grounded outlet (Figure 1) can be installed by a qualified electrician. The
green-colored rigid ear, tab, or the like extending from the adapter must be connected to a permanent ground such as a properly grounded outlet
box cover. Whenever the adapter is used, it must be held in place by a metal screw.
Grounding adapters are not approved for use in Canada.
Replace the plug if the grounding pin is damaged or broken.
The Green (or Green/Yellow) wire in the cord is the grounding wire. When replacing a plug, this wire must be attached to the grounding pin only.
Extension cords connected to this machine should be 2.5mm2(12 AWG), three-wire cords with three-prong plugs and outlets. DO NOT use
extension cords more than 15 M (50 ft) long.
WARNING!
• If an extension cord is used, the plug and socket must be of watertight construction.
• Inadequate extension cords can be dangerous.
Grounding Pin
Tab for Grounding Screw
Adapter
Adapter
Metal Screw
FIGURE 1 FIGURE 2 FIGURE 3
Grounded Outlet Box
Grounded Outlet
PLEASE NOTE: FOR PARTS OF NORTH AMERICA ONLY. NOT APPROVED FOR USE IN CANADA.
A - 6 ES300 ST, ES300 XP, ES400 XLP - 56091171 9/2015
INSTRUCTIONS FOR USEA - ENGLISH

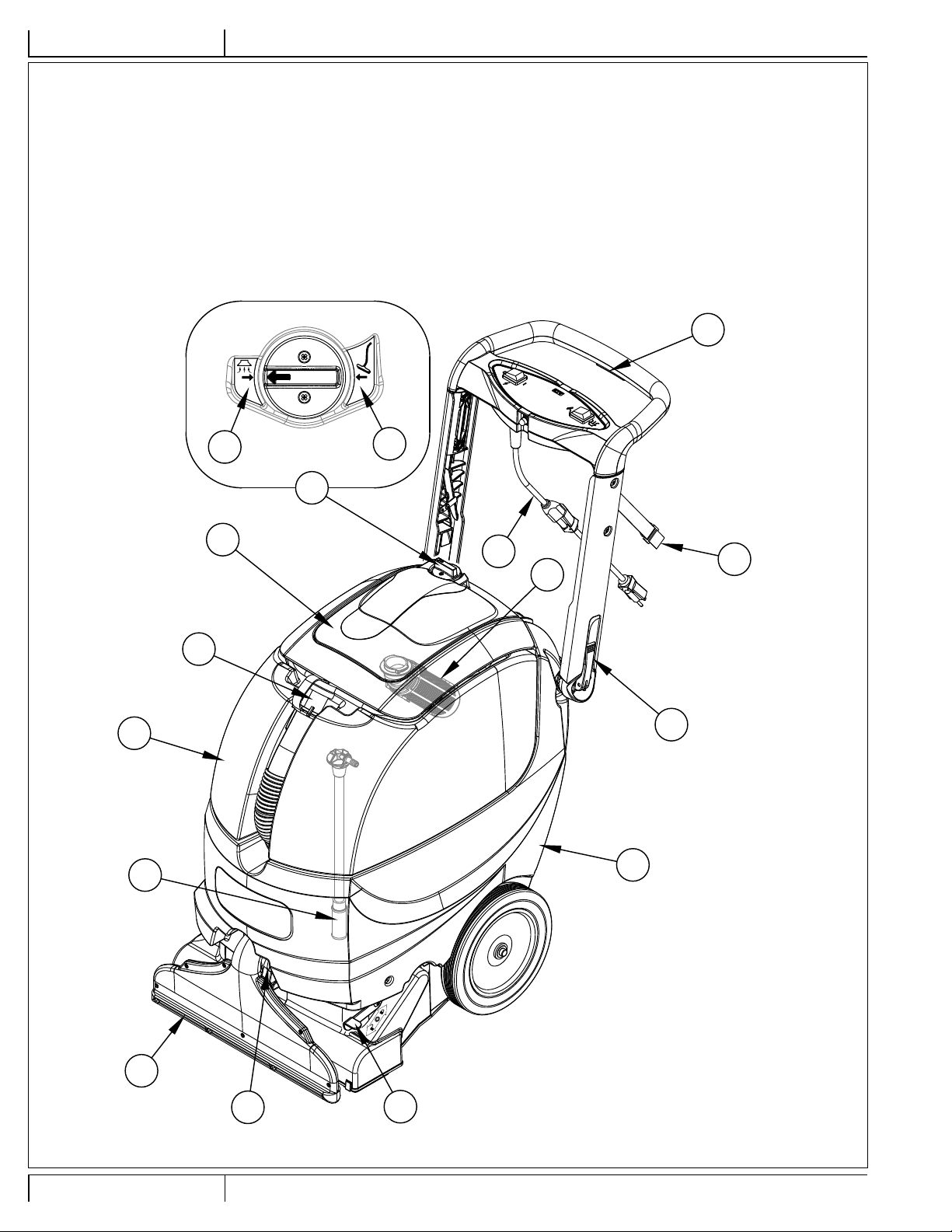

KNOW YOUR MACHINE – ES400
1 Solution Switches (quantity of 3)
2 Pigtail Cord
3 Vacuum Mode Selector Knob
3a Vacuum Shoe Mode
3b Accessory Mode
4 Automatic Float Shut-Off
5 Handle Angle Adjust Release Lever
6 Solution Tank
7 Brush Storage Lift Lever
8 Vacuum Shoe Release Lever
9 Vacuum Shoe
10 Solution Filter
11 Recovery Tank
12 Recovery Tank Drain Hose
13 Recovery Tank Dome Lid
14 Cord Retainer Strap
1
1
12
2
9
13
11
6
8
4
10
5
7
14
3a 3b
3
9/2015 A - 756091171 - ES300 ST, ES300 XP, ES400 XLP
ENGLISH - AINSTRUCTIONS FOR USE

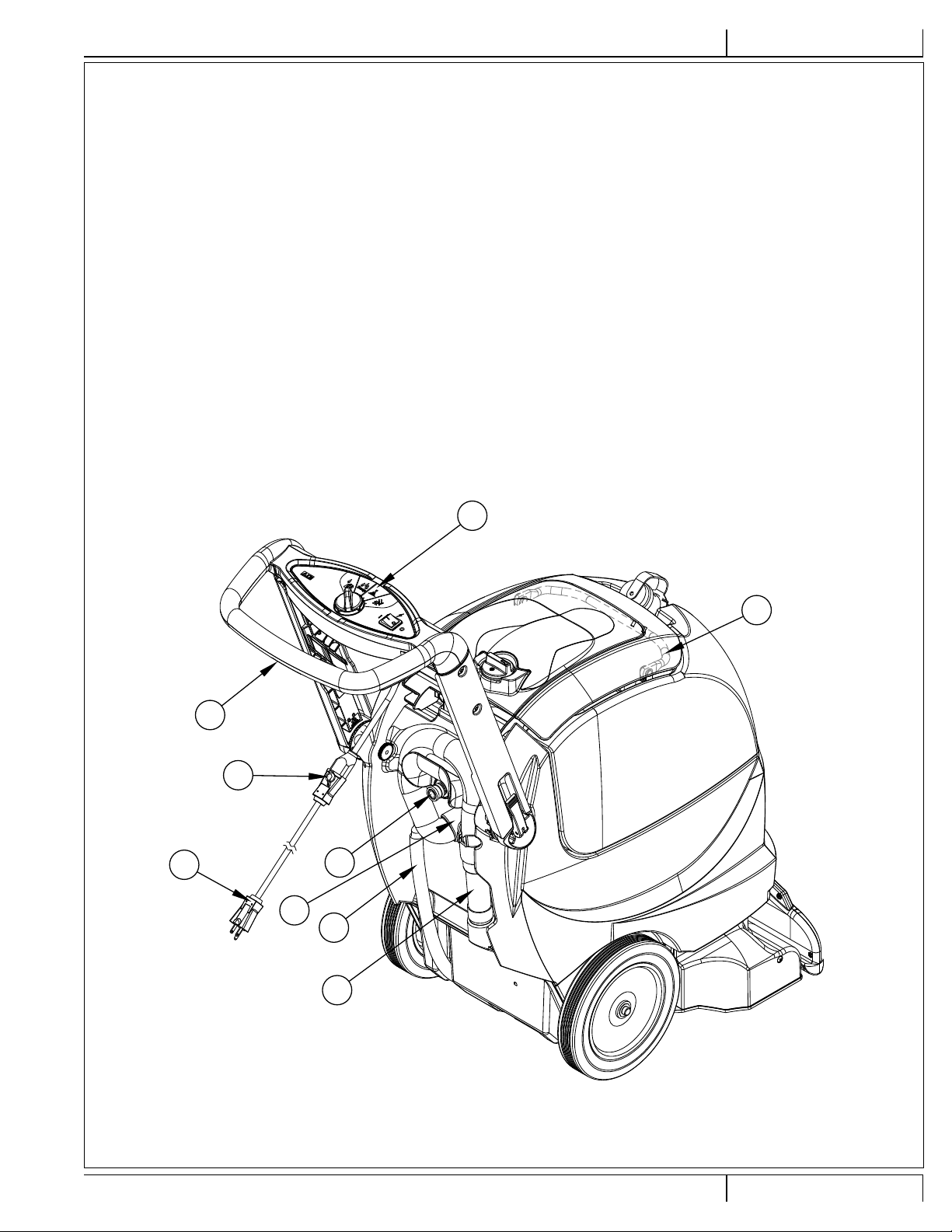

KNOW YOUR MACHINE – ES400
15 Accessory Solution Port
16 Power Cord
17 Power Cord Locking Mechanism
18 Control Panel
19 Hand Tool (Optional)
20 Recovery Tank Handle
21 Solution Drain Hose / Level Indicator
22 Accessory Vacuum Hose Port
23 Handle Assembly
21
15
16
17
18
19
20
22
23
A - 8 ES300 ST, ES300 XP, ES400 XLP - 56091171 9/2015
INSTRUCTIONS FOR USEA - ENGLISH

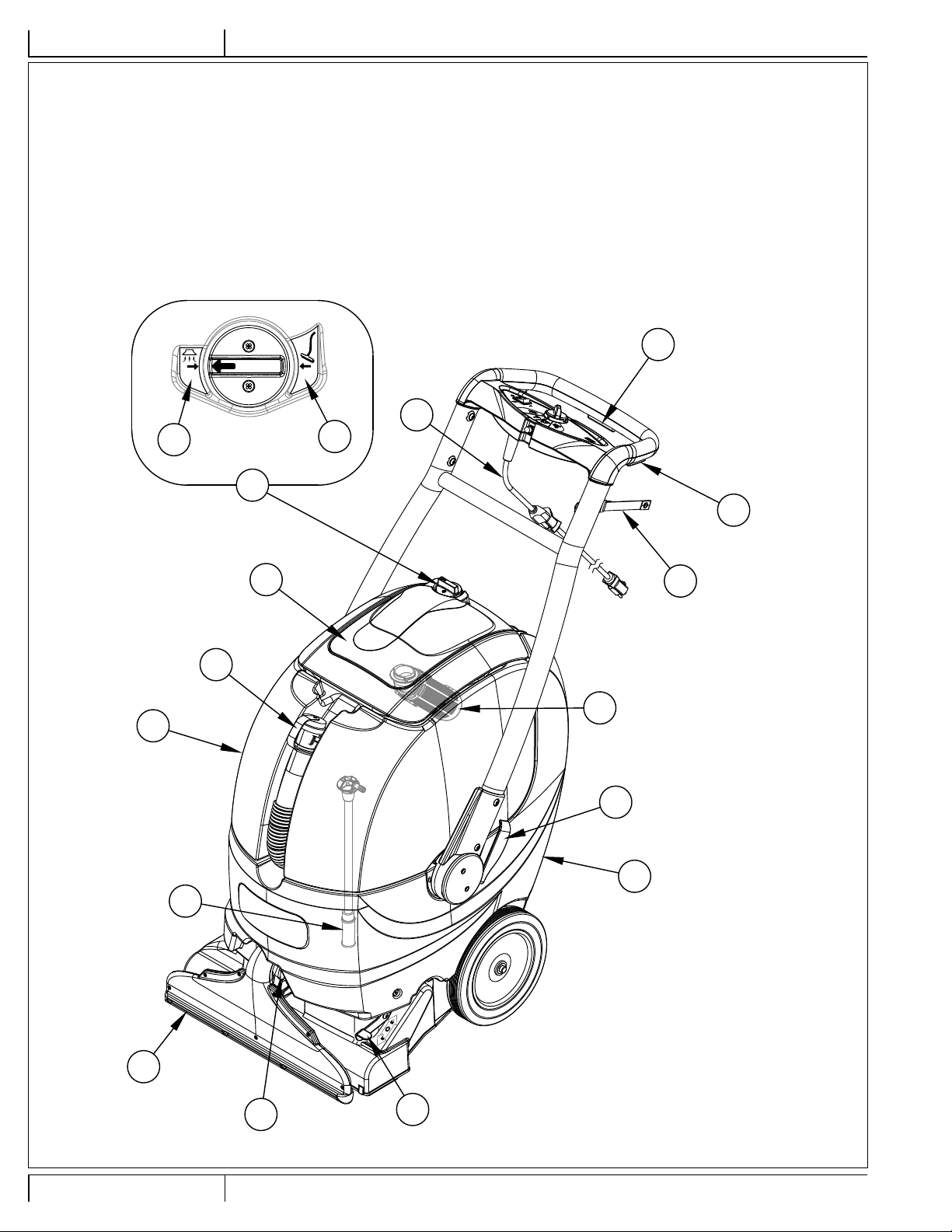

KNOW YOUR MACHINE – ES300
1 Solution Switch
2 Pigtail Cord
3 Vacuum Mode Selector Knob
3a Vacuum Shoe Mode
3b Accessory Mode
4 Automatic Float Shut-Off
5 Handle Angle Adjust Release Levers (quantity of 2)
6 Solution Tank
7 Brush Storage Lift Lever
8 Vacuum Shoe Release Lever
9 Vacuum Shoe
10 Solution Filter
11 Recovery Tank
12 Recovery Tank Drain Hose
13 Recovery Tank Dome Lid
14 Cord Retainer Strap
1
12
2
9
13
11
6
8
4
10
5
7
14
3
3a 3b
9/2015 A - 956091171 - ES300 ST, ES300 XP, ES400 XLP
ENGLISH - AINSTRUCTIONS FOR USE

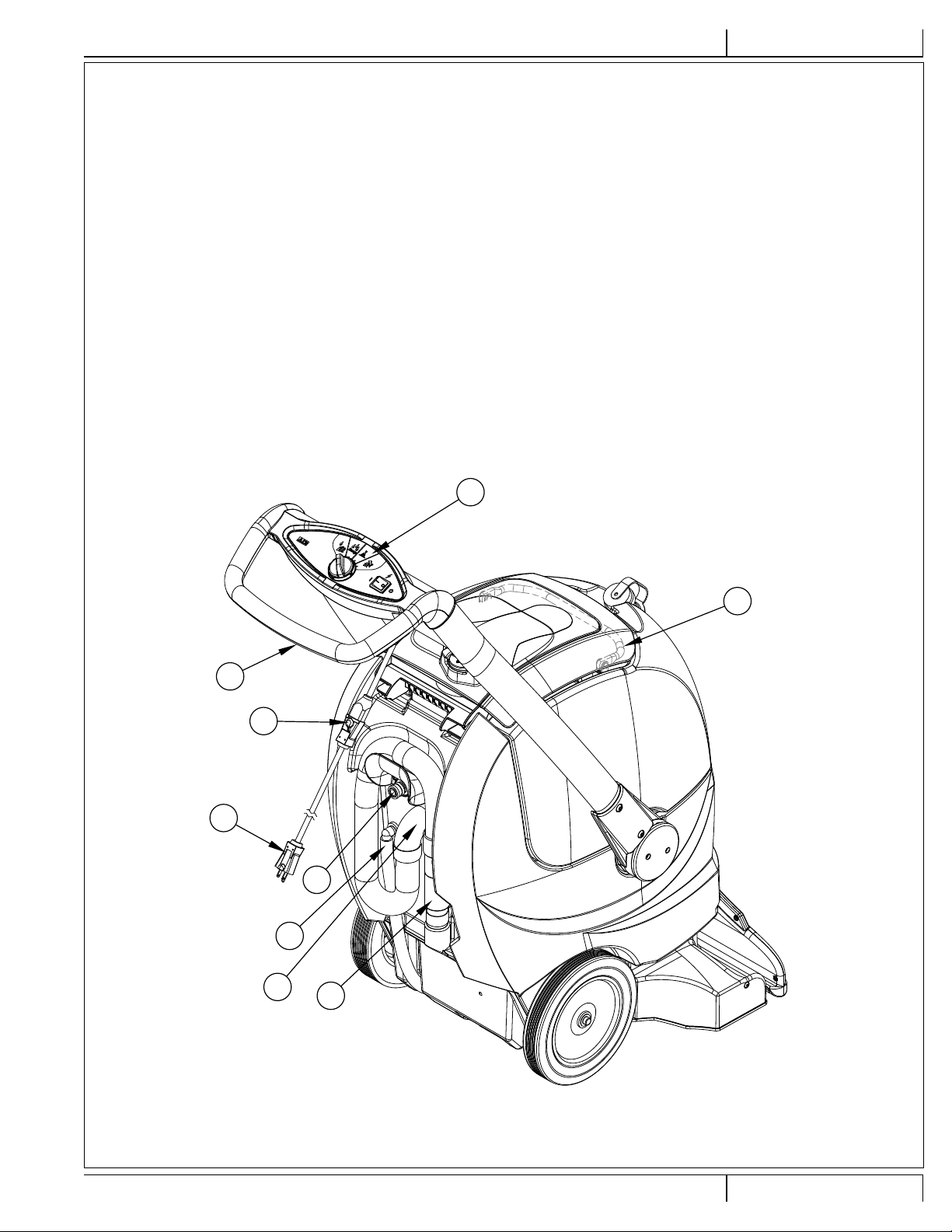

KNOW YOUR MACHINE – ES300
15 Accessory Solution Port
16 Power Cord
17 Power Cord Locking Mechanism
18 Control Panel
19 Hand Tool (Optional)
20 Recovery Tank Handle
21 Solution Drain Hose / Level Indicator
22 Accessory Vacuum Hose Port
23 Handle Assembly
21
15
16
17
18
19
20
22
23
