Nikon Prostaff 7i Manuel utilisateur

Instruction manual/Manual de instrucciones/

Manuel d’utilisation/Manual de instruções

English ......................................... p. 3-17

Español ...................................... p. 18-32

Français ...................................... p. 33-47

Português brasileiro ................. p. 48-62

CONTENTS

1. Introduction .............................................................. 3-4

2. Cautions before use ................................................ 5-7

3. Key features ................................................................... 8

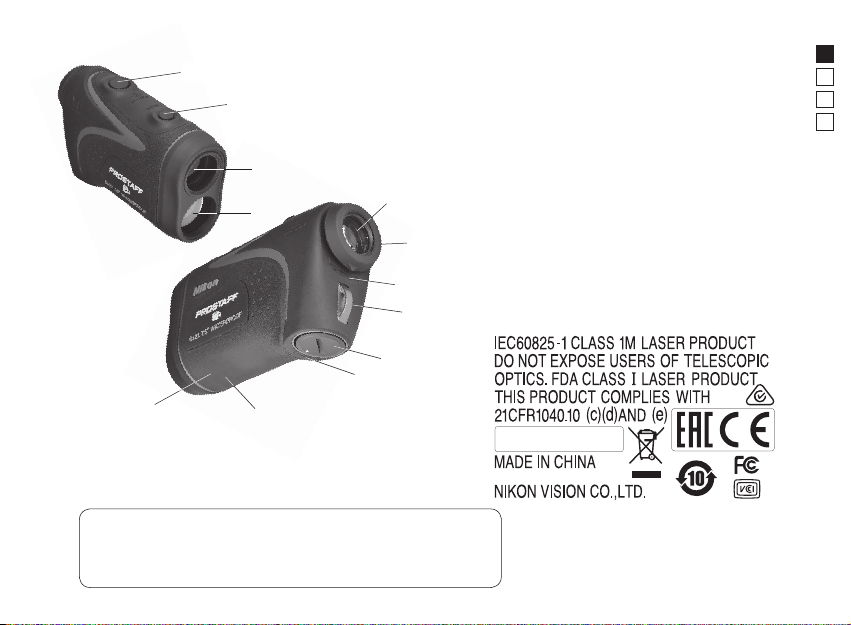

4. Nomenclature/Composition ................................... 9

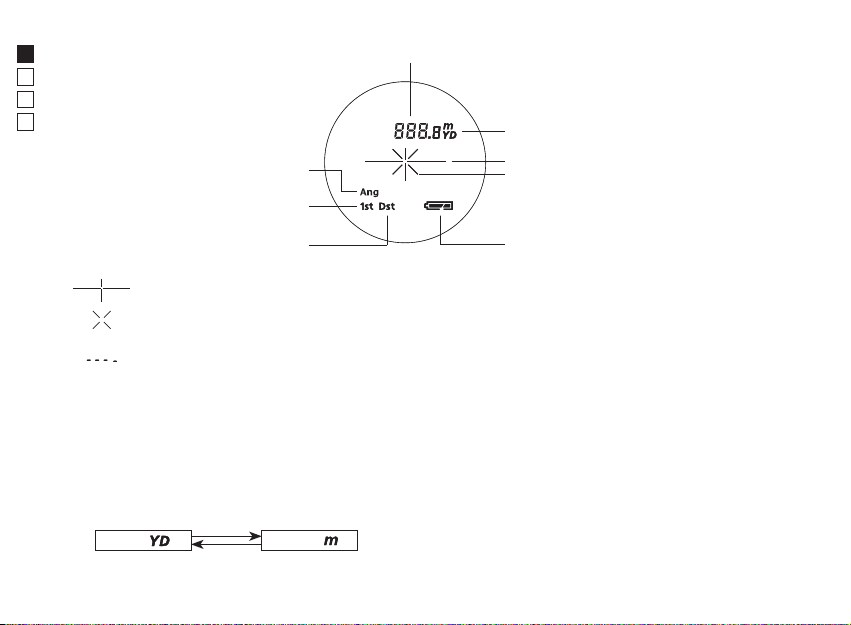

5. Internal display ........................................................... 10

6. Distance display units .............................................. 10

7. Measurement display mode ................................. 11

8. Target priority mode ................................................. 11

9. Battery ........................................................................... 12

10. Measurement ....................................................... 13-14

11. Specifications ....................................................... 15-16

12. Troubleshooting/Repair .......................................... 17

English

Thank you for purchasing the Nikon Laser Rangefinder PROSTAFF 7i.

Before using this product, please read these instructions thoroughly to ensure correct usage.

After reading, please keep this manual handy for easy reference.

1. Introduction

● About the manual

・No part of the manual included with this product may be reproduced, transmitted, transcribed, stored in a

retrieval system, or translated into any language in any form, by any means, without Nikon’s prior written

permission.

・Nikon will not be held liable for any errors this manual may contain.

・The appearance of this product and its specifications are subject to change without notice.

●About controls for radio interference

・This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and

(2) This device must accept any interference received, including interference that may cause undesired

operation.

・This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant

to Part 15 of the FCC Rules and to EU EMC directive. These limits are designed to provide reasonable

protection against harmful interference in a residential installation. This equipment generates, uses and

can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may

cause harmful interference to radio communications. However, there is no guarantee that interference

will not occur in a particular installation. If this equipment does cause harmful interference to radio

or television reception, which can be determined by turning the equipment off and on, the user is

encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Consult the dealer or an experienced radio/TV technician for help.

This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment

Regulations.

● About measurement results

This Nikon Laser Rangefinder is a basic rangefinder. Its results cannot be used as official evidence.

Please observe the following

guidelines strictly so you can use

the equipment properly and

avoid potentially hazardous

problems. Before using this

product, read thoroughly the

“Cautions before use” and

instructions on correct usage

accompanying the product.

Keep this manual within reach

for easy reference.

WARNING

This indication alerts you to the fact

that any improper use ignoring the

contents described herein can result

in potential death or serious injury.

CAUTION

This indication alerts you to the fact

that any improper use ignoring the

contents described herein can result

in potential injury or material loss.

SAFETY PRECAUTIONS (Laser)

The Nikon Laser Rangefinder uses an

invisible laser beam. Be sure to

observe the following:

Warning

• Do not press the POWER ON/

Measurement button while

looking into the optics from the

objective side. Failure to do this may

negatively affect or damage your

eyes.

• Do not aim at the eye.

• Do not point the laser at people.

• Do not look at the laser with another

optical instrument such as through

lenses or binoculars, nor with the

naked eye. This may result in damage

to the eyes.

• When not measuring, please keep

your fingers away from the POWER

ON/Measurement button to avoid

accidentally emitting the laser

beam.

• When not in use for an extended

period, please remove the battery

from the body.

• Do not disassemble/remodel/

repair the Nikon Laser

Rangefinder. The emitting

laser may be harmful to your

health. A product that has been

disassembled/remodeled/

repaired is not guaranteed by the

manufacturer.

• Keep the Nikon Laser Rangefinder

out of reach of children when

stored.

• If the Nikon Laser Rangefinder’s

body cover is damaged, or if it

emits a strange sound due to

dropping or some other cause,

remove the battery immediately

and stop using.

2. Cautions before use

SAFETY PRECAUTIONS

(Lithium battery)

If handled incorrectly, the battery

may rupture and leak, corroding

equipment and staining clothing.

Be sure to observe the following:

• Install the battery with the + and –

poles positioned correctly.

• The battery should be removed

when exhausted or during

extended periods of non-use.

• Do not short the end terminal of

the battery chamber.

• Do not carry together with keys

or coins in a pocket or bag, it may

short and cause overheating.

• Do not expose the battery to water,

or a flame. Never disassemble the

battery.

• Do not charge the lithium battery.

• If liquid from a damaged battery

comes into contact with clothing or

skin, rinse immediately with plenty

of water. If liquid from a damaged

battery enters the eyes, rinse

immediately with clean water, then

consult a doctor.

• When disposing of the battery,

follow your local area regulations.

• Prevent children from putting

the rubber eyecup or small parts,

etc. into their mouths. If children

swallow such parts, consult a

doctor immediately.

• If using the rubber eyecup for a

long period of time, some people

may suffer skin inflammation. If any

symptoms occur, stop using it and

consult a doctor immediately.

• When carrying the Nikon Laser

Rangefinder, store it in the case.

• If your Nikon Laser Rangefinder

should fail to operate correctly,

discontinue use immediately and

consult with your local dealer for

instructions on where to send it for

repair.

SAFETY PRECAUTIONS

(Monocular)

The Nikon Laser Rangefinder

employs a monocular in its optical

system in order to aim at the target.

Be sure to observe the following:

Warning

• Never look directly at the sun, an

intense light or the laser beam

when using the Nikon Laser

Rangefinder.

Cautions

• When not using the Nikon Laser

Rangefinder, do not push the

POWER ON/Measurement button.

• Do not use this product while

walking. Failure to observe this

may cause injury or malfunction

as a result of walking into

something, hitting others, falling

or other accidents.

• Do not swing around by the

strap. This may result in hitting

others and cause injury.

• Do not place this product in

an unstable place. Failure to

observe this may result in falling

or dropping and cause injury or

malfunction.

• Keep the plastic bag used to wrap

this product or other small parts

out of reach of children.

Storage

• Water condensation or mold may

occur on the lens surface because

of high humidity. Therefore, store

the Nikon Laser Rangefinder in a

cool, dry place.

After use on a rainy day or at night,

thoroughly dry it at room

temperature, then store in a cool,

dry place.

CARE AND MAINTENANCE

Lenses

• When removing dust on the lens

surface, use a soft oil-free brush.

• When removing stains or smudges

like fingerprints from the lens

surface, wipe the lenses very gently

with a soft clean cotton cloth or

quality oil-free lens tissue. Use a

small quantity of pure alcohol (not

denatured) to wipe stubborn

smudges. Do not use velvet cloth

or ordinary tissue, as it may scratch

the lens surface. Once the cloth has

been used for cleaning the body, it

should not be used again for the

lens surface.

Main body

• Clean the body surface with a soft,

clean cloth after blowing away dust

with a blower* lightly. Do not use

benzene, thinner, or other cleaners

containing organic solvents.

* A blower is rubber cleaning

equipment that blows air from a

nozzle.

SAFETY PRECAUTIONS

Cautions

• It is not designed for use

underwater.

• Rain, water, sand and mud should

be removed from the rangefinder

body surface as soon as possible,

using a soft, clean cloth.

• Do not leave the Nikon Laser

Rangefinder in a car on a hot or

sunny day, or near heat-generating

equipment. This may damage or

negatively affect it.

• Do not leave the Nikon Laser

Rangefinder in direct sunlight.

Ultraviolet rays and excessive heat

may negatively affect or even

damage the unit.

• If the Nikon Laser Rangefinder is

exposed to sudden changes in

temperature, water condensation

may occur on lens surfaces. Do

not use the product until the

condensation has evaporated.

This symbol indicates that this battery is to be

collected separately.

The following apply only to users in European

countries.

• This battery is designated for separate collection at an

appropriate collection point. Do not dispose of as

household waste.

• For more information, contact the retailer or the local

authorities in charge of waste management.

Symbol for separate collection applicable in European

countries

This symbol indicates that this product is to be

collected separately.

The following apply only to users in European

countries.

• This product is designated for separate collection at

an appropriate collection point. Do not dispose of as

household waste.

• For more information, contact the retailer or the local

authorities in charge of waste management.

Symbol for separate collection applicable in European

countries

3. Key features

• Measurement range of actual distance:

7.3-1,200 meters/8-1,300 yards

• High-quality 6x finder with multilayer coating

• Larger ocular for easy viewing

• Horizontal Distance display mode and Actual

Distance display mode can be easily switched

• Target Priority Switch System for measuring

overlapping subjects

• Sustained pressing of the POWER ON/Measurement

button enables continuous measurement function

• Automatic power shut-off (after approx. 8 sec.

unoperated)

• Default to“Last Use”settings

• Waterproof design safe for use on rainy days

(NOT designed for underwater usage)

• Invisible/Eyesafe EN/IEC Class 1M Laser

The Nikon Laser Rangefinder uses an invisible

laser beam for measuring. It measures the time the

laser beam takes to travel from the rangefinder

to the target and back. Laser reflectivity and

measurement results may vary according to

climatic and environmental conditions, as well

as the color, surface finish, size, shape and other

characteristics of the target.

The following conditions facilitate measuring:

• Cloudy weather

• Bright-colored target

• Large-size target

• When laser incidence to the target’s reflective

surface is straight

Measurement may be inaccurate or fail in the

following cases:

• In snow, rain or fog

• Small or slender target

• Black or dark target

• Target has stepped surface

• Moving or vibrating target

• When measuring the surface of water

• Target measured through glass

• When the target is glass or a mirror

• When laser incidence to the target’s reflective

surface is oblique

1. Monocular objective lens/

Laser emission aperture

2 . Laser detector aperture

3. MODE button

4. POWER ON/Measurement button

5. 6x monocular eyepiece

6. Eyecup/Diopter adjustment ring

7. Diopter index

8. Strap eyelet

9. Battery chamber cover

10. Battery chamber cover “Open/Close” indication

11. Product number label

12. Indication

• Body ...................................... x1

• Case ....................................... x1

• Strap ...................................... x1

• Lithium battery (CR2) ..... x1

Composition

4. Nomenclature/Composition

5. Internal display

Distance

Unit of measure (m/yd.)

Target mark

Laser irradiation mark

Horizontal Distance display mode

Battery condition

First Target Priority mode

Distant Target Priority mode

:Aim at the target you want to measure. Position the target at the center of the reticle.

:Appears while the laser is being irradiated for a measurement.

Do not look towards the objective lens side while this mark is shown.

:"Failure to measure" or "Unable to measure"

* Because the internal display of this product is enlarged by the eyepiece, dust may sometimes be seen.

This will not, however, affect the measurement accuracy.

6. Distance display units

Meter [ ]Yard [ ]

Measurement results are displayed in yards/meters. (Factory default setting is yard.)

1. Turn on the power.

2. Press and hold the MODE button for more than two seconds. After the display unit has switched, release the button.

Autres manuels pour Prostaff 7i

Table des matières

Langues :

Autres manuels Nikon Instrument de mesure

Nikon

Nikon CoolShot Pro Stabilized Manuel utilisateur

Nikon

Nikon PROSTAFF 3i Manuel utilisateur

Nikon

Nikon DTM-502 Series Manuel utilisateur

Nikon

Nikon COOLSHOT PRO II STABILIZED Manuel utilisateur

Nikon

Nikon DTM-350 Manuel utilisateur

Nikon

Nikon NPL-352 Manuel utilisateur

Nikon

Nikon 50i Manuel utilisateur

Nikon

Nikon PROSTAFF 7 Manuel utilisateur

Nikon

Nikon LASER 30 Manuel utilisateur

Nikon

Nikon 8431 - Monarch - Dot Manuel utilisateur

Nikon

Nikon MONARCH 3000 STABILIZED Manuel utilisateur

Nikon

Nikon PROSTAFF 3i Manuel utilisateur

Nikon

Nikon Callaway iQ Manuel utilisateur

Nikon

Nikon ARROW ID 7000 VR Manuel utilisateur

Nikon

Nikon Forestry Pro II Manuel utilisateur

Nikon

Nikon Cool Shot 40 Manuel utilisateur

Nikon

Nikon MONARCH 2000 Manuel utilisateur

Nikon

Nikon Coolshot 40i Manuel utilisateur

Nikon

Nikon Forestry Pro Manuel utilisateur

Nikon

Nikon ProStaff LASER 440 Manuel utilisateur

Nikon

Nikon Nivo 2.C Manuel utilisateur

Nikon

Nikon XF SERIES Manuel utilisateur

Nikon

Nikon NPL-302 Series Manuel utilisateur

Nikon

Nikon Monarch 7iVR Manuel utilisateur

Manuels Instrument de mesure populaires d'autres marques

Suaoki

Suaoki D40 Manuel utilisateur

Elster

Elster BK-G1.6 Manuel utilisateur

Endress+Hauser

Endress+Hauser Deltabar FMD71 Manuel

Duratool

Duratool D03128 Manuel utilisateur

Vega

Vega VEGAPULS 65 Manuel utilisateur

Tonghui

Tonghui TH2618B Manuel utilisateur

Tenmars

Tenmars TM-801 Manuel utilisateur

MSR

MSR 145 Manuel utilisateur

TPS

TPS WP-82 Manuel utilisateur

ELMETRON

ELMETRON CP-511 Manuel utilisateur

PCB Piezotronics

PCB Piezotronics 003C30 Manuel utilisateur

Tenma

Tenma 72-10465 Manuel utilisateur

Endress+Hauser

Endress+Hauser Proline Promag 50 Caractéristiques techniques

Siemens

Siemens SITRANS F Coriolis FCT030 Manuel de la liste des pièces

KLINGER

KLINGER CMF V Series Manuel utilisateur

EXFO

EXFO FTB-2 Manuel d'exploitation et d'entretien

Keysight

Keysight M8290A Manuel utilisateur

ADTEK

ADTEK MW-5 Manuel utilisateur
