Nikon MONARCH 2000 Manuel utilisateur

Instruction manual/Manuel d’utilisation

Laser Rangefinder/Télémètre laser

CONTENTS

English

Introduction

Read this first.......................................................................4

SAFETY AND OPERATION PRECAUTIONS..................5

Getting to know the Laser Rangefinder

Key features..........................................................................8

Nomenclature/Composition..........................................9

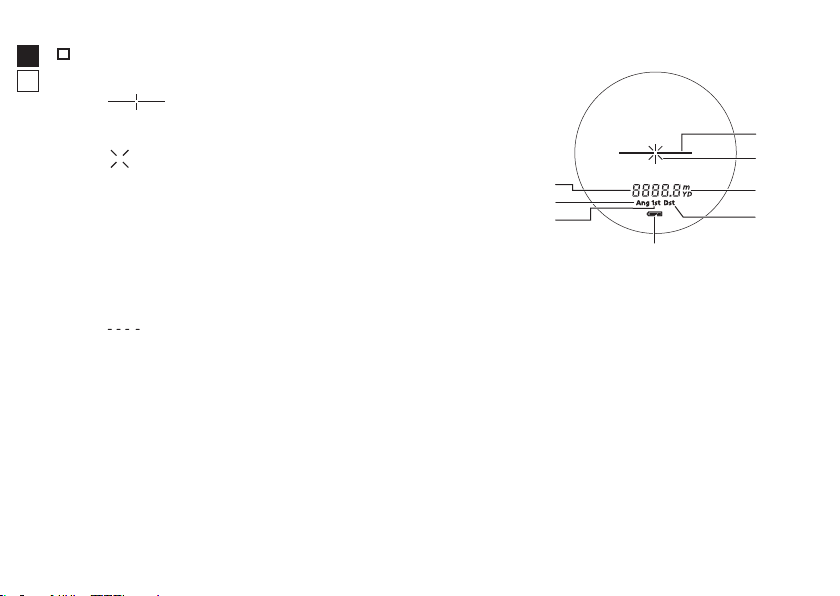

Internal display ................................................................ 10

Functions

Target priority mode (First Target Priority mode/

Distant Target Priority mode) ..................................... 11

Inserting/Replacing battery

Type of battery................................................................. 12

Inserting/Replacing battery........................................ 12

Battery level indicator ................................................... 12

Navigating the menus

Changing the internal display luminance (IL) ...... 13

Changing the distance display unit (F1)................. 14

Changing the measurement display mode (F2).. 15

Changing the target priority mode (F3) ................. 16

Operation diagram of the setting menus .............. 17

Measurement

Adjusting the focus of the internal display............ 18

Measuring.......................................................................... 18

Single measurement...................................................... 19

Continuous measurement........................................... 19

Technical notes

Specifications ................................................................... 20

Troubleshooting/Repair ............................................... 22

English

Introduction

 Read this first

Thank you for purchasing the Nikon Laser Rangefinder MONARCH 2000.

Before using the product, read this manual thoroughly to ensure proper use.

After reading this manual, keep it in a readily accessible place for future reference.

lAbout the manual

• No part of the manual may be reproduced, transmitted, transcribed, stored in a retrieval system, or

translated into any language in any form, by any means, without Nikon’s prior written permission.

• Illustrations and display content shown in this manual may differ from the actual product.

• Nikon will not be held liable for any errors this manual may contain.

• The appearance, specifications, and capabilities of this product are subject to change without notice.

lAbout controls for radio interference

• This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and

(2) This device must accept any interference received, including interference that may cause undesired

operation.

• This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant

to Part 15 of the FCC Rules and to EU EMC directive. These limits are designed to provide reasonable

protection against harmful interference in a residential installation. This equipment generates, uses and

can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may

cause harmful interference to radio communications. However, there is no guarantee that interference

will not occur in a particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off and on, the user is

encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Consult the dealer or an experienced radio/TV technician for help.

Notice for customers in Canada

CAN ICES-3(B)/NMB-3(B)

 SAFETY AND OPERATION PRECAUTIONS

Strictly observe the guidelines

contained in this manual in

order to use this product safely

and prevent possible injury or

property damage to you and

others. Understand the contents

thoroughly for correct use of the

product.

WARNING

This indicates that improper use by

ignoring the contents described

herein can result in potential death

or serious injury.

CAUTION

This indicates that improper use by

ignoring the contents described

herein can result in potential injury

or material loss.

SAFETY PRECAUTIONS (Laser)

This product uses an invisible laser

beam. Be sure to observe the

following:

WARNING

• Do not press the PWR button while

looking into the laser emission

aperture. You may damage your

eyes.

• Do not aim at eyes.

• Do not point the laser at people.

• Do not look at lasers with other

optical instruments such as lenses

or binoculars. You may damage

your eyes.

• When not measuring, keep your

fingers away from the PWR button

to avoid accidentally emitting the

laser.

• When not in use for an extended

period, remove the battery.

• Do not disassemble, remodel, or

repair the product. The laser

emission may be harmful to your

health. If the product is

disassembled, remodeled, or

repaired, it is no longer

guaranteed by the manufacturer.

• Store the product in a place out of

reach of children.

SAFETY PRECAUTIONS

(Monocular)

WARNING

• Never look directly at the sun,

intense light, or lasers while using

this product. It may seriously

damage the eyes or cause

blindness.

CAUTION

• Keep the plastic bag used to wrap

this product or other small parts

out of reach of children. The bag

may block their mouths and noses

and cause them to suffocate.

• Be careful of children inadvertently

swallowing small parts or

accessories. If children swallow

such parts, see a doctor

immediately.

• Turn off this product when not in

use.

• When carrying this product, store

it in the case.

• If this product fails to operate

correctly for any reason,

discontinue use immediately and

consult with a Nikon authorized

service representative.

• Do not leave this product in an

unstable place. It may fall and

cause injury or malfunction.

• Do not use this product while

walking. You may walk into

something or fall and cause injury

or malfunction.

• Do not swing this product by the

strap. You may hit others and

cause injury.

• The rubber parts of this product

(such as the eyecup) or rubber

parts of the included case and

strap may deteriorate if used or

stored for a long period of time.

The deteriorated rubber may

attach on clothes and cause stains.

Check their condition before use,

and consult with a Nikon

authorized service representative

if a defect is found.

• Using the rubber eyecup for

extended periods of time may

cause skin inflammation. If you

develop any symptoms, stop use

and see a doctor immediately.

PRECAUTIONS

(Lithium battery)

Incorrect use may cause the lithium

battery to rupture or leak, which will

corrode the device or stain your

hands and clothing.

Be sure to observe the following:

• Install the battery with the + and

– poles positioned correctly.

• Remove the battery when this is

depleted or will not be used for

extended periods.

• Keep the battery away from fire or

water. Never disassemble the

battery.

• Do not charge the lithium battery.

• Do not short the terminal of the

battery chamber.

• Do not carry the battery together

with keys or coins in a pocket or

bag. You may short the battery and

cause overheating.

• If liquid leaked from the lithium

battery comes into contact with

clothing or skin, rinse with plenty

of water. If it enters the eyes or

mouth, rinse with water and

consult a doctor immediately.

• When disposing of the lithium

battery, follow your local area

regulations.

HANDLING AND OPERATION

PRECAUTIONS

• Do not subject this product to

physical shock.

• If you accidentally apply strong

physical shock or drop the product

and suspect a malfunction, consult

with your local dealer or a Nikon

authorized service representative

immediately.

• Do not use the product

underwater.

• Wipe off any rain, water, sand, or

mud on the product as soon as

possible with a soft, clean cloth.

• When this product is exposed to

extreme temperature changes

(suddenly brought from a cold

place to a warm place or vice-

versa), the lens surfaces may get

cloudy. Do not use the product

until the cloudiness has

disappeared.

• Do not leave the product in a car

on a hot or sunny day, or near heat

generating equipment.

• Do not leave the

eyepiece in direct

sunlight. The

condenser effect of

the lens may

damage the internal

display surface.

CARE AND MAINTENANCE

PRECAUTIONS

LENS

Be careful that you do not directly

touch the lens surface with your

hands when cleaning it. Remove

dust or lint with a blower*. For

fingerprints or other stains that

cannot be removed with a blower,

wipe the lens with a dry soft cloth or

cleaning cloth for eyeglasses, using a

spiral motion that starts at the center

of the lens and working towards the

edges. Wiping too firmly or wiping

with a hard material may damage

the lens. If this fails, gently wipe the

lens using a cloth lightly dampened

with commercial lens cleaner.

MAIN BODY

After gently removing dust with a

blower, clean the body surface with a

soft, clean cloth. After use at a

seaside, wipe off salt that may be on

the body surface with a damp, soft,

clean cloth, and then wipe with a dry

cloth. Do not use benzene, thinner,

or other cleaners containing organic

solvents.

STORAGE

Water condensation or mold may

occur on lens surfaces because of

high humidity. Therefore, store the

product in a cool, dry place. After use

on a rainy day or at night, thoroughly

dry it at room temperature, then

store in a cool, dry place.

* A rubber cleaning tool that blows

air from a nozzle.

En Symbol for separate collection applicable

in European countries

This symbol indicates that this battery is

to be collected separately.

The following apply only to users in

European countries.

• This battery is designated for

separate collection at an appropriate

collection point. Do not dispose of as

household waste.

• For more information, contact the

retailer or the local authorities in

charge of waste management.

En Symbol for separate collection applicable

in European countries

This symbol indicates that this product is

to be collected separately.

The following apply only to users in

European countries.

• This product is designated for

separate collection at an appropriate

collection point. Do not dispose of as

household waste.

• For more information, contact the

retailer or the local authorities in

charge of waste management.

 Key features

• Red internal display is easy-to-read

• Horizontal distance mode and actual distance

mode can be easily switched

• Target Priority Switching System for measuring

overlapping subjects

• High-quality 6× finder with multilayer coating

• Larger ocular for easy viewing

• Automatic continuous measurement for up to

4 seconds if single measurement fails

• Press and hold down the PWR button to activate

the continuous measurement function (up to

approx. 8 seconds)

• Automatic power shut-off (approx. 8 sec.

unoperated from standby screen)

• Waterproof and fogproof (not designed for

underwater usage)

• Invisible/Eyesafe EN/IEC Class 1M Laser

This product uses an invisible laser beam for

measuring. It measures the time the laser beam

takes to travel from the rangefinder to the target

and back. Laser reflectivity and measurement

results may vary according to climatic and

environmental conditions, as well as the color,

surface finish, size, shape and other

characteristics of the target.

Measurement may be inaccurate or fail in the

following cases:

• In snow, rain or fog

• Small or slender target

• Black or dark target

• Target has stepped surface

• Moving or vibrating target

• When measuring the surface of water

• Target measured through glass

• When the target is glass or a mirror

• When laser incidence to the target’s reflective

surface is oblique

lAbout measurement results

This device is a basic rangefinder. Its measurement results cannot be used as official evidence.

Getting to know the Laser Rangefinder

 Nomenclature/Composition

a87

Composition

• Body ×1

• Case ×1

• Strap ×1

• Lithium battery (CR2) ×1

1MODE button

2PWR button (POWER ON/Measurement

button)

36× monocular eyepiece

4Eyecup/Diopter adjustment ring

5Diopter index

6Strap eyelet

7Battery-chamber cover

8Battery-chamber cover “Open” indication

9Monocular objective lens/Laser emission

aperture

0Invisible Laser detector aperture

aProduct number label

bIndication

*The carabiner-like ring that comes with the case is for the purpose of carrying the Laser Rangefinder only.

Do not hang anything heavy on it, nor tug on it strongly. It cannot be used for climbing.

 Internal display

1Target mark

: Aim at the target you want to measure.

Position the target at the center of the mark.

2Laser irradiation mark

: Appears while the laser is being irradiated for a

measurement. Do not look towards the objective lens

side while this mark is shown.

3Unit of measure (m: meter/YD: yard)

4Distant Target Priority mode

5Battery level indicator

6First Target Priority mode

7Horizontal distance mode

8Distance

: “Failure to measure”or “Unable to measure”

• The internal display of this product is enlarged by the eyepiece. Although you may see dust that has

entered, it does not effect the accuracy of measurement.

 Target priority mode (First Target Priority mode/Distant Target Priority mode)

This Nikon Laser Rangefinder employs the First Target Priority/Distant Target Priority switching system.

(Factory default setting is Distant Target Priority mode.)

When measuring overlapping subjects:

First Target Priority mode displays the distance of the closest subject and Distant Target Priority mode

displays that of the farthest subject.

Functions

Autres manuels pour MONARCH 2000

Table des matières

Autres manuels Nikon Instrument de mesure

Nikon

Nikon PROSTAFF 3i Manuel utilisateur

Nikon

Nikon COOLSHOT 20i GII Manuel utilisateur

Nikon

Nikon Nivo 2.C Manuel utilisateur

Nikon

Nikon Callaway XHOT Manuel utilisateur

Nikon

Nikon LASER 800S Manuel utilisateur

Nikon

Nikon Cool Shot 40 Manuel utilisateur

Nikon

Nikon NPL-302 Series Manuel utilisateur

Nikon

Nikon ARROW ID 7000 VR Manuel utilisateur

Nikon

Nikon MONARCH 3000 STABILIZED Manuel utilisateur

Nikon

Nikon ProStaff LASER 440 Manuel utilisateur

Nikon

Nikon HQA46480 Manuel utilisateur

Nikon

Nikon PROSTAFF 7 Manuel utilisateur

Nikon

Nikon Coolshot 40i Manuel utilisateur

Nikon

Nikon DTM-350 Manuel utilisateur

Nikon

Nikon XF Series Manuel utilisateur

Nikon

Nikon Forestry Pro Manuel utilisateur

Nikon

Nikon ARROW ID 3000 Manuel utilisateur

Nikon

Nikon DTM-502 Series Manuel utilisateur

Nikon

Nikon NR-5500 Mode d'emploi

Nikon

Nikon Callaway RAZR Manuel utilisateur

Nikon

Nikon PROSTAFF 3i Manuel utilisateur

Nikon

Nikon LASER 550A S Manuel utilisateur

Nikon

Nikon 8431 - Monarch - Dot Manuel utilisateur

Nikon

Nikon 7487 - Team Realtree Laser 1200 Rangefinder Manuel utilisateur

Manuels Instrument de mesure populaires d'autres marques

Suaoki

Suaoki D40 Manuel utilisateur

Elster

Elster BK-G1.6 Manuel utilisateur

Endress+Hauser

Endress+Hauser Deltabar FMD71 Manuel

Duratool

Duratool D03128 Manuel utilisateur

Vega

Vega VEGAPULS 65 Manuel utilisateur

Tonghui

Tonghui TH2618B Manuel utilisateur

Tenmars

Tenmars TM-801 Manuel utilisateur

MSR

MSR 145 Manuel utilisateur

TPS

TPS WP-82 Manuel utilisateur

ELMETRON

ELMETRON CP-511 Manuel utilisateur

PCB Piezotronics

PCB Piezotronics 003C30 Manuel utilisateur

Tenma

Tenma 72-10465 Manuel utilisateur

Endress+Hauser

Endress+Hauser Proline Promag 50 Caractéristiques techniques

Siemens

Siemens SITRANS F Coriolis FCT030 Manuel de la liste des pièces

KLINGER

KLINGER CMF V Series Manuel utilisateur

EXFO

EXFO FTB-2 Manuel d'exploitation et d'entretien

Keysight

Keysight M8290A Manuel utilisateur

ADTEK

ADTEK MW-5 Manuel utilisateur
