INSTALLATION MANUAL

Ground source heat pump

NIBE F1155PC

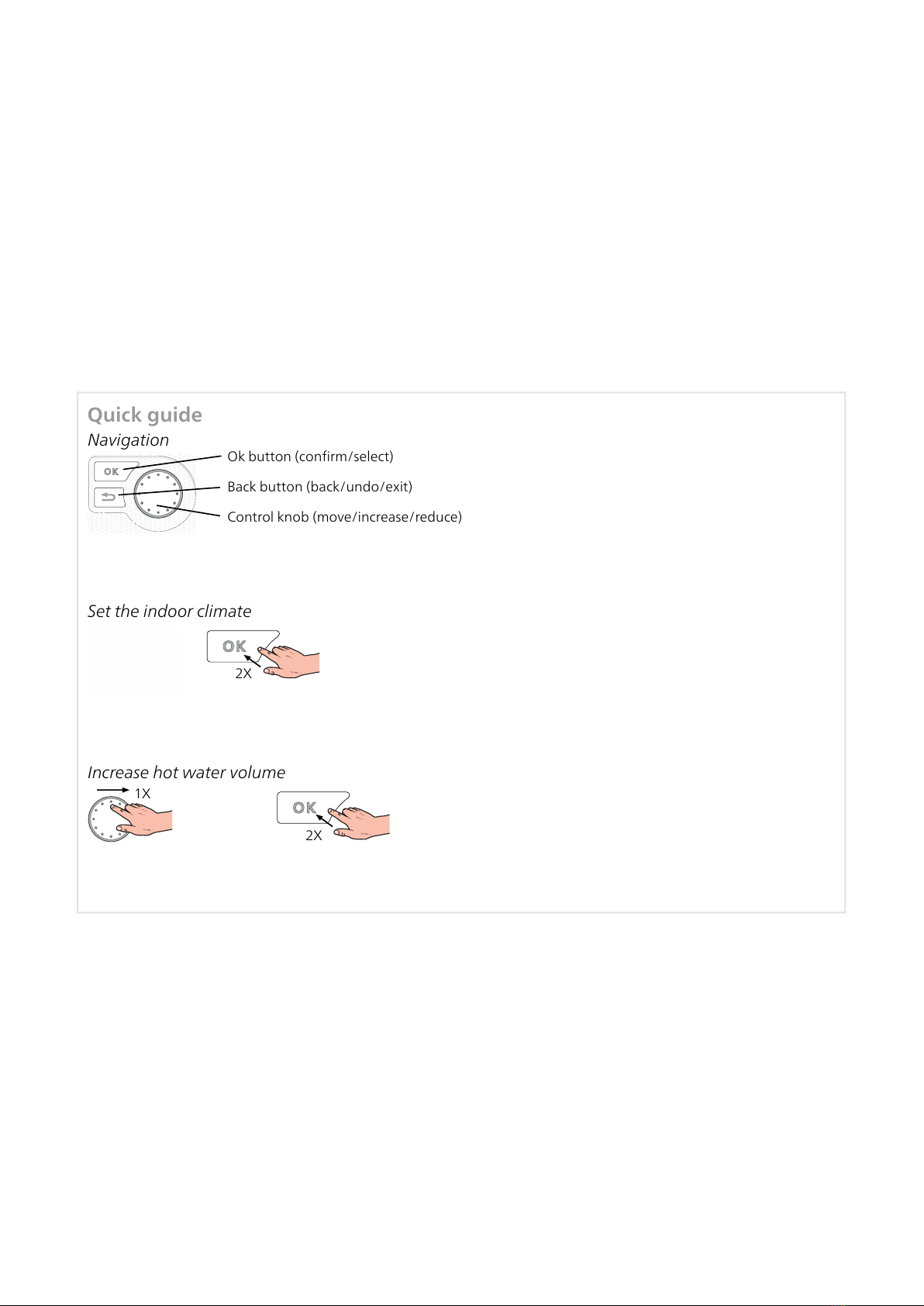

Quick guide

Navigation

Ok button (confirm/select)

Back button (back/undo/exit)

Control knob (move/increase/reduce)

A detailed explanation of the button functions can be found on page 33.

How to scroll through menus and make different settings is described on page 35.

Set the indoor climate

INDOOR CLIMATE

HEAT PUMP INFO

HOT WATER

The mode for setting the indoor temperature is accessed by pressing the OK button twice, when in the start

mode in the main menu.

Increase hot water volume

To temporarily increase the amount of hot water (if a hot water heater is installed to your F1155PC), first turn

the control knob to mark menu 2 (water droplet) and then press the OK button twice.

41 Important information

4Safety information

4Symbols

4Marking

5Serial number

5Recovery

5Environmental information

6Inspection of the installation

72 Delivery and handling

7Transport

7Assembly

8Supplied components

8Removing the covers

93 The heat pump design

9General

11Distribution boxes

12Cooling section (EP14)

134 Pipe connections

13General

14Dimensions and pipe connections

14Brine side

15Heating medium side

15Cold and hot water

16Docking alternatives

185 Electrical connections

18General

20Connections

22Settings

23Optional connections

26Connecting accessories

286 Commissioning and adjusting

28Preparations

28Filling and venting

28Start-up and inspection

30Setting the cooling/heating curve

337 Control - Introduction

33Display unit

34Menu system

378 Control - Menus

37Menu 1 - INDOOR CLIMATE

37Menu 2 - HOT WATER

38Menu 3 - INFO

38Menu 4 - HEAT PUMP

39Menu 5 - SERVICE

509 Service

50Service actions

5710 Disturbances in comfort

57Manage alarm

57Troubleshooting

6011 Accessories

6312 Technical data

63Dimensions and setting-out coordinates

64Electrical data

65Technical specifications

68Energy labelling

72Item register

75Contact information

3Table of ContentsNIBE F1155PC

Table of Contents

Safety information

This manual describes installation and service proced-

ures for implementation by specialists.

The manual must be left with the customer.

This appliance can be used by children

aged from 8 years and above and persons

with reduced physical, sensory or mental

capabilities or lack of experience and

knowledge if they have been given super-

vision or instruction concerning use of the

appliance in a safe way and understand

the hazards involved. Children shall not

play with the appliance. Cleaning and user

maintenance shall not be made by children

without supervision.

Rights to make any design or technical

modifications are reserved.

©NIBE 2020.

Water may drip from the safety valve’s

overflow pipe. The entire length of the over-

flow water pipe must be routed to a suitable

drain and be inclined to prevent water pock-

ets, and must also be frost-proof. The over-

flow pipe must be at least the same size as

the safety valve. The overflow pipe must be

visible and its mouth must be open and not

located close to electrical components.

F1155PC must be installed via an isolator

switch. The cable area has to be dimensioned

based on the fuse rating used.

Symbols

NOTE

This symbol indicates danger to person or ma-

chine .

Caution

This symbol indicates important information

about what you should consider when installing

or servicing the installation.

TIP

This symbol indicates tips on how to facilitate

using the product.

Marking

The CE mark is obligatory for most products sold

in the EU, regardless of where they are made.

Classification of enclosure of electro-technical

equipment.

IP21

Danger to person or machine.

Read the User Manual.

NIBE F1155PCChapter 1 | Important information4

1 Important information

Serial number

The serial number can be found at the bottom right of

the front cover, in the info menu (menu 3.1) and on the

type plate (PZ1).

Serial number

Caution

You need the product's ((14 digit) serial number

for servicing and support.

Recovery

Leave the disposal of the packaging to the in-

staller who installed the product or to special

waste stations.

Do not dispose of used products with normal

household waste. It must be disposed of at a

special waste station or dealer who provides this type

of service.

Improper disposal of the product by the user results in

administrative penalties in accordance with current le-

gislation.

Environmental

information

F-GAS REGULATION (EU) NO. 517/2014

This unit contains a fluorinated greenhouse gas that is

covered by the Kyoto agreement.

The equipment contains R407C, a fluorinated green-

house gas with a GWP value (Global Warming Potential)

of 1,774. Do not release R407C into the atmosphere.

5Chapter 1 | Important informationNIBE F1155PC

Inspection of the installation

Current regulations require the heating installation to be inspected before it is commissioned. The inspection must

be carried out by a suitably qualified person.

In addition, fill in the page for the installation data in the User Manual.

DateSignatureNotesDescription

✔

Brine (page 14)

System flushed

System vented

Antifreeze

Level/Expansion vessel

Filterball (particle filter)

Safety valve

Shut off valves

Circulation pump setting

Heating medium (page 15)

System flushed

System vented

Expansion vessel

Filterball (particle filter)

Safety valve

Shut off valves

Circulation pump setting

Electricity (page 18)

Connections

Main voltage

Phase voltage

Fuses heat pump

Fuses property

Outside sensor

Room sensor

Current sensor

Safety breaker

Earth circuit-breaker

Setting of emergency mode thermostat

NIBE F1155PCChapter 1 | Important information6

Transport

F1155PC should be transported and stored vertically in

a dry place. When being moved into a building, F1155PC

may be leant back 45 °.

Ensure that F1155PC has not been damaged during

transport.

Caution

The product can be tail heavy.

If the cooling module is pulled out and transported up-

right, F1155PC can be transported on its back.

Remove the outer panels in order to protect them when

moving in confined spaces inside buildings.

EXTRACTING THE COOLING MODULE

To simplify transport and service, the heat pump can be

separated by pulling the cooling module out from the

cabinet.

See page 53 for instructions about the separation.

Assembly

• Place F1155PC on a solid foundation indoors that can

take the heat pump's weight. Use the product's ad-

justable feet to obtain a horizontal and stable set-up.

30 - 50 mm

15 - 40 mm

20-55 mm

• Because water comes from F1155PC, the area where

the heating pump is located must be equipped with

floor drainage.

•Install with its back to an outside wall, ideally in a room

where noise does not matter, in order to eliminate

noise problems. If this is not possible, avoid placing

it against a wall behind a bedroom or other room

where noise may be a problem.

• Wherever the unit is located, walls to sound sensitive

rooms should be fitted with sound insulation.

• Route pipes so they are not fixed to an internal wall

that backs on to a bedroom or living room.

INSTALLATION AREA

Leave a free space of 800 mm in front of the product.

Approx. 50 mm free space is required on each side, to

remove the side panels (see image). The panels do not

need to be removed during service. All service on

F1155PC can be carried out from the front. Leave space

between the heat pump and the wall behind (and any

routing of supply cables and pipes) to reduce the risk of

any vibration being propagated.

(50) (50)

800

* A normal installation needs 300 – 400 mm (any side) for connection

equipment, valves and electrical equipment.

7Chapter 2 | Delivery and handlingNIBE F1155PC

2 Delivery and handling

Supplied components

LEK

Current sensor1

3 x

Room sensor

1 x

Outside sensor

1 x

Temperature

sensor

3 x

O-rings

8 x

LEK

Safety valve

0.3 MPa (3 bar)1

1 x

LEK

Insulation tape

1 x

LEK

Level vessel1

1 x

Tubes for sensors

3 x

Filterball

1 x G1

1 x G3/4

Compression ring

couplings

2 x (ø28 x G25)

3 x (ø22 x G20

LEK

Aluminium tape

1 x

1Not Italy and the DACH countries.

LOCATION

The kit of supplied items is placed in packaging on top

of the heat pump.

Removing the covers

FRONT COVER

LEK

1. Remove the screws from the lower edge of the

front panel.

2. Lift the panel out at the bottom edge and up.

SIDE COVERS

LEK

The side covers can be removed to facilitate the install-

ation.

1. Remove the screws from the upper and lower

edges.

2. Twist the cover slightly outward.

3. Move the hatch outwards and backwards.

4. Assembly takes place in the reverse order.

NIBE F1155PCChapter 2 | Delivery and handling8

General

PF1

QN10

BT2

EB1

UB1

QM34

QM31

XL1

XL6 XL7

XL2XL9

UB3

AA4

SF1

AA4-XJ4

AA4-XJ3

UB2

QM32

QM33

PF2

W130

EP14

VIEW FROM BEHIND

BF1

9Chapter 3 | The heat pump designNIBE F1155PC

3 The heat pump design

PIPE CONNECTIONS

Connection, heating medium flowXL1

Connection, heating medium returnXL2

Connection, brine inXL6

Connection, brine outXL7

Connection, hot water heaterXL9

HVAC COMPONENTS

Shut-off valve, heating medium flowQM31

Shut off valve, heating medium returnQM32

Shut off valve, brine outQM33

Shut-off valve, brine inQM34

Shuttle valve, climate system/water heaterQN10

SENSORS ETC.

Flow meter**BF1

Outdoor temperature sensor*BT1

Temperature sensors, heating medium flowBT2

**Only heat pumps with energy meter

* Not illustrated

ELECTRICAL COMPONENTS

Display unit

AA4-XJ3 USB socket

AA4-XJ4 Service outlet (No function)

AA4

Immersion heaterEB1

SwitchSF1

Network cable for NIBE UplinkW130

MISCELLANEOUS

Cooling sectionEP14

Rating platePF1

Type plate, cooling sectionPF2

Cable gland, incoming electricityUB1

Cable glandUB2

Cable gland, rear side, sensorUB3

Designations according to standard EN 81346-2.

NIBE F1155PCChapter 3 | The heat pump design10

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Nibe Pompe à chaleur

Nibe

Nibe F2040 Series Guide de l'utilisateur

Nibe

Nibe S1155PC Guide de l'utilisateur

Nibe

Nibe FIGHTER 1220 Manuel utilisateur

Nibe

Nibe F1245 Guide de l'utilisateur

Nibe

Nibe F1245PC Guide de l'utilisateur

Nibe

Nibe F470 Guide de l'utilisateur

Nibe

Nibe FIGHTER 310P Caractéristiques techniques

Nibe

Nibe S1256PC Guide de l'utilisateur

Nibe

Nibe F2030 Guide de l'utilisateur

Nibe

Nibe FIGHTER 410P Manuel utilisateur

Nibe

Nibe NIBE F1X26 Manuel d'utilisation original

Nibe

Nibe F2026 Guide de l'utilisateur

Nibe

Nibe F1145 series Guide de démarrage rapide

Nibe

Nibe F125 Guide de l'utilisateur

Nibe

Nibe S2125 Manuel utilisateur

Nibe

Nibe F470 Guide de l'utilisateur

Nibe

Nibe F1126 Manuel utilisateur

Nibe

Nibe NIBE F1X26 Manuel d'utilisation original

Nibe

Nibe Fighter 200P Manuel utilisateur

Nibe

Nibe F1155 Series Guide de l'utilisateur

Nibe

Nibe F470 Guide de l'utilisateur

Nibe

Nibe F2040 Series Guide de l'utilisateur

Nibe

Nibe F2120 Series Guide de l'utilisateur

Nibe

Nibe HBS 05 Guide de l'utilisateur

Manuels Pompe à chaleur populaires d'autres marques

MICROWELL

MICROWELL HP 1000 GREEN Manuel utilisateur

Sanyo

Sanyo SAP120FCH Manuel utilisateur

Daikin

Daikin EHYHBH05AA Manuel utilisateur

Panasonic

Panasonic WH-SDF03E3E5 Mode d’emploi

Bryant

Bryant 544B Manuel utilisateur

Airxcel

Airxcel 45000 Series Manuel

Mitsubishi Electric

Mitsubishi Electric PUZ-SWM60VAA Manuel utilisateur

Dimplex

Dimplex LI 16I-TUR Guide de l'utilisateur

Carrier

Carrier WSHP Open v3 Guide de configuration rapide

TGM

TGM CTV14CN018A Manuel utilisateur

Carrier

Carrier 38MGQ Series Manuel utilisateur

Kokido

Kokido K2O K880BX/EU Guide de dépannage

Viessmann

Viessmann VITOCAL 300-G PRO Type BW 2150 Guide rapide

Carrier

Carrier 48EZN Manuel utilisateur

Viessmann

Viessmann KWT Vitocal 350-G Pro Series Mode d'emploi

Ariston

Ariston NIMBUS Manuel utilisateur

Weishaupt

Weishaupt WWP L 7 Guide de l'utilisateur

GE Zoneline AZ85H09EAC Manuel utilisateur
