Nibe F1155 Series Guide de l'utilisateur

Installer manual

LEK

NIBE™ F1155

Ground source heat pump

IHB GB 1546-6

231565

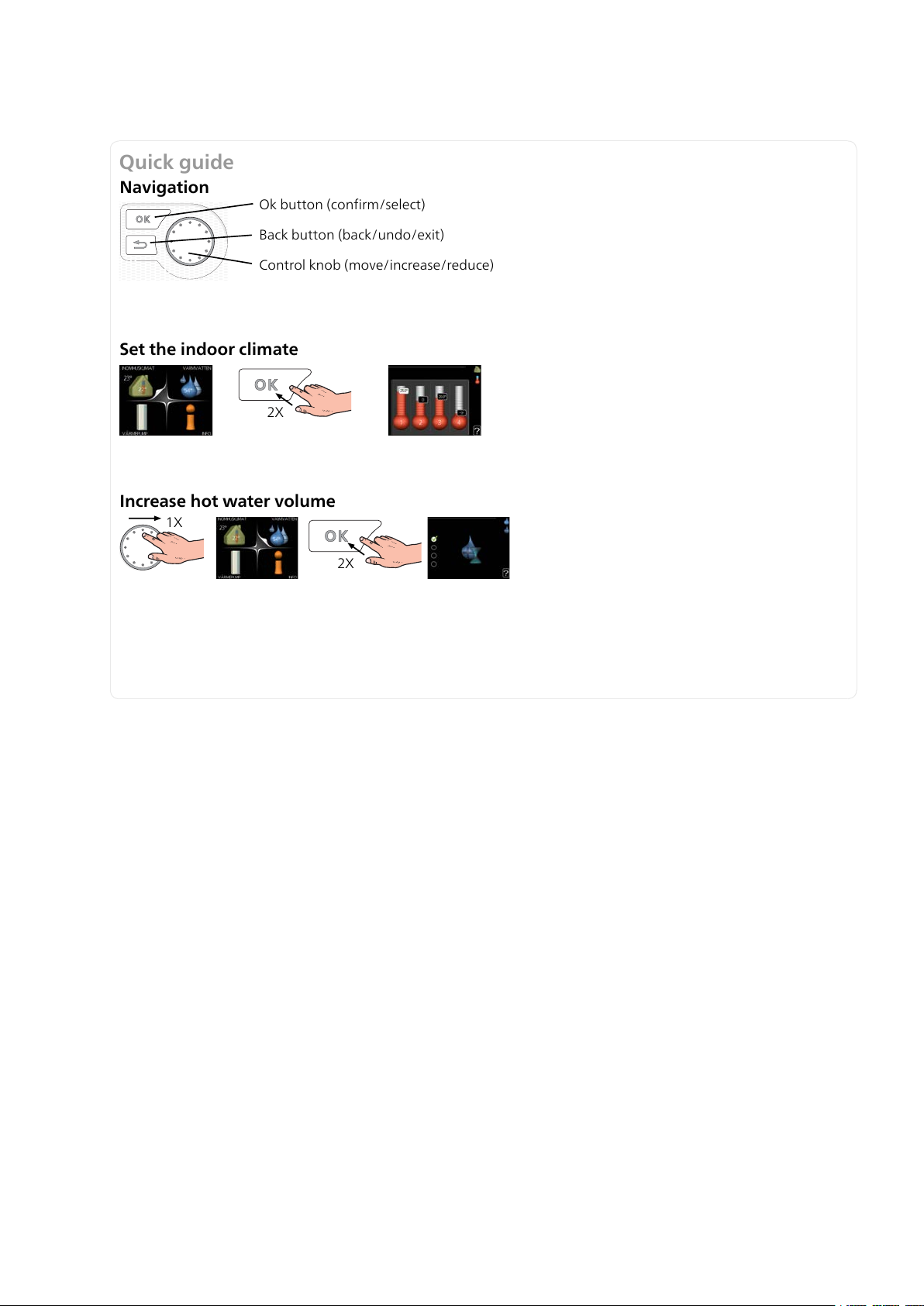

Quick guide

Navigation

Ok button (confirm/select)

Back button (back/undo/exit)

Control knob (move/increase/reduce)

A detailed explanation of the button functions can be found on page 37.

How to scroll through menus and make different settings is described on page 39.

Set the indoor climate

The mode for setting the indoor temperature is accessed by pressing the OK button twice, when in the start mode

in the main menu.

Increase hot water volume

To temporarily increase the amount of hot water (if a hot water heater is installed to your F1155), first turn the

control knob to mark menu 2 (water droplet) and then press the OK button twice.

In event of disturbances in comfort

If a disturbance in comfort of any type occurs there are some measures that can be taken before you need to

contact your installer. See page 58 for instructions.

Table of Contents

41 Important information

4Safety information

82 Delivery and handling

8Transport

8Assembly

9Supplied components

9Removing the covers

103 The heat pump design

10General

12Distribution boxes

13Cooling section

154 Pipe connections

15General

16Dimensions and pipe connections

16Brine side

17Heating medium side

17Water heater

18Docking alternatives

205 Electrical connections

20General

21Connections

24Settings

26Optional connections

30Connecting accessories

316 Commissioning and adjusting

31Preparations

31Filling and venting

32Start guide

33Post adjustment and venting

35Setting the cooling/heating curve

377 Control - Introduction

37Display unit

38Menu system

418 Control - Menus

41Menu 1 - INDOOR CLIMATE

41Menu 2 - HOT WATER

41Menu 3 - INFO

42Menu 4 - HEAT PUMP

43Menu 5 - SERVICE

529 Service

52Service actions

5810 Disturbances in comfort

58Info menu

58Manage alarm

58Troubleshooting

6011 Accessories

6212 Technical data

62Dimensions and setting-out coordinates

63Technical specifications

69Energy labelling

77Index

3Table of Contents |NIBE™ F1155

Safety information

This manual describes installation and service proced-

ures for implementation by specialists.

This appliance can be used by children

aged from 8 years and above and per-

sons with reduced physical, sensory or

mental capabilities or lack of experience

and knowledge if they have been given

supervision or instruction concerning

use of the appliance in a safe way and

understand the hazards involved. Chil-

dren shall not play with the appliance.

Cleaning and user maintenance shall

not be made by children without super-

vision.

Rights to make any design or technical

modifications are reserved.

©NIBE 2015.

Symbols

NOTE

This symbol indicates danger to machine or

person.

Caution

This symbol indicates important information

about what you should observe when main-

taining your installation.

TIP

This symbol indicates tips on how to facilitate

using the product.

Marking

The CE marking means that NIBE ensures that the

product meets all regulations that are placed on it

based on relevant EU directives. The CE mark is obligat-

ory for most products sold in the EU, regardless where

they are made.

Serial number

The serial number can be found at the bottom right of

the front cover and in the info menu (menu 3.1).

You can also find the serial number on the type plate

PF1, for location see the section for the Heat pump

design in the installer manual.

Serial number

Caution

Always give the product's serial number (14

digits) when reporting a fault.

Recovery

Leave the disposal of the packaging to the in-

staller who installed the product or to special

waste stations.

Do not dispose of used products with normal

household waste. It must be disposed of at a

special waste station or dealer who provides this type

of service.

Improper disposal of the product by the user results in

administrative penalties in accordance with current

legislation.

Country specific information

Installer manual

This installer manual must be left with the customer.

NIBE™ F1155Chapter 1 | Important information4

1 Important information

Inspection of the installation

Current regulations require the heating installation to be inspected before it is commissioned. The inspection must

be carried out by a suitably qualified person. In addition, fill in the page for the installation data in the User Manual.

DateSignatureNotesDescription

✔

Brine (page 16)

System flushed

System vented

Antifreeze

Level/Expansion vessel

Particle filter

Safety valve

Shut off valves

Circulation pump setting

Heating medium (page 17)

System flushed

System vented

Expansion vessel

Particle filter

Safety valve

Shut off valves

Circulation pump setting

Electricity (page 20)

Connections

Main voltage

Phase voltage

Fuses heat pump

Fuses property

Outside sensor

Room sensor

Current sensor

Safety breaker

Earth circuit-breaker

Setting of emergency mode thermostat

Miscellaneous

5Chapter 1 | Important informationNIBE™ F1155

DateSignatureNotesDescription

✔

Guarantee submitted

NIBE™ F1155Chapter 1 | Important information6

Contact information

KNV Energietechnik GmbH, Gahberggasse 11, 4861 SchörflingAT

Tel: +43 (0)7662 8963-0 Fax: +43 (0)7662 8963-44 E-mail: mail@knv.at www.knv.at

NIBE Wärmetechnik c/o ait Schweiz AG, Industriepark, CH-6246 AltishofenCH

Tel: (52) 647 00 30 Fax: (52) 647 00 31 E-mail: inf[email protected] www.nibe.ch

Druzstevni zavody Drazice s.r.o, Drazice 69, CZ - 294 71 Benatky nad JizerouCZ

Tel: +420 326 373 801 Fax: +420 326 373 803 E-mail: [email protected] www.nibe.cz

NIBE Systemtechnik GmbH, Am Reiherpfahl 3, 29223 CelleDE

Tel: 05141/7546-0 Fax: 05141/7546-99 E-mail: inf[email protected] www.nibe.de

Vølund Varmeteknik A/S, Member of the Nibe Group, Brogårdsvej 7, 6920 VidebækDK

Tel: 97 17 20 33 Fax: 97 17 29 33 E-mail: inf[email protected] www.volundvt.dk

NIBE Energy Systems OY, Juurakkotie 3, 01510 VantaaFI

Puh: 09-274 697 0 Fax: 09-274 697 40 E-mail: inf[email protected] www.nibe.fi

NIBE Energy Systems France Sarl, Zone industrielle RD 28, Rue du Pou du Ciel, 01600 ReyrieuxFR

Tel : 04 74 00 92 92 Fax : 04 74 00 42 00 E-mail: inf[email protected] www.nibe.fr

NIBE Energy Systems Ltd, 3C Broom Business Park, Bridge Way, Chesterfield S41 9QGGB

Tel: 0845 095 1200 Fax: 0845 095 1201 E-mail: inf[email protected] www.nibe.co.uk

NIBE Energietechniek B.V., Postbus 634, NL 4900 AP OosterhoutNL

Tel: 0168 477722 Fax: 0168 476998 E-mail: inf[email protected] www.nibenl.nl

ABK AS, Brobekkveien 80, 0582 Oslo, Postadresse: Postboks 64 Vollebekk, 0516 OsloNO

Tel. sentralbord: +47 23 17 05 20 E-mail: [email protected] www.nibeenergysystems.no

NIBE-BIAWAR Sp. z o. o. Aleja Jana Pawła II 57, 15-703 BIAŁYSTOKPL

Tel: 085 662 84 90 Fax: 085 662 84 14 E-mail: sekretariat@biawar.com.pl www.biawar.com.pl

Tel./fax +7 831 419 57 06 E-mail: [email protected] www.nibe-evan.ru

NIBE AB Sweden, Box 14, Hannabadsvägen 5, SE-285 21 MarkarydSE

Tel: +46-(0)433-73 000 Fax: +46-(0)433-73 190 E-mail: inf[email protected] www.nibe.se

For countries not mention in this list, please contact Nibe Sweden or check www.nibe.eu for more information.

7Chapter 1 | Important informationNIBE™ F1155

Transport

F1155 should be transported and stored vertically in a

dry place. When being moved into a building, F1155

may be leant back 45 °.

NOTE

The product can be tail heavy!

If the cooling module is pulled out and transported

upright, F1155 can be transported on its back.

Remove the outer panels in order to protect them when

moving in confined spaces inside buildings.

-2

HMflow

49(50)°C

Hotwater

51°C

-2

HMflow

49(50)°C

Hotwater

51°C

Pulling out the cooling module

To simplify transport and service, the heat pump can

be separated by pulling the cooling module out from

the cabinet.

See page 54 for instructions about the separation.

Assembly

■Position F1155 on a firm base that can take the

weight, preferably on a concrete floor or foundation.

Use the product's adjustable feet to obtain a horizont-

al and stable set-up.

30 - 50 mm

15 - 40 mm

■The area where F1155 is located must be equipped

with floor drainage.

■Install with its back to an outside wall, ideally in a

room where noise does not matter, in order to elim-

inate noise problems. If this is not possible, avoid

placing it against a wall behind a bedroom or other

room where noise may be a problem.

■Wherever the unit is located, walls to sound sensitive

rooms should be fitted with sound insulation.

■Route pipes so they are not fixed to an internal wall

that backs on to a bedroom or living room.

Installation area

Leave a free space of 800 mm in front of the product.

Approx. 50 mm free space is required on each side, to

remove the side panels. The panels do not need to be

removed during service, all service on F1155 can be

carried out from the front. Leave space between the

heat pump and the wall behind (and any routing of

supply cables and pipes), to reduce the risk of any

transmission of vibrations.

(50) (50)

800

* A normal installation needs 300 - 400 mm (any side) for connec-

tion equipment, i.e. level vessel, valves and electrical equipment.

NIBE™ F1155Chapter 2 | Delivery and handling8

2 Delivery and handling

Supplied components

LEK

Room sensorCurrent sensorOutside sensor

1 x3 x1 x

(not 1x230V)

LEK

O-ringsSafety valve

(0.3 MPa) (3 bar)

Level vessel

1 x 8 x

1 x

22 28

WILO

LEK

WILO

2,5(22)

H- 50 - 2,5

TUV-SV-97-525

WILO

LEK

WILO

2,5(22)

H- 50 - 2,5

TUV-SV-97-525

Compression ring couplingsParticle filter

F1155 6 kWF1155 6 kW

2 x (ø28 x G25)1 x G1

3 x (ø22 x G20)1 x G3/4

F1155 16 kWF1155 16 kW

5 x (ø28 x G25)1 x G1

1 x G1 1/4

LEK

Insulation tapeTubes for sensorsTemperature

sensor 1 x3 x

3 x

LEK

Aluminium tape

1 x

Location

The kit of supplied items is placed in packaging on top

of the heat pump.

Removing the covers

Front cover

LEK

1. Remove the screws from the lower edge of the

front cover.

2. Lift the cover out at the bottom edge and up.

LEK

The side covers can be removed to facilitate the install-

ation.

1. Remove the screws from the upper and lower

edges.

2. Twist the cover slightly outward.

3. Move the hatch outwards and backwards.

4. Assembly takes place in the reverse order.

9Chapter 2 | Delivery and handlingNIBE™ F1155

General

F1155

UB1

EB1

QM34

QM31

UB2

QM32

QM33

XL1

XL6 XL7

XL2XL9

QN10

PF1

PF2

BT2

UB3

AA4

AA4-XJ3

AA4-XJ4

SF1

W130

View from behind

BF1

NIBE™ F1155Chapter 3 | The heat pump design10

3 The heat pump design

Autres manuels pour F1155 Series

Table des matières

Autres manuels Nibe Pompe à chaleur

Nibe

Nibe S2125 Manuel utilisateur

Nibe

Nibe F750 Manuel utilisateur

Nibe

Nibe F130 Guide de l'utilisateur

Nibe

Nibe NIBE F1X26 Manuel d'utilisation original

Nibe

Nibe CLIMATEMASTER Tranquility TES Mode d’emploi

Nibe

Nibe AMS 10-16 Manuel utilisateur

Nibe

Nibe F1355 Series Guide de l'utilisateur

Nibe

Nibe F1155 Series Manuel utilisateur

Nibe

Nibe S2125 Manuel utilisateur

Nibe

Nibe S1156 Guide de l'utilisateur

Nibe

Nibe CLIMATEMASTER TRANQUILITY 16 Series Manuel du propriétaire

Nibe

Nibe F1226 series Guide de l'utilisateur

Nibe

Nibe ACVM 270 Manuel utilisateur

Nibe

Nibe F470 Manuel utilisateur

Nibe

Nibe F1226 series Mode d'emploi

Nibe

Nibe F1245PC Manuel utilisateur

Nibe

Nibe F2040 Series Guide de l'utilisateur

Nibe

Nibe SOLAR 40 Guide de l'utilisateur

Nibe

Nibe F1145 series Manuel utilisateur

Nibe

Nibe F1245 Guide de l'utilisateur

Nibe

Nibe F1245 Manuel utilisateur

Nibe

Nibe FIGHTER 1240 Manuel utilisateur

Nibe

Nibe F730 Guide de l'utilisateur

Nibe

Nibe F2120 Series Manuel utilisateur

Manuels Pompe à chaleur populaires d'autres marques

MICROWELL

MICROWELL HP 1000 GREEN Manuel utilisateur

Sanyo

Sanyo SAP120FCH Manuel utilisateur

Daikin

Daikin EHYHBH05AA Manuel utilisateur

Panasonic

Panasonic WH-SDF03E3E5 Mode d’emploi

Bryant

Bryant 544B Manuel utilisateur

Airxcel

Airxcel 45000 Series Manuel

Mitsubishi Electric

Mitsubishi Electric PUZ-SWM60VAA Manuel utilisateur

Dimplex

Dimplex LI 16I-TUR Guide de l'utilisateur

Carrier

Carrier WSHP Open v3 Guide de configuration rapide

TGM

TGM CTV14CN018A Manuel utilisateur

Carrier

Carrier 38MGQ Series Manuel utilisateur

Kokido

Kokido K2O K880BX/EU Guide de dépannage

Viessmann

Viessmann VITOCAL 300-G PRO Type BW 2150 Guide rapide

Carrier

Carrier 48EZN Manuel utilisateur

Viessmann

Viessmann KWT Vitocal 350-G Pro Series Mode d'emploi

Ariston

Ariston NIMBUS Manuel utilisateur

Weishaupt

Weishaupt WWP L 7 Guide de l'utilisateur

GE Zoneline AZ85H09EAC Manuel utilisateur
