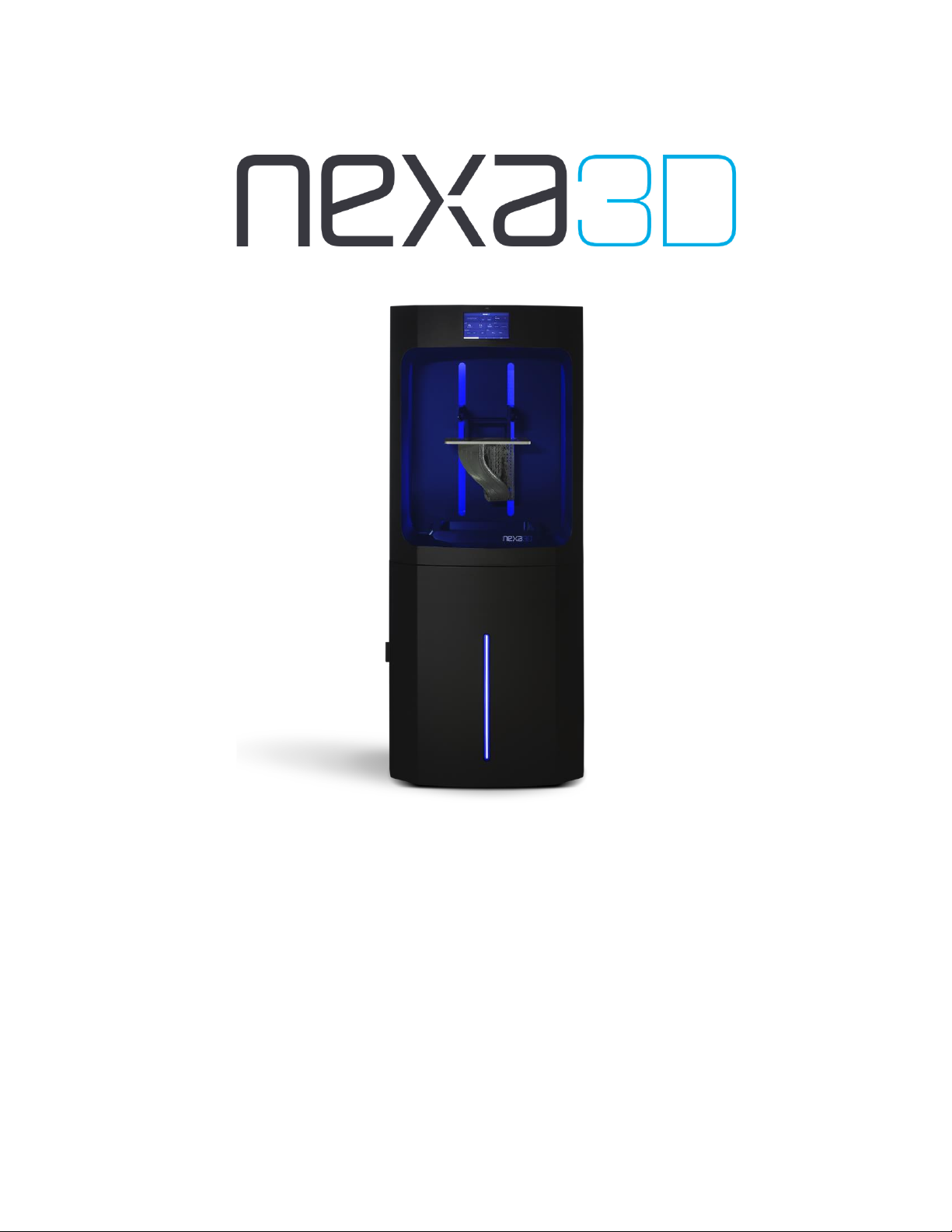

Nexa3D NXE400 Manuel utilisateur

NXE400.OM_EN.2.6
NXE400 Operation Manual

NXE400.OM_EN.2.6 3© Copyright 2020 Nexa3D
Contents
1. Overview4
1.1. Safety Warnings .......................................................................................................................4
1.2. Technical Specifications ...........................................................................................................5
1.3. Certifications ............................................................................................................................6
1.4. Product Elements .....................................................................................................................7
2. User Resources............................................................................................................... 12
2.1. Software .................................................................................................................................12
2.2. Instructions For Use ...............................................................................................................12
2.3. Unboxing & Setup...................................................................................................................12
3. NXE400 Systems............................................................................................................. 17
3.1. Light Engine............................................................................................................................17
3.2. Resin System...........................................................................................................................17
3.3. Z-Axis ......................................................................................................................................18
4. Post Processing .............................................................................................................. 19
4.1. Washing..................................................................................................................................19
4.2. Curing .....................................................................................................................................19
4.3. Support Removal....................................................................................................................19

NXE400.OM_EN.2.6 4© Copyright 2020 Nexa3D
1. Overview
1.1. Safety Warnings
Danger: Read this operation manual prior to using the NXE400 printer.
Failure to do so can result in injury or death.
Caution: Do not modify the NXE400 without factory authorization.
Modifications to the NXE400, including the override of safety features or
interlocks, can result in damage to the printer or injury to operators.
Unauthorized modifications invalidate your warranty.
Caution: Use appropriate protective equipment when handling resin and
solvents, including cut & abrasion resistant gloves, safety goggles, smock,
and vapor respirator if recommended by SDS of resin or solvent.
Caution: The NXE400 light engine emits UV-A radiation which can damage
eyes or skin with prolonged exposure. Use protective glasses rated for 99.9%
UVA protection when working around the NXE400 or post-cure equipment.
Warning: It is the user responsibility to verify suitability of material and
process for application requirements. In no case shall Nexa3D be liable for
loss, death, or injury caused by products produced on Nexa3D printers or
with Nexa3D materials. Nexa3D expressly disclaims any implied or explicit
warranty of fitness for any particular usage.
Warning: Immediately clean spilled resin from the printer, or it may cure
and cause surface damage when removed. Most surfaces may be cleaned
with IPA or other similar solvents (Yellow Magic 7, Window Cleaner, xClean).

NXE400.OM_EN.2.6 5© Copyright 2020 Nexa3D
1.2. Technical Specifications
Printing Technology
Continuous LSPc
Light Source
Structured Light Matrix
Build Volume
275 x 155 x 400mm (10.8 x 6.1 x 15.7 inch)
XY Resolution
76.5 μm(4K)
Z Resolution
50/100/200 microns
Interface
7” Touchscreen
Input File Format
.stl, .3mf
Materials
xGPP-Blue, xGPP-Transparent, xGPP-Grey, xABS-
HT-Orange, 3843-ABS-Black, xCE-Black, xMED412
Weight
160kg (350lb)
Dimensions
710 x 710 x 1675 mm (28 x 28 x 66 inch)
Crated Weight
250 kg (550lb)
Crated Dimensions
990 x 990 x 1905mm (39 x 39 x 75 inch)
Electrical Requirements
US: 100-130V, 8A, NEMA 15-5R
EU: 200-240V, 4A, CEE7/7 (Schuko)
Connectivity
WiFi, USB, Ethernet
Operating Environment
Air temperature between 20-25˚C (60-80˚F) and
RH below 70%

NXE400.OM_EN.2.6 6© Copyright 2020 Nexa3D
1.3. Certifications

NXE400.OM_EN.2.6 7© Copyright 2020 Nexa3D
1.4. Product Elements
1.4.1 NXE400
USB
Touchscreen
Transparent Door
Camera
Vat
Lower Door
Progress Bar

NXE400.OM_EN.2.6 8© Copyright 2020 Nexa3D
Buildplate
Thumbscrews
Build-plate
Vat Clamps
Vat
Membrane
Door Track
Nozzl e Holder
Elevator Arms
Resin Vacuum Nozzle
Vat

NXE400.OM_EN.2.6 9© Copyright 2020 Nexa3D
Light Engine
Resin Pump
Computer Reset
Carboy Container
LE Filter
Rear Filter Panel
Main Power Switch

NXE400.OM_EN.2.6 10 © Copyright 2020 Nexa3D
1.4.2 Shipped Separate
Accessory Kit
An accessory kit is included to facilitate post processing and adjustments to the printer.
Plastic Bin –for cleaning build plate and
small parts
Plastic Drip Tray –prevent resin from
dripping when removing build plate
Nitrile Gloves –protect hands from irritation
Safety Glasses –protect eyes
Flush-cut Snips –support removal
Plastic Squeege –direct resin towards
pickup nozzle
Funnel and Filters –filter used resin
Steel flexible putty knife –removing residue
from build plate
Steel picks –cleaning residue from slots in
build plate
Allen Wrenches for removing shipping
bracket and leveling build plate
Caps –for resin hoses when disconnected
Membranes
5pk Membranes
Build Plate
Build Plate
