Netvox R313FC Manuel utilisateur

Model：R313FC

Wireless Activity Timer

R313FC

User Manual

This document contains proprietary technical information which is the property of NETVOX Technology. It shall

be maintained in strict confidence and shall not be disclosed to other parties, in whole or in part, without written

permission of NETVOX Technology. The specifications are subject to change without prior notice.

Table of Content

1. Introduction..............................................................................................................................................................2

2. Appearance...............................................................................................................................................................3

3. Main Features...........................................................................................................................................................3

4. Set up Instruction .....................................................................................................................................................4

5. Data Report ..............................................................................................................................................................5

6. Installation................................................................................................................................................................9

7. Relative Devices.....................................................................................................................................................10

8. Important Maintenance Instruction........................................................................................................................10

1. Introduction

R313FC is a vibration alarm device for Netvox ClassA type device based on LoRaWAN open protocol. It can detect movement or

vibration duration of the device and is compatible with LoRaWAN protocol.

LoRa Wireless Technology:

LoRa is a wireless communication technology dedicated to long distance and low power consumption. Compared with other

communication methods, LoRa spread spectrum modulation method greatly increases to expand the communication distance.

Widely used in long-distance, low-data wireless communications. For example, automatic meter reading, building automation

equipment, wireless security systems, industrial monitoring. Main features include small size, low power consumption,

transmission distance, anti-interference ability and so on.

LoRaWAN:

LoRaWAN uses LoRa technology to define end-to-end standard specifications to ensure interoperability between devices and

gateways from different manufacturers.

2. Appearance

3. Main Features

Compatible with LoRaWAN

2 section 3V CR2450 button battery powered

Activity Timer

Compatible with LoRaWANTM Class A

Frequency hopping spread spectrum technology

Configuration parameters can be configured through third-party software platforms, data can be read and alarms can be set via

SMS text and email (optional)

Available third-party platform: Actility / ThingPark, TTN, MyDevices/Cayenne

Low power consumption and long battery life

Indicator

Function Key

4. Set up Instruction

On/Off

Power on

Insert two sections of 3V CR2450 button batteries and close the battery cover

Turn on

Press any function key and the green and red indicator flash once.

Turn off (Restore to factory setting)

Press and hold the function key for 5 seconds and the green indicator flashes 20 times.

Power off

Remove Batteries.

Note:

1. Remove and insert the battery; the device memorizes previous on/off state by default.

2. On/off interval is suggested to be about 10 seconds to avoid the interference of capacitor

inductance and other energy storage components.

3. Press any function key and insert batteries at the same time; it will enter engineer testing

mode.

Network Joining

Never joined the network

Turn on the device to search the network to join.

The green indicator stays on for 5 seconds: success

The green indicator remains off: fail

Had joined the network

Turn on the device to search the previous network to join.

The green indicator stays on for 5 seconds: success

The green indicator remains off: fail

Fail to join the network

(when the device is on)

Suggest to check the device verification information on the gateway or consult your platform

server provider.

Function Key

Press and hold for 5 seconds

Restore to factory setting / Turn off

The green indicator flashes 20 times: success

The green indicator remains off: fail

Press once

The device is in the network: the green indicator flashes once and sends a report

The device is not in the network: the green indicator remains off

Sleeping Mode

The device is on and in the network

Sleeping period: Min Interval.

When the reportchange exceeds setting value or the state changes: send a data report

according to Min Interval.

Low Voltage Warning

Low Voltage

2.4V

5. Data Report

Data report configuration and sending period are as following:

Min Interval

(Unit:second)

Max Interval

(Unit:second)

Reportable Change

Current Change≥

Reportable Change

Current Change＜

Reportable Change

Any number between

1~65535

Any number between

1~65535

Can not be 0.

Report

per Min Interval

Report

per Max Interval

The device will immediately send a version packet report and the attribute report data

The device sends data in the default configuration before any configuration is done.

Default setting:

MaxTime: Max Interval = 60 min = 3600s

MinTime: Min Interval = 60 min = 3600s

Battery Voltage Change = 0x01 (0.1V)

Threshold = 0x0003 (Threshold range: 0x0003-0x00FF; 0x0003 is the most sensitive.)

Deactivetime = 0x05 (Deactive time range: 0x01-0xFF)

Threshold:

Threshold = Critical value ÷ 9.8 ÷ 0.0625

*The gravitational acceleration at standard atmospheric pressure is 9.8 m/s2

*The scale factor of the threshold is 62.5 mg

R313FC vibration alarm:

The device detects sudden movement or vibration, and the quiescent state changes. The device waits for a certain period of

time (DeactiveTime) to enter the quiescent state and calculate the duration, sends a report of duration of vibrations, and

restarts the calculation for the next detection. If the vibration continues to occur within (DeactiveTime), the duration will be

continuously calculated till it enters the quiescent state.

Note:

The device report interval will be programmed based on the default firmware which may vary.

The interval between two reports must be the minimum time.

Please refer Netvox LoRaWAN Application Command document and Netvox Lora Command Resolver

http://loraresolver.netvoxcloud.com:8888/page/index to resolve uplink data.

Example of data configuration:

FPort：0x07

Bytes

Var(Fix =9 Bytes)

CmdID

DeviceType

NetvoxPayLoadData

CmdID–1 byte

DeviceType–1 byte –Device Type of Device

NetvoxPayLoadData–var bytes (Max=9bytes)

(1) Configure device parameters MinTime = 1min, MaxTime = 1min, BatteryChange = 0.1v

Downlink: 0151003C003C0100000000

Description

Device

Cmd

Devi

ceTy

NetvoxPayLoadData

Config

ReportReq

R313FC

0x01

0x51

MinTime

(2bytes Unit:s)

MaxTime

(2bytes Unit:s)

BatteryChange

(1byte Unit:0.1v)

Reserved

(4Bytes,Fixed 0x00)

Config

ReportRsp

0x81

Status

(0x00_success)

Reserved

(8Bytes,Fixed 0x00)

ReadConfig

ReportReq

0x02

Reserved

(9Bytes,Fixed 0x00)

ReadConfig

ReportRsp

0x82

MinTime

(2bytes Unit:s)

MaxTime

(2bytes Unit:s)

BatteryChange

(1byte Unit:0.1v)

Reserved

(4Bytes,Fixed 0x00)

SetR313F

TypeReq

0x03

R313FType (1Byte)

0x01_R313FA,

0x02_R313FB,

0x03_R313FC

Reserved

(8Bytes,Fixed 0x00)

SetR313F

TypeRsp

0x83

Status

(0x00_success)

Reserved

(8Bytes,Fixed 0x00)

GetR313F

TypeReq

0x04

Reserved

(9Bytes,Fixed 0x00)

GetR313F

TypeRsp

0x84

R313FType (1Byte)

0x01_R313FA,

0x02_R313FB,

0x03_R313FC

Reserved

(8Bytes,Fixed 0x00)

SetActive

ThresholdReq

0x05

Threshold

(2Bytes)

Deactivetime

(1Byte,Unit:1s)

Reserved

(6Bytes,Fixed 0x00)

SetActive

ThresholdRsp

0x85

Status

(0x00_success)

Reserved

(8Bytes,Fixed 0x00)

GetActive

ThresholdReq

0x06

Reserved

(9Bytes,Fixed 0x00)

GetActive

ThresholdRsp

0x86

Threshold

(2Bytes)

Deactivetime

(1Byte,Unit:1s)

Reserved

(6Bytes,Fixed 0x00)

The device returns:

8151000000000000000000 (configuration succeeded)

8151010000000000000000 (configuration failed)

(2) Read device configuration parameters

Downlink: 0251000000000000000000

The device returns:

8251003C003C0100000000 (current device configuration parameters)

(3) Configure device type = R313FB

( 0x01 = R313FA, 0x02 = R313FB, 0x03 = R313FC)

Downlink: 0351020000000000000000

The device returns:

8351000000000000000000 (configuration succeeded)

8351010000000000000000 (configuration failed)

(4) Read device type

Downlink: 0451000000000000000000

The device returns:

8451020000000000000000 (current device type R313FB)

(5) Configure the Threshold to 10, Deactive Time to 6s

Downlink: 0551000A06000000000000

The device returns:

8551000000000000000000 (configuration succeeded)

8551010000000000000000 (configuration failed)

(6) Read the current device type

Downlink: 0651000000000000000000

The device returns:

8651000A06000000000000 (current device type R313FB)

Example for MinTime/MaxTime logic:

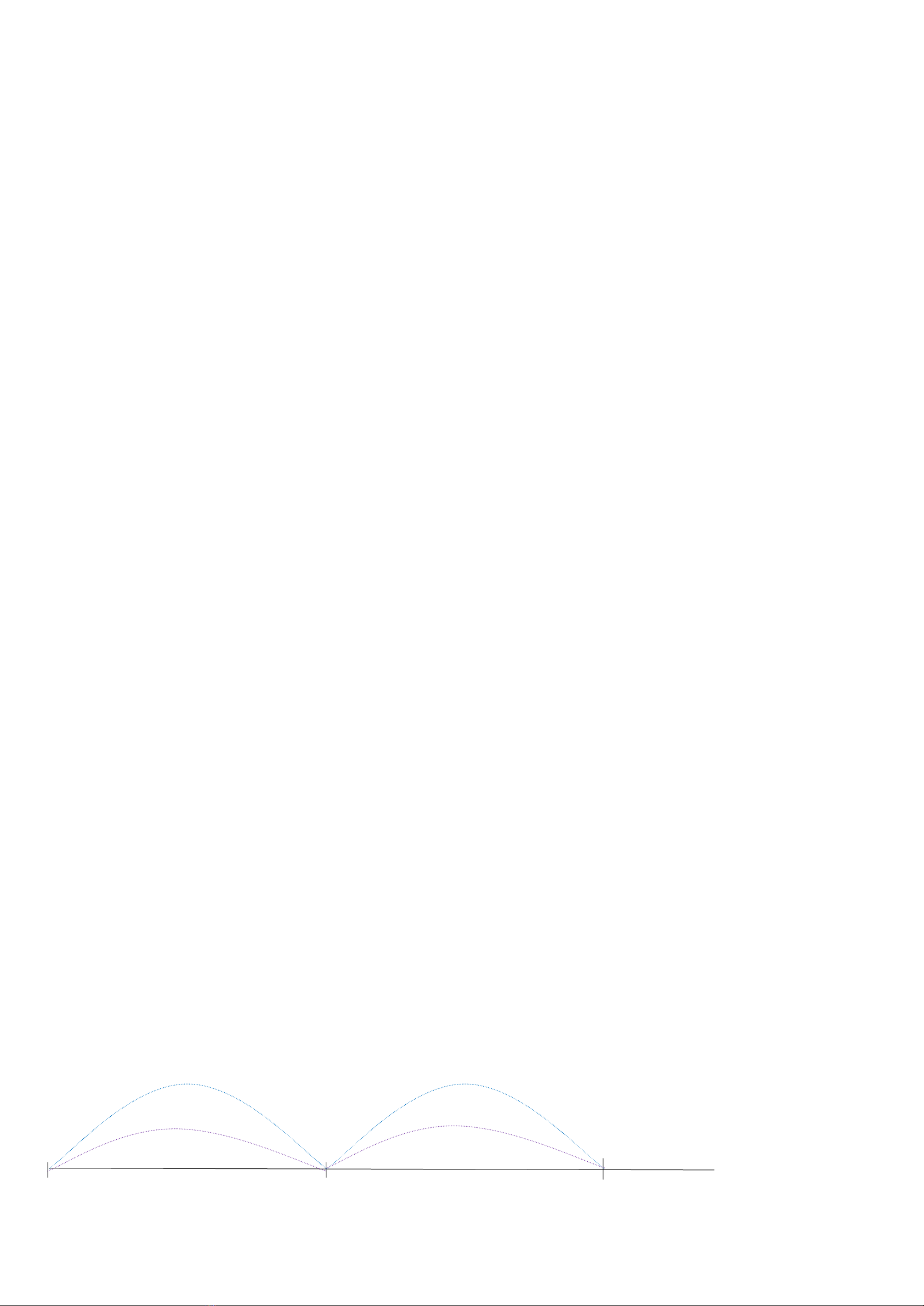

Example#1 based on MinTime = 1 Hour, MaxTime= 1 Hour, Reportable Change i.e. BatteryVoltageChange=0.1V

Max Time Max Time

Sleeping (Min Time) Sleeping (Min Time)

1H 2H 3H

Wake up and

collects data

REPORTS 2.8V

Wakes up and

collects data

REPORTS 2.8V

Wakes up and

collects data

REPORTS 2.8V

Note:

MaxTime=MinTime. Data will only be report according to MaxTime (MinTime) duration regardless BatteryVoltageChange value.

Example#2 based on MinTime = 15 Minutes, MaxTime= 1 Hour, Reportable Change i.e. BatteryVoltageChange= 0.1V.

MaxTime

Sleeping (MinTime) sleeping sleeping sleeping

0H 15th M 30th M 45th M 1H 2H

Example#3 based on MinTime = 15 Minutes, MaxTime= 1 Hour, Reportable Change i.e. BatteryVoltageChange= 0.1V.

MaxTime

sleeping sleeping ...

0H 15th M 30th M 45th M 1H 1H 10th M 1H 25th M 1H 40th M 1H 55th M 2H 10th M

Notes:

1) The device only wakes up and performs data sampling according to MinTime Interval. When it is sleeping, it does not collect

data.

2) The data collected is compared with the last data reported. If the data change value is greater than the ReportableChange value,

the device reports according to MinTime interval. If the data variation is not greater than the last data reported, the device

reports according to MaxTime interval.

3)We do not recommend to set the MinTime Interval value too low. If the MinTime Interval is too low, the device wakes up

frequently and the battery will be drained soon.

4) Whenever the device sends a report, no matter resulting from data variation, button pushed or MaxTime interval, another cycle

of MinTime / MaxTime calculation is started.

Wakes up and

collects data

2.8V

Does not report

Wakes up and

collects data

REPORTS 2.8V

Wakes up and

collects data

REPORT 2.8V

Wakes up and

collects data

REPORTS

2.8V

Wakes up and

collects data

2.7V |2.7-2.8|=0.1

REPORTS 2.7V

Wakes up and

collects data

2.7V

Does not report

Wakes up and

collects data

2.7V

Does not report

Wakes up and

collects data

2.7V

Does not report

Wakes up and

collects data 2.7V

Does not report

Wakes up and

collects data

2.7V

Does not report

Wakes up and

collects data

REPORTS

2.7V

Wakes up and

collects data

2.8V

Does not report

Users push the button,

REPORTS 2.7V.

Recalculate MaxTime.

Wakes up and

collects data

2.8V

Does not report

Wakes up and

collects data

2.8V

Does not report

6. Installation

8. Installation

1. Remove the 3M adhesive on the back of the Activity Timer

and attach the body to the surface of a smooth object (please

do not stick it to a rough surface to prevent the device from

falling off after a long time use).

Note：

Wipe the surface clean before installation to avoid dust on

the surface to affect the adhesion of the device.

Do not install the device in a metal shielded box or other

electrical equipment around it to avoid affecting the wireless

transmission of the device.

2. When the device detects a sudden movement or vibration of

the object (or electrical machinery).

Wait for a certain period of time (DeactiveTime- default 5

seconds , can be modified) to enter the quiescent state and it

sends a report of duration of vibrations, and restarts the

calculation for the next detection, the timer data will clear.

Note：

If the vibration continues to occur during this process

(quiescent state), the timer continue calculation until the

device enter the quiescent state.

Activity Timer (R313FC) is suitable for the following

scenarios:

Industrial Equipment

Industrial Instrument

Medical Instruments

When it necessary to detect the motor running time.

Table des matières

Autres manuels netvox Capteur de sécurité

netvox

netvox S31501 Manuel utilisateur

netvox

netvox R718WB Manuel utilisateur

netvox

netvox R718B Manuel utilisateur

netvox

netvox RA02C Manuel utilisateur

netvox

netvox R311W Manuel utilisateur

netvox

netvox S31502 Manuel utilisateur

netvox

netvox Z801TXB Manuel utilisateur

netvox

netvox RA0708 Manuel utilisateur

netvox

netvox R311A Manuel utilisateur

netvox

netvox R313W Manuel utilisateur

netvox

netvox R718WB2 Manuel utilisateur

netvox

netvox RA08B Series Manuel utilisateur

netvox

netvox R313CB Manuel utilisateur

netvox

netvox ZB11C Manuel utilisateur

netvox

netvox RA02A Manuel utilisateur

netvox

netvox R718WA2 Manuel utilisateur

netvox

netvox R719A Manuel utilisateur

netvox

netvox R718WB2 Manuel utilisateur

netvox

netvox R313LA Manuel utilisateur

netvox

netvox R718WAA Manuel utilisateur

netvox

netvox RA08D Series Manuel utilisateur

netvox

netvox R718B2 Manuel utilisateur

netvox

netvox R718WB2 Manuel utilisateur

netvox

netvox RA08D Series Manuel utilisateur

Manuels Capteur de sécurité populaires d'autres marques

THORLABS

THORLABS PDA10JT Manuel utilisateur

Waeco

Waeco UV-DETECT Manuel utilisateur

Intermatic

Intermatic IOS-DSIMF Manuel utilisateur

urmet domus

urmet domus 1083 Manuel utilisateur

Siemens

Siemens AZL66 Series Manuel utilisateur

BTI

BTI Profiline Multi Finder Manuel utilisateur

Challenger

Challenger SL01 Manuel utilisateur

DMP Electronics

DMP Electronics 1122INT Manuel utilisateur

Rielta

Rielta Ladoga MK-RK Manuel utilisateur

Mirion Technologies

Mirion Technologies ACCURAD PRD Manuel utilisateur

Bosch

Bosch DS835 Manuel utilisateur

DBI SALA

DBI SALA EZ Stop Manuel de l'opérateur

Lamptime

Lamptime ST05C Manuel utilisateur

Ubiquiti

Ubiquiti MFI-MSC Manuel utilisateur

Subsite

Subsite 910R Instructions d'installation

Satel

Satel OPAL Pro Manuel utilisateur

Aleph

Aleph XC-1XTEU Manuel utilisateur

Pima

Pima LARIS QUAD Manuel utilisateur

netvox R313FC Manuel utilisateur

Manuels Capteur de sécurité populaires d'autres marques
