Netvox R313A Manuel utilisateur

Model：R313A

Wireless Door/Window Sensor

R313A

User Manual

This document contains proprietary technical information which is the property of NETVOX Technology. It shall be maintained

in strict confidence and shall not be disclosed to other parties, in whole or in part, without written permission of NETVOX

Technology. The specifications are subject to change without prior notice.

Table of Content

1. Introduction.............................................................................................................................................................2

2. Appearance..............................................................................................................................................................3

3. Main Features..........................................................................................................................................................3

4. Set up Instruction ....................................................................................................................................................4

5. Data Report .............................................................................................................................................................5

6. Installation...............................................................................................................................................................8

7. Important Maintenance Instruction.......................................................................................................................10

1. Introduction

R313A is a long-distance window/door sensor based on the LoRaWAN open protocol (Class A).

LoRa Wireless Technology:

LoRa is a wireless communication technology famous for its long-distance transmission and low power consumption. Compared

with other communication methods, LoRa spread spectrum modulation technique greatly extend the communication distance. It

can be widely used in any use case that requires long-distance and low-data wireless communications. For example, automatic

meter reading, building automation equipment, wireless security systems, industrial monitoring. It has features like small size,

low power consumption, long transmission distance, strong anti-interference ability and so on.

LoRaWAN:

LoRaWAN uses LoRa technology to define end-to-end standard specifications to ensure interoperability between devices and

gateways from different manufacturers.

2. Appearance

3. Main Features

Compatible with LoRaWAN

2 sections of 3V CR2450 button battery power supply

Reed switch status detection

Simple operation and setting

Protection level IP30

Compatible with LoRaWANTM Class A

Frequency hopping spread spectrum technology

Configuration parameters can be configured through third-party software platforms, data can be read and alarms can be set via

SMS text and email (optional)

Available third-party platform: Actility / ThingPark, TTN, MyDevices/Cayenne

Low power consumption and long battery life

Note:

Battery life is determined by the sensor reporting frequency and other variables, please refer to

http://www.netvox.com.tw/electric/electric_calc.html On this website, users can find battery life time for varied models at

different configurations.

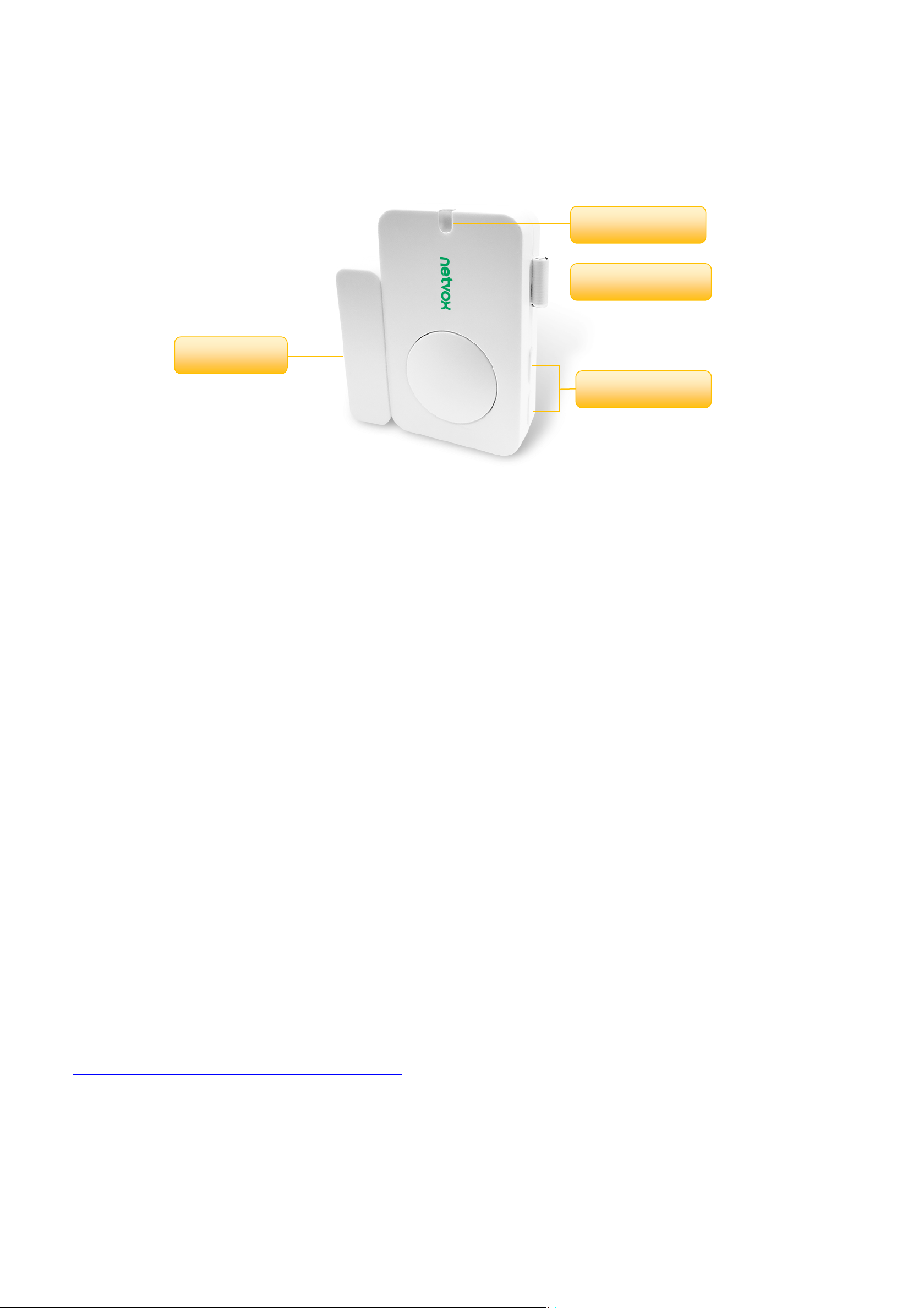

Function Key

Magnet

Indicator

External Antenna

4.Set up Instruction

On/Off

Power on Insert batteries. (users may need a flat blade screwdriver to open);

Insert two sections of 3V CR2450 button batteries and close the battery cover.)

Turn on Press any function key till green and red indicator flashes once.

Turn off

(Restore to factory setting) Press and hold the function key for 5 seconds till green indicator flashes for 20 times.

Power off Remove Batteries.

Note:

1. Remove and insert the battery; the device memorizes previous on/off state by default.

2. On/off interval is suggested to be about 10 seconds to avoid the interference of capacitor

inductance and other energy storage components.

3. Press any function key and insert batteries at the same time; it will enter en

gineer testing mode.

Network Joining

Never joined the network

Turn on the device to search the network.

The green indicator stays on for 5 seconds: success

The green indicator remains off: fail

Had joined the network

Turn on the device to search the previous network.

The green indicator stays on for 5 seconds: success

The green indicator remains off: fail

Function Key

Press and hold for 5 seconds

Restore to factory setting / Turn off

The green indicator flashes for 20 times: success

The green indicator remains off: fail

Press once The device is in the network: green indicator flashes once and sends a report

The device is not in the network: green indicator remains off

Sleeping Mode

The device is on and in the

network

Sleeping period: Min Interval.

When the reportchange exceeds setting value or the state changes: send a data report ac

cording to

Min Interval.

Low Voltage Warning

Low Voltage 2.4V

5. Data Report

Data report configuration and sending period are as following:

Example of ConfigureCmd

FPort：0x07

Bytes 1 1 Var (Fix =9 Bytes)

CmdID DeviceType NetvoxPayLoadData

CmdID– 1 byte

DeviceType– 1 byte – Device Type of Device

NetvoxPayLoadData– var bytes (Max=9bytes)

Min Interval

(Unit:second)

Max Interval

(Unit:second) Reportable Change Current Change≥

Reportable Change

Current Change＜

Reportable Change

Any number between

1~65535

Any number between

1~65535 Can not be 0. Report

per Min Interval

Report

per Max Interval

The device will immediately send a version packet report along with an uplink packet including reed switch status and

battery voltage.

Data will be reported by default setting before any configuration.

Default setting:

Maximum time: 3600s

Minimum time: 3600s (Detect the current voltage value every 3600s by default setting)

Battery change : 0x01 (0.1V)

R313A status:

When the R313A status changes, it will send a warning report.

Window/Door sensor open : 1

Window/Door sensor close : 0

The reported data is decoded by the Netvox LoRaWANApplication Command document and

http://loraresolver.netvoxcloud.com:8888/page/index

(1)Command Configuration:

MinTime = 1min、MaxTime = 1min、BatteryChange = 0.1v

Downlink：0102003C003C0100000000 003C(Hex) = 60(Dec)

Response：

8102000000000000000000（Configuration success）

8102010000000000000000（Configuration failure）

(2)Read Configuration:

Downlink：0202000000000000000000

Response：

8202003C003C0100000000（Current configuration）

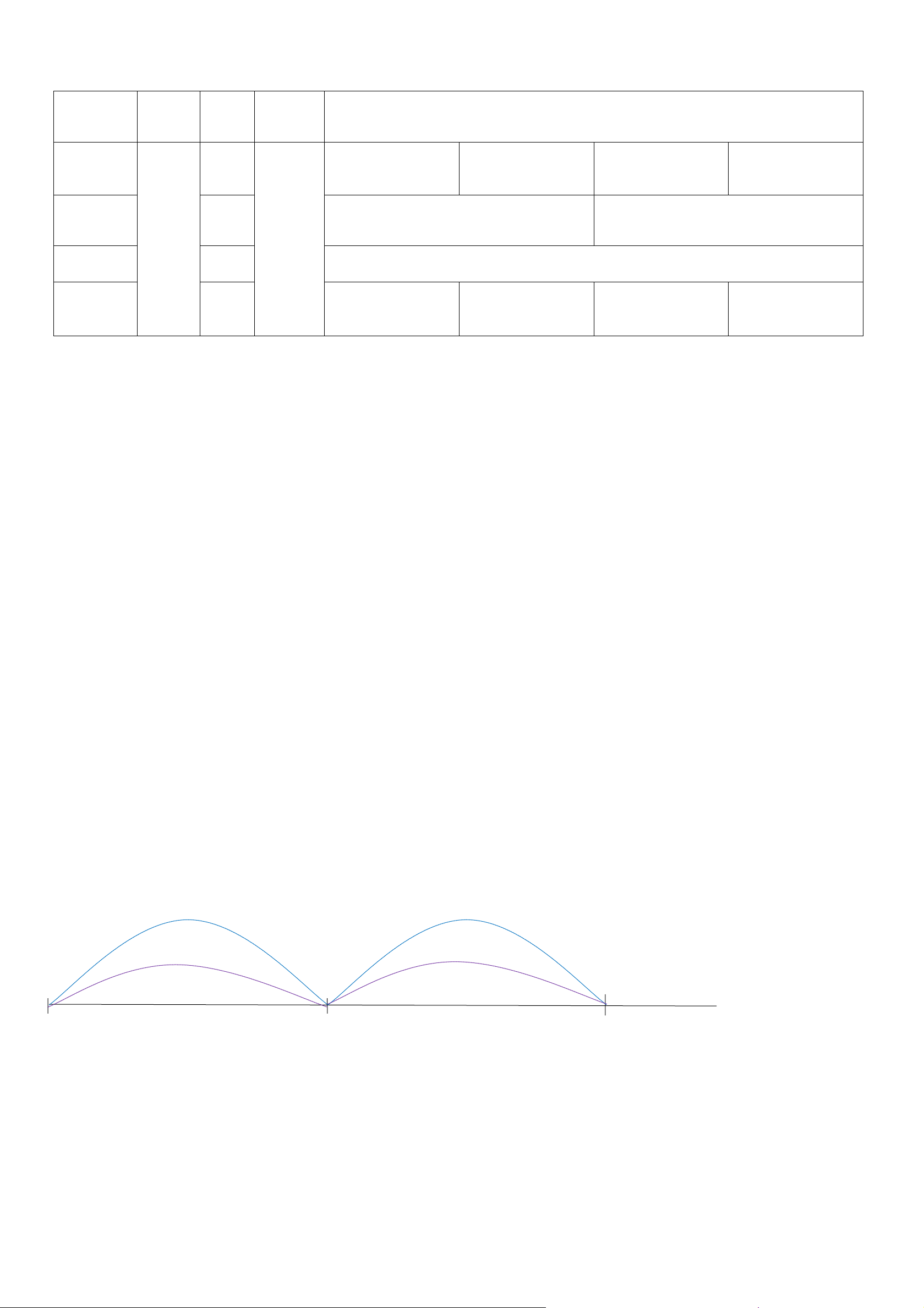

Example for MinTime/MaxTime logic:

Example#1 based on MinTime = 1 Hour, MaxTime= 1 Hour, Reportable Change i.e. BatteryVoltageChange=0.1V

Max Time Max Time

Sleeping (Min Time) Sleeping (Min Time)

1H 2H 3H

Note:

MaxTime=MinTime. Data will only be report according to MaxTime (MinTime) duration regardless BatteryVoltageChange

value.

Description Device CmdID Device

Type NetvoxPayLoadData

Config

ReportReq

R313A

0x01

0x02

MinTime

(2bytes Unit:s) MaxTime

(2bytes Unit:s)

Battery

Change

(1byte Unit:0.1v)

Reserved

(4Bytes,Fixed 0x00)

Config

ReportRsp 0x81 Status

(0x00_success) Reserved

(8Bytes,Fixed 0x00)

ReadConfig

ReportReq

0x02

Reserved

(9Bytes,

Fixed 0x00)

ReadConfig

ReportRsp 0x82 MinTime

(2bytes Unit: s) MaxTime

(2bytes Unit: s)

Battery

Change

(1byte Unit:0.1v)

Reserved

(4Bytes,Fixed 0x00)

Wake up and

collects data

REPORTS 2.8V

Wakes up and

collects data

REPORTS 2.8V

Wakes up and

collects data

REPORTS 2.8V

Example#2 based on MinTime = 15 Minutes, MaxTime= 1 Hour, Reportable Change i.e. BatteryVoltageChange= 0.1V.

MaxTime

Sleeping (MinTime) sleeping sleeping sleeping

0H 15th M 30th M 45th M 1H 2H

Example#3 based on MinTime = 15 Minutes, MaxTime= 1 Hour, Reportable Change i.e. BatteryVoltageChange= 0.1V.

MaxTime

sleeping sleeping ...

0H 15th M 30th M 45th M 1H 1H 10th M 1H 25th M 1H 40th M 1H 55th M 2H 10th M

Note:

1) The device only wakes up and performs data sampling according to MinTime Interval. When it is sleeping, it does not collect

data.

2) The data collected is compared with the last data reported. If the data change value is greater than the ReportableChange value,

the device reports according to MinTime interval. If the data variation is not greater than the last data reported, the device

reports according to MaxTime interval.

3)We do not recommend to set the MinTime Interval value too low. If the MinTime Interval is too low, the device wakes up

frequently and the battery will be drained soon.

4) Whenever the device sends a report, no matter resulting from data variation, button pushed or MaxTime interval, another cycle

of MinTime / MaxTime calculation is started.

Wakes up and

collects data

2.8V

Does not report

Wakes up and

collects data

REPORTS 2.8V

Wakes up and

collects data

REPORT 2.8V

Wakes up and

collects data

REPORTS

2.8V

Wakes up and

collects data

2.7V |2.7-2.8|=0.1

REPORTS 2.7V

Wakes up and

collects data

2.7V

Does not report

Wakes up and

collects data

2.7V

Does not report

Wakes up and

collects data

2.7V

Does not report

Wakes up and

collects data 2.7V

Does not report

Wakes up and

collects data

2.7V

Does not report

Wakes up and

collects data

REPORTS

2.7V

Wakes up and

collects data

2.8V

Does not report

Users push the button,

REPORTS 2.7V.

Recalculate MaxTime.

Wakes up and

collects data

2.8V

Does not report

Wakes up and

collects data

2.8V

Does not report

6. Installation

(1) This product does not have a waterproof function.After the screening is completed, please place it indoors.

(2) The door magnetic magnet part and the body part are installed on both sides of the door joint or the window joint, and the

distance between the two needs to be less than 2cm ; the dust in the installation position of the equipment needs to be wiped

clean and then affixed to the equipment.

(3) The battery installation method is shown in the figure below (battery with "+" facing outward).

(4) When installing the device, the magnet must move along the X axis relative to the sensor.

If the magnet moves along the Y axis relative to the sensor, it will cause repeated reports due to the magnetic field.

1.Tear off 3M release paper of the magnet body and attach the

body to the door frame and stick it to the door in parallel

with the door magnet body. (please do not stick it on the

rough door to avoid falling off after using the device for a

long time).

As shown in the enlarged view on the right

Note:

Wipe the door clean before installation to avoid dust on the

door and affect the adhesion of the device.

Do not install the device in a metal shielded box or other

electrical equipment around it to avoid affecting the

wireless transmission of the device.

The installation distance between the magnet body and the

magnet should be less than 2cm.

This figure shows the scene where the door magnetic sensor

(R313A) is applied to the door (opening and closing).

It can also be applied to the following scenarios:

Door, window

drawer

Machine room door

Archive room

Closet

Refrigerator and freezer

Cargo ship door

Garage Door

Places which are necessary to detect the opening and

closing state

2.When the door is opened, the magnetic body of the door is

separated from the magnet, and the magnetic device sends

an "alarm" message.

When the door is closed, the magnetic body of the door is

merged with the magnet, the device returns to the "normal"

state, and the status information of the off is sent.

Table des matières

Autres manuels netvox Capteur de sécurité

netvox

netvox RA0708 Manuel utilisateur

netvox

netvox R718PA9 Manuel utilisateur

netvox

netvox R718WB Manuel utilisateur

netvox

netvox R718WB2 Manuel utilisateur

netvox

netvox RA08D Series Manuel utilisateur

netvox

netvox R313FA Manuel utilisateur

netvox

netvox R718WB2 Manuel utilisateur

netvox

netvox R718WB2 Manuel utilisateur

netvox

netvox R311W Manuel utilisateur

netvox

netvox S31501 Manuel utilisateur

netvox

netvox R313CC Manuel utilisateur

netvox

netvox RA08B Series Manuel utilisateur

netvox

netvox R718WB Manuel utilisateur

netvox

netvox R313W Manuel utilisateur

netvox

netvox S31502 Manuel utilisateur

netvox

netvox R718WAA Manuel utilisateur

netvox

netvox RA08B Series Manuel utilisateur

netvox

netvox RA02C Manuel utilisateur

netvox

netvox R313WA Manuel utilisateur

netvox

netvox R313LA Manuel utilisateur

netvox

netvox R313WA Manuel utilisateur

netvox

netvox R313CB Manuel utilisateur

netvox

netvox R311A Manuel utilisateur

netvox

netvox R718WBA Manuel utilisateur

Manuels Capteur de sécurité populaires d'autres marques

THORLABS

THORLABS PDA10JT Manuel utilisateur

Waeco

Waeco UV-DETECT Manuel utilisateur

Intermatic

Intermatic IOS-DSIMF Manuel utilisateur

urmet domus

urmet domus 1083 Manuel utilisateur

Siemens

Siemens AZL66 Series Manuel utilisateur

BTI

BTI Profiline Multi Finder Manuel utilisateur

Challenger

Challenger SL01 Manuel utilisateur

DMP Electronics

DMP Electronics 1122INT Manuel utilisateur

Rielta

Rielta Ladoga MK-RK Manuel utilisateur

Mirion Technologies

Mirion Technologies ACCURAD PRD Manuel utilisateur

Bosch

Bosch DS835 Manuel utilisateur

DBI SALA

DBI SALA EZ Stop Manuel de l'opérateur

Lamptime

Lamptime ST05C Manuel utilisateur

Ubiquiti

Ubiquiti MFI-MSC Manuel utilisateur

Subsite

Subsite 910R Instructions d'installation

Satel

Satel OPAL Pro Manuel utilisateur

Aleph

Aleph XC-1XTEU Manuel utilisateur

Pima

Pima LARIS QUAD Manuel utilisateur

netvox R313A Manuel utilisateur

Manuels Capteur de sécurité populaires d'autres marques
