1. Hardware and Internet Setup

The NETGEAR CM500 High Speed Cable Modem provides a connection to high-speed cable

Internet with speeds up to 680 Mbps.1The cable modem is certified by Comcast Xfinity. A

Gigabit Ethernet port provides fast access and downloads. The cable modem supports the

assignment of IPv4 and IPv6 addresses by Comcast Xfinity.

This chapter covers the following topics:

•Unpack Your Cable Modem

•Front Panel

•Back Panel

•Product Label

•Install and Activate Your Cable Modem

•Connect Your Cable Modem to a Router After Installation and Activation

Note: For more information about the topics covered in this manual, visit the

support website at http://support.netgear.com.

1. Maximum rate is derived from DOCSIS 3.0 specifications and actual throughput varies depending on your Internet subscription with your provider.

Hardware and Internet Setup

CM500 High Speed Cable Modem

Unpack Your Cable Modem

Your package contains the following items.

Ethernet cable

Power adapter

Cable modem

Figure 1. Package contents

Front Panel

The cable modem provides status LEDs on the front.

Power LED

Downstream LED

Upstream LED

Internet LED

Ethernet LED

Figure 2. Cable modem front view

Hardware and Internet Setup

CM500 High Speed Cable Modem

You can use the LEDs to verify status and connections. The following table lists and

describes each LED on the front panel of the cable modem.

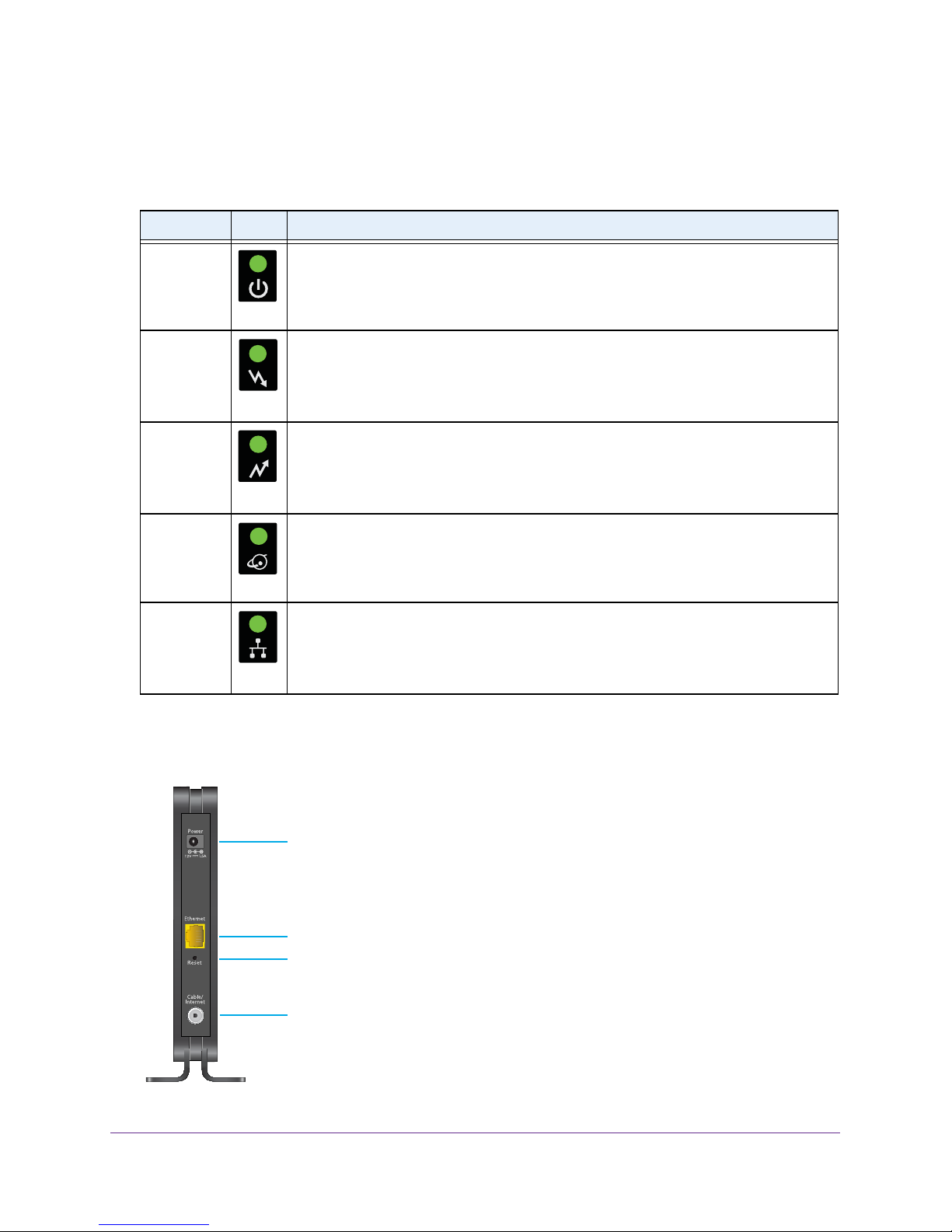

Table 1. LED descriptions

LED Icon Description

Power • Green. Power is supplied to the cable modem.

• Off. No power is supplied to the cable modem.

• Red. The cable modem is too warm and might overheat. For more information

about this condition, see Use LEDs to Troubleshoot on page 22.

Downstream • Solid amber. One downstream channel is locked.

• Blinking amber. The cable modem is scanning for a downstream channel.

• Solid green. More than one downstream channel is locked.

• Off. No downstream channel is locked.

Upstream • Solid amber. One upstream channel is locked.

• Blinking amber. The cable modem is scanning for an upstream channel.

• Solid green. More than one upstream channel is locked.

• Off. No upstream channel is locked.

Internet • Solid green. The cable modem is online.

• Blinking green. The cable modem is synchronizing with Comcast Xfinity’s cable

modem termination system (CMTS).

• Off. The cable modem is offline.

Ethernet • Green. A powered-on device is connected to the Ethernet port at 1000 Mbps.

• Amber. A powered-on device is connected to the Ethernet port at 10/100 Mbps.

• Blinking green or amber. The Ethernet port is processing traffic.

• Off. No device is connected to the Ethernet port.

Back Panel

The back panel provides the connections and button shown the following figure.

Power adapter input

LAN Gigabit Ethernet port

Coaxial cable connector

Reset button

Figure 3. Cable modem back panel

Hardware and Internet Setup

CM500 High Speed Cable Modem

Product Label

The product label on the bottom of the cable modem displays the serial number and MAC

address of the cable modem and login information, including the default IP address, default

user name, and default password.

MAC address

Serial number

Figure 4. Product label

Install and Activate Your Cable Modem

The cable modem provides a connection between Comcast Xfinity’s network and your

computer, router, or WiFi router.

Connect Your Cable Modem to a Computer

During the installation and activation, you must connect the cable modem directly to a

computer.After installation and activation, you can connect the cable modem to a router (see

Connect Your Cable Modem to a Router After Installation and Activation on page 10).

Computer

Cable modem

Coaxial cable to cable outlet

Ethernet

cable

Power adapter

Figure 5. Connect the cable modem directly to a computer

Hardware and Internet Setup

CM500 High Speed Cable Modem

Note: Before you connect your cable modem and contact Comcast Xfinity to

set up your Internet service, collect your Comcast account number,

account phone number, and login information (your email address or

user name and password).

To connect your cable modem directly to a computer:

1. Connect a coaxial cable.

Use the coaxial cable that Comcast Xfinity provided to connect the cable port on the cable

modem to a cable wall outlet. Make sure that the cable is tightly connected.

2. Turn off the computer to which you intend to connect the cable modem.

3. Use the Ethernet cable provided in the package to connect the Gigabit Ethernet port on the

cable modem to an Ethernet port on the computer.

4. Turn on the computer.

5. Connect the power adapter provided in the package to the cable modem and plug the power

adapter into an electrical outlet.

When the startup procedure is completed, the Power LED lights green .

6. Wait for the cable modem to come online.

It might take up to 10 minutes for the cable modem to come online on the network. During

this time, the LED behavior is as follows:

•The Downstream LED lights amber when one downstream channel is locked.

•The Downstream LED lights green when more than one downstream channel is

locked.

•The Upstream LED lights amber when one upstream channel is locked.

•The Upstream LED lights green when more than one upstream channel is locked.

•After the cable modem registers with Comcast Xfinity, the Internet LED lights

green .

Even though an Internet connection is established, Internet service is available only after you

set it up with Comcast Xfinity.

For information about how to set up your Internet service, see Set Up Your Internet Service

with Comcast Xfinity on page 9.

Hardware and Internet Setup

CM500 High Speed Cable Modem

Set Up Your Internet Service with Comcast Xfinity

Set up your Internet service by using Comcast Xfinity’s self-activation process. If you are

unable to self-activate your cable modem, call Comcast Xfinity customer service.

Use the Self-Activation Process to Set Up Your Internet Connection

Before you start the self-activation process, make sure that your account number, account

phone number, and login information (your email address or user name and password) are

nearby.

To set up your Internet connection with Comcast Xfinity’s self-activation process:

1. Close all web browsers.

2. Launch a web browser.

You are redirected to the Xfinity self-activation page. If you are not redirected to the

Xfinity self-activation page, visit the following website: http://www.comcast.com/activate

3. Provide your Xfinity credentials and complete the self-activation process.

This process might take up to 15 minutes, during which the cable modem reboots a

couple of times.

Call Comcast Xfinity to Set Up Your Internet Connection

Before you call Comcast Xfinity, make sure that your account number, account phone

number, and login information (your email address or user name and password) are nearby.

The cable modem’s model number is CM500. The serial number and MAC address are on

the product label (see Product Label on page 7).

To set up your Internet connection by calling Comcast Xfinity:

1. Call Comcast Xfinity customer service at 1-800-XFINITY (1-800-934-6489).

2. When asked, provide your account information and provide the cable modem’smodel

number and MAC address.

3. Wait for Comcast Xfinity to confirm that your cable modem is active.

4. If you do not get an Internet connection with the cable modem, ask Comcast Xfinity to look

for your cable modem online, and do one of the following depending on what Comcast

Xfinity tells you about your cable modem:

•If the cable modem is not visible, Comcast Xfinity can give you instructions to verify why

the cable modem does not connect with your high-speed Internet service.

•If the cable modem is visible to Comcast Xfinity, reboot the computer, laptop, router, or

WiFi router that is connected to the cable modem. Try checking your online status again.

Perform a Speed Test

To determine the accurate Internet speed, visit the Comcast Xfinity speed test site at

http://speedtest.comcast.net and perform a speed test.

If your actual speed is lower than your subscribed speed, contact Comcast Xfinity.

Hardware and Internet Setup

CM500 High Speed Cable Modem

Connect Your Cable Modem to a Router After Installation

and Activation

During the installation and activation, you must connect the cable modem directly to a

computer. After installation and activation, you can connect the cable modem to a router.

Router

Cable modem

Coaxial cable to

Ethernet cable

Power adapter

Computer connected

to the router over

WiFi or Ethernet

cable outlet

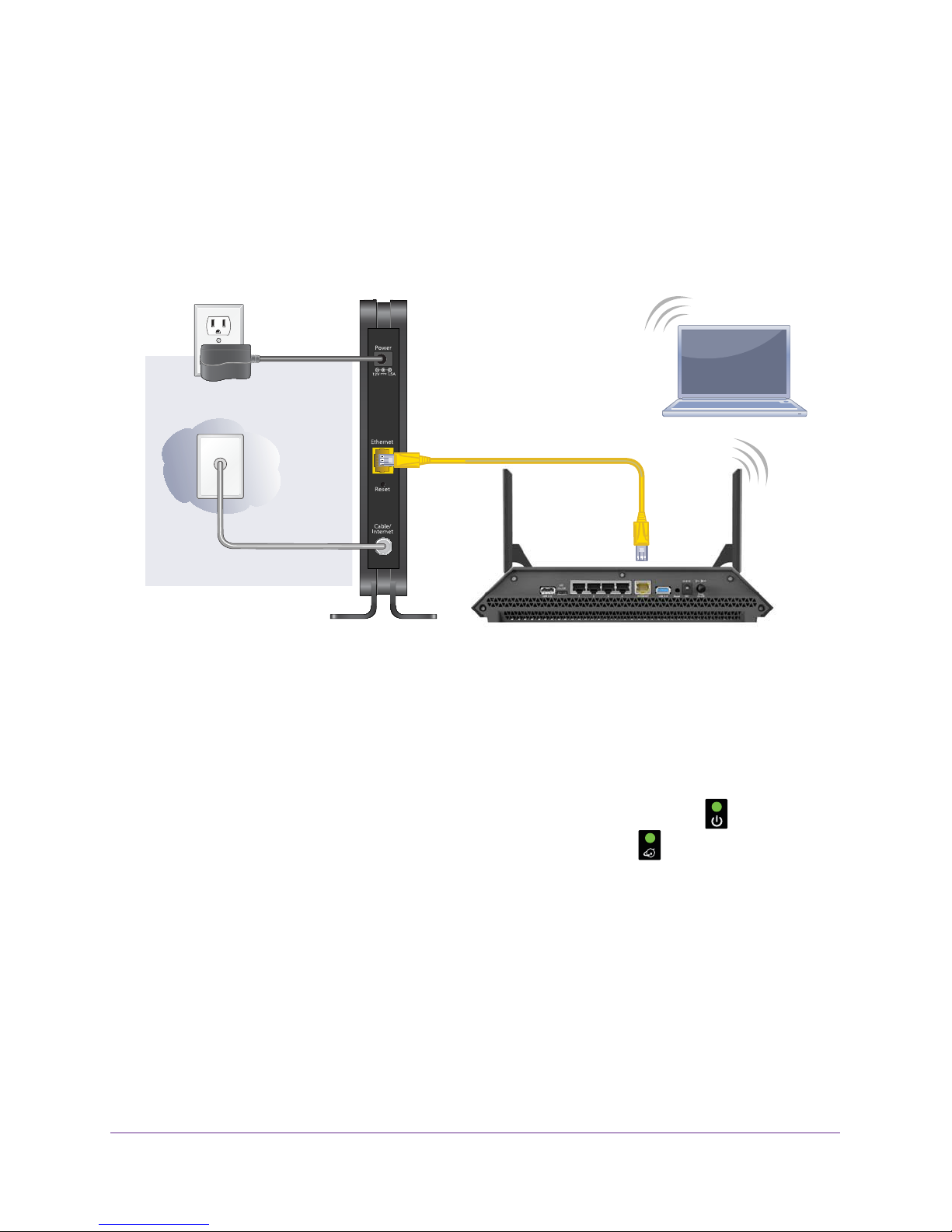

Figure 6. Connect the cable modem to a router

To connect your cable modem to a router after installation and activation:

1. Reboot the cable modem by unplugging the power cable from the cable modem and

plugging it back in.

Note: Do not disconnect the cable modem from the cable outlet.

When the startup procedure is completed, the Power LED lights green .

Wait for the Internet LED to stop blinking and light solid green .

2. Use an Ethernet cable to connect the Ethernet port on the cable modem to the WAN or

Internet port on the router.

3. Power on the router.

Wait until the router is ready.

4. Connect a computer to the router over a WiFi connection or through an Ethernet cable to a

LAN port on the router.

Autres manuels pour CM500

Table des matières

Autres manuels NETGEAR Modem

NETGEAR

NETGEAR CG2003D Manuel utilisateur

NETGEAR

NETGEAR DM111P - ADSL2+ Ethernet Modem Manuel utilisateur

NETGEAR

NETGEAR WNDRMAC Manuel utilisateur

NETGEAR

NETGEAR CM700 Manuel utilisateur

NETGEAR

NETGEAR RM356 - Router - EN Manuel utilisateur

NETGEAR

NETGEAR D3600? D6000 Manuel utilisateur

NETGEAR

NETGEAR Nighthawk C7100V Manuel utilisateur

NETGEAR

NETGEAR CMD31T Manuel utilisateur

NETGEAR

NETGEAR D3600 Manuel utilisateur

NETGEAR

NETGEAR 7550 Manuel utilisateur

NETGEAR

NETGEAR DGFV338 - ProSafe Wireless ADSL Modem VPN Firewall... Manuel utilisateur

NETGEAR

NETGEAR LM1200 Manuel utilisateur

NETGEAR

NETGEAR DGND3700v2 Manuel utilisateur

NETGEAR

NETGEAR DG814 - DSL Modem Internet Gateway Manuel utilisateur

NETGEAR

NETGEAR Netgear DM11PSP Manuel utilisateur

NETGEAR

NETGEAR LB2120 Series Manuel utilisateur

NETGEAR

NETGEAR DG814 - DSL Modem Internet Gateway Manuel utilisateur

NETGEAR

NETGEAR DM111P - ADSL2+ Ethernet Modem Guide de l'utilisateur

NETGEAR

NETGEAR A7000 Manuel utilisateur

NETGEAR

NETGEAR CM500V Manuel utilisateur

NETGEAR

NETGEAR AC327U Manuel utilisateur

NETGEAR

NETGEAR CG3000D Manuel utilisateur

NETGEAR

NETGEAR CGD24G Manuel utilisateur

NETGEAR

NETGEAR CG814WG V3 Manuel utilisateur

Manuels Modem populaires d'autres marques

Davicom

Davicom DM562AP Manuel utilisateur

EpiValley

EpiValley TATA indicom SXC-1080 Manuel utilisateur

Zte

Zte WiMAX Manuel utilisateur

Intelimax

Intelimax MA-2060 Manuel utilisateur

SMC Networks

SMC Networks D3CM1604V Manuel d'utilisation et d'entretien

Telstra

Telstra Wi-Fi 4G Advanced Pro X Manuel utilisateur

Thrane&Thrane

Thrane&Thrane imarsat EXPLORER 300 Manuel utilisateur

Samsung

Samsung AceLink SAM-335A Manuel utilisateur

Enfora

Enfora Enabler-G Guide de configuration rapide

iRZ

iRZ ATM2-232 Manuel utilisateur

Zhone

Zhone 6310 Manuel utilisateur

Paradyne

Paradyne Hotwire 7976 Manuel utilisateur

US Robotics

US Robotics 3453C Manuel utilisateur

MaxTech

MaxTech Plug & Play Internal Voice/FAX/Data/SVD... Manuel utilisateur

Zte

Zte MF823 Manuel utilisateur

Four-Faith

Four-Faith F1403 Manuel utilisateur

Sierra Wireless

Sierra Wireless AIRLINK MP595W Manuel utilisateur

Gemtek

Gemtek WiMAX WIXFBR-103 Manuel utilisateur
