NetComm MyWay 3G8WV Manuel utilisateur
NetComm MyWay
3G WiFi Router with Voice
Quick Start Guide
1. Attach the supplied antenna to the port labelled 3G Antenna on the back of
the MyWay (this should be attached in a clockwise direction).
2. Insert your SIM card into the SIM slot (you should hear it click into place).
3. Connect the power adapter to the power socket on the back of the MyWay.
4. Plug the power adapter into the wall socket and switch on the power.
5. Wait approximately 60 seconds for the MyWay to power up.
6. The MyWay will attempt to automatically detect the connection details from
your SIM card. This can take up to 2 minutes.
Hardware installation
1
Power
adapter
Power
point
SIM Card

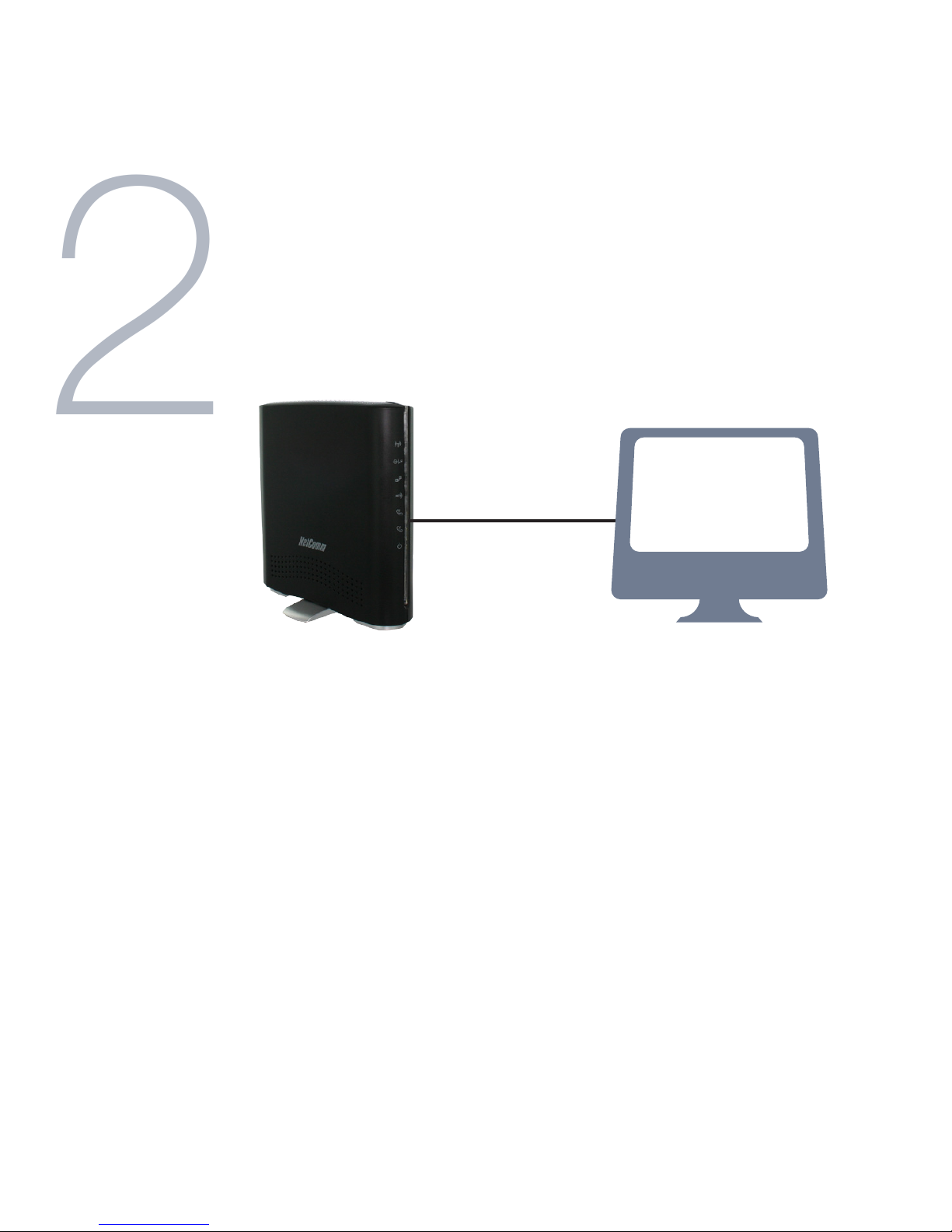

Connecting to the Router via
a Cable
2
1. Connect the yellow Ethernet cable provided to the port labelled “LAN” on the
back of the MyWay.
2. Connect the other end of the yellow Ethernet cable to your computer or
to another Ethernet – enabled device like a gaming console, a TV or a home
cinema system.
3. Wait approximately 30 seconds for the connection to establish.
4. In the event you are not automatically connected, please follow the steps in
chapter 4 Connecting the MyWay to the Internet via 3G.
1. Ensure WiFi is enabled on your device (computer/smartphone/gaming console).
2. Scan for wireless networks in your area and connect to the network name that
matches the Wireless Network Name found on the Wireless Security Card
(included in the box).
3. When prompted for your wireless security settings, enter the Wireless security
key listed on your Wireless Security Card.
4. Wait approximately 30 seconds for the connection to establish.
5. In the event you are not automatically connected, please follow the steps on the
next page for Connecting the MyWay to the Internet via 3G.

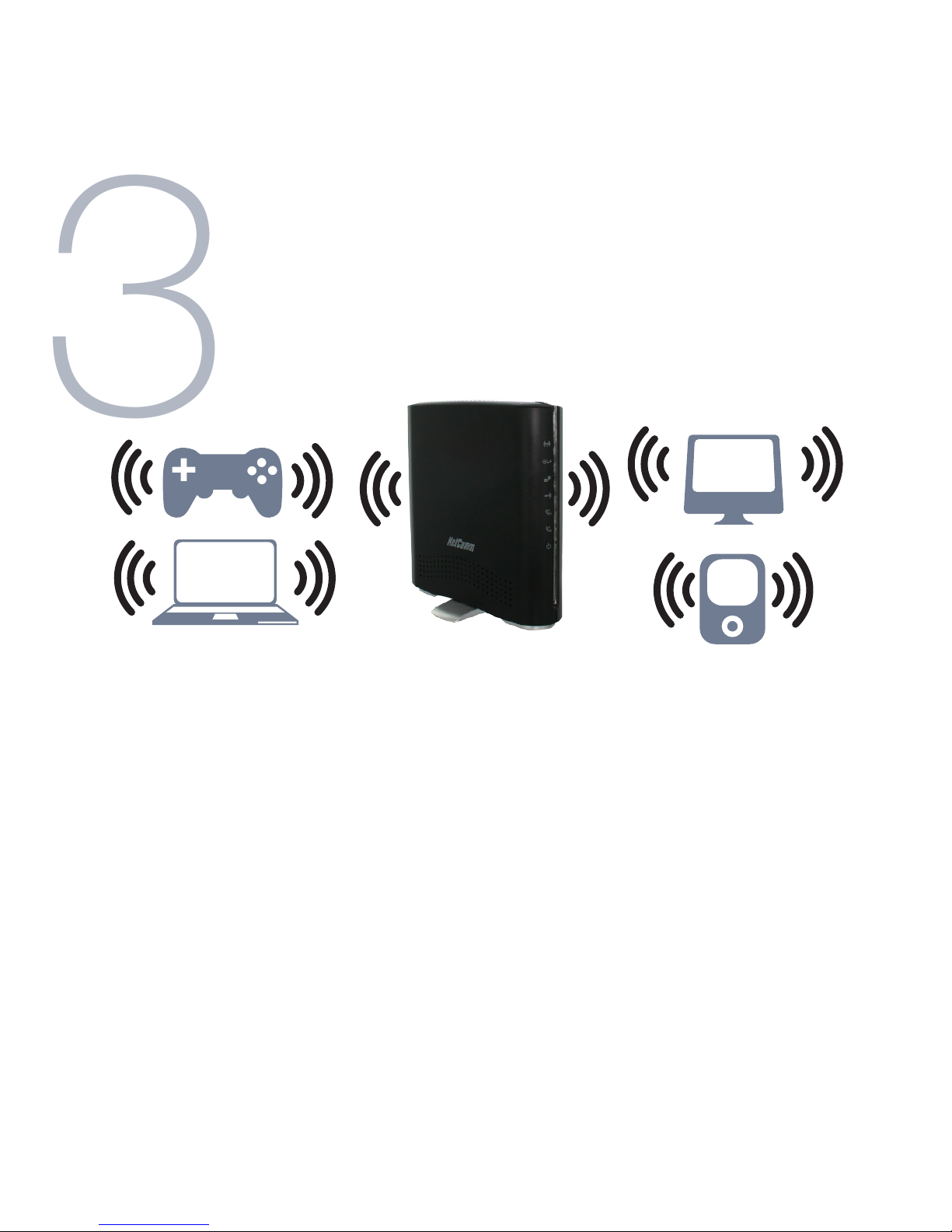

Connecting to the MyWay
via Wireless
3
Your 3G connection should automatically congure and connect you to your
3G service. In the event it doesn’t, please follow these steps:
1. After establishing your wireless connection in Chapter 3, open your Web
browser and type http://my.router or http://192.168.20.1 into the address bar
at the top of the web browser window and press enter.

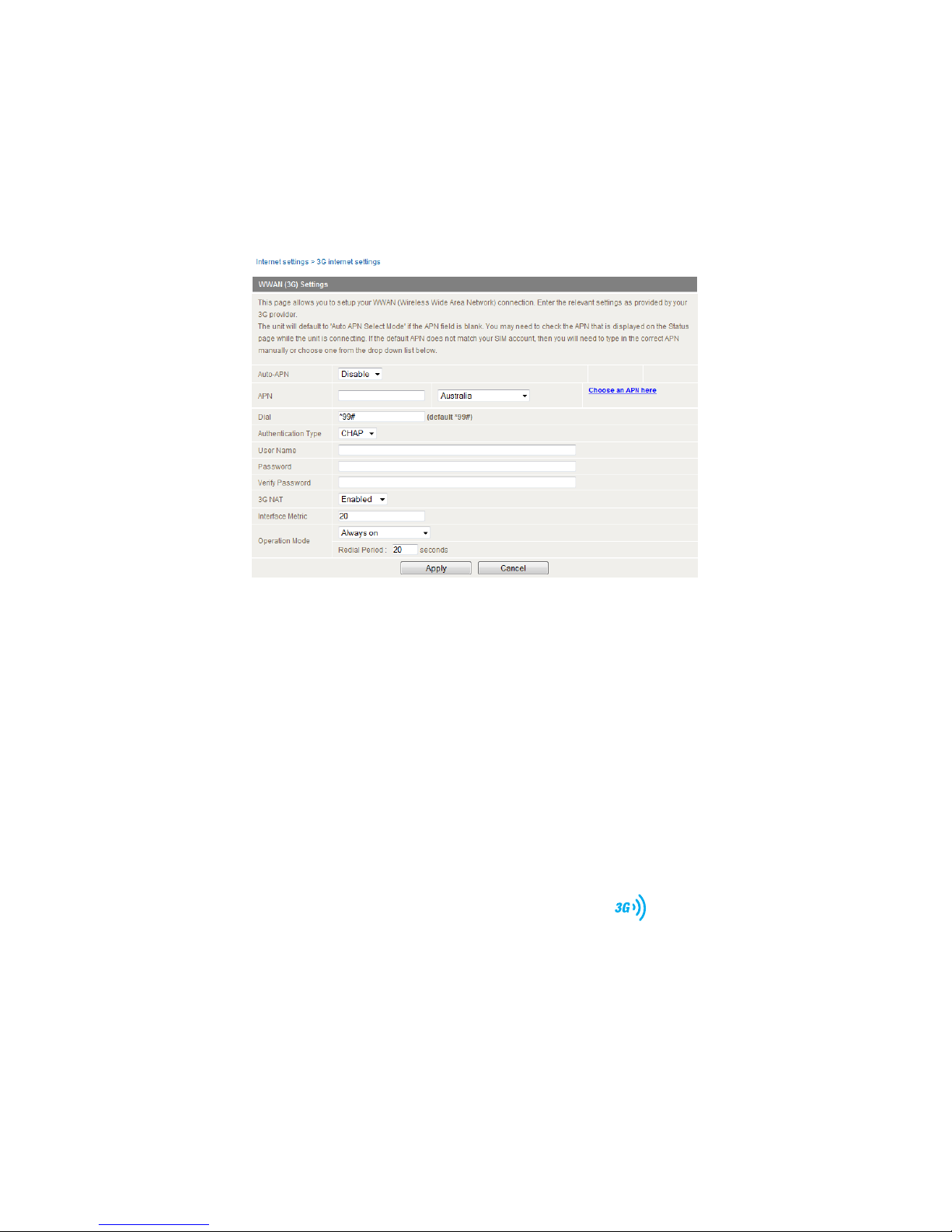

2. Hover your mouse over the Internet Settings menu at the top of the web
browser window and click on 3G Internet Settings.
3. Disable Auto-APN using the pull down menu.
Connecting the MyWay to the
Internet via 3G
4
4. Enter the 3G service details as supplied by your 3G service provider. This may
include the APN*, username / password, or dialled number. Leave any elds
which are not required blank.
5. Once the correct details are entered, click the Apply button.
6. The MyWay will now attempt to connect using the details you have entered.
This can take up to 2 minutes.
7. If you are successfully connected the blue 3G light on the front of the unit
will be lit.
* For a list of common APN’s please see next page.
List of Mobile Broadband Service Providers:
Mobile Service APN
Australia
Telstra Telstra.internet
Telstra.pcpack
Telstra.datapack
Telstra.extranet
Optus – Postpaid connect
Optus – Prepaid preconnect
Three – Postpaid 3netaccess
Three – Prepaid 3services
Vodafone – Postpaid vnternet.au
Vodafone – Prepaid vfprepaymbb
Crazy John’s purtona.net
DoDo dodolns1
Blink splns888a1
Internode Internode
Primus primuslns1
TPG internet
Exetel Exetel1
Westnet Splns555a1
iiNet iiNet
New Zealand
Vodafone NZ www.vodafone.net.nz
CallPlus www.callplus.net.nz
Slingshot www.slingshot.net.nz
Telstra Clear www.telstraclear.net.nz
Telecom NZ XT internet.telecom.co.nz
Front
Panel
Icon Description
Wireless Solid blue light when WLAN is enabled. Blinks on trafc
(data transfer)
Internet/
LAN
LAN mode: Solid blue light when the router is connected
via the LAN Ethernet Port
WAN mode: Lights up when the router is connected to the
internet via xed line WAN
LAN Solid blue light when LAN connection is established. Blinks
on LAN port trafc
3G Solid blue light when the router is connected via 3G, blinks
on trafc
Line 1 Solid blue light when the handset connected to Line 1 is off
hook, blinks on incoming call.
Line 2 Solid blue light when the handset connected to Line 2 is off
hook, blinks on incoming call.
Power Solid amber light when device is powered on.
Blinking during device start up.
** Please note that all lights will ash simultaneously if a rmware upgrade takes place.
LED Indicators
Port Description
SIM Slot Insert your SIM card here (until you hear a click). Please be careful to
insert the SIM in the correct orientation by viewing the printed icon
beside the slot.
3G Antenna Attach in the 3G Antenna here in a clockwise direction.
LAN/WAN Switchable LAN/ WAN Ethernet port for Fixed Line (ADSL/Cable/
Satellite) connection or wired Ethernet clients (computers, laptops, etc)
LAN LAN Port for wired Ethernet clients (computers, laptops, etc)
Line 1 Phone port for handset
Line 2 Phone port for handset
Reset / WPS Hold this button down for over 10 seconds to reset to factory defaults.
Hold and release this button for less than 10 seconds to enable the
WPS push-button connect function.
Power Power connector, connects to a DC 12V 1.5A Power Adapter
Rear Panel
Making Voice Calls
The NetComm MyWay allows you to make high quality voice calls over the 3G
network by simply plugging a standard analogue phone into the router.
Before you get started, make sure you’ve checked the following:
1. Have you inserted your 3G SIM card that supports both data and voice into
your MyWay router?
2. Is your MyWay powered on?
3. Do you have your phone connected (via a telephone cable) to the Line 1
or Line 2 port?
4. Is the phone LED (light) on and can you hear a dial tone?
That’s it – you can now enjoy making and receiving calls from your MyWay router.
Note: Please refer to your mobile service provider for activation of your voice service and information about the call charges
that apply. For assistance with the operation of your telephone handset, please refer to the documentation provided by
the manufacturer of your analogue telephone.
How to receive a call
When an incoming call is received, both Line 1 and Line 2 lights will start ashing
and the phone(s) connected to the MyWay will ring. If the call is answered from the
telephone connected to Line 1, the telephone connected to Line 2 will receive an
engaged tone for the duration of the call.
