NetComm NTC-40WV Manuel utilisateur

NTC-40W - HSPA+ M2M WiFi Router

NTC-40WV - HSPA+ M2M WiFi Router with Voice

Quick Start Guide

2 NTC-40 Series Quick Start Guide

Quick Start Guide

This guide covers the models NTC-40W and NTC-40WV. This guide will

provide a series of step by step instructions to ensure the conguration of

your Cellular Router goes as smoothly as possible.

Firstly please check that you have received all the items in your package:

No. Description

1 NTC-40W / NTC-40WV HSPA+ Cellular Router

1 Ethernet cable

1 Power Supply Unit

4 Antennas

1 Quick Start Guide

If any of these items are missing, please contact NetComm Technical Support.

NTC-40 Series Quick Start Guide 3

NetComm Wireless M2M Series - NTC-40 Series

Overview of LEDs

Overview of Indicator Lights

LED Display Description

POWER (red) Solid ON The red Power LED indicates correct power is applied to

the DC power input jack.

Tx Rx (amber) Solid ON The amber LED will light upon data being sent to or

received from the cellular network.

DCD (green) Solid ON The amber Carrier Detect LED illuminates to indicate a

Data connection.

Service Type

(green)

The green LED will illuminate when cellular network coverage is detected.

Solid ON 3G: indicates UMTS/HSPA available coverage

Blinking EDGE: indicates EDGE available coverage

Off 2G: indicates GSM/GPRS available coverage only.

RSSI (green) This green LED indicates the Received Signal Strength. There are three

possible states that the RSSI LED can operate in, based upon signal level.

Solid ON STRONG - Indicates the RSSI level is -86dBm, or greater

Flashing

once per

Second

MEDIUM - Indicates the RSSI level is -101dBm and

–86dBm, (medium)

Off POOR - Indicates the RSSI level is less than

-101dBm (poor)

4 NTC-40 Series Quick Start Guide

Overview of the Cellular Router Interfaces

SIM Card Reader

For insertion and removal

of the SIM card

Mini USB Port

For insertion of the Mini USB cable

NTC-40 Series Quick Start Guide 5

NetComm Wireless M2M Series - NTC-40 Series

Receive Diversity

Antenna Socket

SMA Female

Ethernet Port

Connect to a terminal using RJ45

cable or a number of terminals

through a hub or network router

Voice (RJ45) Port

Insert one end of the RJ-45 Cable

into the Voice Port and the other

end into a telephone

Only active on the NTC-40WV

2Way Captive Power Terminal Block

Power terminal block and the wide voltage

range of 8-28V DC simplify the installation in

different industrial environments

Main Antenna

Socket

SMA Female

6 NTC-40 Series Quick Start Guide

Overview of Cellular Router Interfaces

Field Description

Main Antenna Socket SMA Female

Receive Diversity Antenna

Socket

SMA Female

Main WiFi Antenna Socket SMA Female

Receive Diversity Antenna

Socket

SMA female

5 Indicator LEDs Indicate visually the activities and connection state for power,

service type, data trafc, data carrier connection and network

signal strength.

2-Way Captive Power Power terminal block and the wide voltage range of 8-28V DC

Terminal Block simplify the installation in different industrial environments

Reset Button Resetting the router to factory default values

Ethernet Port For direct connection to your device or number of devices

through a hub or network router.

Voice (RJ-45) Port To connect a telephone directly to your router

SIM Card Reader For insertion and removal of SIM Card

Conguring your Router

You will need the following hardware components to set up the Cellular

Router:

Power Supply (8-28VDC)

Ethernet cable

Laptop or PC

Active SIM card

The router is primarily managed via web interface.

Before you power up the Cellular Router, please insert an active SIM card.

NTC-40 Series Quick Start Guide 7

NetComm Wireless M2M Series - NTC-40 Series

Step One: Inserting the SIM card

Press the SIM Eject button to eject SIM card bay. Make sure the SIM card is

inserted correctly by inserting the SIM the gold side facing down on the SIM

card bay and in the direction as shown below:

Insert

SIM card

Press the SIM

Eject button

Step Two: Setting up the Cellular Router

Connect the supplied antennas to the Router by screwing them onto the

antenna connectors.

Connect the power adapter to the mains and plug the output into the power

jack of the router.The green Power LED on the panel should illuminate.

8 NTC-40 Series Quick Start Guide

Step Three: Preparing your computer

Connect one end of the supplied Ethernet cable into a LAN Ethernet port

of your router. Connect the other end of the cable into the LAN port of your

computer.

Congure your PC’s Ethernet interface to be dynamically assigned an IP

address by doing the following:

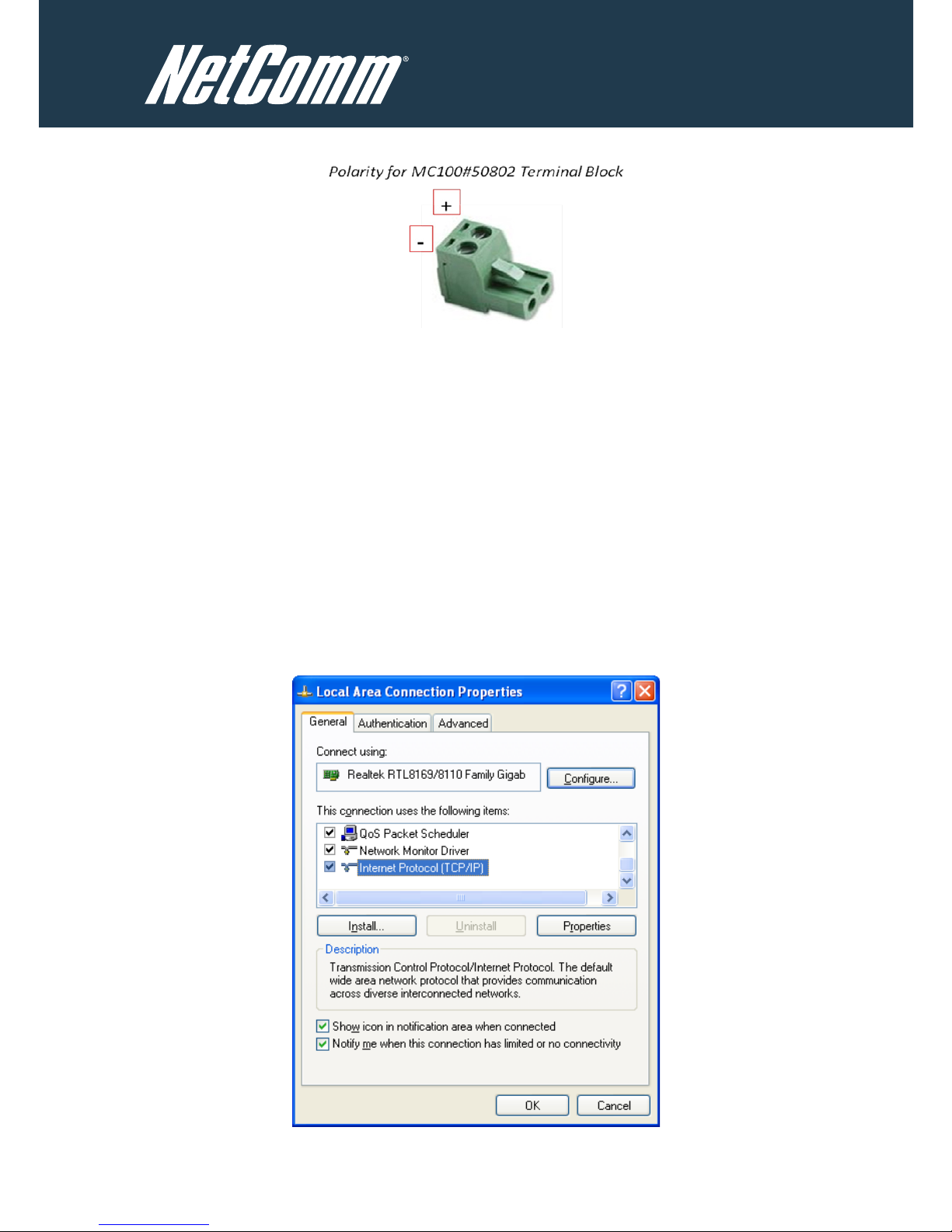

Conguring your Network Adapter in Windows

Click on Start -> Control Panel -> Network Connections.

Right click on the Local Area Connection icon and select Properties to

open the conguration dialogue box of the Local Area Connection as below:

NTC-40 Series Quick Start Guide 9

NetComm Wireless M2M Series - NTC-40 Series

Find and click Internet Protocol (TCP/IP) from the protocol list box and

then click the Properties button The TCP/IP. Conguration window will pop

up as illustrated below.

Under General tab, select radio button Obtain an IP address automatically

and Obtain DNS server address automatically.

Then press OK button to close TCP/IP conguration window.

Press the Close button to complete the computer preparation for the

Cellular Router.

10 NTC-40 Series Quick Start Guide

Step Four: Accessing your Router’s conguration pages

There are two system management accounts for maintaining the system,

root and admin, and each of which has slightly different levels of

management capabilities.

The root manager account is empowered with full privilege while the admin

manager (administrator) can manage all settings of the Cellular Router

excepts functions like Firmware Upgrade, Device Conguration Backup and

Restore and Reset Cellular Router to factory default.

To login to the Cellular Router in root manager mode, please use the

following login details:

http://192.168.1.1

Username: root

Password: admin

Enter the address below in your web browser and connect. The username

and password are dened below.

Whenever you make changes please refresh your web pages to prevent

errors due to caching of web pages.

http://192.168.1.1

Username: admin

Password: admin
