NetComm XBox NF1901ACV Manuel utilisateur

XBox Setup Guide

NF1901ACV FAQs

NF1901ACV FAQs –XBox Setup Guide

1 of 7

FQ01128 v. 1.1 March 2019

XBox Setup Overview

There are two ways of allowing your XBox to communicate with the internet. One is through port forwarding and

the other is through the DMZ feature.

Port forwarding will enable specified ports on the NL1901ACV to get access to your XBox to communicate with the

internet as if they were directly connected by allowing access through.

Setting your XBox as a DMZ host opens all the ports on the NL1901ACV to allow access to a designated device.

This guide has been revised to include the latest changes and updates from the NL1901ACV's new NC2 web user

interface.

Prerequisite

Before you configure the NL1901ACV, you will need to set a static IP address on your XBox.

Please follow the instructions at the link below to set a static IP address on your XBox:

https://portforward.com/networking/static-ip-XBox-one/

You can use an IP address like 192.168.20.100 for example.

Important information

•You can only forward a port to one location (IP address).

•In some cases, this may cause issues when multiple LAN devices (computers, game consoles, or VOIP ATAs) attempt to use

online gaming at same time or make multiple VOIP service connections.

•In these cases, you would need to use an alternate port for any subsequent connections after the first device.

•Please consult your VOIP provider or game manufacturer for assistance with this.

NF1901ACV FAQs –XBox Setup Guide

2 of 7

FQ01128 v. 1.1 March 2019

Setting the XBox as the DMZ Host

Connect a computer and the NF18ACV using an Ethernet cable. (A yellow Ethernet cable was provided with your

NL1901ACV).

1Open a web browser (such as Google Chrome or Mozilla Firefox), type following address into the address

bar and press Enter.

http://192.168.20.1

2Enter the following credentials in the User Name and Password fields:

User Name: admin

Password: The serial number found on the label on the back of the device

3Click the OK/Log In button.

Note –If no authentication prompt is displayed or you see a request time out message, refer to the What if I cannot access Web User

Interface guide from FAQs section.

NF1901ACV FAQs –XBox Setup Guide

3 of 7

FQ01128 v. 1.1 March 2019

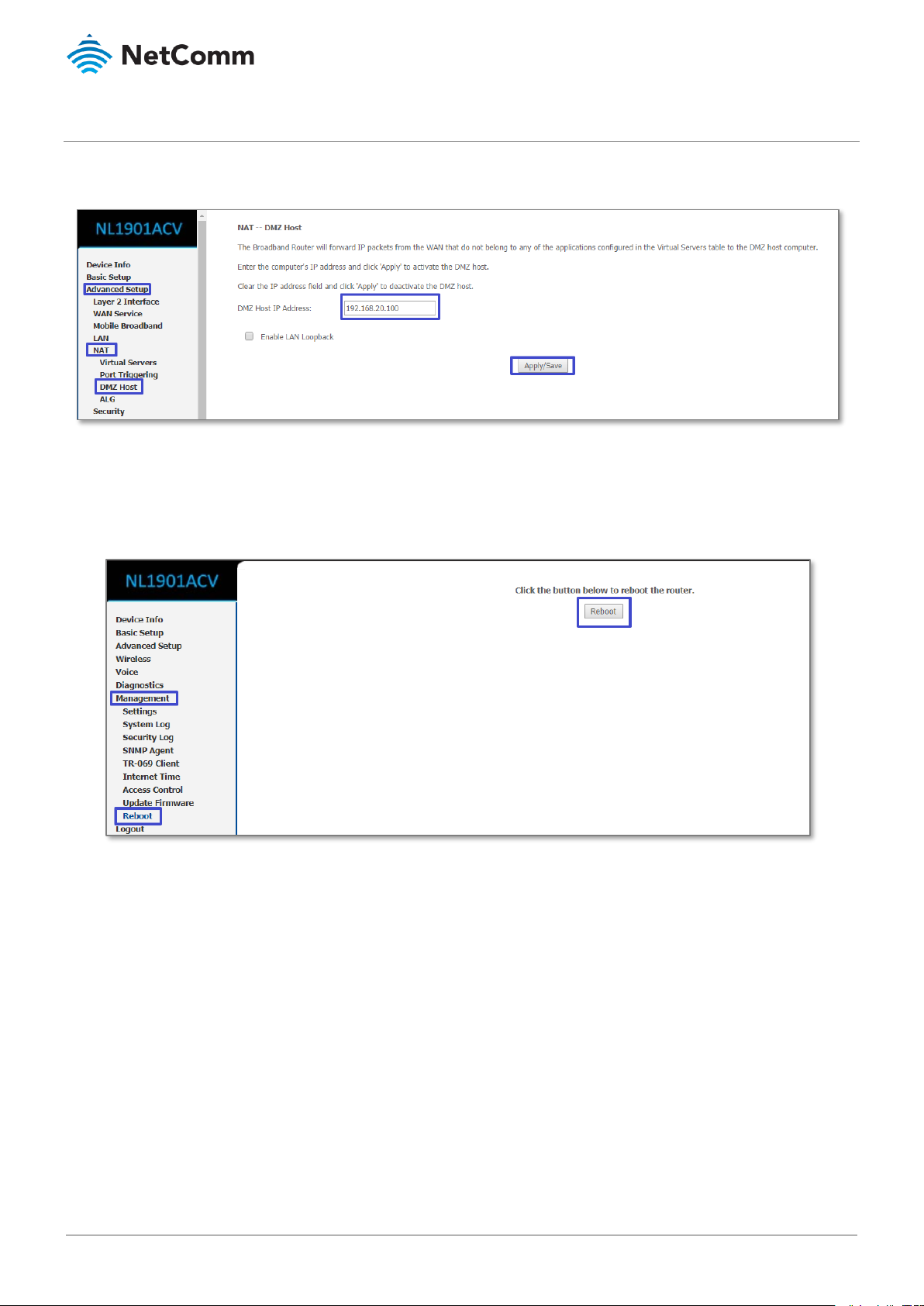

Set the DMZ Host

1Select the Advanced Setup menu at the left of the page, then click on NAT options and then click on DMZ

Host options:

2Enter the static IP address of the XBox in the DMZ Host IP Address field.

In this example, 192.168.20.100 is the IP address of the XBox.

3Click on the Save/Apply button

4Reboot the modem: Click Management menu on the left-hand side of the page then click Reboot options:

5Click the Reboot button.

NF1901ACV FAQs –XBox Setup Guide

4 of 7

FQ01128 v. 1.1 March 2019

Add Port Forwarding Rules for XBox

1Open a web browser (such as Google Chrome or Mozilla Firefox), type following address into the address

bar and press Enter.

http://192.168.20.1

2Enter the following credentials in the User Name and Password fields:

User Name: admin

Password: The serial number found on the label on the back of the device

3Click the OK/Log In button.

4Port 80 is also used to access webpage of the NL1901ACV so it needs to be re-configured.

It is recommended to change the webpage port number to 8000 as described below.

(Remember that from now onwards you can only access the webpage with port 8000.)

NF1901ACV FAQs –XBox Setup Guide

5 of 7

FQ01128 v. 1.1 March 2019

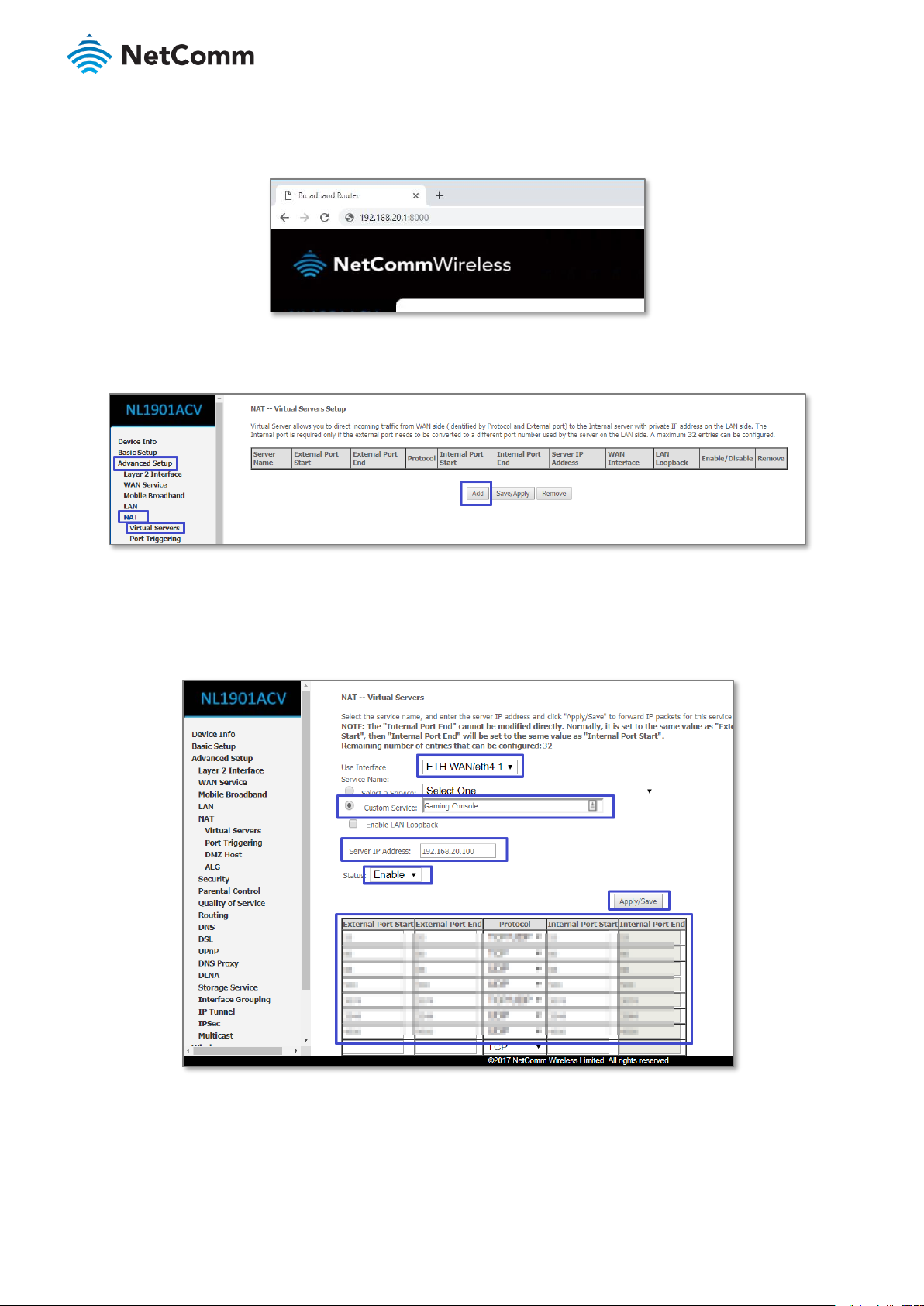

5Click the Save/Apply button.

6Open a web browser (such as Internet Explorer, Google Chrome or Firefox), type http://192.168.20.1:8000

into the address bar and press enter.

7Click on the Advanced Setup at the left of the page, then click on NAT option and then click Virtual Servers

options.

8Click the Add button to add a new port forwarding rule.

9Check that the interface currently selected in the Use Interface field is correct.

10 Choose the Use Interface from the drop-down menu as either ADSL / VDSL / or ETH WAN depending on

your connection type for internet.

11 To create your own defined port forwarding rule, select the Custom Service field and give the port forwarding

rule a unique name.

This example uses Gaming Console.

12 Enter the IP address of the XBox that you wish to port forward to in the Server IP Address field.

NF1901ACV FAQs –XBox Setup Guide

6 of 7

FQ01128 v. 1.1 March 2019

In this example, the IP address of the XBox is 192.168.20.100

13 Enter the port number or port range into the External Port Start and External Port End fields.

Note that the Internal Port Start and Internal Port End fields will automatically populate with the same port

numbers.

14 Select the Protocol to be used for the port forwarding rule. Options include TCP, UDP or TCP/UDP for both.

Ports and protocols

The ports and protocols for XBox are as follows:

XBox 360

http://support.XBox.com/en-AU/XBox-360/networking/network-ports-used-XBox-live

P R O T O C O L

P O R T N U M B E R

TCP and UDP

TCP

UDP

TCP and UDP

3074

XBox one

http://support.XBox.com/en-AU/XBox-one/networking/network-ports-used-XBox-live

P R O T O C O L

P O R T N U M B E R

TCP and UDP

TCP

UDP

500

TCP and UDP

3074

UDP

3544

UDP

4500

15 Click the Apply/Save button.

NF1901ACV FAQs –XBox Setup Guide

7 of 7

FQ01128 v. 1.1 March 2019

16 The port forwarding rules will now be displayed as the example above shows.

17 You must now reboot the modem. Select the Management menu on the left-hand side of the page then

click its Reboot option.

18 And then click the Reboot button.

Important information

•You can only forward a port to one location (IP address).

•In some cases, this may cause issues when multiple LAN devices (computers, game consoles, or VOIP ATAs) attempt to use

online gaming at same time or make multiple VOIP service connections.

•In these cases, you would need to use an alternate port for any subsequent connections after the first device.

•Please consult your VOIP provider or game manufacturer for assistance with this.
