NetComm 3G15Wn Manuel utilisateur

NETCOMM GATEWAYTM SERIES

ADSL2+/3G Wireless N300

4-Port Modem Router

1. Connect the supplied RJ-11 cable to the DSL port on the back of your router to

the phone port that supplies your ADSL.

2. And/or, attach a compatible 3G USB modem into the USB port on the back of

the router.

3. Connect the supplied RJ-45 Ethernet cable from one of the LAN ports on the

back of the router to your computer.

4. Screw the supplied detachable antenna to the Wi-Fi connector on the back of

the router.

5. Connect the supplied power adapter to your router and press the on/off button

to power the router on.

1

Connecting the cables

5 2 3 1 4

1. Open a web browser (Internet Explorer, Firefox, Safari) and type 192.168.1.1 into

the address bar.

2. At the login screen type admin into both the username and password elds.

Then click ok. This will take you directly to the Home page.

3. From the top menu, hover over Basic and click on Quick Setup.

4. Select the appropriate connection type and click Next.

2

Login to the web interface

1. Enter the user ID/Password on this screen as supplied by your ISP.

2. Click on Next to use these settings.

3. You will then be asked to enter additional setup details. This will be explained

from Step 6.

3

Connecting with ADSL

1. Select the 3G only box and click Next.

2. Compatible modems will be auto detected: This information can be seen at the

top of the page.

3. From the drop down Prole box select your 3G ISP, which will auto-ll your

APN setting.

4. Enter the username/password supplied by your 3G ISP.

Note: Not all 3G users will have a username/password. Only enter this information if you have been supplied one by your 3G ISP

5. Click on Next to use these settings.

6. You will then be asked to enter additional setup details. This will be explained

from Step 6.

4

Connecting with 3G

1. Select the ADSL with 3G backup box and click Next.

2. Follow the instructions listed above for both ADSL and 3G to set up both

connections.

3. Check the Enable 3G Backup box and enter your desired backup settings.

4. Click on Next to use these settings.

5. You will then be asked to enter additional setup details. This will be explained

from Step 6.

5

Conguring 3G backup

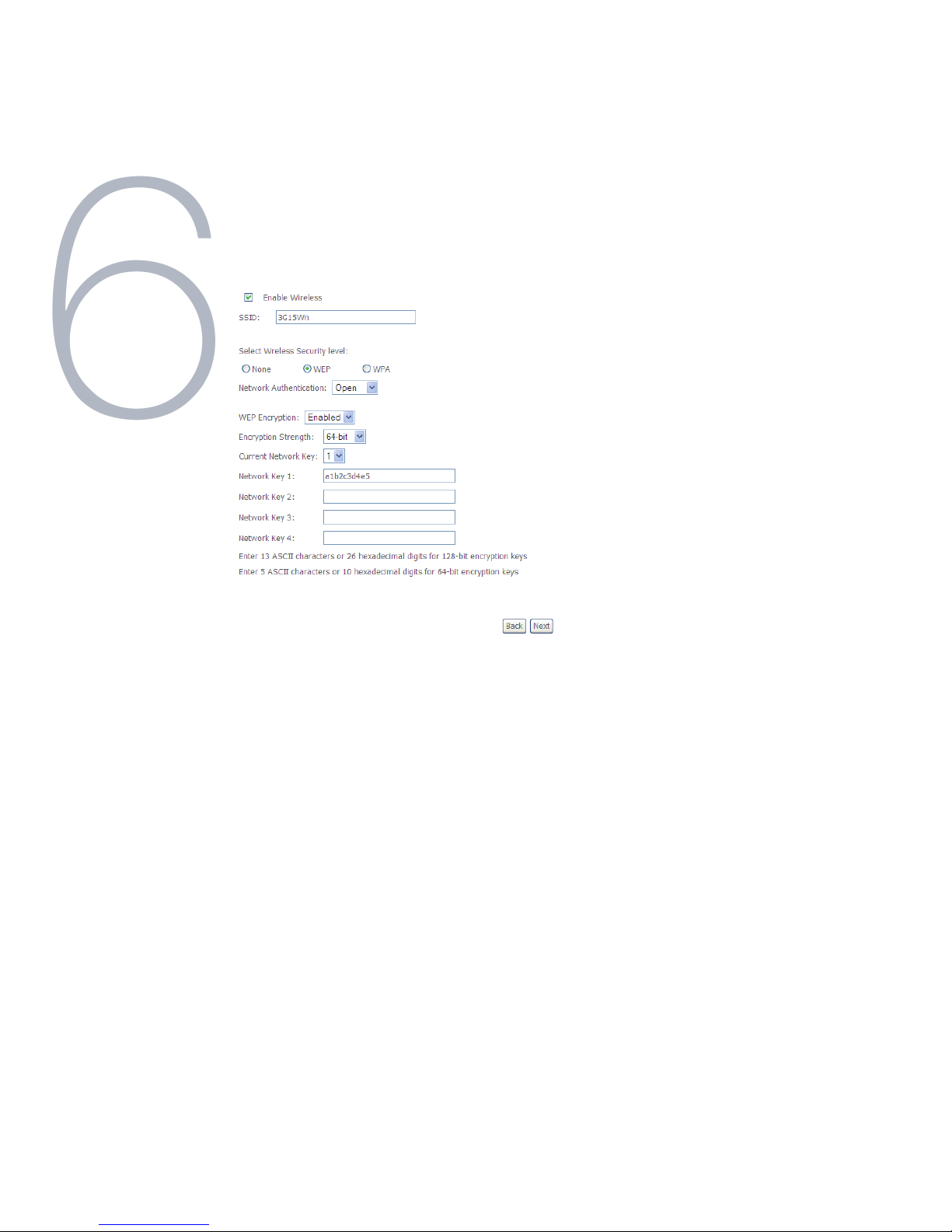

1. The default settings already appear on the wireless quick setup page.

2. You can enable/disable the wireless signal.

3. You can change your wireless SSID. If you do, be sure to remember the new

name or write it down so you know what network to connect to.

4. You can also select the level of wireless security and change the wireless

password.

5. Once you have completed entering your wireless settings click Next.

6

Wireless Quick Setup

1. If a USB device is plugged into the USB port, it will be auto detected and you will

have the choice to Enable USB storage.

2. If you enable USB storage you will be shown the Netbios and Directory name,

you can change these to anything you want.

3. Click Next once you are happy with the settings.

4. To access the storage device open a web browser and type \\Netbios\

Directory\. So using the defaults \\3G15Wn\USB-Storage\

7

USB Storage

1. If a USB device is plugged into the USB port, it will be auto detected and you will

have the choice to Enable on-board print server.

2. If you enable the device to work as a print server you will be asked to enter the

printer name and make and model. Both elds can be named anything you

like. The names will be used to identify the printer later.

3. Click Next once you are happy with the settings.

4. To complete setting up your network printer, please read Appendix A of the

User Manual.

8

USB Print Server

10

1. On this page you can change the passwords for the different levels of users.

2. The default password for all users is the same as the corresponding username.

3. Once you have completed setting the passwords click Finish.

4. You will be taken back to the home page where you can view your connection

status.

9

Passwords
