NetComm NB100 Manuel utilisateur
2 NB100 Quick Start Guide
YML783 Rev1
Contents
Introduction ........................................................................................................ 3
What’s in the box ........................................................................................... 3
Minimum System Requirements ........................................................................ 3
Installing your Modem .......................................................................................... 4
Step 1 – Install the NB100 in your Computer ...................................................... 4
Do you need a Line Filter or Splitter? ................................................................. 5
Step 2 – Install the Modem Driver ..................................................................... 5
NB100 Modem Analyzer Utility ............................................................................. 6
General Tab ................................................................................................... 7
Statistics Tab ................................................................................................. 8
Spectrum Tab ................................................................................................. 9
Configuration Tab ......................................................................................... 10
How to Uninstall the NB100 Modem ..................................................................... 11
Appendix A: Cable Information ............................................................................ 12
Appendix B: Glossary ......................................................................................... 14
Appendix C: Registration and Warranty Information .............................................. 18
Caution
The NetComm NB100 must be installed and operated in accordance with
the instructions provided in this Quick Start Guide. Damage caused by
incorrect or careless installation is not covered by warranty.
Static Electricity
Computers are very sensitive to static electricity which may be
discharged by the user when the internal circuitry is touched. Ensure that
you have discharged any static prior to touching the computer’s PCI slots
and to removing the NetComm NB100 from its static bag, by touching an
earthed object first. This can be the computer’s Power Supply provided
the power is switched off at the wall, but the power cord is connected
to the power socket; static will be discharged through the power cord’s
earth connection.
NB100 Quick Start Guide 3
YML783 Rev1
Introduction
Congratulations on your purchase of the NetComm NB100 Internal ADSL Modem.
Follow the steps in the Quick Start Guide to begin to enjoy the benefits of a super-fast, ‘zero-
footprint’ ADSL connection from your desktop.
What’s in the box
� NetComm NB100 PCI ADSL Card Modem
� Telephone Cable
� Quick Start Guide
� CD-ROM with Windows driver and additional documentation
Minimum System Requirements
Minimum system requirements for the NetComm NB100 are:
� Microsoft Windows-based PC with Pentium IV 2.4GHz processor
� Available PCI Bus
� 64Mb RAM
� 20Mb available hard disk capacity
� CD-ROM drive
� Windows XP or Windows 2000
This Quick Start Guide assumes that you have an existing ADSL Broadband User Account with
User Name and Password. These details will be required to complete this installation.
4 NB100 Quick Start Guide
YML783 Rev1
Installing your Modem
Step 1 – Install the NB100 in your Computer
To install the NetComm NB100, you need to know how to remove the external case from your
computer and insert a PCI card. If you are unsure how to do this, consult your computer’s
documentation.
1. Ensure your computer is shut down with power off and power cable unplugged.
2. Take the cover off the CPU (central processing unit) and carefully insert the NB100
into an available PCI slot. Ensure the .’golden edge’. of the modem card is correctly
positioned so it marries correctly to the PCI slot.
3. Gently but firmly press the NB100 into the slot to ensure that it is correctly seated.
4. Plug one end of the RJ-11 telephone cable (supplied) into the matching socket on the
back the modem. Plug the other end of the cable into an ADSL-enabled telephone
outlet. If you wish to run a normal telephone from the same line, plug your telephone
into the Telecom Extension Socket however ensure that the telephone’s line is equipped
with an ADSL filter
5. Re-assemble your PC by slipping the external case back on. The hardware installation of
your unit is now complete.
NB100 Quick Start Guide 5
YML783 Rev1
Do you need a Line Filter or Splitter?
Micro-filters are used to prevent common telephone equipment, such as phones, answering
machines and fax machines, from interfering with your ADSL service (and visca versa). If your
ADSL-enabled phone line is sharing a line with any other equipment then you will need to use one
micro-filter for each connected device.
Alternatively, ADSL Splitters may be installed with an ADSL line installation. Splitters separate the
ADSL and telephone service lines at the point they enter the building, meaning that filters will not
be required on each device. Splitters may only be installed by a qualified line technician.
Step 2 – Install the Modem Driver
1. After hardware installation is complete, power on your computer to start Windows
XP/2000. Windows will detect the newly-installed modem and a ‘found new hardware’
screen will appear. Click ‘Cancel’.
2. Insert the NB100 CD-ROM and allow the Auto-run wizard to start up. Then select
Auto-Install and click Next
3. Enter your Broadband ADSL Account User Name and Password
4. Re-enter password to confirm
At this point, installation is complete and you will be prompted to re-start. Click OK to confirm and
wait for your computer to re-start. This might take a minute.
NOTE: If in the unlikely event you need to establish a PPPoA connection,
rather than the standard PPPoE connection, choose Manual Install
instead of Auto Install, and browse to the PPPoA driver. Then follow
the instructions (below) for using the ADL Modem Analyzer Utility,
Configuration Tab, to select the PPPoA driver.
6 NB100 Quick Start Guide
YML783 Rev1
NB100 Modem Analyzer Utility
After the system has re-booted, you will notice that you have a desktop icon ‘ADSL Modem
Analyzer’ and an icon in the task bar.
NOTE: Windows XP Service Pack 2 will display a second System Tray
networking icon after restart. To disable this icon, double-click on it, then
click on Properties, then uncheck the box adjacent to ‘notify me when
this connection has limited or no connectivity.
The System Tray icon will be:
� red if no ADSL link is found
� yellow if a link is found and a connection is being initiated
� green when connected.
Double-click the System Tray or desktop icon to retrieve the ADSL Analyzer Utility main menu:
Click on Connect to initiate your Broadband session; this will retrieve the Windows Dial-up
Networking dialog box. Click Connect [your username and password having previously been
entered.]
Connection Status will change to Connected.
Now each of the main functions of the ADSL Analyzer Utility will be explained in turn.
NB100 Quick Start Guide 7
YML783 Rev1

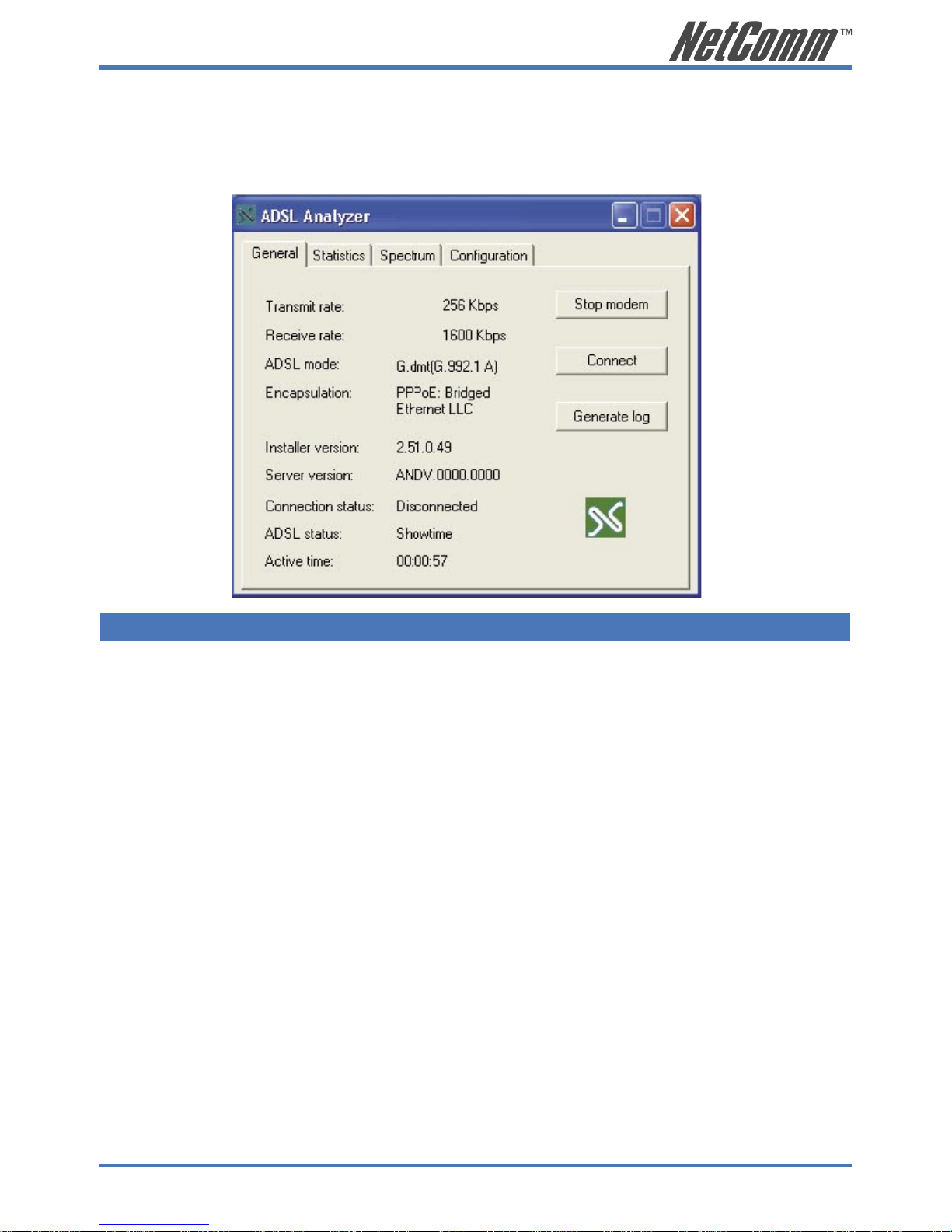

General Tab
The following fields refer to technical characteristics of your ADSL connection and will rarely need
to be checked or edited, and where changes are possible, should be changed only at the direction of
ISP advice or NetComm Support staff request. Otherwise leave as they are.
Field Description
Transmit Rate Indicates data rate in kilobits per second upstream
Receive Rate Indicates data rate in kilobits per second downstream
ADSL mode ADSL Connection Mode; in Australia, typically as
shown
Encapsulation ADSL Connection Type; in Australia , typically as
shown
Installer Version Indicates version of the device driver software for the
modem
Server Version Refers to remote modem type
Connection Status Indicates session connection status
ADSL Status ‘showtime’: ADSL modem detects successful line
synchronization
Active Time Refers to duration of current or most recent
connection session in hh:mm:ss
Stop/Start Modem Causes modem to disconnect or connect, depending
on status
Connect/Disconnect Terminates or initiates session, depending on status.
Generate Log Generates a log file containing parameters of last
active connection; used for diagnosis in the event of
connection-related problems.
8 NB100 Quick Start Guide
YML783 Rev1
Statistics Tab
Field Description
Bit Error Rate Current bit error rate expressed as bits in error per
million received, downstream
Power Average power spectral density, upstream
SNR margin Signal to noise ratio in dB, downstream
Line Attenuation Attenuation in dB of the signal, downstream
Performance Margin Required signal to noise ratio in dB of the
connection; downstream
NB100 Quick Start Guide 9
YML783 Rev1
Spectrum Tab
Visual depiction of NB100 data transmission characteristics.
10 NB100 Quick Start Guide
YML783 Rev1
Configuration Tab
The configuration tab is used to edit ISP-related details, change the device driver, or uninstall the
driver.
Field Description
Encapsulation Indicates encapsulation characteristic of the
connection
ADSL Mode Type of ADSL connection
ISP connection Phone-book entry details corresponding to ISP
VPI Virtual Path Identifier; leave as default
VCI Virtual Circuit Identifier; leave as default
Boot Start 0=no, 1=yes; enable/disable modem startup when PC
boots up
Profile Not generally in use
Install Status Current status of driver installation process; to
monitor config changes
Modify Config Edit ISP details; see figure below
Change Driver Two drivers are provided: PPPoE (default) and
PPPoA; this enables driver selection if required.
Modify Configuration Window
Change Driver window
