NetApp FAS8300 Manuel

Prepare for installation Install hardware Cable storage Complete system setup

and conﬁguration

1 2 3 4

FAS8300 and FAS8700 Systems

Installation and Setup Instructions

Prepare for installation |Stage 1

You provide

Contents

In the box

Cables in your

shipment are

order-dependent.

Not all cables

shown may be

in your shipment.

Pre-setup

215-14512_A0

1. Unpack all boxes and inventory contents. For more cable information and part numbers, see the Hardware Universe.

2. If you are not already in the AFF and FAS System Documentation Center, go to AFF and FAS System Documentation Center;

click FAS8300 and FAS8700 systems; click Installation and Setup:

- Review the NetApp ONTAP Conﬁguration Guide.

- Watch the videos listed under Setup videos.

Screwdriver

Phillips #2

Laptop or console

With a USB/serial connection and access to a

Web browser to conﬁgure your storage system

Rack space

4U for FAS8300 and FAS8700

+2U for each 2U shelf

or +4U for each 4U shelf

Additional network cables

For connecting your storage system to your

network switch and laptop or console.

Part numbers:

X5585-R6 (112-00291), 3m

X6562-R6 (112-00196), 5m

RJ-45 cables

Wrench port (e0M/BMC)

(order-dependent)

Storage Cables

mini-SAS HD to

mini-SAS HD cables

Part numbers:

X66211A-05 (112-00595), 0.5m

X66211A-1 (112-00573), 1m

X66211A-2 (112-00574), 2m

X66211A-5 (112-00576), 5m

100 GbE cable (QSFP28)

Storage, cluster network, and

Ethernet data (order-dependent)

Part numbers:

X66030A (112-00435), .5m

X66031A (112-00436), 1m

X66032A (112-00437), 2m

X66033A (112-00438), 3m

Part numbers:

X66240-2 (112-00598), 2m

X66240-5 (112-00639), 5m

25 GbE cable (SFP28s)

HA interconnect, GbE network cable.

Part numbers:

X66250-2 (112-00342), 2m

X66250-5 (112-00344), 5m

X66250-15 (112-00346), 15m

32 Gb FC (SFP+ Op)

FC optical network cable

Additional cables

Power cables

Ethernet cables

micro USB console cable

Slide rail kit

Cable management tray

16 Gb FC or 25GbE cables

Mezzanine cards (SFPs pre-installed):

Part number:

X66250-2-N-C (112-00342)

Install hardware |Stage 2

• Install the slide rail or telco tray kits, as needed, and then install

and secure your system using the instructions included with the kit.

• Attach cable management devices to the back of each controller (as shown).

• Place the bezel on the front of the system.

• Install any drive shelves for your system.

Install system in a rack or cabinet

LIFTING HAZARD

CAUTION

≥50.1 kg (≥110.2 lbs.)

Cable the controller for a switchless or switched cluster

See your network administrator for help connecting to your switches.

Pull-tab

Attention: Be sure to check the illustration arrow for the

proper cable connector pull-tab orientation.

Note: To unplug a cable, gently pull the tab to release the locking mechanism.

Pull-tab

Switchless cluster: Connect ports e0c to e0c and

ports e0d to e0d.

Switched cluster: Controller 1: Connect port e0c to switch 1

and port e0d to switch 2. Controller 2: Connect port e0c to

switch 1 and port e0d to switch 2.

Connect ports e0a to e0a and ports e0b to e0b

Connect ports to the 25 GbE data network switches

(optional, conﬁguration dependent).

DO NOT plug the power cables into a power source yet.

The system will boot as soon as the power cables are plugged into the power source and power supplies.

100 GbE cables (cluster network)

Connect ports to the FC data network switches

(optional, conﬁguration dependent).

Connect the Wrench port (e0M/BMC) to the management

switches

Connect the mezzanine cards (e0e through e0h) to either

16 Gb FC or 25 GbE switches; conﬁguration dependent.

Strap the cables to the cable management arms. (not shown)

25 GbE cables

FC cables

25 GbE cables

Switched cluster To Ethernet or FC switches

(optional, conﬁguration-dependent)

To Ethernet or FC switches

(optional, conﬁguration-dependent)

To cluster

switches

To 25 GbE data

network switches

(optional, conﬁguration-dependent)

To management

network switches

To 16 Gb FC or

25 GbE switches

(optional, conﬁguration-dependent)

To 25 GbE data

network switches

(optional, conﬁguration-dependent)

To management

network switches

e0a e0b e0c e0d

Switchless cluster

To 16 Gb FC or

25 GbE switches

(optional, conﬁguration-dependent)

e0a e0b

e0a e0b e0c e0d e0e e0f e0g e0h

e0e e0f e0g e0h

e0c e0d

X1148A

16Gb FC or 25GbE

Rear view of FAS8300 or FAS8700 System

Ethernet cables

Optical cables

Cable storage |Stage 3

Cabling a FAS8300 or FAS8700 system

to three DS224C shelves

Connect the shelf-to-shelf ports

mini-SAS HD

Shelf 1

Shelf 2

Shelf 3

IOMA IOMB

Controller A

Controller B

0a 0d

1 3

11 3

1 3

Connect Controller B to the drive shelves

Connect Controller A to the drive shelves

Pull-tab

Attention: Be sure to check the illustration arrow for the

proper cable connector pull-tab orientation.

Note: To unplug a cable, gently pull the tab to release the locking mechanism.

Pull-tab

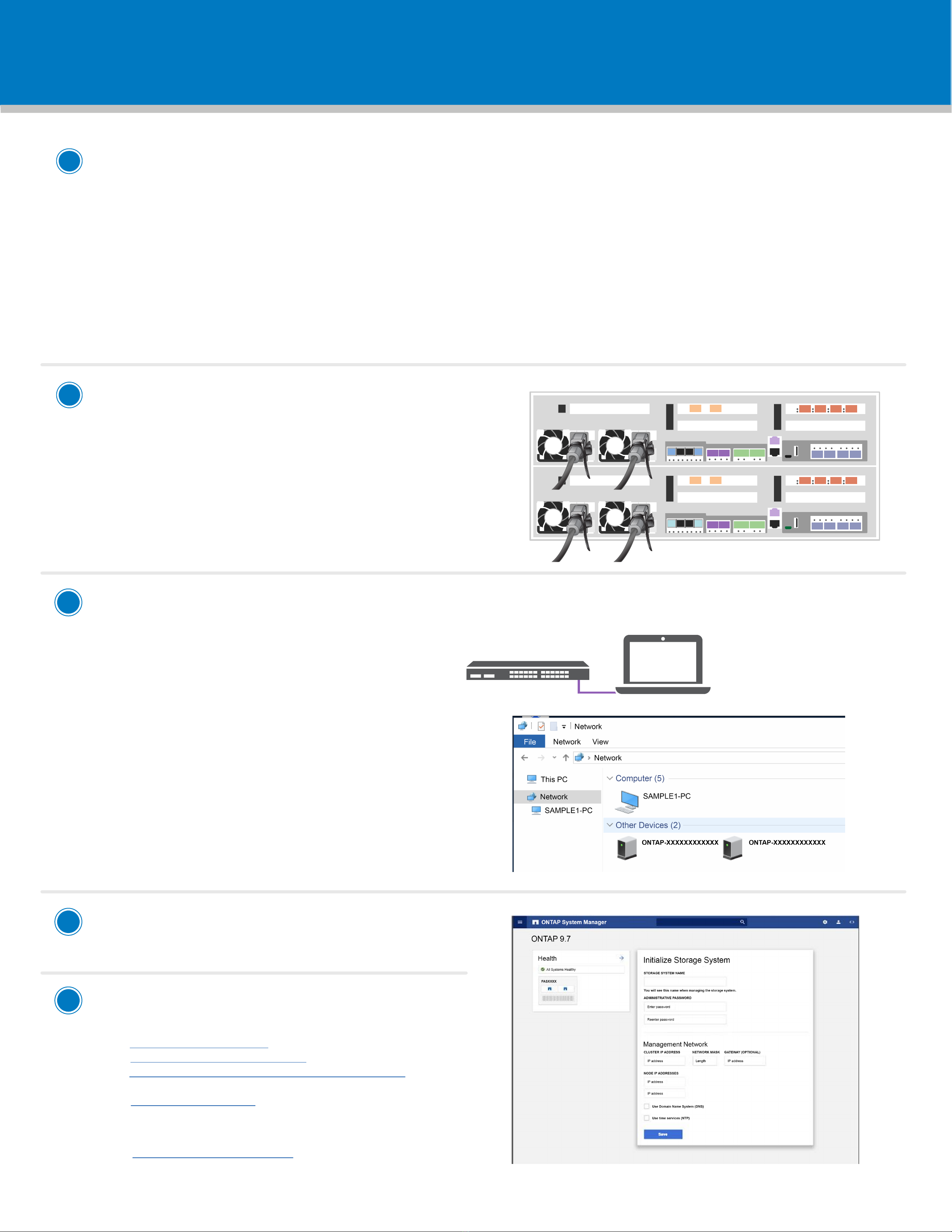

Complete system setup and conﬁguration |Stage 4

2Power on the controllers

Connect and secure the power cables:

• Connect the shelves to dierent power sources.

• Connect the controllers to dierent power sources.

Note: The system begins to boot as soon as the power supplies are

connected to the power sources. Booting may take up to 8 minutes.

3Complete initial cluster setup:

1. Make sure that your laptop has network discovery enabled*.

See your laptop’s help for network discovery settings.

2. Connect your laptop to the Management switch.

3. Access the network computers and devices:

- Open File Explorer

- Click network in the left pane

- Right click and select refresh.

4. Double-click either ONTAP

Note: Accept any certiﬁcates displayed on your screen.

*If your laptop does not support network discovery,

see the Installation and setup guide for your model for

how to complete initial cluster setup.

Management subnet

Laptop

If your system has one or more external drive shelves, set the shelf IDs:

1. Connect the shelves to dierent power sources, power on the drive shelf, and then remove the end cap on the left of the shelf.

2. Press and hold the shelf ID button until the ﬁrst digit blinks, and then press the button to advance

the ﬁrst digit (0-9) to the desired number. The ﬁrst digit continues to blink.

3. Press and hold the button until the second digit blinks, and then press the button to advance

the second digit (0-9) to the desired number. The ﬁrst digit stops blinking, and the second digit continues to blink.

4. Press and hold the button until the second digit stops blinking, and then replace the end cap on the shelf.

5. Wait about 10 seconds for both digits to start blinking again and for the LED to illuminate,

and then power-cycle the drive shelf to make the shelf ID take eect.

6. Repeat these steps for any remaining drive shelves.

5Completing setup

1. Click...

a) mysupport.netapp.com

b) Create/log in to your account

c) Download and install Active IQ Conﬁg Advisor

(used at the end)

d) Register your system

2. Verify the health of your system by running Conﬁg Advisor.

3. After you have completed the initial conﬁguration, go to

the NetApp ONTAP Resources page for information

about conﬁguring additional features in ONTAP.

4Use System Manager Guided Setup

to conﬁgure your cluster
