Neomouv FACELIA Manuel utilisateur

CARLINA FACELIA

+ Hydraulic version

LINARIA ARTEMIS

USER MANUAL

THIS MANUAL CONTAINS IMPORTANT

SAFETY AND OPERATING INSTRUCTIONS

Model conforms to safety standards

Product may differ from photos

CARLINA (+ HY) – FACELIA – LINARIA – ARTEMIS Manual

CONTENTS

1. PRESENTATION..................................................................................................................................... 3

2. ADJUSTMENTS/ASSEMBLY:.............................................................................................................. 4

2.1 Adjusting the saddle:.............................................................................................................................. 4

2.1.1 Angle: ................................................................................................................................................. 4

2.1.2 Height:................................................................................................................................................ 4

2.2 Adjusting the handlebars and the stem:.................................................................................................. 5

2.2.1 Height:................................................................................................................................................ 5

2.3 Adjusting the brakes:.............................................................................................................................. 6

2.3.1 V-type front brake: ............................................................................................................................. 6

2.3.2 Rear v-type brake: .............................................................................................................................. 7

2.3.3 Hydraulic brakes:................................................................................................................................ 8

2.4 Rack:....................................................................................................................................................... 9

2.5 Mounting and dismounting the wheels (rear wheels to be handled by a specialist): ............................. 9

2.5.1 Front wheel:........................................................................................................................................ 9

2.5.2 Rear wheel:....................................................................................................................................... 10

2.6 Lights:................................................................................................................................................... 11

3. USING THE E-BIKE:............................................................................................................................ 12

3.1 Indexed gearshift:................................................................................................................................. 12

3.2 Electronic gear shifting: ....................................................................................................................... 12

3.3 Display.................................................................................................................................................. 13

3.4 Electric assistance:................................................................................................................................ 14

3.4.1 Operation:......................................................................................................................................... 14

3.4.2 Performance:..................................................................................................................................... 14

3.4.3 Technical specifications of the power-assistance system:................................................................ 15

3.5 The electric motor: ............................................................................................................................... 15

4. CHARGING THE BATTERY:............................................................................................................. 16

4.1 NEOMOUV Lithium Ion 36-volt charger............................................................................................ 16

4.1.1 Precautions (safety instructions): ..................................................................................................... 17

4.1.2 Protecting the charger:...................................................................................................................... 17

4.2 Battery .................................................................................................................................................. 18

4.2.1 Recommendations / precautions to take with your battery: ............................................................. 19

5. TIPS FOR INCREASING THE BATTERY LIFE PER CHARGE:................................................. 20

6. UPKEEP AND MAINTENANCE:........................................................................................................ 21

6.1 Upkeep:................................................................................................................................................. 21

6.2 Lubrication: .......................................................................................................................................... 21

6.3 Maintenance: ........................................................................................................................................ 21

7. SAFETY – RECOMMENDATIONS: .................................................................................................. 22

8. TECHNICAL DATA.............................................................................................................................. 23

9. DECLARATION OF CE CONFORMITY.......................................................................................... 23

10. CERTIFICATE OF CONFORMITY................................................................................................... 23

11. TERMS OF WARRANTY..................................................................................................................... 24

CARLINA (+ HY) – FACELIA – LINARIA – ARTEMIS Manual

1. PRESENTATION

Thank you for choosing a NEOMOUV Electric-Assisted Bicycle (E-Bike)

E-Bike Presentation:

Notes:

•The symbol indicates important advice or essential safety measures. Follow the various instructions.

•Some adjustment and assembly/disassembly operations require special tools and expertise; perform

these only if you have the skills to do so, otherwise consult your authorised dealer or a specialist.

•The symbol indicates the tools you will need to carry out adjustments.

• Your e-bike has a serial number engraved on the frame by the fork.

MAXIMUM LOAD:120 KG.FOR YOUR SAFETY,YOU SHOULD NOT EXCEED THE MAXIMUM LOAD WHEN

USING YOUR BICYCLE.

Rack (25kg

max)

Display

Battery

Electric

motor

Controller

Pedalling

sensor

Serial number

CARLINA (+ HY) – FACELIA – LINARIA – ARTEMIS Manual

2. ADJUSTMENTS/ASSEMBLY:

Adapt the bike to your height

2.1 Adjusting the saddle:

6mm mm Allen key

2.1.1 Angle:

Loosen the nut under the saddle (having first removed the battery).

Adjust the angle of the saddle in order to find your most comfortable position. Tighten the nut, with a

maximum tightening torque of 13 Nm.

2.1.2 Height:

The power-assisted bicycle enables you to opt for a lower saddle position than on a classic bike. With power

assistance, you expend less effort and can be seated in a lower position for improved safety. The required user

(cyclist) height for optimal utilisation of the bike ranges from 1.55m to 1.85 m. Adjust your saddle height to the

optimal sitting position as follows:

Loosen the quick-release seat clamp.

Wearing suitable cycling shoes, sit on the saddle, place one of the pedals in the lowest position, rest one heel

on the pedal, and your leg should rest normally on the pedal without being stretched. Raise or lower the

saddle to get the correct height. While pedalling backwards, you should not have to move your hips from side

to side.

Tighten the quick-release clamp.

THE SEAT POST SHOULD NOT BE EXTENDED BEYOND THE ENGRAVED SAFETY MARK (VERTICAL BARS).

Nut

Quick-release

clamp

CARLINA (+ HY) – FACELIA – LINARIA – ARTEMIS Manual

The minimum height between the highest point of the saddle and the ground is 80 cm.

2.2 Adjusting the handlebars and the stem:

6 mm Allen Key

2.2.1 Height:

For your comfort, the position of your handlebars must be at the same level as the height of your saddle or a

bit higher according to your comfort. Unscrew the Allen screw and adjust your handlebars to the desired

height.

Do the same with the second screw to set the angle of tour handlebars, after making your adjustments,

tighten the screws vigorously, with a max. tightening torque of 6 Nm.

THE STEM MUST NOT COME OUT OF THE HEAD TUBE BEYOND THE ENGRAVED MARKINGS (VERTICAL BARS AND

THE INSCRIPTION MINIMUM INSERTION).

After making the adjustment, tighten the screw by turning it clockwise (max. tightening torque: 6 Nm).

Safety

mark

Handlebar angle

adjustment screw

Height

adjustment

screw

CARLINA (+ HY) – FACELIA – LINARIA – ARTEMIS Manual

2.3 Adjusting the brakes:

5 mm Allen Key

Screwdriver

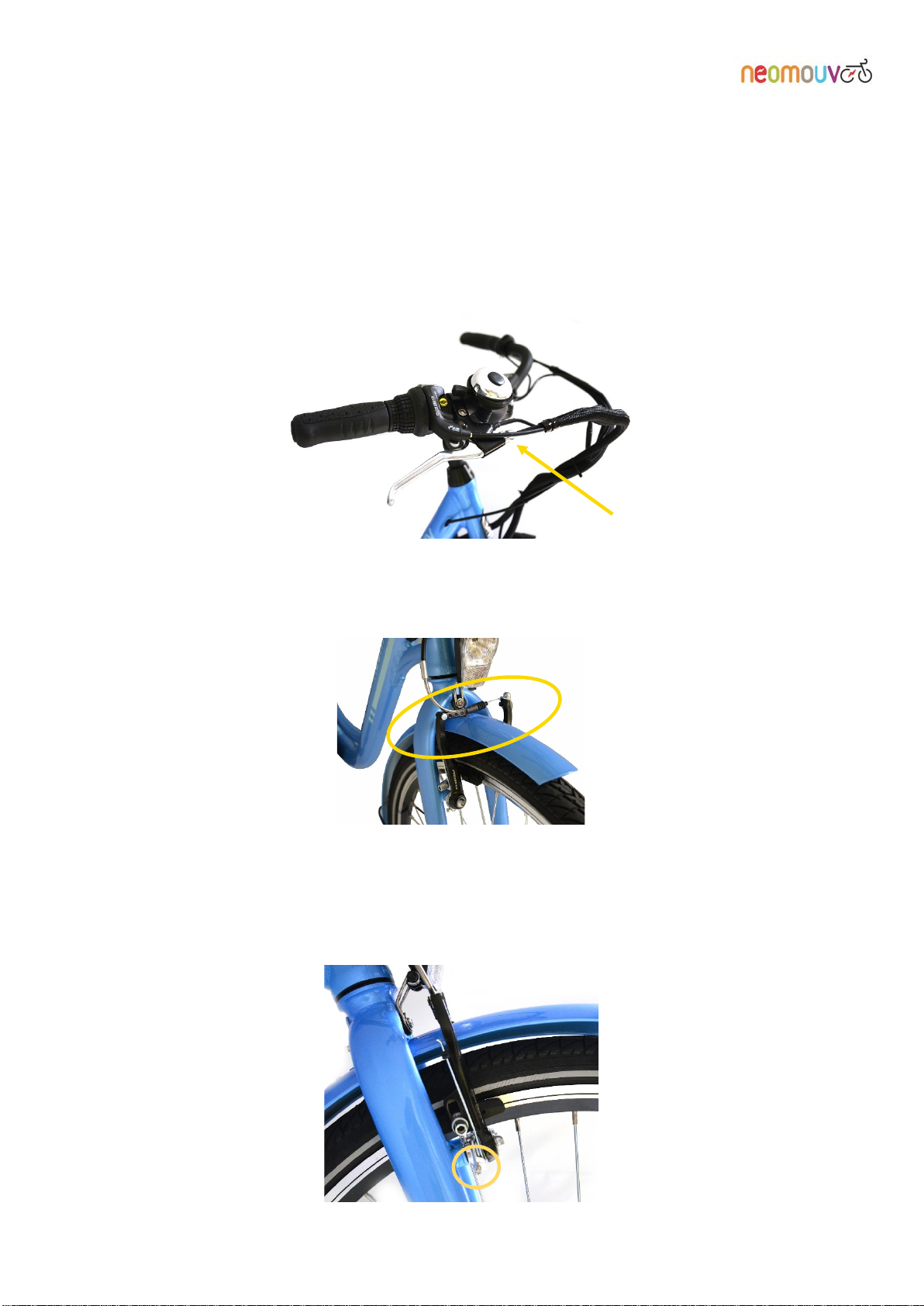

2.3.1 V-type front brake:

The front brake is operated by the left handle on the handlebar.

Tighten the nut on the brake handle fully. This adjustment will enable you to compensate later for the natural

slackening of the brake cable.

Loosen the cable clamp and pull the cable until the pads touch the wheel rim. Tighten the cable clamp (pay

particular attention to either end of the tubing which must fit easily into the rigid connectors on the brake

handle and V-Brake).

The pads are in the right position when they are an equal distance from the wheel rim. The final adjustment is

made by tightening the screws on the brake shoes with a screw driver (a distance of about 0.1 to 0.5 mm

from the wheel rim).

CARLINA (+ HY) – FACELIA – LINARIA – ARTEMIS Manual

The result of your adjustment is correct when the wheel turns freely and stops smoothly.

The pads are in the right position when they are an equal distance from the wheel rim. The final

adjustment is made by tightening the screws on the brake shoes with a screwdriver (a distance of

about 0.1 to 0.5 mm from the wheel rim).

2.3.2 Rear V-type brake:

The rear brake is operated by the right handle on the handlebar.

As with the front break (see section 2.3.1) tighten the nut on the brake handle fully. This adjustment will

enable you to compensate later for the natural slackening of the brake cable.

Loosen the cable clamp (see the photos for adjusting the front brake) and pull the cable until the pads are

touching the wheel rim.

Tighten the cable clamp (pay particular attention to each end of the tubing which must fit easily into the rigid

connectors on the brake handle and V-Brake).

The pads are in the right position when they are an equal distance from the wheel rim. The final adjustment is

made by tightening the screws on the brake shoes with a screw driver (a distance of about 0.1 to 0.5 mm

from the wheel rim).

WARNING!IN WET WEATHER OR ON DAMP GROUND,THE BRAKING DISTANCE INCREASES.

CARLINA (+ HY) – FACELIA – LINARIA – ARTEMIS Manual

2.3.3 Hydraulic brakes:

Your e-bike is equipped with front and rear hydraulic disc brakes. The maintenance of this system must be

carried out by a specialist. Nevertheless, here are a few recommendations:

-Periodically check the condition of the lining on the brake pads. It is important to avoid leaving this

until the last minute, because if the lining is damaged, the disc rubs against the metal of the pads

which damages them.

Here are 2 ways to monitor the wear and tear on your pads:

oBy sound: the braking sound will be more metallic when the lining is worn.

oBy sight: you can see the thickness of the lining when looking from the front of the calliper.

-Periodically check the cleanliness and wear of the discs. Use alcohol or water to clean the discs.

-Completely avoid any contact with greasy substances on the disc and the pads. The pads will

absolutely have to be changed. (They are porous and will absorb the greasy substance).

AS A GENERAL RULE,THE HYDRAULIC DISC BRAKING SYSTEM SHOULD NOT BE ADJUSTED BY NON-EXPERTS.

WE RECOMMEND THAT YOU CALL A SPECIALIST SHOULD YOU HAVE ANY DOUBTS ABOUT WHAT TO DO.

Disc

Pads
