NEO Blinder 64 Manuel utilisateur

PLEASE READ THE INSTRUCTIONS CAREFULLY BEFORE USE /

POR FAVOR LEA LAS INSTRUCCIÓNES ANTES DE USAR

USER MANUAL / MANUAL DE USUARIO

NEO BLINDER

NEO BLINDER MKII

1. OVERVIEW

Neo Blinder 64 is a LED professional blinder for outdoor

use powered by 1 230W Warm white LED and 8 amber 2W

LEDs. Thanks to its red-shift technology, the ﬁxture oﬀers a

deep old-school tungsten glow, that can be call up instantly

or run continuously as background eye-candy. Neo Blinder

64, besides its incredible output, sports 3 dimming modes,

built-in strobe FX and linear CT adjustment. Certiﬁed as

IP65, ideal for outdoor use, this innovative blinder sports

a friendly OLED display and posses a PWM frequency se-

lector that makes possible to work ﬂicker free in any given

circumstances.

SPECIFICATIONS

Source & Optic

• Light source:

- 1 Warm white 230W LED

- 8 Amber 2W LED

• Beam angle: 32º

• Field Angle: 56º

Photometric Data

• Luminous ﬂux: 8806 lm

• Flux: 1,027 Lux @ 5m (16 ft)

• Color temperature: 1900K-2700K

Effects & Functions

• Professional blinder

• Red-shifting technology to emulate the old-school

tungsten red shift as lamps cooled

• COB LED technology: More power output with

less heat generation

• Dimmer: 0-100% with 3 diﬀerent modes

• 16-bit dimmer

• Strobe eﬀect with built-in FX

• Selectable PWM frequencies for ﬂicker-free

video: 600 Hz, 1200 Hz, 2000 Hz, 4000 Hz & 25,000 Hz

• Solid construction

Control

• DMX Channels: 2/3/4/5

• Operational modes: DMX, Master/Slave, Auto

run and Static

Electrical

• Input voltage range: AC100–240V, 50-60Hz

• Power consumption: 276W

Physical

• IP Rating: IP65

• Password-protected OLED display

• DMX connectors: 2 XLR connectors (XLR-5 in-

put and output)

• OutdoorPowerCON®IN/OUTpowersupplyconnectors

• Dimensions: 380x188x371 mm. / 15x7.5x15 in.

• Weight: 8.5 Kg. / 18.5 Lbs.

ENGLISH VERSION

NEO BLINDER MKII

2. SAFETY INSTRUCTIONS

1. The products referred to in this manual conform

to the European Community Directives and are

there- fore marked with .

2. The unit is supplied with hazardous network

voltage (230V~). Leave servicing to skilled per-

sonnel only. Never make any modiﬁcations on

the unit not described in this instruction manual,

otherwise you will risk an electric shock.

3. Connection must be made to a power supply sys-

tem ﬁtted with eﬃcient earthing (class I appliance

according to standard EN 60598-1). It is, moreo-

ver, recommended to protect the supply lines of

the units from indirect contact and/or shorting to

earthbyusingappropriatelysizedresidualcurrent devices.

4. The connection to the main network of electric

distribution must be carried out by a qualiﬁed

electrical installer. Check that the main frequency

and voltage correspond to those for which the

unit is designed as given on the electrical data label.

5. Thisunitisnotforhomeuse,onlyprofessionalapplications.

6. Never use the ﬁxture under the following conditions:

- in places subject to vibrations or bumps;

- in places with a temperature of over 45 °C.

7. Make certain that no inﬂammable liquids, water or

metal objects enter the ﬁxture.

8. Do not dismantle or modify the ﬁxture.

9. All work must always be carried out by a qualiﬁed

technical personnel. Contact the nearest sales

pointforaninspectionorcontact themanufacturerdirectly.

10. If the unit is to be put out of operation deﬁnitvely,

take it toa local recycling plant for a disposal which

is not harmful to the environment.

ENGLISH VERSION

WARNING AND INSTALLATION PRECAUTIONS

• If this device will be operated in any way diﬀerent

to the one described in this manual, it may suﬀer

damage and the guarantee becomes void. Further

more, any other operation may lead to dangers like

short circuit, burns, electric shock, etc.

• Before starting any maintenance work or cleaning

the projector, cut oﬀ power from the main supply.

• For inside use only. Not designed for outside use.

• The minimum distance between the ﬁxture and

surrounding walls must be more than 50cm and

theair ventsatthehousing mustnotbecoveredin anycase.

• Install the ﬁxture in a well ventilated place.

• Keep any inﬂammable material at a safe distance

from the ﬁxture.

• The maximum temperature that can be reached

on the external surface of the ﬁtting, in a thermally

steady state, is high. After power oﬀ, please cool

down over 15 minutes.

• Shields, lenses or ultraviolet screens shall be

changed if they have become damaged to such an

extent that their eﬀectiveness is impaired.

• The lamp(LED) shall be changed if it has become

damaged or thermally deformed.

• Never look directly at the light beam. Please note

that fast changes in lighting, e.g. ﬂashing light, may

trigger epileptic seizures in photosensitive per-

sons or persons with epilepsy.

NEO BLINDER MKII

ENGLISH VERSION

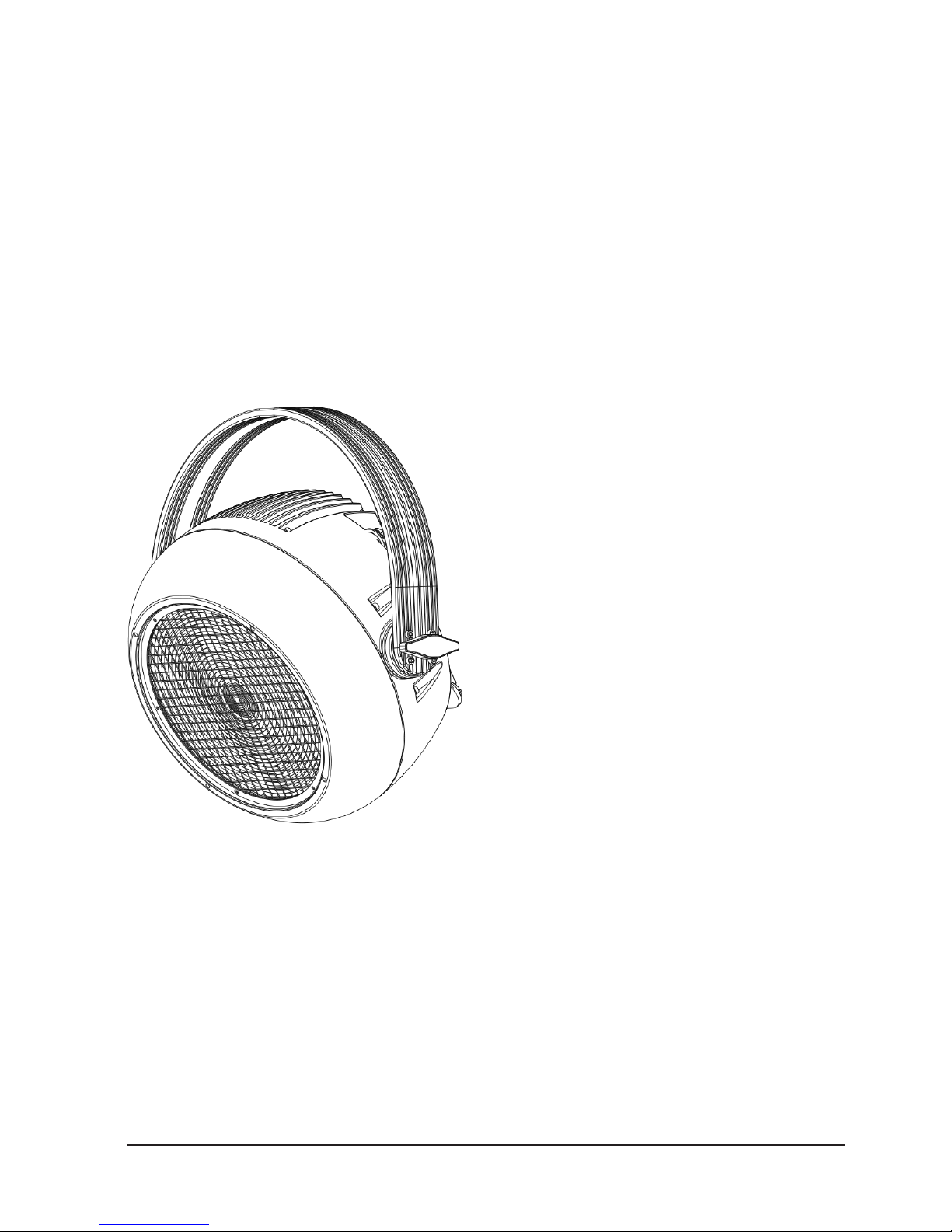

3. OVERVIEW

Description

Breakthrough design delivers massive blinding output with

old-school red shift eﬀect. Proprietary LED conﬁguration

produces stunning classic halogen feel. Variety of dimming

curves to accurately evoke the look and feel of classic blin-

ders. Outdoor-rated, touring-ready construction and design

NEO BLINDER MKII

ENGLISH VERSION

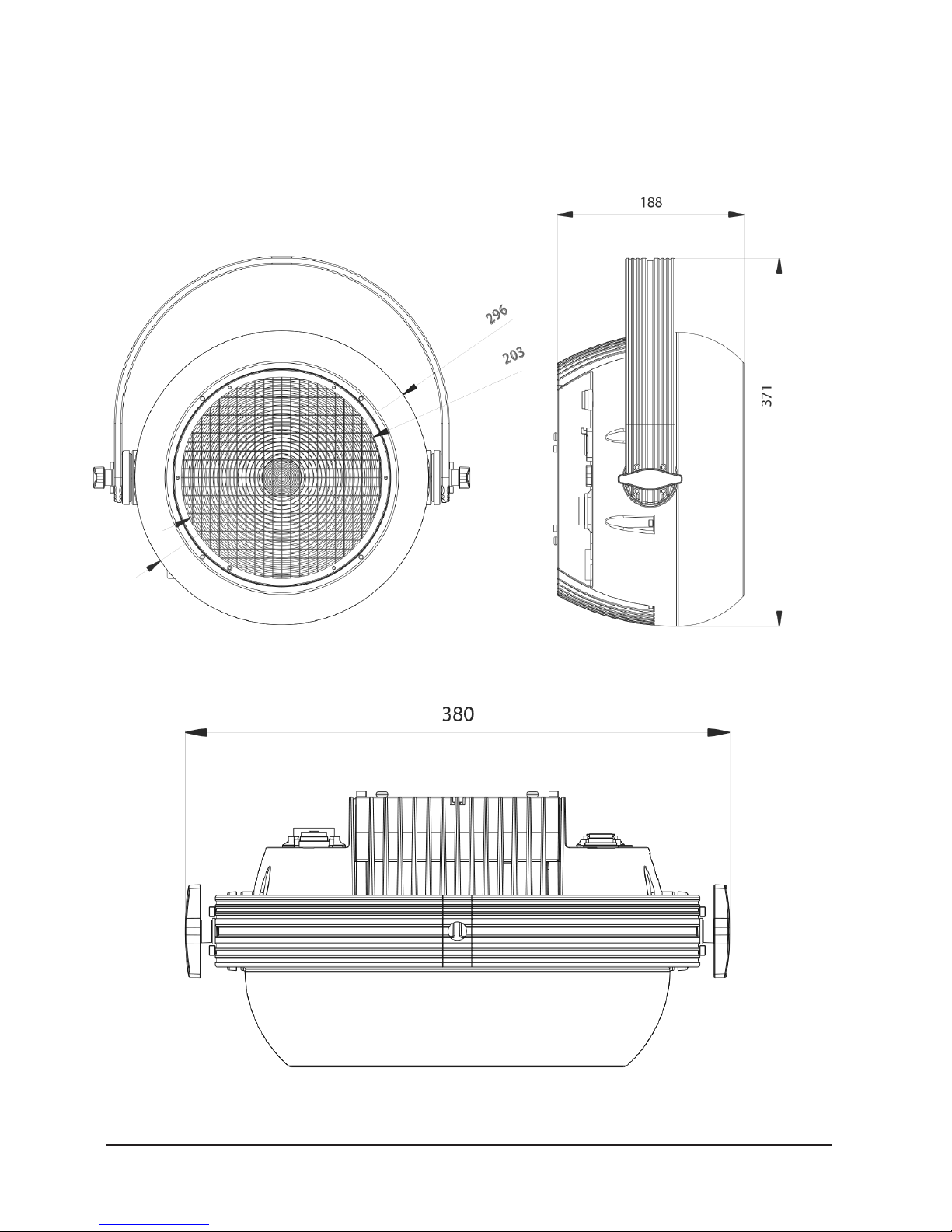

DIMENSIONS

NEO BLINDER MKII

ENGLISH VERSION

4. INTRODUCTION

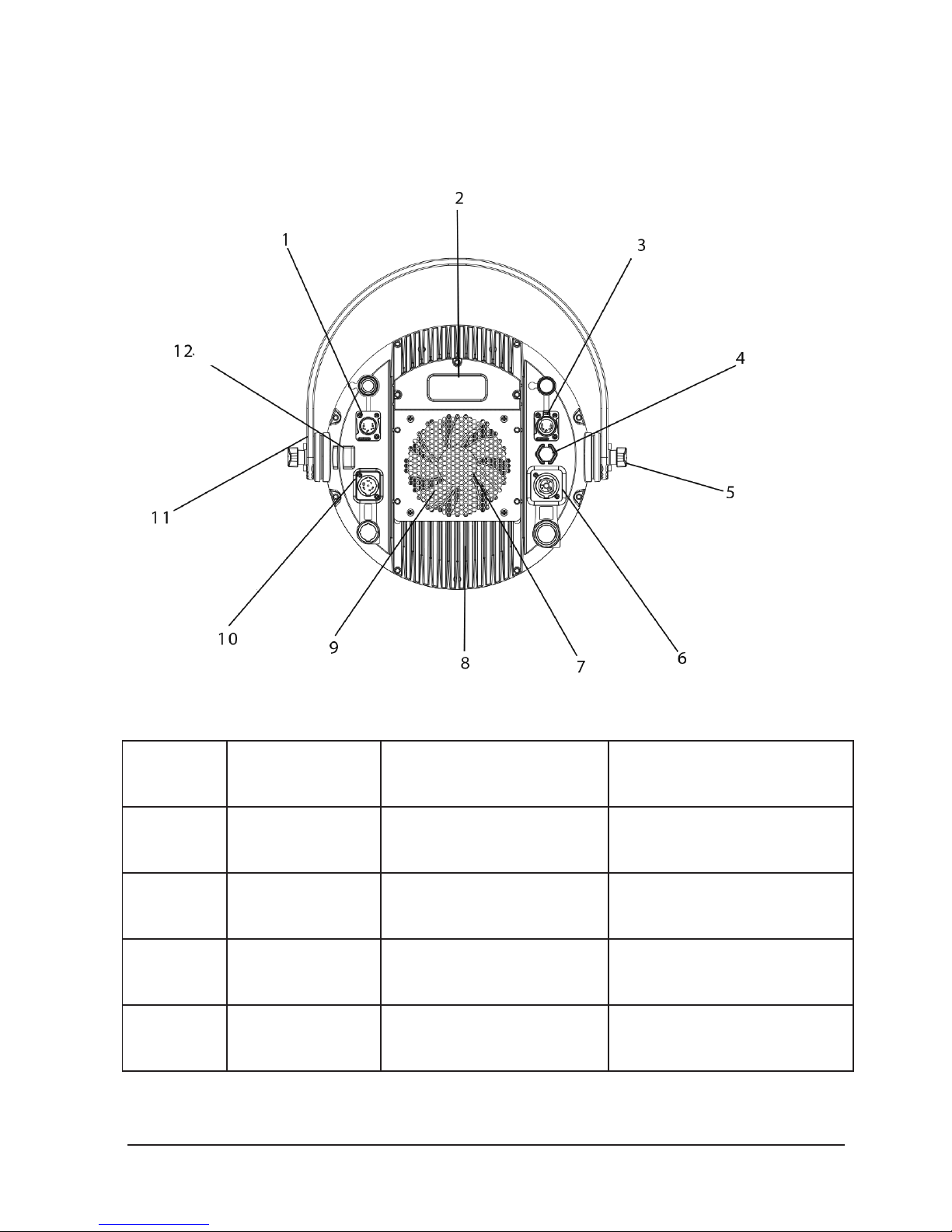

Control Panel

MODE ILLUSTRATION FUNCTION DESCRIPTION EFFECT

Menu Menu Option Enter the Menu Menu Operation

Up Up Scroll Up Increase the Numeric Value

Down Down Scroll Down Decrease the Numeric Value

Enter Conﬁrm Conﬁrm the chosen Menu Save the function

5-Pin XLR IN

OLED Display

5-Pin XLR OUT

Breather Valve

Bracket Knob

PowerCon OUT

Fan Grill

Heat Sink

Fan (IP65)

PowerCon In

Bracket

Safety Loop

NEO BLINDER MKII

ENGLISH VERSION

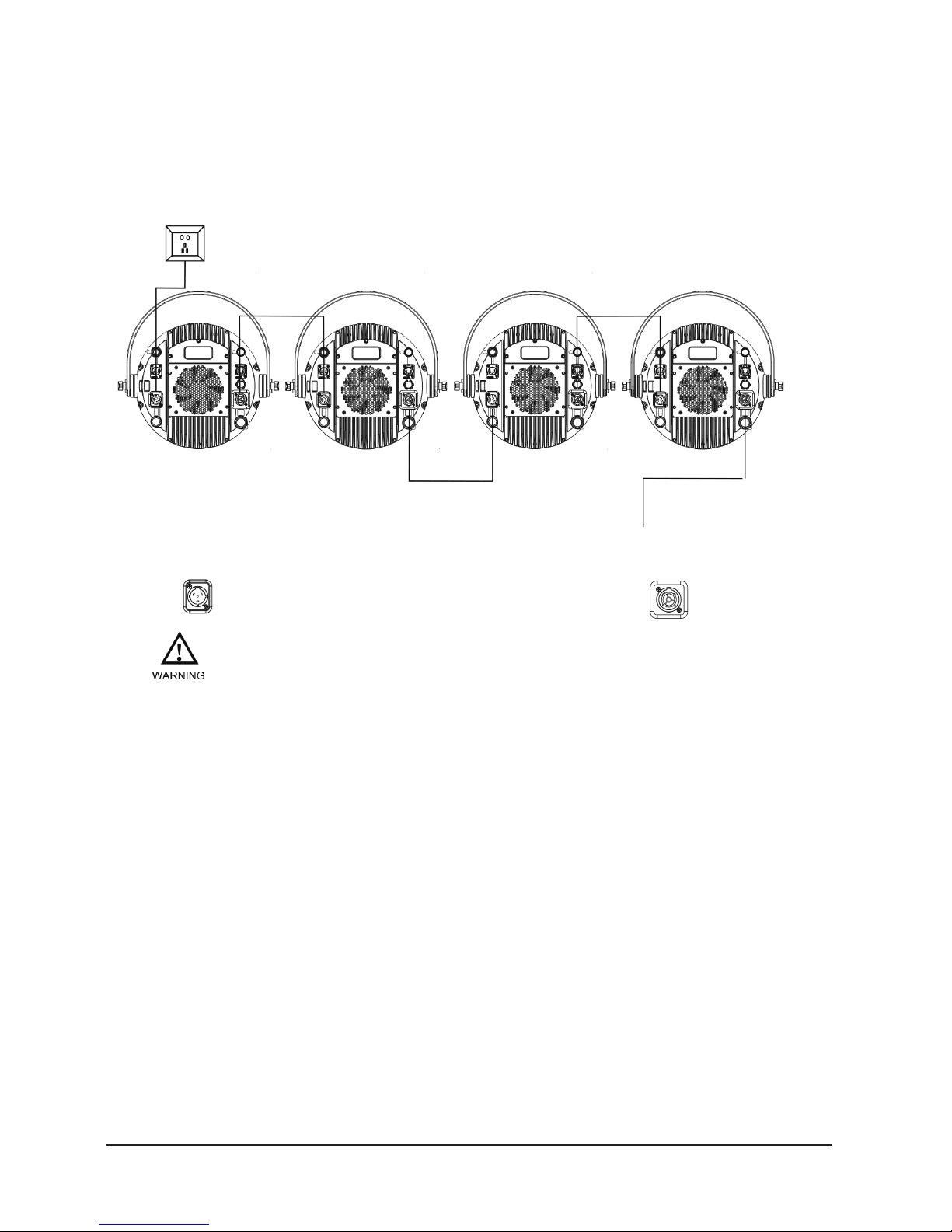

5. POWER CONNECTING

SUBSEQUENT

POWER OUTPOWER IN

Do not connect more than 5 units in series with one power cable. Do not

use damaged power cables.

Turn oﬀ the power when the units are not in use.

Using POWER CON In/Out

Power cable connected in series

Attention:due to the power rating，

one 1.5mm power cable can connect 5 units maximum

NEO BLINDER MKII

ENGLISH VERSION

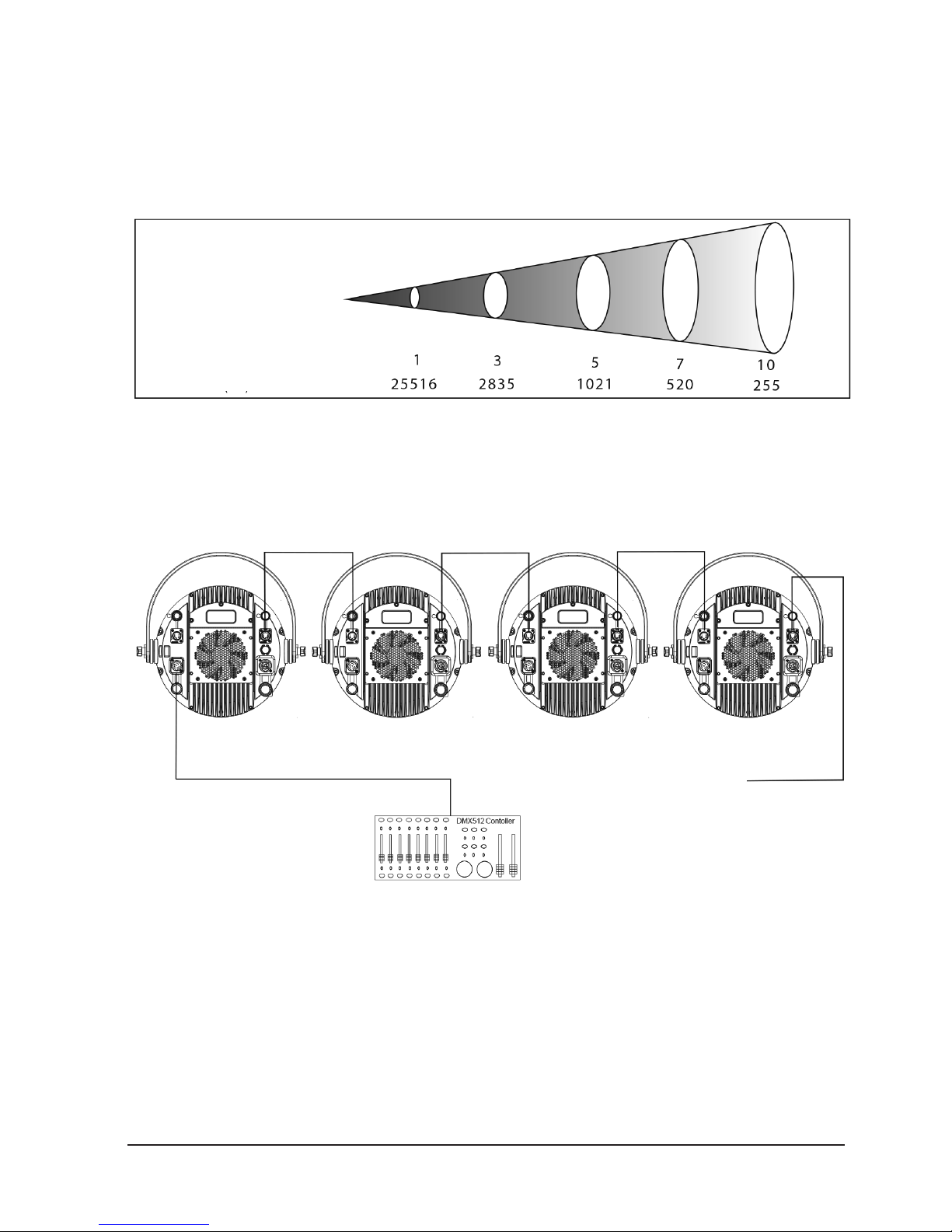

6. PHOTOMETRIC DATA

7. DMX CONNECTION

SUBSEQUENT

Project Distance (m)

luminance(lux)

Beam Angle: 32

NEO BLINDER MKII

ENGLISH VERSION

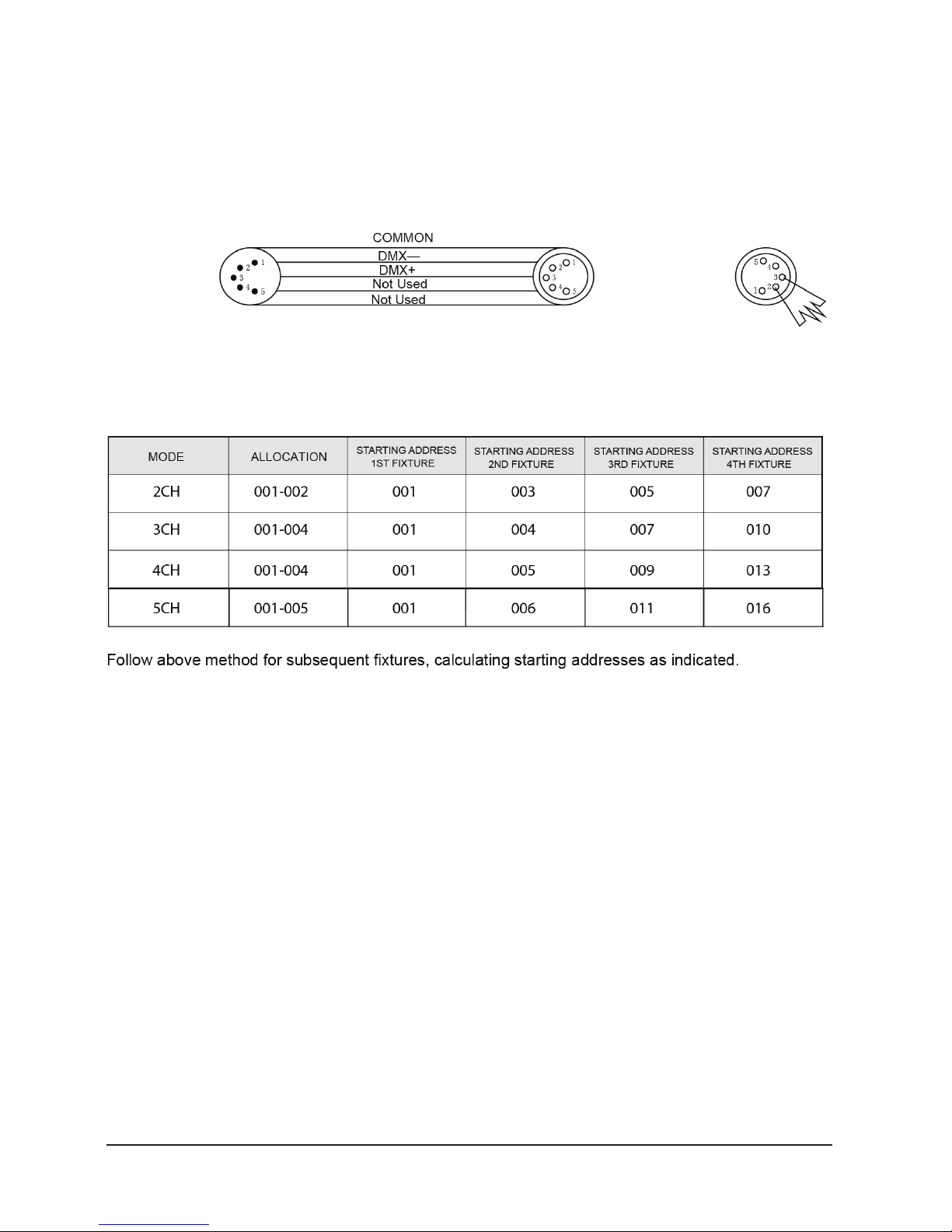

DMX 512 Controller

DMX INPUT DMX OUTPUT

Relation between DMX and Address

NEO BLINDER MKII

ENGLISH VERSION

No Main Menu Submenu Submenu Defaults Description

1 DMX Address 001 Default:001 Set DMX starting address at a value

between 001-512.

2 DMX Channel 2CH Default:5ch Selectable DMX mode 2 / 3 / 4 / 5

channels.

3CH

4CH

5CH

3Static Dimmer 255 Default:Dim-

mer=255; Strobe=0

Sets the intensity of the light output

and selects the strobe frequency

Strobe 0

4 Auto Show Auto 1 100 Default:Auto 1;

Speed:100

Three Automatic Programs available.

Auto 2 100

Auto 3 100

5 Red Shift On Default:On Turns on or oﬀ the red shift.

Oﬀ

6 Master/Slave Master Default:Slave Assign ﬁxture to operate as either

Master or Slave unit in daisy-chained

conﬁgurations.

Slave

7 Dimmer Mode Oﬀ Default:Oﬀ Four selectable dimmer curves:

OFF, Dimmer 1, 2, 3 (fast, medium,

slow ).

Dimmer 1

Dimmer 2

Dimmer 3

8 LED Frequency 600hz Default: 1200hz Five selectable PWM frequencies:

600 / 1200 / 2000 / 4000 / 25HZ.

1200hz

2000hz

4000hz

25khz

9 Fan Mode Auto Default: Auto Active, Fan control.

10 Back Light On Default:On Set delay time for menu display to

go dark at either 10, 20 or 30 sec-

onds or choose always ON.

10s

20s

30s

11 Key Lock On Default:On Password protection option.

Oﬀ

12 Information Fixture

hours

9999 Displays ﬁxture run time, software

version and UID.

Version V1.0

UIID

13 Reset Factory No Default:No Restore factory settings

Ye s
