NEFF B1861N2GB Guide de sécurité

How to connect up,

build-in, set up, use and

look after your

B1861 oven

NEFF (UK) Ltd

Table of Contents

Page

Important Information

❑Notes on disposal 3

❑Before connecting your

new appliance ... 3

❑Appliance safety considerations 4

Introducing: Your New Cooker

❑Control panel overview 5

❑Accessories 6

❑Shelf positions 6

Before Using Your Appliance for the

First Time

❑Setting the time of day 7

❑Preliminary cleaning 7

❑Initial burn-in 7

Electronic timer

❑Minute timer 8

❑Automatic timer 9+10

❑Special functions 11

❑Information 11

Baking, Roasting and Grilling

❑Definition of Oven Features 12+13

❑Switching the oven ON and OFF 14

❑Safety features 15

❑Baking 16

❑Roasting 17

❑Grilling 18

Cooking Tips and Helpful Hints 19

Defrosting and Cooking 20+21

Dough proving function 22

Page

Cleaning and Care

❑Important cleaning basics 23

❑Enamel and glass 23

❑Stainless steel front 23

❑Oven interior 23

❑Hydroclean system 24+25

❑Removing/installing the oven door 26

❑Oven light 26

❑Removing the shelf railings 26

❑Heating element 26

Service and Repair Information 27

Trouble-shooting Guide 28

Assembly Instructions

❑For the installer and kitchen expert 30

❑Installation of the built-in oven 31

Notes on disposal

❑Old appliances still have some residual

value. An environment-friendly method

of disposal will ensure that valuable raw

materials can be recovered and used

again.

Before you dispose of your old

appliance, make sure that it has been

rendered inoperable.

❑Your new appliance was protected by

suitable packaging while it was on its

way to you. All materials used for this

purpose are environment-friendly and

suitable for recycling. Please make a

contribution to protecting the

environment by disposing of the

packaging appropriately.

Up-to-date information concerning

options for disposing of your old

appliance and the packaging from the

new one can be obtained from your

retailer or local government office.

Before connecting your new

appliance

❑Before using your new appliance, please

read these Instructions for Use carefully.

They contain important information

concerning your personal safety as well

as on use and care of the appliance.

❑The Instructions for Use apply to several

versions of this appliance. Accordingly,

you may find descriptions of individual

features that do not apply to your

specific appliance.

❑Please keep the operating and

installation instructions in a safe place;

this important documentation may also

be of use to a possible subsequent

owner.

❑Do not use the appliance if it is

damaged in any way.

❑Installation and connection of the

appliance should be performed

according to the instructions and

connection diagram provided, and

should be entrusted to a licensed

specialist. In the event of a damage that

occurs as a result of improper

connection, the warranty will be void.

❑Our appliances meet the applicable

safety regulations for electrical

appliances. Repairs may be performed

only by customer service engineers

trained by the manufacturer. Inexpert

repairs may entail serious injury to you,

the user.

Important Information

Appliance safety

considerations

❑The appliance should only be used for

the preparation of food.

❑The surfaces of heating and cooking

appliances get hot during operation.

The interior oven walls and the heating

elements get extremely hot. Always

keep children away from the appliance.

❑Never leave the appliance unattended

when cooking with fat or oil. They can

catch fire if overheated.

❑Clean the oven regularly.

Fatty or oily remants could ignite when

the oven is switched on.

❑Make sure that the power cord does not

get caught in the hot oven door. The

plastic insulation could melt.

❑In the case of a defect, switch off (or

remove) the mains fuse in the building

electrical system.

❑Do not store combustible items in the

oven. They could ignite if the oven is

switched on accidentally.

❑Do not clean the oven with steam or

high-pressure cleaners.

❑Grip only the centre of the oven door

handle when opening the oven floor.

❑If using hot air v, do not place

greaseproof paper loosely in the oven

(e.g. when heating the oven).

The hot-air fan could draw in the paper

which may damage the heater and fan.

❑Do not insert a baking sheet at the

bottom of the oven, or cover the base of

the oven with aluminium foil, as this

would result in heat build up. Roasting

and baking times would change, and

the enamel would be damaged.

❑Never pour water directly into the hot

oven. Damage to the enamel could

result.

❑Dripping juices may leave spots on the

oven lining. Always place a baking tray

below to prevent this from happening.

❑Never stand or sit on the open oven

door.

❑The oven door must close properly.

Keep the door seal surfaces clean.

Introducing: Your new Oven

Note:

❑The oven light switches on for every

oven function.

Exception: Oven cleaning.

❑During the heating phase and while

re-heating to maintain oven temperature,

the oven temperature control lamp C

indicates red.

When the set temperature has been

reached, the indicator light goes out.

❑Fast Heat <may be selected in

conjunction with the circotherm and

bread baking functions.

vCircotherm and defrosting position

eConventional

(top and bottom heat)

0Radiant grill-full element

ZRadiant grill-centre element

only, for small amounts of food

ICirco-roasting

nBread-baking position

wBottom heat

SDough-proving setting

xHydroclean system

mOven light

Oven functions:

The control panel:

❑The switches are retractable.

❑To engage and disengage, depress the

switch, making sure that it is in OFF

position.

Oven temperature

control lamp

Electronic timer

Function selector with setting for preferred

temperature

Fast Heat for

vCircotherm and

nBread Baking functions

Temperature selector with oven

temperature display

Oven functions

Introducing: Your new Cooker

Shelf positions

❑Your oven features 4 shelf positions.

The shelf positions are counted from

bottom to top. The numbers are marked

in the oven.

 When using circotherm, do not

use shelf position »2«, in order not to

block air circulation.

Accessories

❑Your appliance is supplied with:

2 Wire shelves

1 Roasting/grill pan with grid

Note:

❑The baking tray or roasting pan may

distort while the oven is operating. This

is caused by major temperature

differences on the utensil. These

differences may occur if only one part of

the utensil was covered or if deep-frozen

food, e. g. pizza, was placed on the

utensil.Note:

Note:

The distortion will already subside again

during baking, roasting or grilling.

Order no.

Deep roasting pan

Baking tray, aluminium

Baking tray, enamelled

Z 1270 X2

Z 1330 X0

Z 1340 X2

Small grill-set Z 1240 X2

Supplementary equipement set – Telescopic Z 1750 X0

❑The following accessories can be obtained from the supplier of your

oven:

Before Using Your Appliance for the First Time

Time of day

❑Before you use your appliance for the

first time, it is necessary to set the

current time on the electronic timer.

❑After connecting to the mains, or after a

power failure, the display {:{{ will blink.

Setting the time:

❑Press the >button and set the current

time with the rotary knob (e.g. |Å:{{).

❑To amend the time of day, press button

>until the indicator ▲flashes unter

the +symbol.

The correct time of day can then be set.

Note: The time cannot be set if an

automatic function is active (see Electronic

clock for cancelling automatic function).

Initial burn-in

1. Preheat the empty oven for about

30 minutes.

Select vheat at a setting of 190° C.

During the initial burn-in phase, please

open the kitchen windows to dissipate

unpleasant odours.

Preliminary cleaning:

1. Clean the appliance exterior with a soft

moistened cloth.

2. Clean the oven and the accessories with

a hot detergent solution.

Electronic timer

❑The electronic timer can be operated

with one hand; after pressing the button,

set the time with the rotary knob.

Adjustments can be made for as long as

the display flashes (4 seconds).

❑Setting the time:

See section ”Before using your

appliance for the first time”.

Minute timer:

1. Press the >button and set the

cooking time (e.g. Åminutes).

When the timer switches on, the

remaining time is displayed.

2. A signal tone is emitted when the time

has elapsed and the indicator ▲flashes.

To stop the signal tone, press the >

button.

Minute timer

Cooking time Off time

Rotary knob

To engage and

disengage, depress

gently.

Setting the timer:

Time

Function indicator

Function button

Automatic timer

❑You can switch the oven on and off via

the electronic clock.

Automatic switch off:

❑If you wish to bake or roast food

immediately, it is only necessary to set

the cooking time.

1. Select the heating system and the oven

temperature.

2. Press button >until the indicator ▲

flashes under the ?symbol. Set the

required cooking duration with the rotary

control

(Example: |hour and ~{ minutes).

Approx. 4 seconds after setting the

clock reverts to time of day.

The Indicator ▲under the ?Symbol

confirms that automatic operation has

been set.

3. When the time has elapsed (e.g. |hour

and ~{ minutes), a signal is emitted and

the ▲flashes. The oven is automatically

switched off. To stop the signal, press

the >button.

4. Switch the oven off.

5. To end automatic mode, press the >

button again.

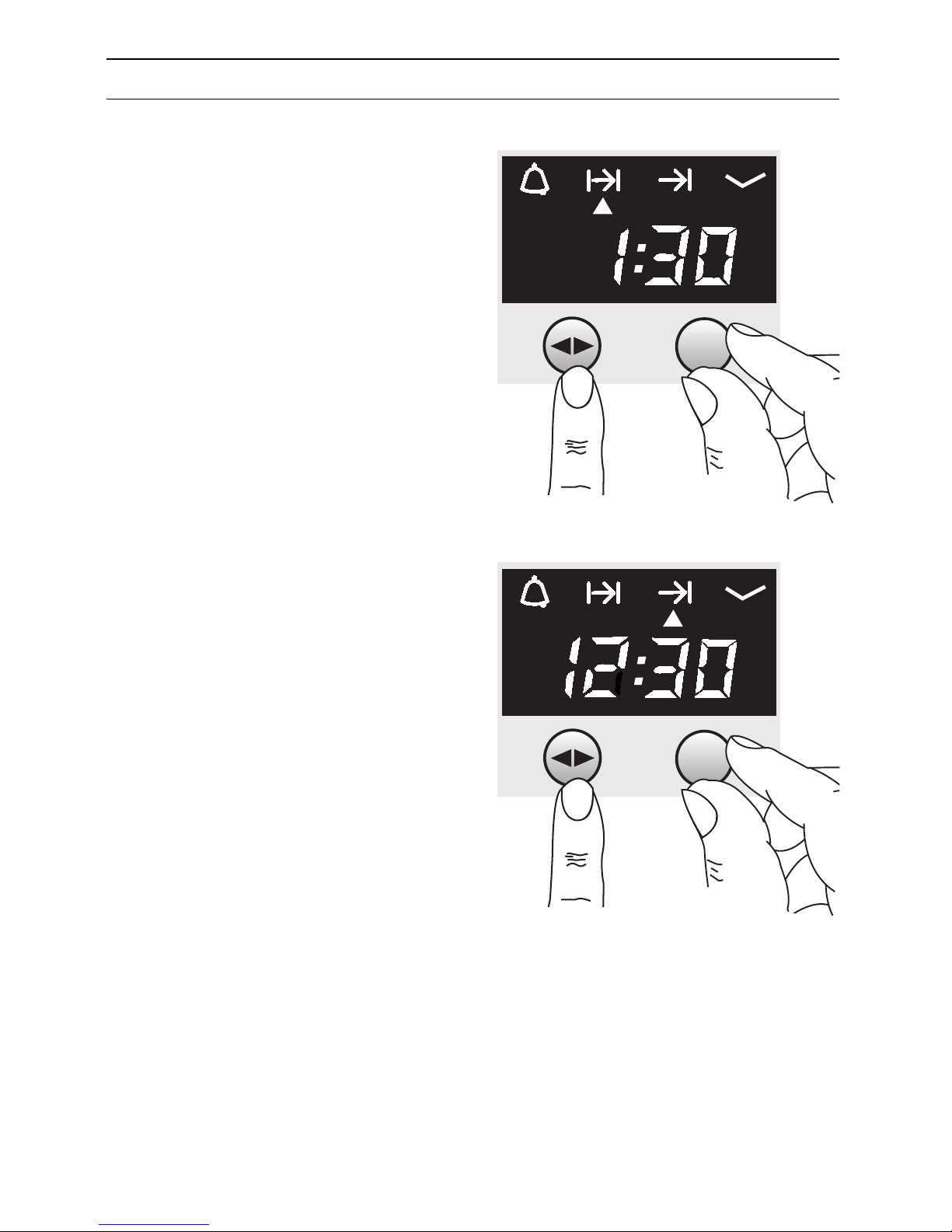

Setting the length of cooking time:

Electronic timer

Automatic switch on and switch off:

❑If the food is to be cooked later on, both

the cooking time and Off time must be set.

1. Select the heating system and the oven

temperature.

When the settings have been made, the

time of day is displayed.

2. Press button >until the indicator ▲

flashes under the ?symbol. Set the

required cooking duration with the rotary

control (Example: |hour and ~{ minutes).

3. Press button >until the indicator ▲

flashes unter the !symbol. Set the

required end of cooking time with the

rotary control (Example: |}:~{).

Approx. 4 seconds after setting the clock

reverts to time of day.

The Indicator ▲under the !

Symbol confirms that automatic operation

has been set.

4. The oven is automatically switched on and

off at the preset times (e.g. ||:{{ and

|}:~{).

5. When the time has expired, a signal is

emitted and the ▲flashes. To stop the

signal, press the >button.

6. Switch the oven off.

7. To end automatic mode, press the >

button.

Checking, correcting and cancelling

settings:

1. To check your settings, press the >

button.

2. If required, correct the settings with the

rotary knob.

3. If you want to cancel your settings, turn

the set time back to {:{{ and switch the

oven off.

Setting the length of cooking time:

Setting the end of cooking time:

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels NEFF Four

NEFF

NEFF C17MR02G0B Manuel utilisateur

NEFF

NEFF U1320B2GB Guide de sécurité

NEFF

NEFF B87VS38 0B Series Manuel utilisateur

NEFF

NEFF B1664A0 Manuel utilisateur

NEFF

NEFF B48FT78.0B Manuel utilisateur

NEFF

NEFF B44M42.5 Manuel utilisateur

NEFF

NEFF B58VT64 0B Series Manuel utilisateur

NEFF

NEFF B4ACM5H.0B Manuel utilisateur

NEFF

NEFF B47VS34 0B Series Instructions d'utilisation et d'entretien

NEFF

NEFF B1ACC2A 0 Series Manuel utilisateur

NEFF

NEFF C47D22.0 Manuel utilisateur

NEFF

NEFF C18FT34 0B Series Manuel utilisateur

NEFF

NEFF C67M70S0GB - annexe 2 Manuel utilisateur

NEFF

NEFF B16E42N0 Manuel utilisateur

NEFF

NEFF C29MS31 0 Series Instructions d'utilisation et d'entretien

NEFF

NEFF J1ACE4H.0B Manuel utilisateur

NEFF

NEFF B45E54 0 Series Manuel utilisateur

NEFF

NEFF B85H64N0MC Manuel utilisateur

NEFF

NEFF U16E74 5GB Series Manuel utilisateur

NEFF

NEFF B12S22.3GB Manuel utilisateur

NEFF

NEFF B 1452 CO Manuel utilisateur

NEFF

NEFF B15P42.3AU Manuel utilisateur

NEFF

NEFF Z1912X0 Manuel utilisateur

NEFF

NEFF E 1664 Series Manuel utilisateur

Manuels Four populaires d'autres marques

Bosch

Bosch HVA531NS0 Manuel utilisateur

Electrolux

Electrolux EOF6P46X Manuel utilisateur

Combi

Combi BLODGETT BC142GDS Manuel utilisateur

AEG

AEG COMPETENCE 311704300 Manuel utilisateur

Falcon

Falcon DOMINATOR PLUS G3106 Series Guide de l'utilisateur

Rational

Rational SCC WE 61G Manuel utilisateur

Smeg

Smeg DOSPA38X Manuel d'installation et d'exploitation

Electrolux

Electrolux air-o-convect 20 GN 2/1 Manuel utilisateur

Miele

Miele HR 1954-2 Manuel utilisateur

KHIND

KHIND OT50 Manuel utilisateur

Henny Penny

Henny Penny Smoker Box Manuel utilisateur

Lang

Lang ECOD-AP Manuel utilisateur

AEG

AEG BEK455310M Manuel utilisateur

Frigidaire

Frigidaire FNGE90JGR Manuel utilisateur

Hotpoint

Hotpoint FE9 S831 JSH IX Manuel utilisateur

GE Advantium SCB2000 Manuel utilisateur

AEG

AEG DE401301DM Manuel utilisateur

DeLonghi

DeLonghi XA660 Manuel
