Necta Astro Manuel utilisateur

Necta ASTRO to TOUCH upgrade kit

Brochure and installation manual

04 Jul 2019, Quvend Zrt. www.quvend.com

Necta ASTRO Touch screen upgrade kit by QUVEND Zrt.- MANUAL

TABLE of content

1 Introduction..................................................................................................................................... 3

2 What is in the box, tools needed..................................................................................................... 4

3 Installation....................................................................................................................................... 5

3.1 Unplug the machine from the power mains ........................................................................... 5

3.2 Disassembly of the door.......................................................................................................... 5

3.3 Installation of the Display........................................................................................................ 6

3.4 Installation of the power supply.............................................................................................. 8

3.5 Make electric shock protection tests ...................................................................................... 9

4 Programming................................................................................................................................. 10

4.1 General information.............................................................................................................. 10

4.2 Programming/custom fitting................................................................................................. 11

5 Troubleshooting- Cleaning the screen .......................................................................................... 12

6 Disclaimer...................................................................................................................................... 13

Necta ASTRO Touch screen upgrade kit by QUVEND Zrt.- MANUAL

1Introduction

This product is an upgrade kit for Necta Astro machines, and including all hardware and software to

replace the physical button of the Necta Astro to a Touch Screen.

The display does not interrupts to the machine’s software, just replacing the physical buttons do

digital ones, connect to the machine via the button cables

The display is very easy to install (takes around 30 minutess),

The display is fully customizable and very easily: by replacing –jpeg files: Languages, background,

buttons, info screens.

The monochrome display of the Astro stays on place, this display replaces the physical keys.

Necta ASTRO Touch screen upgrade kit by QUVEND Zrt.- MANUAL

2What is in the box, tools needed

What is in the box?

Display (item 1)

Display mounting kit (item 2)

Door back panels (upper and lower) (item 3)

Power supply unit (item 4)

Power supply cable (item 5)

stickers (Item 6)

Srews (item 7)

SD CARD (item 8 is inserted into the display)

Tools needed:

Screwdriver

rasp or drill

paper scalpel

Computer with paint and SC card slot

ITEM 1

ITEM 2

ITEM 3

ITEM 4

ITEM 5

ITEM 6

ITEM 7

ITEM 8

Necta ASTRO Touch screen upgrade kit by QUVEND Zrt.- MANUAL

3Installation

3.1 Unplug the machine from the power mains

3.2 Disassembly of the door

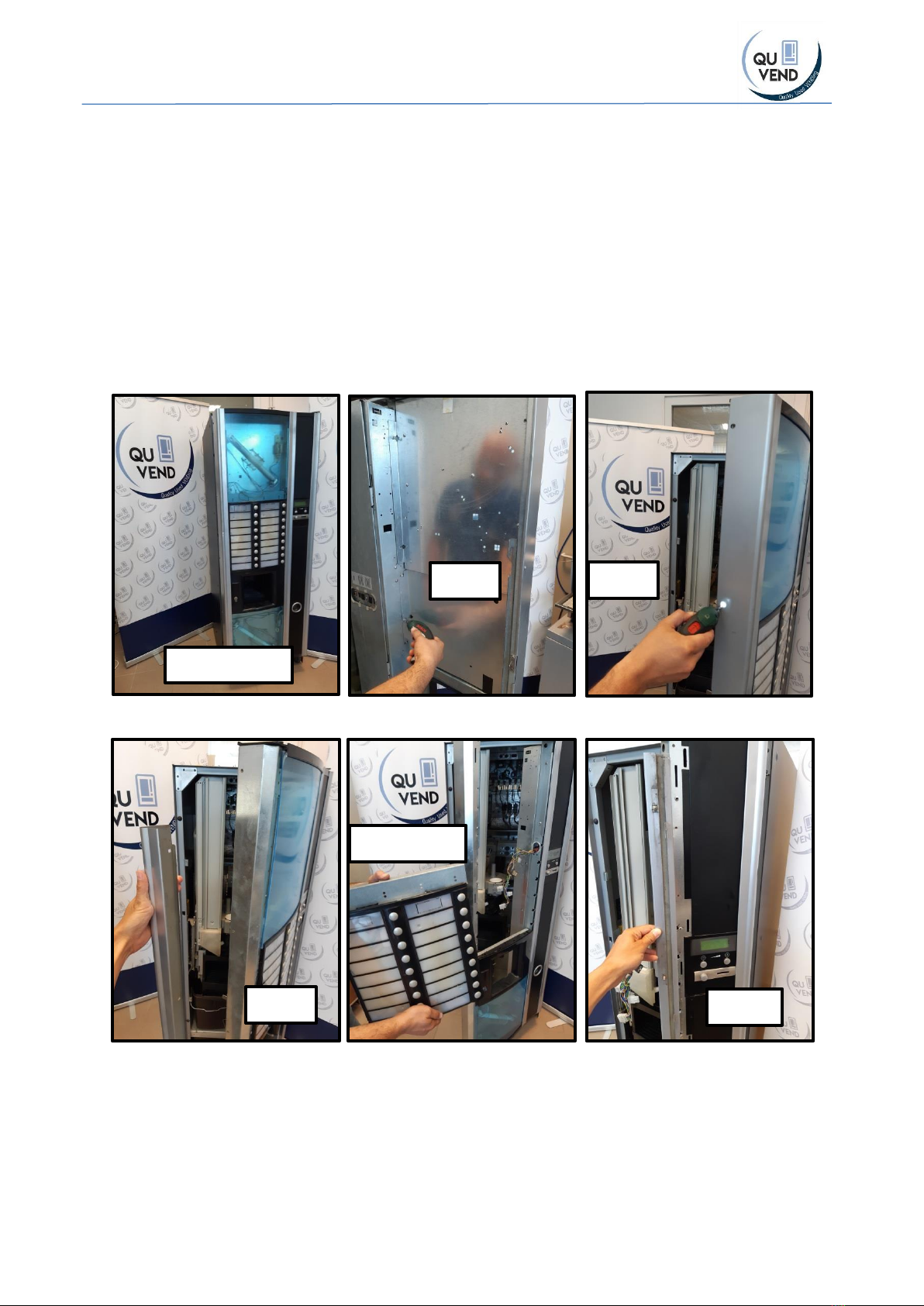

A. Remove the door back covers

B. Remove the side door cover

C. Remove the upper plastic cover

D. Disconnect and remove the keyboard and the console above

E. Remove the mid cover

F. Remove the cup door (this is not going to be replaced)

Step B Step C / D Step E

Starting point

Step A

Step B

Step C abd D

Step E

Necta ASTRO Touch screen upgrade kit by QUVEND Zrt.- MANUAL

3.3 Installation of the Display

A. Stick the 2 stickers following he signs on them (Item 6)

B. Drill or rasp holes where it is marked on the stickers

C. Replace the mid cover, but keep it loosened

D. Take the power supply unit (Item 4) and lace the plug over the electric channel (hole) of the

mid console

E. place carefully the display (Item 1)

F. Place the display mounting kit (Item 2)

G. Cut the plastic cover to appropriate size (around 405*405mm)

H. Put the resized plastic cover to its place and fasten it properly

I. Replace the side cover and also tighten the mid cover bolts

J. Connect the keyboard cables and the power supply unit to the display

K. Move the lighting form the old upper back door cover to the new one (Item 3)

Step A

Step B

Step D

Step E

Step F

Necta ASTRO Touch screen upgrade kit by QUVEND Zrt.- MANUAL

Step G

Step I

Step J

Step K

Necta ASTRO Touch screen upgrade kit by QUVEND Zrt.- MANUAL

3.4 Installation of the power supply

A. Remove the back panels (behind the canisters) of the Machine

B. Remove the right hand side metal box

C. Remove the side plate of the power supply unit (Item 4) and use it as a marker

D. Mount the power supply unit as it is in the picture

E. Power the power supply unit

F. Properly hide and fix the cables

G. Assembly the machine

Step A, B, C

Step C

Step D

Step E

Step F

Necta ASTRO Touch screen upgrade kit by QUVEND Zrt.- MANUAL

3.5 Make electric shock protection tests

Ou must be a certified mechanic to makte the installation and you need to do all of the tests needed.

Necta ASTRO Touch screen upgrade kit by QUVEND Zrt.- MANUAL

4Programming

4.1 General information

We offer 5 different theme. The Themes defines where the buttons are place on the display, but all

appearance (background, texts, prices, buttons, desing, languages) can be modified easily by

replacing proper –jpeg files

You can find an SD card in your display (Item9). It includes the software started at each booting by

the touchscreen and all of the .jpeg files. Please never remove the config.exe and the autoexec.ini

files from there.

In the root of the SD card you need to have the config.exe

The program works from the \Storage Card\touchsoft\ folder, you need to have the files you wish to

use in this folder.

.exe-the touchsoft template program

autoexec.bat (with proper calibration),


\pictures folder the pictures going to appear in the display.

oYou can find here 5 screensaver files (screensaver.jpg) These files are going to

activated after 10 minutes and going to change repetitively after 10 seconds

oYou can find in certain themes language .jpeg files

oYou can find an info .jpeg file

oIn sub directories (lang1-3) you can find the language backgrouns (if applies) and the

button .jpg files. There are 2 versions of the buttons, unpushed and pushed.

The display is rotated 90degrees from its original position, so all pictures should be also rotated to

appear properly.
